DataSvcFileEntriesTool Class Reference

Tool to scan a transient store branch that collects all the objects that belong to the same source (file). More...

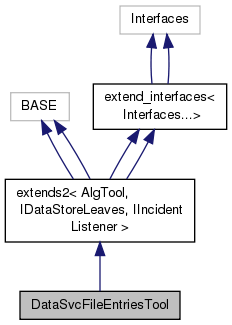

Inheritance diagram for DataSvcFileEntriesTool:

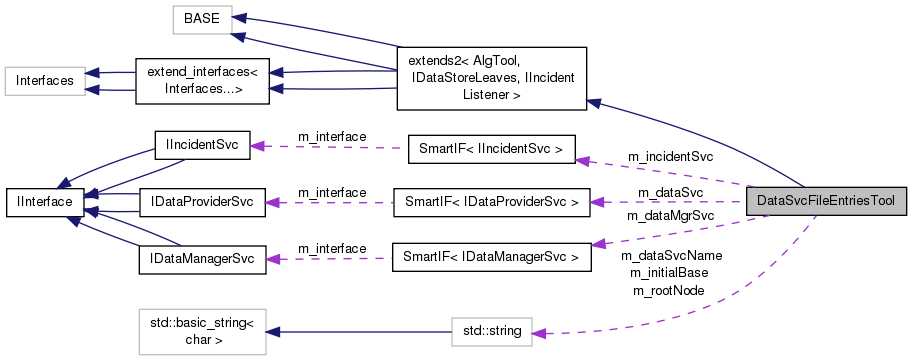

Collaboration diagram for DataSvcFileEntriesTool:

Public Member Functions
	DataSvcFileEntriesTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor. More...
	~DataSvcFileEntriesTool () override=default
	Destructor. More...
StatusCode	initialize () override
	Initialize the tool. More...
StatusCode	finalize () override
	Finalize the tool. More...
const LeavesList &	leaves () const override
	Return the list of collected objects. More...
void	handle (const Incident &incident) override
	Call-back function for the BeginEvent incident. More...
Public Member Functions inherited from extends< BASE, Interfaces >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	~extends () override=default
	Virtual destructor. More...
Public Member Functions inherited from extend_interfaces< Interfaces...>
	~extend_interfaces () override=default
	Virtual destructor. More...
	~extend_interfaces () override=default
	Virtual destructor. More...

Private Member Functions
void	i_collectLeaves ()
	Scan the data service starting from the node specified as Root. More...
void	i_collectLeaves (IRegistry *reg)
	Scan the data service starting from the specified node. More...
IRegistry *	i_getRootNode ()
	Return the pointer to the IRegistry object associated to the node specified as Root. More...

Private Attributes
std::string	m_dataSvcName
	Variable for the property DataService. More...
std::string	m_rootNode
	Variable for the property Root. More...
bool	m_scanOnBeginEvent
	Variable for the property ScanOnBeginEvent. More...
SmartIF< IIncidentSvc >	m_incidentSvc
	Pointer to the incident service. More...
SmartIF< IDataManagerSvc >	m_dataMgrSvc
	Pointer to the IDataManagerSvc interface of the data service. More...
SmartIF< IDataProviderSvc >	m_dataSvc
	Pointer to the IDataProviderSvc interface of the data service. More...
LeavesList	m_leaves
	Internal cache for the list of objects found during the scan. More...
std::string	m_initialBase
	File ID of the Root node. More...
bool	m_ignoreOriginChange
	Variable for the property ScanOnBeginEvent. More...

Additional Inherited Members
Public Types inherited from extends< BASE, Interfaces >
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
using	base_class = extends
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces...>
	Typedef to the base of this class. More...
Public Types inherited from extend_interfaces< Interfaces...>
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

Detailed Description

Tool to scan a transient store branch that collects all the objects that belong to the same source (file).

By default, the list of entries is cached and the cache is cleared at every BeginEvent incident.

Properties:

DataService (string): Name of the data service to use [EventDataSvc]

Root (string): Path to the element from which to start the scan [root of the data service]

ScanOnBeginEvent (bool): If the scan has to be started during the BeginEvent incident (true) or on demand (false, default)

Definition at line 26 of file DataSvcFileEntriesTool.cpp.

Constructor & Destructor Documentation

DataSvcFileEntriesTool::DataSvcFileEntriesTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

Definition at line 102 of file DataSvcFileEntriesTool.cpp.

                               :
   base_class(type, name, parent) {

  declareProperty("DataService", m_dataSvcName = "EventDataSvc",
      "Name of the data service to use");

  declareProperty("Root", m_rootNode,
      "Path to the element from which to start the scan");

  declareProperty("ScanOnBeginEvent", m_scanOnBeginEvent = false,
      "If the scan has to be started during the BeginEvent incident (true) or on demand (false, default)");

  declareProperty("IgnoreOriginChange", m_ignoreOriginChange = false,
      "Disable the detection of the change in the origin of object between the BeginEvent and the scan");
}

DataSvcFileEntriesTool::~DataSvcFileEntriesTool ( )

overridedefault

Destructor.

Member Function Documentation

StatusCode DataSvcFileEntriesTool::finalize ( )

override

Finalize the tool.

Definition at line 153 of file DataSvcFileEntriesTool.cpp.

                                           {
  // unregister from the incident service
  if (m_incidentSvc) {
    m_incidentSvc->removeListener(this, IncidentType::BeginEvent);
  }
  // Release the services
  m_incidentSvc.reset();
  m_dataMgrSvc.reset();
  m_dataSvc.reset();

  return AlgTool::finalize();
}

void DataSvcFileEntriesTool::handle ( const Incident &  incident )

override

Call-back function for the BeginEvent incident.

Clears the internal cache, cache the file ID of the Root node and, if the property ScanOnBeginEvent is set to true, scans the data service.

Definition at line 166 of file DataSvcFileEntriesTool.cpp.

                                                            {
  // Get the file id of the root node at every event
  IOpaqueAddress *addr = i_getRootNode()->address();
  if (addr)
    m_initialBase = addr->par()[0];
  else
    m_initialBase.clear(); // use empty file id if there is no address

  m_leaves.clear();
  if (m_scanOnBeginEvent) {
    MsgStream log(msgSvc(), name());
    log << MSG::VERBOSE << "::handle scanning on " << incident.type() << endmsg;
    i_collectLeaves();
  }
}

void DataSvcFileEntriesTool::i_collectLeaves ( )

private

Scan the data service starting from the node specified as Root.

Definition at line 199 of file DataSvcFileEntriesTool.cpp.

                                             {
  i_collectLeaves(i_getRootNode());
}

void DataSvcFileEntriesTool::i_collectLeaves ( IRegistry *  reg )

private

Scan the data service starting from the specified node.

todo: implement the scanning as an IDataStoreAgent

Definition at line 204 of file DataSvcFileEntriesTool.cpp.

                                                           {
  MsgStream log(msgSvc(), name());
  // I do not put sanity checks on the pointers because I know how I'm calling the function
  IOpaqueAddress *addr = reg->address();
  if (addr) { // we consider only objects that are in a file
    if (outputLevel() <= MSG::VERBOSE)
      log << MSG::VERBOSE << "::i_collectLeaves added " << reg->identifier() << endmsg;
    m_leaves.push_back(reg->object()); // add this object
    // Origin of the current object
    const std::string& base = addr->par()[0];
    // Compare with the origin seen during BeginEvent
    if ( !m_ignoreOriginChange && (m_initialBase != base) )
      throw GaudiException("Origin of data has changed ('"
                           + m_initialBase + "' !=  '" + base
                           + "'), probably OutputStream was called before "
                               "InputCopyStream: check options",
                           name(), StatusCode::FAILURE);

    std::vector<IRegistry*> lfs; // leaves of the current object
    StatusCode sc = m_dataMgrSvc->objectLeaves(reg, lfs);
    if (sc.isSuccess()) {
      for(const auto& i : lfs) {
        // Continue if the leaf has the same database as the parent
        if ( i->address() && i->address()->par()[0] == base )  {
          DataObject* obj = nullptr;
          sc = m_dataSvc->retrieveObject(reg, i->name(), obj);
          if (sc.isSuccess())  {
            i_collectLeaves(i);
          } else {
            throw GaudiException("Cannot get " + i->identifier() + " from " + m_dataSvcName, name(), StatusCode::FAILURE);
          }
        }
      }
    }
  }
}

IRegistry * DataSvcFileEntriesTool::i_getRootNode ( )

private

Return the pointer to the IRegistry object associated to the node specified as Root.

Definition at line 189 of file DataSvcFileEntriesTool.cpp.

                                                 {
  DataObject * obj = nullptr;
  StatusCode sc = m_dataSvc->retrieveObject(m_rootNode, obj);
  if (sc.isFailure()) {
    throw GaudiException("Cannot get " + m_rootNode + " from " + m_dataSvcName, name(), StatusCode::FAILURE);
  }
  return obj->registry();
}

StatusCode DataSvcFileEntriesTool::initialize ( )

override

Initialize the tool.

Definition at line 120 of file DataSvcFileEntriesTool.cpp.

                                             {
  StatusCode sc = AlgTool::initialize();
  if (sc.isFailure()) return sc;

  // Retrieve the pointer to the needed services.

  m_incidentSvc = serviceLocator()->service("IncidentSvc");
  if ( ! m_incidentSvc ) {
    MsgStream log(msgSvc(), name());
    log << MSG::ERROR << "Cannot get IncidentSvc" << endmsg;
    return StatusCode::FAILURE;
  }

  m_dataMgrSvc = m_dataSvc = serviceLocator()->service(m_dataSvcName);
  if ( ! m_dataSvc || ! m_dataMgrSvc ) {
    MsgStream log(msgSvc(), name());
    log << MSG::ERROR << "Cannot get IDataProviderSvc+IDataManagerSvc " << m_dataSvcName << endmsg;
    return StatusCode::FAILURE;
  }

  // Register ourself to the incident service as listener for BeginEvent
  m_incidentSvc->addListener(this, IncidentType::BeginEvent);

  // If the Root node is not specified, take the name from the data service itself.
  if (m_rootNode.empty()) {
    m_rootNode = m_dataMgrSvc->rootName();
  }

  // Clear the cache (in case the instance is re-initilized).
  m_leaves.clear();
  return StatusCode::SUCCESS;
}

const IDataStoreLeaves::LeavesList & DataSvcFileEntriesTool::leaves ( ) const

override

Return the list of collected objects.

If the scan was not yet done since the last BeginEvent incident, it is done when calling this function. The result of the scan is cached.

Definition at line 182 of file DataSvcFileEntriesTool.cpp.

                                                                        {
  if (m_leaves.empty()) {
    const_cast<DataSvcFileEntriesTool*>(this)->i_collectLeaves();
  }
  return m_leaves;
}

Member Data Documentation

SmartIF<IDataManagerSvc> DataSvcFileEntriesTool::m_dataMgrSvc

private

Pointer to the IDataManagerSvc interface of the data service.

Definition at line 65 of file DataSvcFileEntriesTool.cpp.

SmartIF<IDataProviderSvc> DataSvcFileEntriesTool::m_dataSvc

private

Pointer to the IDataProviderSvc interface of the data service.

Definition at line 67 of file DataSvcFileEntriesTool.cpp.

std::string DataSvcFileEntriesTool::m_dataSvcName

private

Variable for the property DataService.

Definition at line 56 of file DataSvcFileEntriesTool.cpp.

bool DataSvcFileEntriesTool::m_ignoreOriginChange

private

Variable for the property ScanOnBeginEvent.

Definition at line 88 of file DataSvcFileEntriesTool.cpp.

SmartIF<IIncidentSvc> DataSvcFileEntriesTool::m_incidentSvc

private

Pointer to the incident service.

Definition at line 63 of file DataSvcFileEntriesTool.cpp.

std::string DataSvcFileEntriesTool::m_initialBase

private

File ID of the Root node.

It is cached every BeginEvent to be compared with the one seen during the collection of the leaves, to avoid that the collection is altered by previous calls to an OutputStream.

Definition at line 85 of file DataSvcFileEntriesTool.cpp.

LeavesList DataSvcFileEntriesTool::m_leaves

private

Internal cache for the list of objects found during the scan.

Definition at line 70 of file DataSvcFileEntriesTool.cpp.

std::string DataSvcFileEntriesTool::m_rootNode

private

Variable for the property Root.

Definition at line 58 of file DataSvcFileEntriesTool.cpp.

bool DataSvcFileEntriesTool::m_scanOnBeginEvent

private

Variable for the property ScanOnBeginEvent.

Definition at line 60 of file DataSvcFileEntriesTool.cpp.

---

The documentation for this class was generated from the following file:

• GaudiCommonSvc/src/PersistencySvc/DataSvcFileEntriesTool.cpp
