#include <GaudiTools/ITupleTool.h>

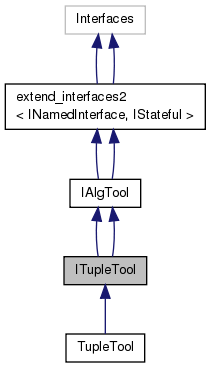

Inheritance diagram for ITupleTool:

Collaboration diagram for ITupleTool:

Public Types
typedef Tuples::TupleID	TupleID

typedef Tuples::Tuple	Tuple

typedef Tuples::TupleID	TupleID

typedef Tuples::Tuple	Tuple

Public Types inherited from extend_interfaces< Interfaces >
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids...>::type
	take union of the ext_iids of all Interfaces... More...

Public Member Functions
	DeclareInterfaceID (ITupleTool, 2, 0)
	InterfaceID. More...

virtual Tuple	nTuple (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const =0
	get N-tuple object ( book on-demand ) with unique identifier More...

virtual Tuple	nTuple (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_ColumnWiseTuple) const =0

virtual Tuple	evtCol (const std::string &title, const CLID &clid=CLID_RowWiseTuple) const =0

virtual Tuple	evtCol (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_RowWiseTuple) const =0

	DeclareInterfaceID (ITupleTool, 2, 0)
	InterfaceID. More...

virtual Tuple	nTuple (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const =0
	get N-tuple object ( book on-demand ) with unique identifier More...

virtual Tuple	nTuple (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_ColumnWiseTuple) const =0

virtual Tuple	evtCol (const std::string &title, const CLID &clid=CLID_RowWiseTuple) const =0

virtual Tuple	evtCol (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_RowWiseTuple) const =0

Public Member Functions inherited from IAlgTool
	DeclareInterfaceID (IAlgTool, 4, 0)
	InterfaceID. More...

	~IAlgTool () override=default
	Virtual destructor. More...

virtual const std::string &	type () const =0
	The type of an AlgTool, meaning the concrete AlgTool class. More...

virtual const IInterface *	parent () const =0
	The parent of the concrete AlgTool. More...

virtual const DataObjectDescriptorCollection &	inputDataObjects () const =0

virtual const DataObjectDescriptorCollection &	outputDataObjects () const =0

virtual StatusCode	sysInitialize ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysStart ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysStop ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysFinalize ()=0
	Finalization of the Tool. More...

virtual StatusCode	sysReinitialize ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysRestart ()=0
	Initialization of the Tool. More...

	DeclareInterfaceID (IAlgTool, 4, 0)
	InterfaceID. More...

	~IAlgTool () override=default
	Virtual destructor. More...

virtual const std::string &	type () const =0
	The type of an AlgTool, meaning the concrete AlgTool class. More...

virtual const IInterface *	parent () const =0
	The parent of the concrete AlgTool. More...

virtual const DataObjectDescriptorCollection &	inputDataObjects () const =0

virtual const DataObjectDescriptorCollection &	outputDataObjects () const =0

virtual StatusCode	sysInitialize ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysStart ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysStop ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysFinalize ()=0
	Finalization of the Tool. More...

virtual StatusCode	sysReinitialize ()=0
	Initialization of the Tool. More...

virtual StatusCode	sysRestart ()=0
	Initialization of the Tool. More...

Public Member Functions inherited from extend_interfaces< Interfaces >
	~extend_interfaces () override=default
	Virtual destructor. More...

	~extend_interfaces () override=default
	Virtual destructor. More...

Protected Member Functions
	~ITupleTool () override=default
	Destructor. More...

	~ITupleTool () override=default
	Destructor. More...

Detailed Description

Author: Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru

Date: 2004-06-28

Definition at line 31 of file ITupleTool.h.

Member Typedef Documentation

typedef Tuples::Tuple ITupleTool::Tuple

Definition at line 38 of file ITupleTool.h.

typedef Tuples::Tuple ITupleTool::Tuple

Definition at line 38 of file ITupleTool.h.

typedef Tuples::TupleID ITupleTool::TupleID

Definition at line 37 of file ITupleTool.h.

typedef Tuples::TupleID ITupleTool::TupleID

Definition at line 37 of file ITupleTool.h.

Constructor & Destructor Documentation

ITupleTool::~ITupleTool ( )

overrideprotecteddefault

Destructor.

ITupleTool::~ITupleTool ( )

overrideprotecteddefault

Destructor.

Member Function Documentation

ITupleTool::DeclareInterfaceID	(	ITupleTool	,
		2	,
		0
	)

InterfaceID.

ITupleTool::DeclareInterfaceID	(	ITupleTool	,
		2	,
		0
	)

InterfaceID.

virtual Tuple ITupleTool::evtCol	(	const std::string &	title,
		const CLID &	clid = `CLID_RowWiseTuple`
	)		const

pure virtual

Implemented in TupleTool.

virtual Tuple ITupleTool::evtCol	(	const std::string &	title,
		const CLID &	clid = `CLID_RowWiseTuple`
	)		const

pure virtual

Implemented in TupleTool.

virtual Tuple ITupleTool::evtCol	(	const TupleID &	ID,
		const std::string &	title = `""`,
		const CLID &	clid = `CLID_RowWiseTuple`
	)		const

pure virtual

Implemented in TupleTool.

virtual Tuple ITupleTool::evtCol	(	const TupleID &	ID,
		const std::string &	title = `""`,
		const CLID &	clid = `CLID_RowWiseTuple`
	)		const

pure virtual

Implemented in TupleTool.

virtual Tuple ITupleTool::nTuple	(	const std::string &	title,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)		const

pure virtual

get N-tuple object ( book on-demand ) with unique identifier

ITupleTool* tool = .. ;
Tuple tuple = tool->nTuple( 'My tuple' ) ;
tuple->column( "A" , sin(0.1) );
tuple->column( "B" , cos(0.1) );
tuple->column( "C" , tan(0.1) );
tuple->write()

NTuple will be booked with automatically assigned numerical ID

Parameters

title	unique title for ntuple
clid	class identifier

Returns: ntuple object

Implemented in TupleTool.

virtual Tuple ITupleTool::nTuple	(	const std::string &	title,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)		const

pure virtual

get N-tuple object ( book on-demand ) with unique identifier

ITupleTool* tool = .. ;
Tuple tuple = tool->nTuple( 'My tuple' ) ;
tuple->column( "A" , sin(0.1) );
tuple->column( "B" , cos(0.1) );
tuple->column( "C" , tan(0.1) );
tuple->write()

NTuple will be booked with automatically assigned numerical ID

Parameters

title	unique title for ntuple
clid	class identifier

Returns: ntuple object

Implemented in TupleTool.

virtual Tuple ITupleTool::nTuple	(	const TupleID &	ID,
		const std::string &	title = `""`,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)		const

pure virtual

Implemented in TupleTool.

virtual Tuple ITupleTool::nTuple	(	const TupleID &	ID,
		const std::string &	title = `""`,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)		const

pure virtual

Implemented in TupleTool.

The documentation for this class was generated from the following file:

InstallArea/x86_64-slc6-gcc49-opt/include/GaudiAlg/ITupleTool.h
