INTupleItem Class Reference

NTuple interface class definition. More...

#include <GaudiKernel/INTuple.h>

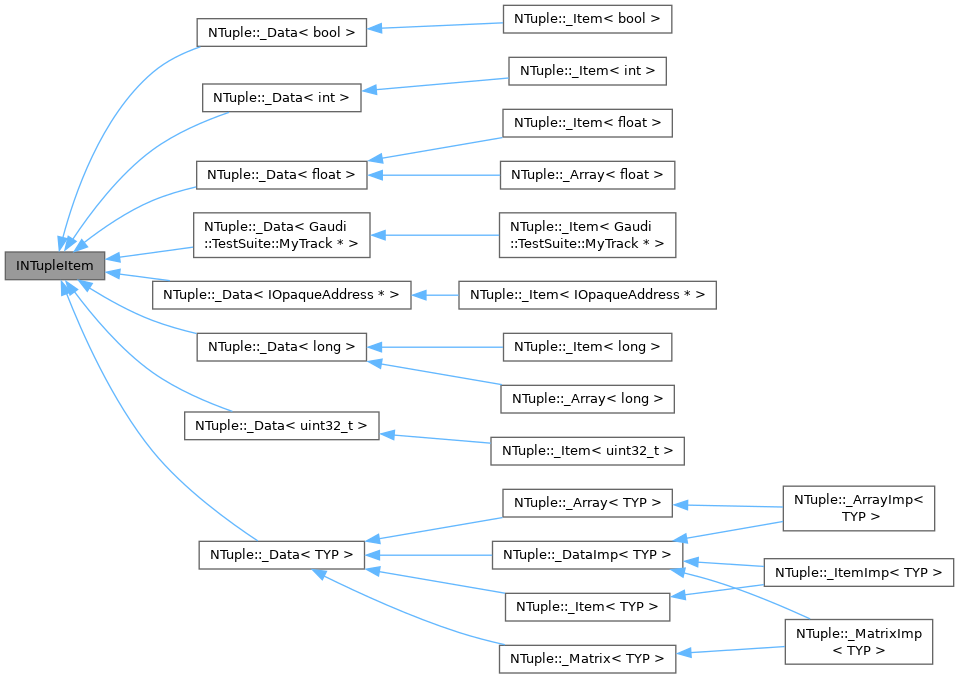

Inheritance diagram for INTupleItem:

Public Member Functions
virtual	~INTupleItem ()=default
	destructor
virtual void	release ()=0
	Destruct object.
virtual const std::type_info &	typeID () const =0
	Compiler type ID.
virtual std::string	typeName () const =0
	Proper type name of the object.
virtual const void *	buffer () const =0
	Access data buffer (CONST)
virtual bool	hasIndex () const =0
	Is the tuple have an index item?
virtual const std::string &	index () const =0
	Access the index _Item.
virtual const std::string &	name () const =0
	Access _Item name.
virtual long	type () const =0
	Type information of the item.
virtual long	length () const =0
	Access the buffer length.
virtual void	reset ()=0
	Reset column.
virtual long	ndim () const =0
	Dimension.
virtual long	dim (long i) const =0
	Access individual dimensions.
virtual long	size () const =0
	Size of entire object.
virtual long	filled () const =0
	Number of items filled.
virtual INTupleItem *	indexItem ()=0
	Pointer to index column (if present, 0 else)
virtual const INTupleItem *	indexItem () const =0
	Pointer to index column (if present, 0 else) (CONST)
virtual INTuple *	tuple ()=0
	NTuple the item belongs to.

Protected Member Functions
virtual void	setType (long typ)=0
	Set the properties of the INTupleItem.

Detailed Description

NTuple interface class definition.

Definition of the interface to an Ntuple class beeing a sequence(=Item) of data entries.

Author

M.Frank

Definition at line 32 of file INTuple.h.

Constructor & Destructor Documentation

~INTupleItem()

virtual INTupleItem::~INTupleItem ( )

virtualdefault

destructor

Member Function Documentation

buffer()

virtual const void * INTupleItem::buffer ( ) const

pure virtual

Access data buffer (CONST)

Implemented in NTuple::_DataImp< TYP >.

dim()

virtual long INTupleItem::dim ( long i ) const

pure virtual

Access individual dimensions.

Implemented in NTuple::_ArrayImp< TYP >, NTuple::_DataImp< TYP >, and NTuple::_MatrixImp< TYP >.

filled()

virtual long INTupleItem::filled ( ) const

pure virtual

Number of items filled.

Implemented in NTuple::_DataImp< TYP >.

hasIndex()

virtual bool INTupleItem::hasIndex ( ) const

pure virtual

Is the tuple have an index item?

Implemented in NTuple::_DataImp< TYP >.

index()

virtual const std::string & INTupleItem::index ( ) const

pure virtual

Access the index _Item.

Implemented in NTuple::_DataImp< TYP >.

indexItem() [1/2]

virtual const INTupleItem * INTupleItem::indexItem ( ) const

pure virtual

Pointer to index column (if present, 0 else) (CONST)

Implemented in NTuple::_DataImp< TYP >.

indexItem() [2/2]

virtual INTupleItem * INTupleItem::indexItem ( )

pure virtual

Pointer to index column (if present, 0 else)

Implemented in NTuple::_DataImp< TYP >.

length()

virtual long INTupleItem::length ( ) const

pure virtual

Access the buffer length.

Implemented in NTuple::_DataImp< TYP >.

name()

virtual const std::string & INTupleItem::name ( ) const

pure virtual

Access _Item name.

Implemented in NTuple::_DataImp< TYP >.

ndim()

virtual long INTupleItem::ndim ( ) const

pure virtual

Dimension.

Implemented in NTuple::_ArrayImp< TYP >, NTuple::_DataImp< TYP >, and NTuple::_MatrixImp< TYP >.

release()

virtual void INTupleItem::release ( )

pure virtual

Destruct object.

Implemented in NTuple::_DataImp< TYP >.

reset()

virtual void INTupleItem::reset ( )

pure virtual

Reset column.

Implemented in NTuple::_DataImp< TYP >.

setType()

virtual void INTupleItem::setType ( long typ )

protectedpure virtual

Set the properties of the INTupleItem.

Implemented in NTuple::_DataImp< TYP >.

size()

virtual long INTupleItem::size ( ) const

pure virtual

Size of entire object.

Implemented in NTuple::_ArrayImp< TYP >, NTuple::_DataImp< TYP >, NTuple::_ItemImp< TYP >, and NTuple::_MatrixImp< TYP >.

tuple()

virtual INTuple * INTupleItem::tuple ( )

pure virtual

NTuple the item belongs to.

Implemented in NTuple::_DataImp< TYP >.

type()

virtual long INTupleItem::type ( ) const

pure virtual

Type information of the item.

Implemented in NTuple::_DataImp< TYP >.

typeID()

virtual const std::type_info & INTupleItem::typeID ( ) const

pure virtual

Compiler type ID.

Implemented in NTuple::_DataImp< TYP >.

typeName()

virtual std::string INTupleItem::typeName ( ) const

pure virtual

Proper type name of the object.

Implemented in NTuple::_DataImp< TYP >.

---

The documentation for this class was generated from the following file:

• GaudiKernel/include/GaudiKernel/INTuple.h
