Definition of a default type of Histogram Axis It contains number of bins, min and max value plus a title and defines the basic type of Axis (non log) It may also contain labels for the bins. More...

#include </builds/gaudi/Gaudi/GaudiKernel/include/Gaudi/Accumulators/StaticHistogram.h>

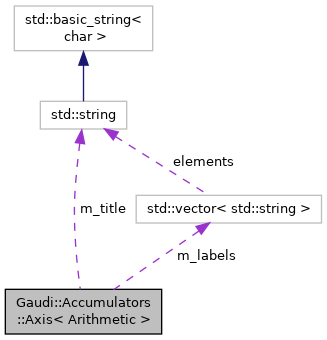

Collaboration diagram for Gaudi::Accumulators::Axis< Arithmetic >:

[legend]

Public Types
using	ArithmeticType = Arithmetic

Public Member Functions
	Axis (unsigned int nBins=0, Arithmetic minValue=Arithmetic{}, Arithmetic maxValue=Arithmetic{}, std::string title={}, std::vector< std::string > labels={})

	Axis (Gaudi::Histo1DDef const &def)

unsigned int	index (Arithmetic value) const
	returns the bin number for a given value, ranging from 0 (underflow) to nBins+1 (overflow)

bool	inAcceptance (Arithmetic value) const
	says whether the given value is within the range of the axis

unsigned int	numBins () const

void	setNumBins (unsigned int n)

Arithmetic	minValue () const

void	setMinValue (Arithmetic v)

Arithmetic	maxValue () const

void	setMaxValue (Arithmetic v)

std::string const &	title () const

void	setTitle (std::string const &t)

std::vector< std::string > const &	labels () const

Public Attributes
unsigned int	nBins
	number of bins for this Axis FIXME : should be private and called m_nBins but will break backward compatibility with previous implementation.

Private Member Functions
void	recomputeRatio ()

Private Attributes
std::string	m_title
	title of this axis

Arithmetic	m_minValue
	min and max values on this axis

Arithmetic	m_maxValue

Arithmetic	m_ratio
	precomputed ratio to convert a value into bin number equal to nBins/(maxValue-minValue).

std::vector< std::string >	m_labels
	labels for the bins

Friends
std::ostream &	operator<< (std::ostream &o, Axis const &axis)

Detailed Description

template<typename Arithmetic>
class Gaudi::Accumulators::Axis< Arithmetic >

Definition of a default type of Histogram Axis It contains number of bins, min and max value plus a title and defines the basic type of Axis (non log) It may also contain labels for the bins.

Definition at line 229 of file StaticHistogram.h.

Member Typedef Documentation

◆ ArithmeticType

template<typename Arithmetic>

using Gaudi::Accumulators::Axis< Arithmetic >::ArithmeticType = Arithmetic

Definition at line 231 of file StaticHistogram.h.

Constructor & Destructor Documentation

◆ Axis() [1/2]

template<typename Arithmetic>

Gaudi::Accumulators::Axis< Arithmetic >::Axis	(	unsigned int	nBins = 0,
		Arithmetic	minValue = Arithmetic{},
		Arithmetic	maxValue = Arithmetic{},
		std::string	title = {},
		std::vector< std::string >	labels = {} )

inline

Definition at line 232 of file StaticHistogram.h.

                                                                  {}, Arithmetic maxValue = Arithmetic{},
          std::string title = {}, std::vector<std::string> labels = {} )
        : m_title( std::move( title ) )
        , nBins( nBins )
        , m_minValue( minValue )
        , m_maxValue( maxValue )
        , m_labels( std::move( labels ) ) {
      details::requireValidTitle( m_title );
      recomputeRatio();
      for ( const auto& s : m_labels ) details::requireValidTitle( s );
    }

◆ Axis() [2/2]

template<typename Arithmetic>

Gaudi::Accumulators::Axis< Arithmetic >::Axis ( Gaudi::Histo1DDef const & def )

inlineexplicit

Definition at line 243 of file StaticHistogram.h.

244 : Axis( (unsigned int)def.bins(), def.lowEdge(), def.highEdge(), def.title() ) {}

Gaudi::Accumulators::Axis::Axis

Axis(unsigned int nBins=0, Arithmetic minValue=Arithmetic{}, Arithmetic maxValue=Arithmetic{}, std::string title={}, std::vector< std::string > labels={})

Definition StaticHistogram.h:232

Member Function Documentation

◆ inAcceptance()

template<typename Arithmetic>

bool Gaudi::Accumulators::Axis< Arithmetic >::inAcceptance ( Arithmetic value ) const

inline

says whether the given value is within the range of the axis

Definition at line 272 of file StaticHistogram.h.

272{ return value >= m_minValue && value <= m_maxValue; }

◆ index()

template<typename Arithmetic>

unsigned int Gaudi::Accumulators::Axis< Arithmetic >::index ( Arithmetic value ) const

inline

returns the bin number for a given value, ranging from 0 (underflow) to nBins+1 (overflow)

Definition at line 247 of file StaticHistogram.h.

                                                 {
      // In case we use integer as Arithmetic type, we cannot use ratio for computing indices,
      // as ratios < 1.0 will simply be 0, so we have to pay the division in such a case
      int idx;
      if constexpr ( std::is_integral_v<Arithmetic> ) {
        idx = ( ( value - m_minValue ) * nBins / ( m_maxValue - m_minValue ) ) + 1;
      } else {
        auto floatIdx = std::floor( ( value - m_minValue ) * m_ratio ) + 1;
        // Converting NaN or infinity to int is undefined behaviour
        if ( !std::isfinite( floatIdx ) ) { return floatIdx > 0 ? numBins() + 1 : 0; }
        idx = static_cast<int>( floatIdx );
      }
      return idx < 0 ? 0 : ( (unsigned int)idx > numBins() ? numBins() + 1 : (unsigned int)idx );
    }

◆ labels()

template<typename Arithmetic>

std::vector< std::string > const & Gaudi::Accumulators::Axis< Arithmetic >::labels ( ) const

inline

Definition at line 292 of file StaticHistogram.h.

292{ return m_labels; }

◆ maxValue()

template<typename Arithmetic>

Arithmetic Gaudi::Accumulators::Axis< Arithmetic >::maxValue ( ) const

inline

Definition at line 285 of file StaticHistogram.h.

285{ return m_maxValue; }

◆ minValue()

template<typename Arithmetic>

Arithmetic Gaudi::Accumulators::Axis< Arithmetic >::minValue ( ) const

inline

Definition at line 280 of file StaticHistogram.h.

280{ return m_minValue; }

◆ numBins()

template<typename Arithmetic>

unsigned int Gaudi::Accumulators::Axis< Arithmetic >::numBins ( ) const

inline

Definition at line 275 of file StaticHistogram.h.

275{ return nBins; }

◆ recomputeRatio()

template<typename Arithmetic>

void Gaudi::Accumulators::Axis< Arithmetic >::recomputeRatio ( )

inlineprivate

Definition at line 314 of file StaticHistogram.h.

                          {
      m_ratio = ( m_maxValue == m_minValue ) ? Arithmetic{} : nBins / ( m_maxValue - m_minValue );
    }

◆ setMaxValue()

template<typename Arithmetic>

void Gaudi::Accumulators::Axis< Arithmetic >::setMaxValue ( Arithmetic v )

inline

Definition at line 286 of file StaticHistogram.h.

                                           {
      m_maxValue = v;
      recomputeRatio();
    }

◆ setMinValue()

template<typename Arithmetic>

void Gaudi::Accumulators::Axis< Arithmetic >::setMinValue ( Arithmetic v )

inline

Definition at line 281 of file StaticHistogram.h.

                                           {
      m_minValue = v;
      recomputeRatio();
    }

◆ setNumBins()

template<typename Arithmetic>

void Gaudi::Accumulators::Axis< Arithmetic >::setNumBins ( unsigned int n )

inline

Definition at line 276 of file StaticHistogram.h.

                                              {
      nBins = n;
      recomputeRatio();
    }

◆ setTitle()

template<typename Arithmetic>

void Gaudi::Accumulators::Axis< Arithmetic >::setTitle ( std::string const & t )

inline

Definition at line 291 of file StaticHistogram.h.

291{ m_title = t; }

◆ title()

template<typename Arithmetic>

std::string const & Gaudi::Accumulators::Axis< Arithmetic >::title ( ) const

inline

Definition at line 290 of file StaticHistogram.h.

290{ return m_title; }

Friends And Related Symbol Documentation

◆ operator<<

template<typename Arithmetic>

std::ostream & operator<<	(	std::ostream &	o,
		Axis< Arithmetic > const &	axis )

friend

Definition at line 262 of file StaticHistogram.h.

                                                                     {
      // Note that we print python code here, as the generic toStream implementation uses this
      // operator to generate python code.
      o << "(" << axis.numBins() << ", " << axis.minValue() << ", " << axis.maxValue() << ", "
        << "\"" << axis.m_title << "\", (";
      for ( auto const& label : axis.m_labels ) { o << "\"" << label << "\", "; }
      return o << "))";
    }

Member Data Documentation

◆ m_labels

template<typename Arithmetic>

std::vector<std::string> Gaudi::Accumulators::Axis< Arithmetic >::m_labels

private

labels for the bins

Definition at line 312 of file StaticHistogram.h.

◆ m_maxValue

template<typename Arithmetic>

Arithmetic Gaudi::Accumulators::Axis< Arithmetic >::m_maxValue

private

Definition at line 305 of file StaticHistogram.h.

◆ m_minValue

template<typename Arithmetic>

Arithmetic Gaudi::Accumulators::Axis< Arithmetic >::m_minValue

private

min and max values on this axis

Definition at line 305 of file StaticHistogram.h.

◆ m_ratio

template<typename Arithmetic>

Arithmetic Gaudi::Accumulators::Axis< Arithmetic >::m_ratio

private

precomputed ratio to convert a value into bin number equal to nBins/(maxValue-minValue).

Only used for floating Arithmetic

Definition at line 310 of file StaticHistogram.h.

◆ m_title

template<typename Arithmetic>

std::string Gaudi::Accumulators::Axis< Arithmetic >::m_title

private

title of this axis

Definition at line 296 of file StaticHistogram.h.

◆ nBins

template<typename Arithmetic>

unsigned int Gaudi::Accumulators::Axis< Arithmetic >::nBins

number of bins for this Axis FIXME : should be private and called m_nBins but will break backward compatibility with previous implementation.

Definition at line 301 of file StaticHistogram.h.

The documentation for this class was generated from the following file:

GaudiKernel/include/Gaudi/Accumulators/StaticHistogram.h
