Gaudi::FSMCallbackHolder< BASE > Class Template Reference

Helper class to implement the IFSMCallbackHolder interface. More...

#include </builds/gaudi/Gaudi/GaudiKernel/include/Gaudi/FSMCallbackHolder.h>

Inheritance diagram for Gaudi::FSMCallbackHolder< BASE >:

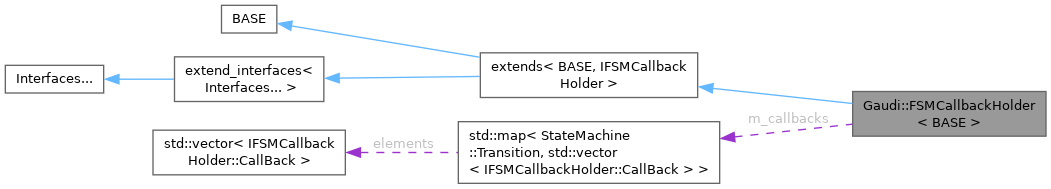

Collaboration diagram for Gaudi::FSMCallbackHolder< BASE >:

Public Types
using	Parent = extends<BASE, IFSMCallbackHolder>
Public Types inherited from extends< BASE, IFSMCallbackHolder >
using	base_class
	Typedef to this class.
using	extend_interfaces_base
	Typedef to the base of this class.
using	base_class
	Typedef to this class.
using	extend_interfaces_base
	Typedef to the base of this class.
Public Types inherited from extend_interfaces< Interfaces... >
using	ext_iids
	take union of the ext_iids of all Interfaces...

Public Member Functions
void	registerCallBack (StateMachine::Transition s, IFSMCallbackHolder::CallBack c) override
StatusCode	sysInitialize () override
StatusCode	sysStart () override
StatusCode	sysStop () override
StatusCode	sysFinalize () override
Public Member Functions inherited from extends< BASE, IFSMCallbackHolder >
void const *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast.
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface.
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames.
void const *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast.
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface.
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames.

Private Member Functions
void	handleCallBacks (StateMachine::Transition state)

Private Attributes
std::map< StateMachine::Transition, std::vector< IFSMCallbackHolder::CallBack > >	m_callbacks

Detailed Description

template<class BASE>
class Gaudi::FSMCallbackHolder< BASE >

Helper class to implement the IFSMCallbackHolder interface.

FSMCallbackHolder is used by components base classes (Algorithm, Tool, etc.) to provide a default implementation the IFSMCallbackHolder interface.

When needing to implement the IFSMCallbackHolder interface in a class, it is enough to wrap the base of the class with FSMCallbackHolder, as in

class MyClass : public FSMCallbackHolder<BaseClass> {
  // ...
};

Definition at line 37 of file FSMCallbackHolder.h.

Member Typedef Documentation

Parent

template<class BASE>

using Gaudi::FSMCallbackHolder< BASE >::Parent = extends<BASE, IFSMCallbackHolder>

Definition at line 40 of file FSMCallbackHolder.h.

Member Function Documentation

handleCallBacks()

template<class BASE>

void Gaudi::FSMCallbackHolder< BASE >::handleCallBacks ( StateMachine::Transition state )

inlineprivate

Definition at line 61 of file FSMCallbackHolder.h.

                                                         {
      std::for_each( m_callbacks[state].begin(), m_callbacks[state].end(),
                     []( IFSMCallbackHolder::CallBack const& c ) { c(); } );
    }

registerCallBack()

template<class BASE>

void Gaudi::FSMCallbackHolder< BASE >::registerCallBack ( StateMachine::Transition s, IFSMCallbackHolder< BASE >::CallBack c )

inlineoverride

Definition at line 43 of file FSMCallbackHolder.h.

                                                                                             {
      m_callbacks[s].push_back( std::move( c ) );
    }

sysFinalize()

template<class BASE>

StatusCode Gaudi::FSMCallbackHolder< BASE >::sysFinalize ( )

inlineoverride

Definition at line 56 of file FSMCallbackHolder.h.

                                      {
      return Parent::sysFinalize().andThen( [&]() { handleCallBacks( StateMachine::FINALIZE ); } );
    }

sysInitialize()

template<class BASE>

StatusCode Gaudi::FSMCallbackHolder< BASE >::sysInitialize ( )

inlineoverride

Definition at line 47 of file FSMCallbackHolder.h.

                                        {
      return Parent::sysInitialize().andThen( [&]() { handleCallBacks( StateMachine::INITIALIZE ); } );
    }

sysStart()

template<class BASE>

StatusCode Gaudi::FSMCallbackHolder< BASE >::sysStart ( )

inlineoverride

Definition at line 50 of file FSMCallbackHolder.h.

                                   {
      return Parent::sysStart().andThen( [&]() { handleCallBacks( StateMachine::START ); } );
    }

sysStop()

template<class BASE>

StatusCode Gaudi::FSMCallbackHolder< BASE >::sysStop ( )

inlineoverride

Definition at line 53 of file FSMCallbackHolder.h.

                                  {
      return Parent::sysStop().andThen( [&]() { handleCallBacks( StateMachine::STOP ); } );
    }

Member Data Documentation

m_callbacks

template<class BASE>

std::map<StateMachine::Transition, std::vector<IFSMCallbackHolder::CallBack> > Gaudi::FSMCallbackHolder< BASE >::m_callbacks

private

Definition at line 66 of file FSMCallbackHolder.h.

---

The documentation for this class was generated from the following file:

• GaudiKernel/include/Gaudi/FSMCallbackHolder.h
