EventCollectionSelector Class Reference

#include <EventCollectionSelector.h>

Inheritance diagram for EventCollectionSelector:

Inheritance graph
[legend]

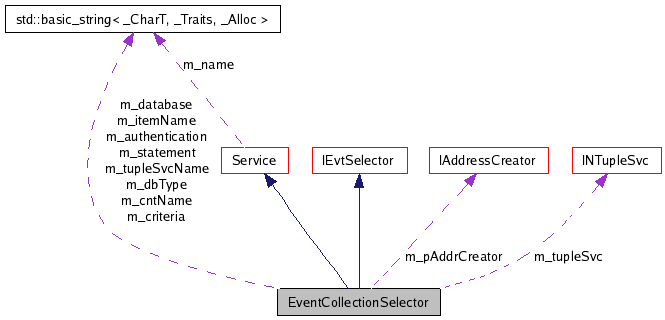

Collaboration diagram for EventCollectionSelector:

Collaboration graph
[legend]
List of all members.

Detailed Description

Definition of class EventCollectionSelector.

Basic event selector service. The event selector service itself is able to connect other services to attached streams.

History: +---------+----------------------------------------------+---------+ | Date | Comment | Who | +---------+----------------------------------------------+---------+ | 3/10/00 | Initial version | M.Frank | +---------+----------------------------------------------+---------+

Author:
Markus Frank
Version:
1.0

Definition at line 41 of file EventCollectionSelector.h.

Public Member Functions

virtual StatusCode initialize ()
 Service override: Initialize service.
virtual StatusCode finalize ()
 Service override: Finalize Service.
virtual StatusCode queryInterface (const InterfaceID &riid, void **ppvInterface)
 Service override: query interfaces.
virtual StatusCode createContext (Context *&refpCtxt) const

Parameters:
refpCtxt [IN/OUT] Reference to pointer to store the context

virtual StatusCode next (Context &refCtxt) const

Parameters:
refCtxt [IN/OUT] Reference to the context

virtual StatusCode next (Context &refCtxt, int jump) const

Parameters:
refCtxt [IN/OUT] Reference to the context

virtual StatusCode previous (Context &refCtxt) const

Parameters:
refCtxt [IN/OUT] Reference to the context

virtual StatusCode previous (Context &refCtxt, int jump) const

Parameters:
refCtxt [IN/OUT] Reference to the context

virtual StatusCode rewind (Context &refCtxt) const

Parameters:
refCtxt [IN/OUT] Reference to the context

virtual StatusCode createAddress (const Context &refCtxt, IOpaqueAddress *&refpAddr) const

Parameters:
refCtxt [IN/OUT] Reference to the context

virtual StatusCode releaseContext (Context *&refCtxt) const

Parameters:
refCtxt [IN/OUT] Reference to the context

virtual StatusCode resetCriteria (const std::string &cr, Context &c) const
 Will set a new criteria for the selection of the next list of events and will change the state of the context in a way to point to the new list.
virtual StatusCode last (Context &refCtxt) const
 Access last item in the iteration.
virtual StatusCode connectCollection (MyContextType *ctxt) const
 Connect collection to selector.
virtual StatusCode connectDataSource (const std::string &db, const std::string &typ) const
 Connect collection's data source to selector.
virtual StatusCode connectTuple (const std::string &nam, const std::string &itName, NTuple::Tuple *&tup, NTuple::Item< IOpaqueAddress * > *&item) const
 Connect to existing N-tuple.
virtual StatusCode connectStatement (const std::string &typ, const std::string &crit, INTuple *tuple) const
 Connect selection statement to refine data access.
virtual StatusCode getNextRecord (NTuple::Tuple *tuple) const
 Read next record of the N-tuple.
virtual StatusCode getPreviousRecord (NTuple::Tuple *tuple) const
 Read next record of the N-tuple.
 EventCollectionSelector (const std::string &name, ISvcLocator *svcloc)
 Standard Constructor.
 ~EventCollectionSelector ()
 Standard Destructor.

Protected Attributes

INTupleSvc * m_tupleSvc
 Reference to Tuple service.
IAddressCreator * m_pAddrCreator
std::string m_tupleSvcName
 Name of the event collection service name.
std::string m_authentication
 Authentication string (if needed).
std::string m_cntName
 Container name.
std::string m_itemName
 Item name.
std::string m_criteria
 Criteria.
std::string m_database
 Datafile name.
std::string m_dbType
 Database type identifier.
std::string m_statement
 Selector name.

Classes

class  MyContextType

Constructor & Destructor Documentation

EventCollectionSelector::EventCollectionSelector ( const std::string &  name,
ISvcLocator *  svcloc
)

Standard Constructor.

Definition at line 79 of file EventCollectionSelector.cpp.

References Service::declareProperty(), m_authentication, m_cntName, m_criteria, m_database, m_dbType, m_itemName, m_pAddrCreator, m_statement, and m_tupleSvcName.

00080   : Service( name, svcloc), m_tupleSvc(0)
00081 {
00082   m_pAddrCreator = 0;
00083   declareProperty("CnvService",    m_tupleSvcName = "EvtTupleSvc");
00084   declareProperty("Authentication",m_authentication= "");
00085   declareProperty("Container",     m_cntName  = "B2PiPi");
00086   declareProperty("Item",          m_itemName = "Address");
00087   declareProperty("Criteria",      m_criteria = "");
00088   declareProperty("DB",            m_database = "");
00089   declareProperty("DbType",        m_dbType   = "");
00090   declareProperty("Function",      m_statement= "NTuple::Selector");
00091 }

EventCollectionSelector::~EventCollectionSelector (  )

Standard Destructor.

Definition at line 93 of file EventCollectionSelector.cpp.

00093                                                     {
00094 }

Member Function Documentation

StatusCode EventCollectionSelector::initialize (  )  [virtual]

Service override: Initialize service.

Reimplemented from Service.

Definition at line 97 of file EventCollectionSelector.cpp.

References endreq(), MSG::ERROR, Service::initialize(), StatusCode::isSuccess(), m_pAddrCreator, m_tupleSvc, m_tupleSvcName, Service::messageService(), Service::name(), ISvcLocator::service(), and Service::serviceLocator().

00097                                                   {
00098   // Initialize base class
00099   StatusCode status = Service::initialize();
00100   MsgStream log(messageService(), name());
00101   if ( !status.isSuccess() )    {
00102     log << MSG::ERROR << "Error initializing base class Service!" << endreq;
00103     return status;
00104   }
00105   status = serviceLocator()->service("EventPersistencySvc", m_pAddrCreator, true );
00106   if( !status.isSuccess() )   {
00107     log << MSG::ERROR << "Unable to locate IAddressCreator interface of " << "EventPersistencySvc" << endreq;
00108     return status;
00109   }
00110   status = serviceLocator()->service(m_tupleSvcName, m_tupleSvc, true );
00111   if( !status.isSuccess() )   {
00112     log << MSG::ERROR << "Unable to locate INTupleSvc interface of " << m_tupleSvcName << endreq;
00113     return status;
00114   }
00115   return status;
00116 }

StatusCode EventCollectionSelector::finalize (  )  [virtual]

Service override: Finalize Service.

Reimplemented from Service.

Definition at line 250 of file EventCollectionSelector.cpp.

References Service::finalize(), m_pAddrCreator, m_tupleSvc, and IInterface::release().

00250                                                 {
00251   if ( m_pAddrCreator )  {
00252     m_pAddrCreator->release();
00253     m_pAddrCreator = 0;
00254   }
00255   if ( m_tupleSvc )  {
00256     m_tupleSvc->release();
00257     m_tupleSvc = 0;
00258   }
00259   return Service::finalize();
00260 }

StatusCode EventCollectionSelector::queryInterface ( const InterfaceID &  riid,
void **  ppvInterface
) [virtual]

Service override: query interfaces.

Reimplemented from Service.

Definition at line 396 of file EventCollectionSelector.cpp.

References Service::addRef(), IID_IEvtSelector, Service::queryInterface(), and IInterface::SUCCESS.

00396                                                                                                 {
00397   if ( riid == IID_IEvtSelector )  {
00398     *ppvInterface = (IEvtSelector*)this;
00399     addRef();
00400     return SUCCESS;
00401   }
00402   return Service::queryInterface( riid, ppvInterface );
00403 }

StatusCode EventCollectionSelector::createContext ( Context *&  refpCtxt  )  const [virtual]

Parameters:
refpCtxt [IN/OUT] Reference to pointer to store the context

Returns:
StatusCode indicating success or failure

Definition at line 264 of file EventCollectionSelector.cpp.

References connectCollection(), endreq(), MSG::ERROR, std::auto_ptr< _Tp >::get(), StatusCode::isSuccess(), m_database, Service::msgSvc(), Service::name(), std::auto_ptr< _Tp >::release(), and StatusCode::SUCCESS.

00265 {
00266   refpCtxt = 0;
00267   std::auto_ptr<MyContextType> ctxt(new MyContextType());
00268   StatusCode status = connectCollection(ctxt.get());
00269   if( !status.isSuccess() )  {
00270     MsgStream log(msgSvc(), name());
00271     log << MSG::ERROR << "Unable to connect Collection file \"" << m_database << "\"" << endreq;
00272     return status;
00273   }
00274   refpCtxt = ctxt.release();
00275   return StatusCode::SUCCESS;
00276 }

StatusCode EventCollectionSelector::next ( Context &  refCtxt  )  const [virtual]

Parameters:
refCtxt [IN/OUT] Reference to the context

Returns:
StatusCode indicating success or failure

Definition at line 280 of file EventCollectionSelector.cpp.

00281 {
00282   return next(refCtxt, 1);
00283 }

StatusCode EventCollectionSelector::next ( Context &  refCtxt,
int  jump
) const [virtual]

Parameters:
refCtxt [IN/OUT] Reference to the context

Returns:
StatusCode indicating success or failure

Definition at line 287 of file EventCollectionSelector.cpp.

References EventCollectionSelector::MyContextType::addressBuffer, StatusCode::FAILURE, getNextRecord(), EventCollectionSelector::MyContextType::item, StatusCode::SUCCESS, and EventCollectionSelector::MyContextType::tuple.

00288 {
00289   MyContextType *ctxt  = dynamic_cast<MyContextType*>(&refCtxt);
00290   if ( ctxt )    {
00291     *(ctxt->item) = ctxt->addressBuffer;
00292     StatusCode sc = StatusCode::SUCCESS;
00293     for ( int i=0; i<jump && sc.isSuccess(); ++i ) {
00294       sc = getNextRecord(ctxt->tuple);
00295     }
00296     return sc;
00297   }
00298   return StatusCode::FAILURE;
00299 }

StatusCode EventCollectionSelector::previous ( Context &  refCtxt  )  const [virtual]

Parameters:
refCtxt [IN/OUT] Reference to the context

Parameters:
jump [IN] Number of events to be skipped
Returns:
StatusCode indicating success or failure

Definition at line 303 of file EventCollectionSelector.cpp.

00304 {
00305   return previous(refCtxt, 1);
00306 }

StatusCode EventCollectionSelector::previous ( Context &  refCtxt,
int  jump
) const [virtual]

Parameters:
refCtxt [IN/OUT] Reference to the context

Parameters:
jump [IN] Number of events to be skipped
Returns:
StatusCode indicating success or failure

Definition at line 310 of file EventCollectionSelector.cpp.

References EventCollectionSelector::MyContextType::addressBuffer, StatusCode::FAILURE, getPreviousRecord(), EventCollectionSelector::MyContextType::item, StatusCode::SUCCESS, and EventCollectionSelector::MyContextType::tuple.

00311 {
00312   MyContextType *ctxt  = dynamic_cast<MyContextType*>(&refCtxt);
00313   if ( ctxt )    {
00314     *(ctxt->item) = ctxt->addressBuffer;
00315     StatusCode sc = StatusCode::SUCCESS;
00316     for ( int i=0; i<jump && sc.isSuccess(); ++i ) {
00317       sc = getPreviousRecord(ctxt->tuple);
00318     }
00319     return sc;
00320   }
00321   return StatusCode::FAILURE;
00322 }

StatusCode EventCollectionSelector::rewind ( Context &  refCtxt  )  const [virtual]

Parameters:
refCtxt [IN/OUT] Reference to the context

Returns:
StatusCode indicating success or failure

Definition at line 326 of file EventCollectionSelector.cpp.

References StatusCode::FAILURE.

00327 {
00328   return StatusCode::FAILURE;
00329 }

StatusCode EventCollectionSelector::createAddress ( const Context &  refCtxt,
IOpaqueAddress *&  refpAddr
) const [virtual]

Parameters:
refCtxt [IN/OUT] Reference to the context

Parameters:
refpAddr [OUT] Reference to address pointer
Returns:
StatusCode indicating success or failure

Definition at line 333 of file EventCollectionSelector.cpp.

References IOpaqueAddress::clID(), IAddressCreator::createAddress(), endreq(), MSG::ERROR, StatusCode::FAILURE, IOpaqueAddress::ipar(), StatusCode::isSuccess(), EventCollectionSelector::MyContextType::item, m_pAddrCreator, Service::msgSvc(), Service::name(), IOpaqueAddress::par(), StatusCode::SUCCESS, and IOpaqueAddress::svcType().

00334 {
00335   const MyContextType* ctxt = dynamic_cast<const MyContextType*>(&refCtxt);
00336   if ( ctxt )   {
00337     IOpaqueAddress* pA = *(ctxt->item);
00338     if ( pA )  {
00339       IOpaqueAddress* pAddress = 0;
00340       StatusCode status = m_pAddrCreator->createAddress(pA->svcType(),
00341                                                         pA->clID(),
00342                                                         pA->par(),
00343                                                         pA->ipar(),
00344                                                         pAddress);
00345       if ( status.isSuccess() )   {
00346         refpAddr = pAddress;
00347         return StatusCode::SUCCESS;
00348       }
00349       else    {
00350         MsgStream log(msgSvc(), name());
00351         log << MSG::ERROR << "Failed to access " << pA->par()[0]
00352             << ":" << pA->par()[1]
00353             << " SvcTyp:" << long(pA->svcType())
00354             << " CLID:"   << pA->clID()
00355             << endreq;
00356       }
00357     }
00358   }
00359   return StatusCode::FAILURE;
00360 }

StatusCode EventCollectionSelector::releaseContext ( Context *&  refCtxt  )  const [virtual]

Parameters:
refCtxt [IN/OUT] Reference to the context

Returns:
StatusCode indicating success or failure

Definition at line 364 of file EventCollectionSelector.cpp.

References StatusCode::FAILURE, and StatusCode::SUCCESS.

00365 {
00366   MyContextType *ctxt  = dynamic_cast<MyContextType*>(refCtxt);
00367   if ( ctxt )   {
00368     delete ctxt;
00369     ctxt = 0;
00370     return StatusCode::SUCCESS;
00371   }
00372   return StatusCode::FAILURE;
00373 }

StatusCode EventCollectionSelector::resetCriteria ( const std::string &  cr,
Context &  c
) const [virtual]

Will set a new criteria for the selection of the next list of events and will change the state of the context in a way to point to the new list.

Parameters:
cr The new criteria string.
c Reference pointer to the Context object.
Returns:
StatusCode indicating success or failure

Definition at line 378 of file EventCollectionSelector.cpp.

References EventCollectionSelector::MyContextType::criteria, StatusCode::FAILURE, and StatusCode::SUCCESS.

00379 {
00380   MyContextType *ctxt  = dynamic_cast<MyContextType*>(&refCtxt);
00381   if ( ctxt )   {
00382     ctxt->criteria = cr;
00383     return StatusCode::SUCCESS;
00384   }
00385   return StatusCode::FAILURE;
00386 }

StatusCode EventCollectionSelector::last ( Context &  refCtxt  )  const [virtual]

Access last item in the iteration.

Parameters:
refCtxt [IN/OUT] Reference to the Context object.
Returns:
StatusCode indicating success or failure

Definition at line 390 of file EventCollectionSelector.cpp.

References StatusCode::FAILURE.

00391 {
00392   return StatusCode::FAILURE;
00393 }

StatusCode EventCollectionSelector::connectCollection ( MyContextType *  ctxt  )  const [virtual]

Connect collection to selector.

Definition at line 230 of file EventCollectionSelector.cpp.

References connectDataSource(), connectStatement(), connectTuple(), StatusCode::FAILURE, StatusCode::isSuccess(), EventCollectionSelector::MyContextType::item, m_cntName, m_criteria, m_database, m_dbType, m_itemName, m_statement, and EventCollectionSelector::MyContextType::tuple.

Referenced by createContext().

00231 {
00232   if ( ctxt )  {
00233     StatusCode status = connectDataSource(m_database, m_dbType);
00234     if ( status.isSuccess() )   {
00235       status = connectTuple(m_cntName, m_itemName, ctxt->tuple, ctxt->item);
00236       if ( status.isSuccess() )   {
00237         status = connectStatement(m_statement, m_criteria, ctxt->tuple);
00238         if ( status.isSuccess() )   {
00239           *(ctxt->item) = 0;
00240           return status;
00241         }
00242       }
00243     }
00244     return status;
00245   }
00246   return StatusCode::FAILURE;
00247 }

StatusCode EventCollectionSelector::connectDataSource ( const std::string &  db,
const std::string &  typ
) const [virtual]

Connect collection's data source to selector.

Definition at line 120 of file EventCollectionSelector.cpp.

References StatusCode::FAILURE, IID_IDataSourceMgr, SmartIFBase< TYPE >::isValid(), std::basic_string< _CharT, _Traits, _Alloc >::length(), m_authentication, m_database, m_dbType, m_tupleSvc, Service::name(), and std::basic_string< _CharT, _Traits, _Alloc >::substr().

Referenced by connectCollection().

00120                                                                                                   {
00121   StatusCode status = StatusCode::FAILURE;
00122   SmartIF<IDataSourceMgr> svc(IID_IDataSourceMgr, m_tupleSvc);
00123   if ( svc.isValid( ) && db.length() > 0 )   {
00124     std::string ident = name() + ' ';
00125     ident += "DATAFILE='" + m_database.substr(5,m_database.length()) + "' ";
00126     ident += "TYP='" + m_dbType + "' ";
00127     ident += "OPT='READ' ";
00128     if ( m_authentication.length() > 0 )    {
00129       ident += "AUTH='" + m_authentication + "' ";
00130     }
00131     status = svc->connect(ident);
00132   }
00133   return status;
00134 }

StatusCode EventCollectionSelector::connectTuple ( const std::string &  nam,
const std::string &  itName,
NTuple::Tuple *&  tup,
NTuple::Item< IOpaqueAddress * > *&  item
) const [virtual]

Connect to existing N-tuple.

Definition at line 138 of file EventCollectionSelector.cpp.

References endreq(), MSG::ERROR, StatusCode::isSuccess(), m_tupleSvc, Service::msgSvc(), Service::name(), and IDataProviderSvc::retrieveObject().

Referenced by connectCollection().

00138                                                                                                                                                  {
00139   std::string top = "/NTUPLES/" + name() + '/' + nam;
00140   StatusCode status = m_tupleSvc->retrieveObject(top, (DataObject*&)tup);
00141   if ( status.isSuccess() )    {
00142     item = new NTuple::Item<IOpaqueAddress*>();
00143     status = tup->item(itName, *item);
00144     if ( status.isSuccess() )   {
00145       return status;
00146     }
00147     else    {
00148       MsgStream log(msgSvc(), name());
00149       log << MSG::ERROR << "Item " << itName << " is not part of the collection:" << top << endreq;
00150     }
00151     delete item;
00152     item = 0;
00153   }
00154   else  {
00155     MsgStream err(msgSvc(), name());
00156     err << MSG::ERROR << "Cannot connect to collection:" << top << endreq;
00157   }
00158   tup = 0;
00159   return status;
00160 }

StatusCode EventCollectionSelector::connectStatement ( const std::string &  typ,
const std::string &  crit,
INTuple *  tuple
) const [virtual]

Connect selection statement to refine data access.

Definition at line 164 of file EventCollectionSelector.cpp.

References INTuple::attachSelector(), StatusCode::FAILURE, StatusCode::ignore(), IID_ISelectStatement, SmartIFBase< TYPE >::isValid(), std::basic_string< _CharT, _Traits, _Alloc >::length(), Service::serviceLocator(), and StatusCode::SUCCESS.

Referenced by connectCollection().

00164                                                                                                             {
00165   std::string seltyp = typ;
00166   if ( seltyp.length() > 0 || crit.length() > 0 )   {
00167     if ( crit.length() > 0 && seltyp.length() == 0 ) seltyp = "NTuple::Selector";
00168     SmartIF<ISelectStatement> stmt(IID_ISelectStatement,
00169       ROOT::Reflex::PluginService::Create<IInterface*>(seltyp, (IInterface*)serviceLocator()));
00170     if ( stmt.isValid( ) )    {
00171       if ( crit.length() > 0 ) stmt->setCriteria(crit);
00172       tuple->attachSelector(stmt).ignore();
00173       return StatusCode::SUCCESS;
00174     }
00175     return StatusCode::FAILURE;
00176   }
00177   return StatusCode::SUCCESS;
00178 }

StatusCode EventCollectionSelector::getNextRecord ( NTuple::Tuple *  tuple  )  const [virtual]

Read next record of the N-tuple.

Definition at line 181 of file EventCollectionSelector.cpp.

References StatusCode::FAILURE, StatusCode::isSuccess(), m_tupleSvc, INTupleSvc::readRecord(), and INTuple::selector().

Referenced by next().

00181                                                                             {
00182   StatusCode status = StatusCode::FAILURE;
00183   if ( 0 != tuple )   {
00184     do {
00185       status = m_tupleSvc->readRecord(tuple);
00186       if ( status.isSuccess() )   {
00187         ISelectStatement* statement = tuple->selector();
00188         bool use_it = (statement) ? (*statement)(tuple) : true;
00189         if ( use_it )   {
00190           return status;
00191         }
00192       }
00193     } while ( status.isSuccess() );
00194   }
00195   return status;
00196 }

StatusCode EventCollectionSelector::getPreviousRecord ( NTuple::Tuple *  tuple  )  const [virtual]

Read next record of the N-tuple.

Definition at line 199 of file EventCollectionSelector.cpp.

References IRegistry::address(), StatusCode::FAILURE, IOpaqueAddress::ipar(), StatusCode::isSuccess(), m_tupleSvc, INTupleSvc::readRecord(), DataObject::registry(), and INTuple::selector().

Referenced by previous().

00199                                                                                  {
00200   StatusCode status = StatusCode::FAILURE;
00201   if ( tuple )  {
00202     IRegistry* pReg = tuple->registry();
00203     if ( pReg )  {
00204       IOpaqueAddress* pAddr = pReg->address();
00205       if ( pAddr )  {
00206         long* ip = (long*)pAddr->ipar();
00207         do {
00208           if ( ip[1] > 1 )  {
00209             ip[1] -= 2;
00210             status = m_tupleSvc->readRecord(tuple);
00211             if ( status.isSuccess() )   {
00212               ISelectStatement* statement = tuple->selector();
00213               bool use_it = (statement) ? (*statement)(tuple) : true;
00214               if ( use_it )   {
00215                 return status;
00216               }
00217             }
00218           }
00219           else  {
00220             return StatusCode::FAILURE;
00221           }
00222         } while ( status.isSuccess() );
00223       }
00224     }
00225   }
00226   return StatusCode::FAILURE;
00227 }

Member Data Documentation

INTupleSvc* EventCollectionSelector::m_tupleSvc [mutable, protected]

Reference to Tuple service.

Definition at line 79 of file EventCollectionSelector.h.

Referenced by connectDataSource(), connectTuple(), finalize(), getNextRecord(), getPreviousRecord(), and initialize().

IAddressCreator* EventCollectionSelector::m_pAddrCreator [mutable, protected]

Definition at line 80 of file EventCollectionSelector.h.

Referenced by createAddress(), EventCollectionSelector(), finalize(), and initialize().

std::string EventCollectionSelector::m_tupleSvcName [protected]

Name of the event collection service name.

Definition at line 82 of file EventCollectionSelector.h.

Referenced by EventCollectionSelector(), and initialize().

std::string EventCollectionSelector::m_authentication [protected]

Authentication string (if needed).

Definition at line 84 of file EventCollectionSelector.h.

Referenced by connectDataSource(), and EventCollectionSelector().

std::string EventCollectionSelector::m_cntName [protected]

Container name.

Definition at line 86 of file EventCollectionSelector.h.

Referenced by connectCollection(), and EventCollectionSelector().

std::string EventCollectionSelector::m_itemName [protected]

Item name.

Definition at line 88 of file EventCollectionSelector.h.

Referenced by connectCollection(), and EventCollectionSelector().

std::string EventCollectionSelector::m_criteria [protected]

Criteria.

Definition at line 90 of file EventCollectionSelector.h.

Referenced by connectCollection(), and EventCollectionSelector().

std::string EventCollectionSelector::m_database [protected]

Datafile name.

Definition at line 92 of file EventCollectionSelector.h.

Referenced by connectCollection(), connectDataSource(), createContext(), and EventCollectionSelector().

std::string EventCollectionSelector::m_dbType [protected]

Database type identifier.

Definition at line 94 of file EventCollectionSelector.h.

Referenced by connectCollection(), connectDataSource(), and EventCollectionSelector().

std::string EventCollectionSelector::m_statement [protected]

Selector name.

Definition at line 96 of file EventCollectionSelector.h.

Referenced by connectCollection(), and EventCollectionSelector().

The documentation for this class was generated from the following files:
Generated at Fri Jul 18 12:07:10 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
