Gaudi::Histogram2D

Gaudi::Histogram2D Class Reference

#include <H2D.h>

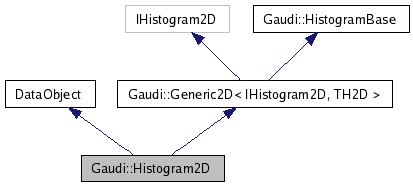

Inheritance diagram for Gaudi::Histogram2D:

Inheritance graph
[legend]

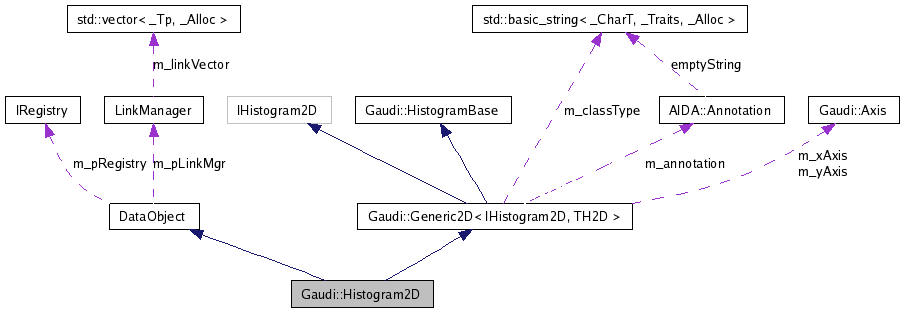

Collaboration diagram for Gaudi::Histogram2D:

Collaboration graph
[legend]
List of all members.

Detailed Description

AIDA implementation for 2 D histograms using ROOT THD2.

Author:
M.Frank

Definition at line 20 of file H2D.h.

Public Member Functions

 Histogram2D ()
 Standard Constructor.
 Histogram2D (TH2D *rep)
 Standard initializing Constructor with TH2D representation to be adopted.
virtual ~Histogram2D ()
 Destructor.
bool fill (double x, double y, double weight=1.)
 Fill the Histogram2D with a value and the.
virtual bool setBinContents (int binIndexX, int binIndexY, int entries, double height, double error, double centreX, double centreY)
 Fast filling method for a given bin. It can be also the over/underflow bin.
bool setRms (double rmsX, double rmsY)
 Sets the rms of the histogram.
bool reset ()
void copyFromAida (const IHistogram2D &h)
 Create new histogram from any AIDA based histogram.
virtual const CLID & clID () const
 Retrieve reference to class defininition identifier.

Static Public Member Functions

static const CLID & classID ()
 Retrieve reference to class definition structure (static access).

Protected Attributes

double m_sumwx
double m_sumwy

Constructor & Destructor Documentation

Gaudi::Histogram2D::Histogram2D (  )

Standard Constructor.

Definition at line 112 of file H2D.cpp.

References Histogram2D(), Gaudi::Generic2D< IHistogram2D, TH2D >::m_rep, Gaudi::Generic2D< IHistogram2D, TH2D >::m_sumEntries, m_sumwx, m_sumwy, and Gaudi::Generic2D< IHistogram2D, TH2D >::setTitle().

Referenced by Histogram2D().

00112                               {
00113   m_rep = new TH2D();
00114   m_rep->Sumw2();
00115   m_sumEntries = 0;
00116   m_sumwx = m_sumwy = 0;
00117   setTitle("");
00118   m_rep->SetDirectory(0);
00119 }

Gaudi::Histogram2D::Histogram2D ( TH2D *  rep  )

Standard initializing Constructor with TH2D representation to be adopted.

Definition at line 121 of file H2D.cpp.

References Gaudi::Generic2D< IHistogram2D, TH2D >::adoptRepresentation(), Histogram2D(), Gaudi::Generic2D< IHistogram2D, TH2D >::m_rep, Gaudi::Generic2D< IHistogram2D, TH2D >::m_sumEntries, m_sumwx, and m_sumwy.

00121                                         {
00122   m_rep = 0;
00123   adoptRepresentation(rep);
00124   m_sumEntries = 0;
00125   m_sumwx = m_sumwy = 0;
00126   m_rep->SetDirectory(0);
00127 }

virtual Gaudi::Histogram2D::~Histogram2D (  )  [inline, virtual]

Destructor.

Definition at line 27 of file H2D.h.

00027 {}

Member Function Documentation

bool Gaudi::Histogram2D::fill ( double  x,
double  y,
double  weight = 1.
)

Fill the Histogram2D with a value and the.

Definition at line 129 of file H2D.cpp.

References Gaudi::Generic2D< IHistogram2D, TH2D >::m_rep.

00129                                                              {
00130   (weight==1.) ? m_rep->Fill(x,y) : m_rep->Fill(x,y,weight );
00131   return true;
00132 }

bool Gaudi::Histogram2D::setBinContents ( int  binIndexX,
int  binIndexY,
int  entries,
double  height,
double  error,
double  centreX,
double  centreY
) [virtual]

Fast filling method for a given bin. It can be also the over/underflow bin.

Definition at line 134 of file H2D.cpp.

References Gaudi::Generic2D< IHistogram2D, TH2D >::m_rep, Gaudi::Generic2D< IHistogram2D, TH2D >::m_sumEntries, m_sumwx, m_sumwy, Gaudi::Generic2D< IHistogram2D, TH2D >::rIndexX(), Gaudi::Generic2D< IHistogram2D, TH2D >::rIndexY(), and setBinContents().

Referenced by setBinContents().

00134                                                                                                                        {
00135   m_rep->SetBinContent(rIndexX(i), rIndexY(j), height);
00136   m_rep->SetBinError(rIndexX(i), rIndexY(j), error);
00137   // accumulate sumwx for in range bins
00138   if (i >=0 && j >= 0) {
00139     m_sumwx += centreX*height;
00140     m_sumwy += centreY*height;
00141   }
00142   m_sumEntries += entries;
00143   return true;
00144 }

bool Gaudi::Histogram2D::setRms ( double  rmsX,
double  rmsY
)

Sets the rms of the histogram.

Definition at line 146 of file H2D.cpp.

References Gaudi::Generic2D< IHistogram2D, TH2D >::equivalentBinEntries(), std::vector< _Tp, _Alloc >::front(), Gaudi::Generic2D< IHistogram2D, TH2D >::m_rep, Gaudi::Generic2D< IHistogram2D, TH2D >::m_sumEntries, m_sumwx, m_sumwy, Gaudi::Generic2D< IHistogram2D, TH2D >::meanX(), Gaudi::Generic2D< IHistogram2D, TH2D >::meanY(), setRms(), and Gaudi::Generic2D< IHistogram2D, TH2D >::sumBinHeights().

Referenced by setRms().

00146                                                      {
00147   m_rep->SetEntries(m_sumEntries);
00148   std::vector<double> stat(11);
00149   stat[0] =  sumBinHeights();
00150   stat[1] = 0;
00151   if(equivalentBinEntries() != 0)
00152     stat[1] = (sumBinHeights() * sumBinHeights()) / equivalentBinEntries();
00153   stat[2] = m_sumwx;
00154   double meanX = 0;
00155   if(sumBinHeights() != 0) meanX =  m_sumwx/ sumBinHeights();
00156   stat[3] = (meanX*meanX + rmsX*rmsX) * sumBinHeights();
00157   stat[4] = m_sumwy;
00158   double meanY = 0;
00159   if(sumBinHeights() != 0) meanY =  m_sumwy/ sumBinHeights();
00160   stat[5] = (meanY*meanY + rmsY*rmsY) * sumBinHeights();
00161   stat[6] = 0;
00162   m_rep->PutStats(&stat.front());
00163   return true;
00164 }

bool Gaudi::Histogram2D::reset (  )

Reimplemented from Gaudi::Generic2D< IHistogram2D, TH2D >.

Definition at line 166 of file H2D.cpp.

References m_sumwx, m_sumwy, and reset().

Referenced by reset().

00166                               {
00167   m_sumwx = 0;
00168   m_sumwy = 0;
00169   return Base::reset();
00170 }

void Gaudi::Histogram2D::copyFromAida ( const IHistogram2D &  h  )

Create new histogram from any AIDA based histogram.

Definition at line 172 of file H2D.cpp.

References copyFromAida(), std::vector< _Tp, _Alloc >::front(), Gaudi::Axis::initialize(), Gaudi::Generic2D< IHistogram2D, TH2D >::m_rep, Gaudi::Generic2D< IHistogram2D, TH2D >::m_sumEntries, m_sumwx, m_sumwy, Gaudi::Generic2D< IHistogram2D, TH2D >::m_xAxis, Gaudi::Generic2D< IHistogram2D, TH2D >::m_yAxis, std::vector< _Tp, _Alloc >::push_back(), Gaudi::Generic2D< IHistogram2D, TH2D >::rIndexX(), Gaudi::Generic2D< IHistogram2D, TH2D >::rIndexY(), std::vector< _Tp, _Alloc >::size(), Gaudi::Generic2D< IHistogram2D, TH2D >::xAxis(), and Gaudi::Generic2D< IHistogram2D, TH2D >::yAxis().

Referenced by copyFromAida().

00172                                                          {
00173   // implement here the copy
00174   delete m_rep;
00175   const char* tit = h.title().c_str();
00176   if (h.xAxis().isFixedBinning() && h.yAxis().isFixedBinning()  )
00177     m_rep = new TH2D(tit,tit,
00178                      h.xAxis().bins(),h.xAxis().lowerEdge(),h.xAxis().upperEdge(),
00179                      h.yAxis().bins(),h.yAxis().lowerEdge(),h.yAxis().upperEdge() );
00180   else {
00181     Edges eX, eY;
00182     for (int i =0; i < h.xAxis().bins(); ++i)
00183       eX.push_back(h.xAxis().binLowerEdge(i));
00184     // add also upperedges at the end
00185     eX.push_back(h.xAxis().upperEdge() );
00186     for (int i =0; i < h.yAxis().bins(); ++i)
00187       eY.push_back(h.yAxis().binLowerEdge(i));
00188     // add also upperedges at the end
00189     eY.push_back(h.yAxis().upperEdge() );
00190     m_rep = new TH2D(tit,tit,eX.size()-1,&eX.front(),eY.size()-1,&eY.front());
00191   }
00192   m_xAxis.initialize(m_rep->GetXaxis(),true);
00193   m_yAxis.initialize(m_rep->GetYaxis(),true);
00194   m_rep->Sumw2();
00195   m_sumEntries = 0;
00196   m_sumwx = 0;
00197   m_sumwy = 0;
00198   // statistics
00199   double sumw = h.sumBinHeights();
00200   double sumw2 = 0;
00201   if (h.equivalentBinEntries() != 0)
00202     sumw2 = ( sumw * sumw ) /h.equivalentBinEntries();
00203   double sumwx = h.meanX()*h.sumBinHeights();
00204   double sumwx2 = (h.meanX()*h.meanX() + h.rmsX()*h.rmsX() )*h.sumBinHeights();
00205   double sumwy = h.meanY()*h.sumBinHeights();
00206   double sumwy2 = (h.meanY()*h.meanY() + h.rmsY()*h.rmsY() )*h.sumBinHeights();
00207   double sumwxy = 0;
00208
00209   // copy the contents in  (AIDA underflow/overflow are -2,-1)
00210   for (int i=-2; i < xAxis().bins(); ++i) {
00211     for (int j=-2; j < yAxis().bins(); ++j) {
00212       // root binning starts from one !
00213       m_rep->SetBinContent(rIndexX(i), rIndexY(j), h.binHeight(i,j) );
00214       m_rep->SetBinError(rIndexX(i), rIndexY(j), h.binError(i,j) );
00215       // calculate statistics
00216       if ( i >= 0 && j >= 0) {
00217         sumwxy += h.binHeight(i,j)*h.binMeanX(i,j)*h.binMeanY(i,j);
00218       }
00219     }
00220   }
00221   // need to do set entries after setting contents otherwise root will recalulate them
00222   // taking into account how many time  SetBinContents() has been called
00223   m_rep->SetEntries(h.allEntries());
00224   // fill stat vector
00225   std::vector<double> stat(11);
00226   stat[0] = sumw;
00227   stat[1] = sumw2;
00228   stat[2] = sumwx;
00229   stat[3] = sumwx2;
00230   stat[4] = sumwy;
00231   stat[5] = sumwy2;
00232   stat[6] = sumwxy;
00233   m_rep->PutStats(&stat.front());
00234 }

virtual const CLID& Gaudi::Histogram2D::clID (  )  const [inline, virtual]

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 41 of file H2D.h.

References classID(), and clID().

Referenced by clID().

00041 { return Gaudi::Histogram2D::classID(); }

static const CLID& Gaudi::Histogram2D::classID (  )  [inline, static]

Retrieve reference to class definition structure (static access).

Reimplemented from DataObject.

Definition at line 42 of file H2D.h.

References classID(), and CLID_H2D.

Referenced by classID(), and clID().

00042 { return CLID_H2D; }

Member Data Documentation

double Gaudi::Histogram2D::m_sumwx [protected]

Definition at line 45 of file H2D.h.

Referenced by copyFromAida(), Histogram2D(), reset(), setBinContents(), and setRms().

double Gaudi::Histogram2D::m_sumwy [protected]

Definition at line 46 of file H2D.h.

Referenced by copyFromAida(), Histogram2D(), reset(), setBinContents(), and setRms().

The documentation for this class was generated from the following files:
Generated at Fri Jul 18 12:07:22 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
