Gaudi::Generic2D

Gaudi::Generic2D< INTERFACE, IMPLEMENTATION > Class Template Reference

#include <GaudiPI/Generic2D.h>

Inheritance diagram for Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >:

Inheritance graph
[legend]

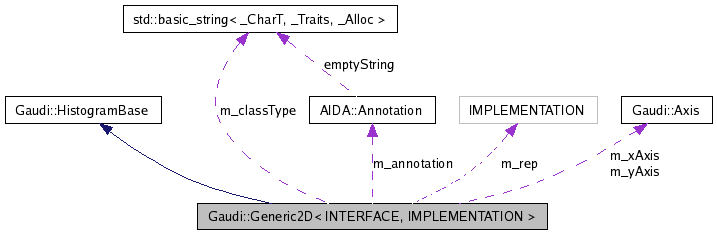

Collaboration diagram for Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >:

Collaboration graph
[legend]
List of all members.

Detailed Description

template<class INTERFACE, class IMPLEMENTATION>
class Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >

Common AIDA implementation stuff for histograms and profiles using ROOT implementations.

Credits: This code is the result of some stripdown implementation of LCG/PI. Credits to them!

Author:
M.Frank

Definition at line 28 of file Generic2D.h.

Public Types

typedef Generic2D< INTERFACE,
IMPLEMENTATION > 		Base

Public Member Functions

 Generic2D ()
virtual ~Generic2D ()
 Destructor.
TObject * representation () const
 ROOT object implementation.
virtual void adoptRepresentation (TObject *rep)
 Adopt ROOT histogram representation.
virtual std::string title () const
 Get the title of the object.
virtual bool setTitle (const std::string &title)
 Set the title of the object.
std::string name () const
 object name
bool setName (const std::string &newName)
 Set the name of the object.
virtual AIDA::IAnnotation & annotation ()
 Access annotation object.
virtual const AIDA::IAnnotation & annotation () const
 Access annotation object (cons).
virtual const AIDA::IAxis & xAxis () const
 Return the X axis.
virtual const AIDA::IAxis & yAxis () const
 Return the Y axis.
virtual int rIndexX (int index) const
 operator methods
virtual int rIndexY (int index) const
 operator methods
virtual int entries () const
 Get the number or all the entries.
virtual int allEntries () const
 Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.
virtual int extraEntries () const
 Get the number of entries in the underflow and overflow bins.
virtual double sumBinHeights () const
 Get the sum of in range bin heights in the IProfile.
virtual double sumAllBinHeights () const
 Get the sum of all the bins heights (including underflow and overflow bin).
virtual double sumExtraBinHeights () const
 Get the sum of the underflow and overflow bin height.
virtual double minBinHeight () const
 Get the minimum height of the in-range bins.
virtual double maxBinHeight () const
 Get the maximum height of the in-range bins.
virtual double binMeanX (int indexX, int indexY) const
 The weighted mean along x of a given bin.
virtual double binMeanY (int indexX, int indexY) const
 The weighted mean along y of a given bin.
virtual int binEntries (int indexX, int indexY) const
 The number of entries (ie the number of times fill was called for this bin).
virtual int binEntriesX (int indexX) const
 Equivalent to projectionX().binEntries(indexX).
virtual int binEntriesY (int indexY) const
 Equivalent to projectionY().binEntries(indexY).
virtual double binHeight (int indexX, int indexY) const
 Total height of the corresponding bin (ie the sum of the weights in this bin).
virtual double binHeightX (int indexX) const
 Equivalent to projectionX().binHeight(indexX).
virtual double binHeightY (int indexY) const
 Equivalent to projectionY().binHeight(indexY).
virtual double binError (int indexX, int indexY) const
 The error on this bin.
virtual double binRms (int indexX, int indexY) const
 The spread (RMS) of this bin.
virtual double meanX () const
 Returns the mean of the profile, as calculated on filling-time projected on the X axis.
virtual double meanY () const
 Returns the mean of the profile, as calculated on filling-time projected on the Y axis.
virtual double rmsX () const
 Returns the rms of the profile as calculated on filling-time projected on the X axis.
virtual double rmsY () const
 Returns the rms of the profile as calculated on filling-time projected on the Y axis.
virtual int coordToIndexX (double coordX) const
 Convenience method, equivalent to xAxis().coordToIndex(coord).
virtual int coordToIndexY (double coordY) const
 Convenience method, equivalent to yAxis().coordToIndex(coord).
virtual double equivalentBinEntries () const
 Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ].
virtual bool scale (double scaleFactor)
 Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.
virtual bool add (const INTERFACE &h)
 Modifies this profile by adding the contents of profile to it.
bool reset ()
void * cast (const std::string &className) const
 Introspection method.
const std::string & userLevelClassType () const
 The AIDA user-level unterface leaf class type.
virtual int dimension () const
 Get the Histogram's dimension.
virtual std::ostream & print (std::ostream &s) const
 Print (ASCII) the histogram into the output stream.
virtual std::ostream & write (std::ostream &s) const
 Write (ASCII) the histogram table into the output stream.
virtual int write (const char *file_name) const
 Write (ASCII) the histogram table into a file.
template<>
void adoptRepresentation (TObject *rep)
 Adopt ROOT histogram representation.

Protected Attributes

Axis m_xAxis
 X axis member.
Axis m_yAxis
 Y axis member.
AIDA::Annotation m_annotation
 Object annotations.
IMPLEMENTATION * m_rep
 Reference to underlying implementation.
std::string m_classType
 class type
int m_sumEntries
 cache sumEntries (allEntries) when setting contents since Root can't compute by himself

Member Typedef Documentation

template<class INTERFACE, class IMPLEMENTATION>
typedef Generic2D<INTERFACE,IMPLEMENTATION> Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::Base

Definition at line 30 of file Generic2D.h.

Constructor & Destructor Documentation

template<class INTERFACE, class IMPLEMENTATION>
Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::Generic2D (  )  [inline]

Definition at line 32 of file Generic2D.h.

00032 : m_rep(0) {}

template<class INTERFACE, class IMPLEMENTATION>
virtual Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::~Generic2D (  )  [inline, virtual]

Destructor.

Definition at line 35 of file Generic2D.h.

00035 {  delete m_rep;    }

Member Function Documentation

template<class INTERFACE, class IMPLEMENTATION>
TObject* Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::representation (  )  const [inline, virtual]

ROOT object implementation.

Implements Gaudi::HistogramBase.

Definition at line 38 of file Generic2D.h.

00038 { return m_rep;                       }

template<class INTERFACE, class IMPLEMENTATION>
virtual void Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::adoptRepresentation ( TObject *  rep  )  [virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

template<class INTERFACE, class IMPLEMENTATION>
virtual std::string Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::title (  )  const [inline, virtual]

Get the title of the object.

Definition at line 42 of file Generic2D.h.

00042 {  return m_annotation.value( "Title" );    }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setTitle ( const std::string &  title  )  [virtual]

Set the title of the object.

Definition at line 149 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::annotation(), std::basic_string< _CharT, _Traits, _Alloc >::c_str(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_annotation, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, and AIDA::Annotation::setValue().

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::adoptRepresentation().

00149                                                                              {
00150     m_rep->SetTitle(title.c_str());
00151     if ( !annotation().addItem( "Title", title ) )
00152       m_annotation.setValue( "Title" , title );
00153     if ( !annotation().addItem( "title", title ) )
00154       annotation().setValue( "title", title );
00155     return true;
00156   }

template<class INTERFACE, class IMPLEMENTATION>
std::string Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::name (  )  const [inline]

object name

Definition at line 46 of file Generic2D.h.

00046 { return m_annotation.value("Name"); }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setName ( const std::string &  newName  )

Set the name of the object.

Definition at line 159 of file Generic2D.h.

References std::basic_string< _CharT, _Traits, _Alloc >::c_str(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_annotation, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, and AIDA::Annotation::setValue().

00159                                                                               {
00160     m_rep->SetName(newName.c_str());
00161     m_annotation.setValue( "Name", newName );
00162     return true;
00163   }

template<class INTERFACE, class IMPLEMENTATION>
virtual AIDA::IAnnotation& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::annotation (  )  [inline, virtual]

Access annotation object.

Definition at line 50 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setTitle().

00050 { return m_annotation;           }

template<class INTERFACE, class IMPLEMENTATION>
virtual const AIDA::IAnnotation& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::annotation (  )  const [inline, virtual]

Access annotation object (cons).

Definition at line 52 of file Generic2D.h.

00052 { return m_annotation;           }

template<class INTERFACE, class IMPLEMENTATION>
virtual const AIDA::IAxis& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::xAxis (  )  const [inline, virtual]

Return the X axis.

Definition at line 55 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesY(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightY(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::coordToIndexX(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write().

00055 { return m_xAxis;                }

template<class INTERFACE, class IMPLEMENTATION>
virtual const AIDA::IAxis& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::yAxis (  )  const [inline, virtual]

Return the Y axis.

Definition at line 57 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesX(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightX(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::coordToIndexY(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write().

00057 { return m_yAxis;                }

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexX ( int  index  )  const [inline, virtual]

operator methods

Definition at line 59 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binError(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeight(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanX(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binRms().

00059 { return m_xAxis.rIndex(index);  }

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexY ( int  index  )  const [inline, virtual]

operator methods

Definition at line 61 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binError(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeight(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanY(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binRms().

00061 { return m_yAxis.rIndex(index);  }

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::entries (  )  const [virtual]

Get the number or all the entries.

Definition at line 166 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00166                                                                                {
00167     return (int)m_rep->GetEntries();
00168   }

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::allEntries (  )  const [virtual]

Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

Definition at line 171 of file Generic2D.h.

References int(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00171                                                                 {
00172     return int(m_rep->GetEntries());
00173   }

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::extraEntries (  )  const [virtual]

Get the number of entries in the underflow and overflow bins.

Definition at line 294 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntries().

00294                                                               {
00295     return
00296       binEntries(AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN) +
00297       binEntries(AIDA::IAxis::UNDERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN)  +
00298       binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::UNDERFLOW_BIN)  +
00299       binEntries(AIDA::IAxis::OVERFLOW_BIN,AIDA::IAxis::OVERFLOW_BIN);
00300   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumBinHeights (  )  const [virtual]

Get the sum of in range bin heights in the IProfile.

Definition at line 186 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries().

00186                                                                     {
00187     return m_rep->GetSumOfWeights();
00188   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumAllBinHeights (  )  const [virtual]

Get the sum of all the bins heights (including underflow and overflow bin).

Definition at line 191 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00191                                                                        {
00192     return m_rep->GetSum();
00193   }

template<class INTERFACE, class IMPLEMENTATION>
virtual double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumExtraBinHeights (  )  const [inline, virtual]

Get the sum of the underflow and overflow bin height.

Definition at line 74 of file Generic2D.h.

00074 { return  sumAllBinHeights()-sumBinHeights(); }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::minBinHeight (  )  const [virtual]

Get the minimum height of the in-range bins.

Definition at line 176 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00176                                                                    {
00177     return m_rep->GetMinimum();
00178   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::maxBinHeight (  )  const [virtual]

Get the maximum height of the in-range bins.

Definition at line 181 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00181                                                                    {
00182     return m_rep->GetMaximum();
00183   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanX ( int  indexX,
int  indexY
) const [virtual]

The weighted mean along x of a given bin.

Definition at line 201 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexX().

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write().

00201                                                                             {
00202     return (m_rep->GetXaxis())->GetBinCenter( rIndexX(indexX) );
00203   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanY ( int  indexX,
int  indexY
) const [virtual]

The weighted mean along y of a given bin.

Definition at line 206 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexY().

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write().

00206                                                                             {
00207     return (m_rep->GetYaxis())->GetBinCenter( rIndexY(indexY) );
00208   }

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntries ( int  indexX,
int  indexY
) const [virtual]

The number of entries (ie the number of times fill was called for this bin).

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesX(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesY(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::extraEntries().

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesX ( int  indexX  )  const [virtual]

Equivalent to projectionX().binEntries(indexX).

Definition at line 211 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntries(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::yAxis().

00211                                                                         {
00212     int n = 0;
00213     for (int iY = -2; iY < yAxis().bins(); ++iY)
00214       n += binEntries(index,iY);
00215     return n;
00216   }

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntriesY ( int  indexY  )  const [virtual]

Equivalent to projectionY().binEntries(indexY).

Definition at line 219 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binEntries(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::xAxis().

00219                                                                          {
00220     int n = 0;
00221     for (int iX = -2; iX < xAxis().bins(); ++iX)
00222       n += binEntries(iX,index);
00223     return n;
00224   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeight ( int  indexX,
int  indexY
) const [virtual]

Total height of the corresponding bin (ie the sum of the weights in this bin).

Definition at line 227 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexX(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexY().

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightX(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightY(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write().

00227                                                                                        {
00228     return m_rep->GetBinContent ( rIndexX(indexX), rIndexY(indexY) );
00229   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightX ( int  indexX  )  const [virtual]

Equivalent to projectionX().binHeight(indexX).

Definition at line 232 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeight(), Gaudi::Units::s, and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::yAxis().

00232                                                                          {
00233     double s = 0;
00234     for (int iY = -2; iY < yAxis().bins(); ++iY) {
00235       s += binHeight(index,iY);
00236     }
00237     return s;
00238   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeightY ( int  indexY  )  const [virtual]

Equivalent to projectionY().binHeight(indexY).

Definition at line 241 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeight(), Gaudi::Units::s, and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::xAxis().

00241                                                                          {
00242     double s = 0;
00243     for (int iX = -2; iX < xAxis().bins(); ++iX)
00244       s += binHeight(iX,index);
00245     return s;
00246   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binError ( int  indexX,
int  indexY
) const [virtual]

The error on this bin.

Definition at line 249 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexX(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexY().

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write().

00249                                                                                    {
00250     return m_rep->GetBinError ( rIndexX(indexX), rIndexY(indexY ) );
00251   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binRms ( int  indexX,
int  indexY
) const [virtual]

The spread (RMS) of this bin.

Definition at line 196 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexX(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rIndexY().

00196                                                                                 {
00197     return m_rep->GetBinError ( rIndexX(indexX), rIndexY(indexY) );
00198   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::meanX (  )  const [virtual]

Returns the mean of the profile, as calculated on filling-time projected on the X axis.

Definition at line 254 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00254                                                            {
00255     return m_rep->GetMean(1);
00256   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::meanY (  )  const [virtual]

Returns the mean of the profile, as calculated on filling-time projected on the Y axis.

Definition at line 259 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00259                                                            {
00260     return m_rep->GetMean(2);
00261   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rmsX (  )  const [virtual]

Returns the rms of the profile as calculated on filling-time projected on the X axis.

Definition at line 264 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00264                                                           {
00265     return m_rep->GetRMS(1);
00266   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rmsY (  )  const [virtual]

Returns the rms of the profile as calculated on filling-time projected on the Y axis.

Definition at line 269 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00269                                                           {
00270     return m_rep->GetRMS(2);
00271   }

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::coordToIndexX ( double  coordX  )  const [virtual]

Convenience method, equivalent to xAxis().coordToIndex(coord).

Definition at line 274 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::xAxis().

00274                                                                               {
00275     return xAxis().coordToIndex(coord);
00276   }

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::coordToIndexY ( double  coordY  )  const [virtual]

Convenience method, equivalent to yAxis().coordToIndex(coord).

Definition at line 279 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::yAxis().

00279                                                                               {
00280     return yAxis().coordToIndex(coord);
00281   }

template<class INTERFACE, class IMPLEMENTATION>
double Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries (  )  const [virtual]

Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ].

Definition at line 303 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumBinHeights().

00303                                                                           {
00304     if (sumBinHeights() <= 0) return 0;
00305     Stat_t stats[11];   // cover up to 3D...
00306     m_rep->GetStats(stats);
00307     return stats[0]*stats[0]/stats[1];
00308   }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::scale ( double  scaleFactor  )  [virtual]

Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

Definition at line 311 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00311                                                                       {
00312     m_rep->Scale ( scaleFactor );
00313     return true;
00314   }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::add ( const INTERFACE &  h  )  [virtual]

Modifies this profile by adding the contents of profile to it.

Definition at line 284 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00284                                                                          {
00285     const Base* p = dynamic_cast<const Base*>(&hist);
00286     if ( p )  {
00287       m_rep->Add(p->m_rep);
00288       return true;
00289     }
00290     throw std::runtime_error("Cannot add profile histograms of different implementations.");
00291   }

template<class INTERFACE, class IMPLEMENTATION>
bool Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::reset (  )

Reimplemented in Gaudi::Histogram2D.

Definition at line 317 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_sumEntries.

00317                                                        {
00318     m_sumEntries = 0;
00319     m_rep->Reset ( );
00320     return true;
00321   }

template<class INTERFACE, class IMPLEMENTATION>
void* Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::cast ( const std::string &  className  )  const

Introspection method.

template<class INTERFACE, class IMPLEMENTATION>
const std::string& Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::userLevelClassType (  )  const [inline]

The AIDA user-level unterface leaf class type.

Definition at line 123 of file Generic2D.h.

00123 { return m_classType; }

template<class INTERFACE, class IMPLEMENTATION>
virtual int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::dimension (  )  const [inline, virtual]

Get the Histogram's dimension.

Definition at line 125 of file Generic2D.h.

00125 { return 2; }

template<class INTERFACE, class IMPLEMENTATION>
std::ostream & Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::print ( std::ostream &  s  )  const [virtual]

Print (ASCII) the histogram into the output stream.

bin contents and errors are printed for all bins including under and overflows

Implements Gaudi::HistogramBase.

Definition at line 324 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, and Gaudi::Units::s.

00325   {
00327     m_rep->Print("all");
00328     return s;
00329   }

template<class INTERFACE, class IMPLEMENTATION>
std::ostream & Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write ( std::ostream &  s  )  const [virtual]

Write (ASCII) the histogram table into the output stream.

Implements Gaudi::HistogramBase.

Definition at line 333 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binError(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeight(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanX(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanY(), std::endl(), Gaudi::Units::s, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::xAxis(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::yAxis().

00334   {
00335     s << std::endl << "2D Histogram Table: " << std::endl;
00336     s << "BinX, BinY, Height, Error " << std::endl;
00337     for ( int i = 0; i < xAxis().bins(); ++i )  {
00338       for ( int j = 0; j < yAxis().bins(); ++j )  {
00339         s << binMeanX( i, j )    << ", "
00340                 << binMeanY( i, j )    << ", "
00341                 << binHeight( i, j ) << ", "
00342                 << binError ( i, j ) << std::endl;
00343       }
00344     }
00345     s << std::endl;
00346     return s;
00347   }

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write ( const char *  file_name  )  const [virtual]

Write (ASCII) the histogram table into a file.

Implements Gaudi::HistogramBase.

Definition at line 351 of file Generic2D.h.

References Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep.

00352   {
00353     TFile *f = TFile::Open(file_name,"RECREATE");
00354     Int_t nbytes = m_rep->Write();
00355     f->Close();
00356     return nbytes;
00357   }

template<>
void Gaudi::Generic2D< AIDA::IHistogram2D, TH2D >::adoptRepresentation ( TObject *  rep  )  [virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Definition at line 96 of file H2D.cpp.

References Gaudi::Axis::initialize(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_xAxis, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_yAxis, and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setTitle().

00096                                                                           {
00097     TH2D* imp = dynamic_cast<TH2D*>(rep);
00098     if ( imp )  {
00099       if ( m_rep ) delete m_rep;
00100       m_rep = imp;
00101       m_xAxis.initialize(m_rep->GetXaxis(),true);
00102       m_yAxis.initialize(m_rep->GetYaxis(),true);
00103       const TArrayD* a = m_rep->GetSumw2();
00104       if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
00105       setTitle(m_rep->GetTitle());
00106       return;
00107     }
00108     throw std::runtime_error("Cannot adopt native histogram representation.");
00109   }

Member Data Documentation

template<class INTERFACE, class IMPLEMENTATION>
Axis Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_xAxis [protected]

X axis member.

Definition at line 135 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::adoptRepresentation().

template<class INTERFACE, class IMPLEMENTATION>
Axis Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_yAxis [protected]

Y axis member.

Definition at line 137 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::adoptRepresentation().

template<class INTERFACE, class IMPLEMENTATION>
AIDA::Annotation Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_annotation [mutable, protected]

Object annotations.

Definition at line 139 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setName(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setTitle().

template<class INTERFACE, class IMPLEMENTATION>
IMPLEMENTATION* Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_rep [protected]

Reference to underlying implementation.

Definition at line 141 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::add(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::adoptRepresentation(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::allEntries(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binError(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binHeight(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanX(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binMeanY(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::binRms(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::entries(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::maxBinHeight(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::meanX(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::meanY(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::minBinHeight(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::print(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::reset(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rmsX(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::rmsY(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::scale(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setName(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::setTitle(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumAllBinHeights(), Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::sumBinHeights(), and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::write().

template<class INTERFACE, class IMPLEMENTATION>
std::string Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_classType [protected]

class type

Definition at line 143 of file Generic2D.h.

template<class INTERFACE, class IMPLEMENTATION>
int Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::m_sumEntries [protected]

cache sumEntries (allEntries) when setting contents since Root can't compute by himself

Definition at line 145 of file Generic2D.h.

Referenced by Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >::reset().

The documentation for this class was generated from the following file:
Generated at Fri Jul 18 12:07:21 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
