Gaudi::HistogramBase Class Reference

#include <HistogramSvc/HistogramBase.h>

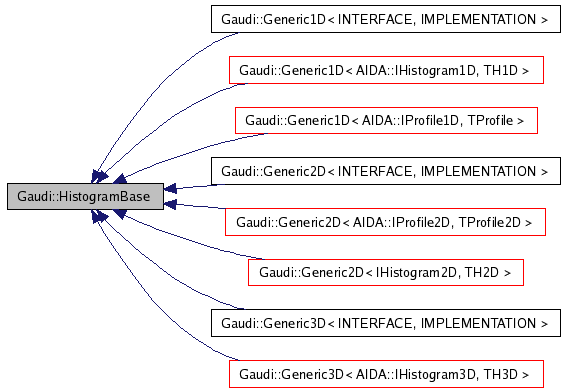

Inheritance diagram for Gaudi::HistogramBase:

[legend]List of all members.

---

Detailed Description

Common base class for all histograms Use is solely functional to minimize dynamic_casts inside HistogramSvc.

Author:

M.Frank

Version:

1.0

Definition at line 21 of file HistogramBase.h.

Public Member Functions
virtual TObject *	representation () const=0
	ROOT object implementation.
virtual void	adoptRepresentation (TObject *rep)=0
	Adopt ROOT histogram representation.
virtual std::ostream &	print (std::ostream &s) const =0
	Print histogram to output stream.
virtual std::ostream &	write (std::ostream &s) const =0
	Write (binary) histogram to output stream.
virtual int	write (const char *file_name) const =0
	Write (binary) histogram to file.
virtual	~HistogramBase ()

---

Constructor & Destructor Documentation

virtual Gaudi::HistogramBase::~HistogramBase

(

)

[inline, virtual]

Definition at line 33 of file HistogramBase.h.

{}

---

Member Function Documentation

virtual TObject* Gaudi::HistogramBase::representation

(

)

const [pure virtual]

ROOT object implementation.

Implemented in Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic1D< AIDA::IProfile1D, TProfile >, Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >, Gaudi::Generic2D< IHistogram2D, TH2D >, Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >, and Gaudi::Generic3D< AIDA::IHistogram3D, TH3D >.

virtual void Gaudi::HistogramBase::adoptRepresentation

(

TObject *

rep

)

[pure virtual]

Adopt ROOT histogram representation.

Implemented in Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >, Gaudi::Histogram1D, Gaudi::Generic1D< AIDA::IProfile1D, TProfile >, Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >, Gaudi::Generic2D< IHistogram2D, TH2D >, Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >, Gaudi::Generic3D< AIDA::IHistogram3D, TH3D >, and Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >.

virtual std::ostream& Gaudi::HistogramBase::print

(

std::ostream &

s

)

const [pure virtual]

Print histogram to output stream.

Implemented in Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic1D< AIDA::IProfile1D, TProfile >, Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >, Gaudi::Generic2D< IHistogram2D, TH2D >, Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >, and Gaudi::Generic3D< AIDA::IHistogram3D, TH3D >.

virtual std::ostream& Gaudi::HistogramBase::write

(

std::ostream &

s

)

const [pure virtual]

Write (binary) histogram to output stream.

Implemented in Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic1D< AIDA::IProfile1D, TProfile >, Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >, Gaudi::Generic2D< IHistogram2D, TH2D >, Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >, and Gaudi::Generic3D< AIDA::IHistogram3D, TH3D >.

virtual int Gaudi::HistogramBase::write

(

const char *

file_name

)

const [pure virtual]

Write (binary) histogram to file.

Implemented in Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic3D< INTERFACE, IMPLEMENTATION >, Gaudi::Generic1D< AIDA::IProfile1D, TProfile >, Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >, Gaudi::Generic2D< IHistogram2D, TH2D >, Gaudi::Generic2D< AIDA::IProfile2D, TProfile2D >, and Gaudi::Generic3D< AIDA::IHistogram3D, TH3D >.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r2/GaudiKernel/v25r2/GaudiKernel/HistogramBase.h

---
