HbookCnv::HNTupleCnv

HbookCnv::HNTupleCnv Class Reference

#include <HNTupleCnv.h>

Inheritance diagram for HbookCnv::HNTupleCnv:

Inheritance graph
[legend]

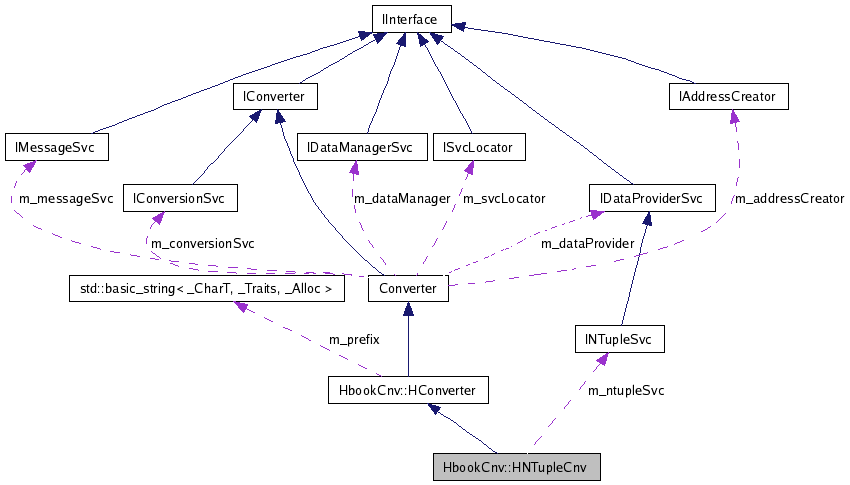

Collaboration diagram for HbookCnv::HNTupleCnv:

Collaboration graph
[legend]
List of all members.

Detailed Description

NTuple converter class definition.

Description: Definition of the converter for Ntuples using HBOOK

Dependencies:

History :

      +---------+----------------------------------------------+--------+
      |    Date |                 Comment                      | Who    |
      +---------+----------------------------------------------+--------+
      | 21/10/99| Initial version.                             | MF     |
      +---------+----------------------------------------------+--------+
Author: M.Frank Version: 1.0

Definition at line 52 of file HNTupleCnv.h.

Public Member Functions

virtual StatusCode initialize ()
 Initialize the converter.
virtual StatusCode finalize ()
 Finalize the converter.
virtual StatusCode createObj (IOpaqueAddress *pAddress, DataObject *&refpObject)
 Create the transient representation of an object.
virtual StatusCode updateObj (IOpaqueAddress *pAddress, DataObject *refpObject)
 Update the transient object from the other representation.
virtual StatusCode createRep (DataObject *pObject, IOpaqueAddress *&refpAddress)
 Convert the transient object to the requested representation.
virtual StatusCode updateRep (IOpaqueAddress *pAddress, DataObject *pObject)
 Update the converted representation of a transient object.

Protected Member Functions

 HNTupleCnv (ISvcLocator *svc, const CLID &clid)
 Standard constructor.
virtual ~HNTupleCnv ()
 Standard destructor.
virtual StatusCode load (long id, INTuple *&refpObject)=0
 Create the transient representation of an object.
virtual StatusCode book (long idh, const std::string &loc, INTuple *pObject)=0
 Book the N tuple.
virtual StatusCode writeData (long idh, INTuple *pObject)=0
 Write N tuple data.
virtual StatusCode readData (long idh, INTuple *pObject, long ievt)=0
 Read N tuple data.

Protected Attributes

INTupleSvc * m_ntupleSvc
 Reference to N tuple service.

Constructor & Destructor Documentation

HbookCnv::HNTupleCnv::HNTupleCnv ( ISvcLocator *  svc,
const CLID &  clid
) [protected]

Standard constructor.

Definition at line 28 of file HNTupleCnv.cpp.

00029 : HConverter(clid, svc), m_ntupleSvc(0)         {
00030 }

HbookCnv::HNTupleCnv::~HNTupleCnv (  )  [protected, virtual]

Standard destructor.

Definition at line 33 of file HNTupleCnv.cpp.

00033                                             {
00034 }

Member Function Documentation

StatusCode HbookCnv::HNTupleCnv::initialize (  )  [virtual]

Initialize the converter.

Reimplemented from Converter.

Definition at line 37 of file HNTupleCnv.cpp.

References Converter::dataProvider(), IID_INTupleSvc, Converter::initialize(), StatusCode::isSuccess(), m_ntupleSvc, and IInterface::queryInterface().

00037                                             {
00038   StatusCode status = Converter::initialize();
00039   if ( status.isSuccess() )   {
00040     status = dataProvider()->queryInterface(IID_INTupleSvc, (void**)&m_ntupleSvc);
00041   }
00042   return status;
00043 }

StatusCode HbookCnv::HNTupleCnv::finalize (  )  [virtual]

Finalize the converter.

Reimplemented from Converter.

Definition at line 46 of file HNTupleCnv.cpp.

References Converter::finalize(), m_ntupleSvc, and IInterface::release().

00046                                             {
00047   if ( m_ntupleSvc != 0 )     {
00048     m_ntupleSvc->release();
00049   }
00050   m_ntupleSvc = 0;
00051   return Converter::finalize();
00052 }

StatusCode HbookCnv::HNTupleCnv::createObj ( IOpaqueAddress *  pAddress,
DataObject *&  refpObject
) [virtual]

Create the transient representation of an object.

Reimplemented from Converter.

Definition at line 70 of file HNTupleCnv.cpp.

References MSG::DEBUG, HPRINT, IRegistry::identifier(), IOpaqueAddress::ipar(), StatusCode::isSuccess(), load(), Converter::msgSvc(), HbookCnv::HConverter::readObject(), and IOpaqueAddress::registry().

00070                                                                                             {
00071   long id = pAddress->ipar()[0];
00072   IRegistry* pReg = pAddress->registry();
00073   StatusCode status = readObject( pReg->identifier(), id );
00074   if ( status.isSuccess() )   {
00075     MsgStream log(msgSvc(), "HbookNTupleCnv");
00076     INTuple* nt = 0;
00077     log << MSG::DEBUG;
00078     if ( log.isActive() ) ::HPRINT (id);
00079     status = load(id, nt);
00080     refpObject = dynamic_cast<DataObject*>(nt);
00081   }
00082   return status;
00083 }

StatusCode HbookCnv::HNTupleCnv::updateObj ( IOpaqueAddress *  pAddress,
DataObject *  refpObject
) [virtual]

Update the transient object from the other representation.

Reimplemented from Converter.

Definition at line 55 of file HNTupleCnv.cpp.

References StatusCode::FAILURE, IOpaqueAddress::ipar(), IOpaqueAddress::par(), readData(), HbookCnv::HConverter::setDirectory(), and HbookCnv::HConverter::setDiskDirectory().

00055                                                                                         {
00056   StatusCode status = StatusCode::FAILURE;
00057   try   {
00058     unsigned long* info = (unsigned long*)pAddress->ipar();
00059     const std::string& dir = pAddress->par()[0];
00060     setDiskDirectory(dir);
00061     setDirectory(dir);
00062     status = readData(info[0], dynamic_cast<INTuple*>(pObject), info[1]++);
00063   }
00064   catch (...)   {
00065   }
00066   return status;
00067 }

StatusCode HbookCnv::HNTupleCnv::createRep ( DataObject *  pObject,
IOpaqueAddress *&  refpAddress
) [virtual]

Convert the transient object to the requested representation.

Reimplemented from HbookCnv::HConverter.

Definition at line 86 of file HNTupleCnv.cpp.

References IRegistry::address(), book(), HbookCnv::HConverter::createAddress(), HbookCnv::HConverter::createDirectory(), HbookCnv::HConverter::diskDirectory(), endreq(), StatusCode::FAILURE, IRegistry::identifier(), StatusCode::isSuccess(), Converter::msgSvc(), IRegistry::name(), Converter::objType(), DataObject::registry(), std::basic_string< _CharT, _Traits, _Alloc >::rfind(), HbookCnv::HConverter::setDirectory(), HbookCnv::HConverter::setDiskDirectory(), std::basic_string< _CharT, _Traits, _Alloc >::substr(), MSG::WARNING, and writeData().

Referenced by updateRep().

00086                                                                                      {
00087   pAddr = 0;
00088   try   {
00089     typedef std::pair<std::string,long> hID;
00090     typedef std::map< hID, bool > hIDMap;
00091     static hIDMap usedIDs;
00092     IRegistry* pReg = pObject->registry();
00093     INTuple* pTuple = dynamic_cast<INTuple*>(pObject);
00094     // Get address again....it does not change
00095     pAddr = pReg->address();
00096     if ( 0 == pAddr )    {
00097       char* stop = 0;
00098       const std::string& regName = pReg->identifier();
00099       const std::string rzLoc = regName.substr(0, regName.rfind('/'));
00100       long id = ::strtol(pReg->name().c_str()+1, &stop, 10);
00101       if ( 0 >= id || usedIDs.find(hID(rzLoc,id)) != usedIDs.end() )
00102       {
00103         MsgStream msg(msgSvc(), "HNTupleCnv");
00104         if ( 0 >= id )
00105         {
00106           msg << MSG::WARNING
00107               << "Ntuple ID " << pReg->identifier()
00108               << "' is an invalid HBOOK identifier" << endreq;
00109         }
00110         else
00111         {
00112           // ID is already used
00113           msg << MSG::WARNING << "Ntuple ID '" << pReg->identifier()
00114               << "' is already used" << endreq;
00115         }
00116         id = 1001;
00117         while ( usedIDs.find(hID(rzLoc,id)) != usedIDs.end() ) { ++id; }
00118         const std::string root = pReg->identifier().substr(0,pReg->identifier().rfind('/'));
00119         msg << MSG::WARNING
00120             << "  -> Adjusting PERSISTENT ID to '" << root << "/" << id << "'" << endreq;
00121       }
00122       usedIDs[hID(rzLoc,id)] = true;
00123       StatusCode status = createDirectory(rzLoc);
00124       if ( !status.isSuccess() )   {
00125         return status;
00126       }
00127       setDirectory(rzLoc);
00128       setDiskDirectory(rzLoc);
00129       status = book(id, diskDirectory(rzLoc), pTuple);
00130       if ( !status.isSuccess() )   {
00131         return status;
00132       }
00133       status = createAddress( rzLoc, objType(), id, pAddr );
00134       if ( !status.isSuccess() )   {
00135         return status;
00136       }
00137     }
00138     setDirectory(pAddr->par()[0]);
00139     return writeData(pAddr->ipar()[0], pTuple);
00140   }
00141   catch (...)   {
00142   }
00143   return StatusCode::FAILURE;
00144 }

StatusCode HbookCnv::HNTupleCnv::updateRep ( IOpaqueAddress *  pAddress,
DataObject *  pObject
) [virtual]

Update the converted representation of a transient object.

Reimplemented from Converter.

Definition at line 147 of file HNTupleCnv.cpp.

References createRep(), endreq(), StatusCode::FAILURE, IRegistry::identifier(), MSG::INFO, IOpaqueAddress::ipar(), Converter::msgSvc(), DataObject::registry(), IOpaqueAddress::registry(), std::basic_string< _CharT, _Traits, _Alloc >::rfind(), std::basic_string< _CharT, _Traits, _Alloc >::substr(), MSG::WARNING, and HbookCnv::HConverter::writeObject().

00148 {
00149   MsgStream log(msgSvc(), "HNTupleCnv");
00150   if ( 0 != pAddress )    {
00151     IRegistry* pDir = pAddress->registry();
00152     if ( 0 != pDir )    {
00153       const std::string& regName = pDir->identifier();
00154       const std::string loc = regName.substr(0, regName.rfind('/'));
00155       long id = pAddress->ipar()[0];
00156       log << MSG::INFO << "Saving:" << regName << " with ID:" << id << endreq;
00157       return writeObject( loc, id );
00158     }
00159   }
00160   else {
00161     log << MSG::WARNING << "empty ntuple: "
00162         << pObject->registry()->identifier() << endreq;
00163     return ( createRep(pObject,pAddress) );
00164   }
00165   return StatusCode::FAILURE;
00166 }

virtual StatusCode HbookCnv::HNTupleCnv::load ( long  id,
INTuple *&  refpObject
) [protected, pure virtual]

Create the transient representation of an object.

Implemented in HbookCnv::HCWNTupleCnv, and HbookCnv::HRWNTupleCnv.

Referenced by createObj().

virtual StatusCode HbookCnv::HNTupleCnv::book ( long  idh,
const std::string &  loc,
INTuple *  pObject
) [protected, pure virtual]

Book the N tuple.

Implemented in HbookCnv::HCWNTupleCnv, and HbookCnv::HRWNTupleCnv.

Referenced by createRep().

virtual StatusCode HbookCnv::HNTupleCnv::writeData ( long  idh,
INTuple *  pObject
) [protected, pure virtual]

Write N tuple data.

Implemented in HbookCnv::HCWNTupleCnv, and HbookCnv::HRWNTupleCnv.

Referenced by createRep().

virtual StatusCode HbookCnv::HNTupleCnv::readData ( long  idh,
INTuple *  pObject,
long  ievt
) [protected, pure virtual]

Read N tuple data.

Implemented in HbookCnv::HCWNTupleCnv, and HbookCnv::HRWNTupleCnv.

Referenced by updateObj().

Member Data Documentation

INTupleSvc* HbookCnv::HNTupleCnv::m_ntupleSvc [protected]

Reference to N tuple service.

Definition at line 85 of file HNTupleCnv.h.

Referenced by finalize(), initialize(), HbookCnv::HRWNTupleCnv::load(), and HbookCnv::HCWNTupleCnv::load().

The documentation for this class was generated from the following files:
