HistoTool Class Reference

#include <components/HistoTool.h>

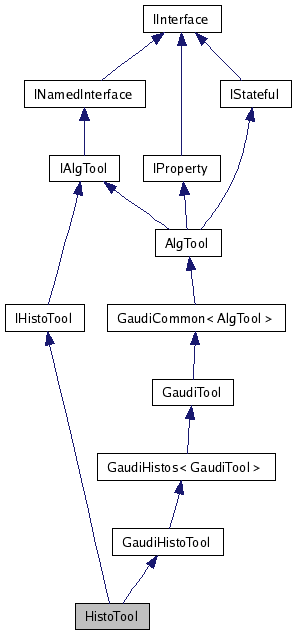

Inheritance diagram for HistoTool:

Inheritance graph
[legend]

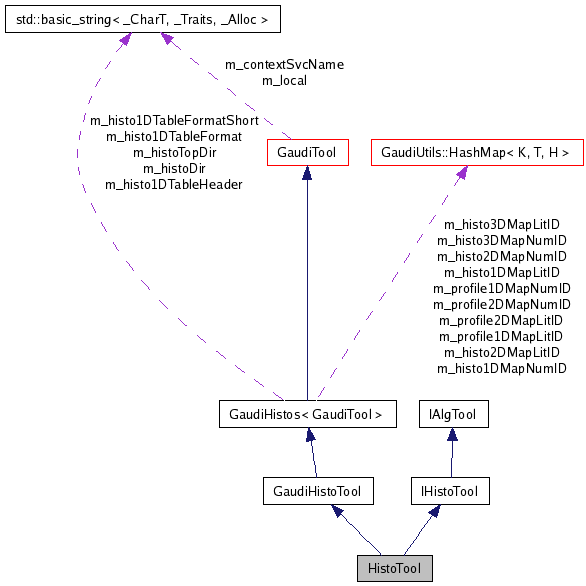

Collaboration diagram for HistoTool:

Collaboration graph
[legend]
List of all members.

Detailed Description

Simple tool for histogramming (component).

Author:
Vanya BELYAEV Ivan.Belyaev@itep.ru
Date:
2004-06-28

Definition at line 30 of file HistoTool.h.

Public Types

typedef IHistoTool::HistoID HistoID
 the actual type for histogram identifier (HBOOK style)

Public Member Functions

 HistoTool (const std::string &type, const std::string &name, const IInterface *parent)
 Standard constructor.
virtual ~HistoTool ()
virtual AIDA::IHistogram1D * plot1D (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
 fill the 1D histogram (book on demand)
virtual AIDA::IHistogram1D * plot1D (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
 fill the 1D histogram with forced ID assignement (book on demand)
virtual AIDA::IHistogram2D * plot2D (const double valueX, const double valueY, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
 fill the 2D histogram (book on demand)
virtual AIDA::IHistogram2D * plot2D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
 fill the 2D histogram with forced ID assignment (book on demand)
virtual AIDA::IHistogram3D * plot3D (const double valueX, const double valueY, const double valueZ, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
 fill the 3D histogram (book on demand)
virtual AIDA::IHistogram3D * plot3D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
 fill the 3D histogram with forced ID assignment (book on demand)
virtual AIDA::IHistogram1D * book1D (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
 book the 1D histogram
virtual AIDA::IHistogram2D * book2D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
 book the 2D histogram
virtual AIDA::IHistogram3D * book3D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
 book the 3D histogram
virtual AIDA::IHistogram1D * book1D (const HistoID &ID, const std::string &title="", const double low=0, const double high=100, const unsigned long bins=100) const
 book the 1D histogram with forced ID
virtual AIDA::IHistogram2D * book2D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
 book the 2D histogram with forced ID
virtual AIDA::IHistogram3D * book3D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
 book the 3D histogram with forced ID
virtual AIDA::IHistogram1D * fill (AIDA::IHistogram1D *histo, const double value, const double weight, const std::string &title="") const
 fill the 1D histo with the value and weight
virtual AIDA::IHistogram2D * fill (AIDA::IHistogram2D *histo, const double valueX, const double valueY, const double weight, const std::string &title="") const
 fill the 2D histo with the value and weight
virtual AIDA::IHistogram3D * fill (AIDA::IHistogram3D *histo, const double valueX, const double valueY, const double valueZ, const double weight, const std::string &title="") const
 fill the 3D histo with the value and weight
virtual AIDA::IHistogram1D * histo1D (const std::string &title) const
 access the EXISTING 1D histogram by title return the pointer to existing 1D histogram or NULL
virtual AIDA::IHistogram1D * histo1D (const HistoID &ID) const
 access the EXISTING 1D histogram by ID return the pointer to existing 1D histogram or NULL
virtual AIDA::IHistogram2D * histo2D (const std::string &title) const
 access the EXISTING 2D histogram by title return the pointer to existing 2D histogram or NULL
virtual AIDA::IHistogram2D * histo2D (const HistoID &ID) const
 access the EXISTING 2D histogram by ID return the pointer to existing 2D histogram or NULL
virtual AIDA::IHistogram3D * histo3D (const std::string &title) const
 access the EXISTING 3D histogram by title return the pointer to existing 3D histogram or NULL
virtual AIDA::IHistogram3D * histo3D (const HistoID &ID) const
 access the EXISTING 3D histogram by ID return the pointer to existing 3D histogram or NULL
virtual bool histoExists (const std::string &title) const
 check the existence AND validity of the histogram with given title
virtual bool histoExists (const HistoID &ID) const
 check the existence AND validity of the histogram with given title

Private Member Functions

 HistoTool ()
 HistoTool (const HistoTool &)
HistoTool & operator= (const HistoTool &)

Member Typedef Documentation

typedef IHistoTool::HistoID HistoTool::HistoID

the actual type for histogram identifier (HBOOK style)

Reimplemented from IHistoTool.

Definition at line 34 of file HistoTool.h.

Constructor & Destructor Documentation

HistoTool::HistoTool ( const std::string &  type,
const std::string &  name,
const IInterface *  parent
)

Standard constructor.

See also:
GaudiHistoTool

GaudiTool

AlgTool

Parameters:
type tool type
name tool name
parent pointer to the parent object

Definition at line 29 of file HistoTool.cpp.

00032   : GaudiHistoTool ( type, name , parent )
00033 {
00034   declareInterface<IHistoTool>(this);
00035 };

HistoTool::~HistoTool (  )  [virtual]

Definition at line 42 of file HistoTool.cpp.

00042 {}

HistoTool::HistoTool (  )  [private]

HistoTool::HistoTool ( const HistoTool &   )  [private]

Member Function Documentation

virtual AIDA::IHistogram1D* HistoTool::plot1D ( const double  value,
const std::string &  title,
const double  low,
const double  high,
const unsigned long  bins = 100,
const double  weight = 1.0
) const [inline, virtual]

fill the 1D histogram (book on demand)

     const double mass = ... ;
     plot1D( mass , "Invariant Mass" , 2.5 , 3.5 , 100 )

The histogram will get a unique integer identifier automatically assigned.

See also:
AIDA::IHistogram1D
Parameters:
value value to be filled
title histogram title (must be unique within the algorithm)
low low limit for histogram
high high limit for histogram
bins number of bins
weight weight
Returns:
pointer to AIDA 1D histogram

Implements IHistoTool.

Definition at line 57 of file HistoTool.h.

References GaudiHistos< GaudiTool >::plot1D().

00064   {
00065     return GaudiHistoTool::plot1D
00066       ( value , title , low , high , bins , weight ) ;
00067   };

virtual AIDA::IHistogram1D* HistoTool::plot1D ( const double  value,
const HistoID &  ID,
const std::string &  title,
const double  low,
const double  high,
const unsigned long  bins = 100,
const double  weight = 1.0
) const [inline, virtual]

fill the 1D histogram with forced ID assignement (book on demand)

     const double mass = ... ;
     plot1D( mass , 15 , "Invariant Mass" , 2.5 , 3.5 , 100 )

Attention:
If the histogram with given ID is already booked through automatic assignement of histogram ID, the error will not be detected. Therefore it is recommended to use non-trivial histogram ID offset (property "HistoOffSet") if one need to combine these techniques together It is still desirable to use the unique histogram title to avoid a bad interference.
Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also:
AIDA::IHistogram1D
Parameters:
value value to be filled
ID histogram identifier
title histogram title (must be unique within the algorithm)
low low limit for histogram
high high limit for histogram
bins number of bins
weight weight
Returns:
pointer to AIDA histogram

Implements IHistoTool.

Definition at line 71 of file HistoTool.h.

References GaudiHistos< GaudiTool >::plot1D().

00078   {
00079     return GaudiHistoTool::plot1D
00080       ( value , ID , title , low , high , bins , weight ) ;
00081   };

virtual AIDA::IHistogram2D* HistoTool::plot2D ( const double  valueX,
const double  valueY,
const std::string &  title,
const double  lowX,
const double  highX,
const double  lowY,
const double  highY,
const unsigned long  binsX = 50,
const unsigned long  binsY = 50,
const double  weight = 1.0
) const [inline, virtual]

fill the 2D histogram (book on demand)

     const double mass1 = ... ;
     const double mass2 = ... ;
     plot2D( mass1, mass2, "Invariant Mass2 versus Mass1" ,2.5 ,3.5, 4.5, 5.5, 100, 200 );

The histogram will get a unique integer identifier automatically assigned

See also:
AIDA::IHistogram2D
Parameters:
valueX x value to be filled
valueY y value to be filled
title histogram title (must be unique within the algorithm)
lowX low x limit for histogram
highX high x limit for histogram
lowY low y limit for histogram
highY high y limit for histogram
binsX number of bins in x
binsY number of bins in y
weight weight
Returns:
pointer to AIDA 2D histogram

Implements IHistoTool.

Definition at line 87 of file HistoTool.h.

References GaudiHistos< GaudiTool >::plot2D().

00097   {
00098     return GaudiHistoTool::plot2D
00099       ( valueX, valueY, title, lowX, highX, lowY, highY, binsX, binsY, weight ) ;
00100   };

virtual AIDA::IHistogram2D* HistoTool::plot2D ( const double  valueX,
const double  valueY,
const HistoID &  ID,
const std::string &  title,
const double  lowX,
const double  highX,
const double  lowY,
const double  highY,
const unsigned long  binsX = 50,
const unsigned long  binsY = 50,
const double  weight = 1.0
) const [inline, virtual]

fill the 2D histogram with forced ID assignment (book on demand)

     const double mass1 = ... ;
     const double mass2 = ... ;
     plot2D( mass1, mass2, 15, "Invariant Mass2 versus Mass1" ,2.5 ,3.5, 4.5, 5.5, 100, 200 );

Attention:
If the histogram with given ID is already booked through automatic assignment of histogram ID, the error will not be detected. Therefore it is recommended to use non-trivial histogram ID offset (property "HistoOffSet") if one need to combine these techniques together It is still desirable to use the unique histogram title to avoid a bad interference
Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also:
AIDA::IHistogram2D
Parameters:
valueX x value to be filled
valueY y value to be filled
ID Histogram ID to use
title histogram title (must be unique within the algorithm)
lowX low x limit for histogram
highX high x limit for histogram
lowY low y limit for histogram
highY high y limit for histogram
binsX number of bins in x
binsY number of bins in y
weight weight
Returns:
pointer to AIDA 2D histogram

Implements IHistoTool.

Definition at line 104 of file HistoTool.h.

References GaudiHistos< GaudiTool >::plot2D().

00115   {
00116     return GaudiHistoTool::plot2D
00117       ( valueX, valueY, ID, title, lowX, highX, lowY, highY, binsX, binsY, weight ) ;
00118   };

virtual AIDA::IHistogram3D* HistoTool::plot3D ( const double  valueX,
const double  valueY,
const double  valueZ,
const std::string &  title,
const double  lowX,
const double  highX,
const double  lowY,
const double  highY,
const double  lowZ,
const double  highZ,
const unsigned long  binsX = 10,
const unsigned long  binsY = 10,
const unsigned long  binsZ = 10,
const double  weight = 1.0
) const [inline, virtual]

fill the 3D histogram (book on demand)

     const double mass1 = ... ;
     const double mass2 = ... ;
     const double mass3 = ... ;
     plot3D( X, Y, Z, "Space Points" ,2.5 ,3.5, 4.5, 5.5, 6.5, 7.5, 10, 20, 30 );

The histogram will get a unique integer identifier automatically assigned

See also:
AIDA::IHistogram3D
Parameters:
valueX x value to be filled
valueY y value to be filled
valueZ z value to be filled
title histogram title (must be unique within the algorithm)
lowX low x limit for histogram
highX high x limit for histogram
lowY low y limit for histogram
highY high y limit for histogram
lowZ low z limit for histogram
highZ high z limit for histogram
binsX number of bins in x
binsY number of bins in y
binsZ number of bins in z
weight weight
Returns:
pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 124 of file HistoTool.h.

References GaudiHistos< GaudiTool >::plot3D().

00138   {
00139     return GaudiHistoTool::plot3D
00140       ( valueX, valueY, valueZ, title,
00141         lowX, highX, lowY, highY, lowZ, highZ, binsX, binsY, binsZ, weight ) ;
00142   };

virtual AIDA::IHistogram3D* HistoTool::plot3D ( const double  valueX,
const double  valueY,
const double  valueZ,
const HistoID &  ID,
const std::string &  title,
const double  lowX,
const double  highX,
const double  lowY,
const double  highY,
const double  lowZ,
const double  highZ,
const unsigned long  binsX = 10,
const unsigned long  binsY = 10,
const unsigned long  binsZ = 10,
const double  weight = 1.0
) const [inline, virtual]

fill the 3D histogram with forced ID assignment (book on demand)

     const double mass1 = ... ;
     const double mass2 = ... ;
     const double mass3 = ... ;
     plot3D( X, Y, Z, "Space Points" ,2.5 ,3.5, 4.5, 5.5, 6.5, 7.5, 10, 20, 30 );

Attention:
If the histogram with given ID is already booked through automatic assignment of histogram ID, the error will not be detected. Therefore it is recommended to use non-trivial histogram ID offset (property "HistoOffSet") if one need to combine these techniques together It is still desirable to use the unique histogram title to avoid a bad interference
Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also:
AIDA::IHistogram3D
Parameters:
valueX x value to be filled
valueY y value to be filled
valueZ z value to be filled
ID Histogram ID to use
title histogram title (must be unique within the algorithm)
lowX low x limit for histogram
highX high x limit for histogram
lowY low y limit for histogram
highY high y limit for histogram
lowZ low z limit for histogram
highZ high z limit for histogram
binsX number of bins in x
binsY number of bins in y
binsZ number of bins in z
weight weight
Returns:
pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 146 of file HistoTool.h.

References GaudiHistos< GaudiTool >::plot3D().

00161   {
00162     return GaudiHistoTool::plot3D
00163       ( valueX, valueY, valueZ, ID, title,
00164         lowX, highX, lowY, highY, lowZ, highZ, binsX, binsY, binsZ, weight ) ;
00165   };

virtual AIDA::IHistogram1D* HistoTool::book1D ( const std::string &  title,
const double  low = 0,
const double  high = 100,
const unsigned long  bins = 100
) const [inline, virtual]

book the 1D histogram

The histogram will be assigned a unique identifier

See also:
IHistogram1D
Parameters:
title histogram title (must be unique within the algorithm)
low low limit for histogram
high high limit for histogram
bins number of bins
Returns:
pointer to AIDA 1D histogram

Implements IHistoTool.

Definition at line 171 of file HistoTool.h.

References GaudiHistos< GaudiTool >::book1D().

00175   {
00176     return GaudiHistoTool::book1D ( title , low , high , bins ) ;
00177   };

virtual AIDA::IHistogram2D* HistoTool::book2D ( const std::string &  title,
const double  lowX = 0,
const double  highX = 100,
const unsigned long  binsX = 50,
const double  lowY = 0,
const double  highY = 100,
const unsigned long  binsY = 50
) const [inline, virtual]

book the 2D histogram

The histogram will be assigned a unique identifier

See also:
IHistogram2D
Parameters:
title histogram title (must be unique within the algorithm)
lowX low x limit for histogram
highX high x limit for histogram
binsX number of bins in x
lowY low y limit for histogram
highY high y limit for histogram
binsY number of bins in y
Returns:
pointer to AIDA 2D histogram

Implements IHistoTool.

Definition at line 181 of file HistoTool.h.

References GaudiHistos< GaudiTool >::book2D().

00188   {
00189     return GaudiHistoTool::book2D ( title, lowX, highX, binsX, lowY, highY, binsY ) ;
00190   }

virtual AIDA::IHistogram3D* HistoTool::book3D ( const std::string &  title,
const double  lowX = 0,
const double  highX = 100,
const unsigned long  binsX = 10,
const double  lowY = 0,
const double  highY = 100,
const unsigned long  binsY = 10,
const double  lowZ = 0,
const double  highZ = 100,
const unsigned long  binsZ = 10
) const [inline, virtual]

book the 3D histogram

The histogram will be assigned a unique identifier

See also:
IHistogram3D
Parameters:
title histogram title (must be unique within the algorithm)
lowX low x limit for histogram
highX high x limit for histogram
binsX number of bins in x
lowY low y limit for histogram
highY high y limit for histogram
binsY number of bins in y
lowZ low y limit for histogram
highZ high y limit for histogram
binsZ number of bins in y
Returns:
pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 194 of file HistoTool.h.

References GaudiHistos< GaudiTool >::book3D().

00204   {
00205     return GaudiHistoTool::book3D ( title,
00206                                     lowX, highX, binsX,
00207                                     lowY, highY, binsY,
00208                                     lowZ, highZ, binsZ ) ;
00209   }

virtual AIDA::IHistogram1D* HistoTool::book1D ( const HistoID &  ID,
const std::string &  title = "",
const double  low = 0,
const double  high = 100,
const unsigned long  bins = 100
) const [inline, virtual]

book the 1D histogram with forced ID

See also:
IHistogram1D
Parameters:
ID unique histogram ID
title histogram title (must be unique within the algorithm)
low low limit for histogram
high high limit for histogram
bins number of bins
Returns:
pointer to AIDA histogram

Implements IHistoTool.

Definition at line 213 of file HistoTool.h.

References GaudiHistos< GaudiTool >::book1D().

00218   {
00219     return GaudiHistoTool::book1D ( ID , title , low , high , bins ) ;
00220   };

virtual AIDA::IHistogram2D* HistoTool::book2D ( const HistoID &  ID,
const std::string &  title,
const double  lowX = 0,
const double  highX = 100,
const unsigned long  binsX = 50,
const double  lowY = 0,
const double  highY = 100,
const unsigned long  binsY = 50
) const [inline, virtual]

book the 2D histogram with forced ID

See also:
IHistogram2D
Parameters:
ID unique histogram ID
title histogram title (must be unique within the algorithm)
low low limit for histogram
high high limit for histogram
bins number of bins
Returns:
pointer to AIDA histogram

Implements IHistoTool.

Definition at line 224 of file HistoTool.h.

References GaudiHistos< GaudiTool >::book2D().

00232   {
00233     return GaudiHistoTool::book2D ( ID, title, lowX, highX, binsX, lowY, highY, binsY ) ;
00234   }

virtual AIDA::IHistogram3D* HistoTool::book3D ( const HistoID &  ID,
const std::string &  title,
const double  lowX = 0,
const double  highX = 100,
const unsigned long  binsX = 10,
const double  lowY = 0,
const double  highY = 100,
const unsigned long  binsY = 10,
const double  lowZ = 0,
const double  highZ = 100,
const unsigned long  binsZ = 10
) const [inline, virtual]

book the 3D histogram with forced ID

See also:
IHistogram3D
Parameters:
ID unique histogram ID
title histogram title (must be unique within the algorithm)
lowX low x limit for histogram
highX high x limit for histogram
binsX number of bins in x
lowY low y limit for histogram
highY high y limit for histogram
binsY number of bins in y
lowZ low y limit for histogram
highZ high y limit for histogram
binsZ number of bins in y
Returns:
pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 238 of file HistoTool.h.

References GaudiHistos< GaudiTool >::book3D().

00249   {
00250     return GaudiHistoTool::book3D ( ID, title,
00251                                     lowX, highX, binsX,
00252                                     lowY, highY, binsY,
00253                                     lowZ, highZ, binsZ ) ;
00254   }

virtual AIDA::IHistogram1D* HistoTool::fill ( AIDA::IHistogram1D *  histo,
const double  value,
const double  weight,
const std::string &  title = ""
) const [inline, virtual]

fill the 1D histo with the value and weight

Parameters:
histo 1D histogram to be filled
value value to be put into the histogram
weight weight to be used
title histogram title (to be used for error report)
Returns:
pointer to AIDA 1D histogram

Implements IHistoTool.

Definition at line 258 of file HistoTool.h.

References GaudiHistos< GaudiTool >::fill().

00262   {
00263     return GaudiHistoTool::fill ( histo , value , weight , title ) ;
00264   };

virtual AIDA::IHistogram2D* HistoTool::fill ( AIDA::IHistogram2D *  histo,
const double  valueX,
const double  valueY,
const double  weight,
const std::string &  title = ""
) const [inline, virtual]

fill the 2D histo with the value and weight

Parameters:
histo 2D histogram to be filled
valueX x value to be put into the histogram
valueY y value to be put into the histogram
weight weight to be used
title histogram title (to be used for error report)
Returns:
pointer to AIDA 2D histogram

Implements IHistoTool.

Definition at line 268 of file HistoTool.h.

References GaudiHistos< GaudiTool >::fill().

00273   {
00274     return GaudiHistoTool::fill ( histo , valueX , valueY , weight , title ) ;
00275   };

virtual AIDA::IHistogram3D* HistoTool::fill ( AIDA::IHistogram3D *  histo,
const double  valueX,
const double  valueY,
const double  valueZ,
const double  weight,
const std::string &  title = ""
) const [inline, virtual]

fill the 3D histo with the value and weight

Parameters:
histo 3D histogram to be filled
valueX x value to be put into the histogram
valueY y value to be put into the histogram
valueZ z value to be put into the histogram
weight weight to be used
title histogram title (to be used for error report)
Returns:
pointer to AIDA 3D histogram

Implements IHistoTool.

Definition at line 279 of file HistoTool.h.

References GaudiHistos< GaudiTool >::fill().

00285   {
00286     return GaudiHistoTool::fill ( histo , valueX , valueY , valueZ, weight , title ) ;
00287   };

virtual AIDA::IHistogram1D* HistoTool::histo1D ( const std::string &  title  )  const [inline, virtual]

access the EXISTING 1D histogram by title return the pointer to existing 1D histogram or NULL

Implements IHistoTool.

Definition at line 290 of file HistoTool.h.

References GaudiHistos< GaudiTool >::histo1D().

00291   { return GaudiHistoTool::histo1D ( title ) ; }

virtual AIDA::IHistogram1D* HistoTool::histo1D ( const HistoID &  ID  )  const [inline, virtual]

access the EXISTING 1D histogram by ID return the pointer to existing 1D histogram or NULL

Implements IHistoTool.

Definition at line 294 of file HistoTool.h.

References GaudiHistos< GaudiTool >::histo1D().

00295   { return GaudiHistoTool::histo1D ( ID ) ; }

virtual AIDA::IHistogram2D* HistoTool::histo2D ( const std::string &  title  )  const [inline, virtual]

access the EXISTING 2D histogram by title return the pointer to existing 2D histogram or NULL

Implements IHistoTool.

Definition at line 298 of file HistoTool.h.

References GaudiHistos< GaudiTool >::histo2D().

00299   { return GaudiHistoTool::histo2D ( title ) ; }

virtual AIDA::IHistogram2D* HistoTool::histo2D ( const HistoID &  ID  )  const [inline, virtual]

access the EXISTING 2D histogram by ID return the pointer to existing 2D histogram or NULL

Implements IHistoTool.

Definition at line 302 of file HistoTool.h.

References GaudiHistos< GaudiTool >::histo2D().

00303   { return GaudiHistoTool::histo2D ( ID ) ; }

virtual AIDA::IHistogram3D* HistoTool::histo3D ( const std::string &  title  )  const [inline, virtual]

access the EXISTING 3D histogram by title return the pointer to existing 3D histogram or NULL

Implements IHistoTool.

Definition at line 306 of file HistoTool.h.

References GaudiHistos< GaudiTool >::histo3D().

00307   { return GaudiHistoTool::histo3D ( title ) ; }

virtual AIDA::IHistogram3D* HistoTool::histo3D ( const HistoID &  ID  )  const [inline, virtual]

access the EXISTING 3D histogram by ID return the pointer to existing 3D histogram or NULL

Implements IHistoTool.

Definition at line 310 of file HistoTool.h.

References GaudiHistos< GaudiTool >::histo3D().

00311   { return GaudiHistoTool::histo3D ( ID ) ; }

virtual bool HistoTool::histoExists ( const std::string &  title  )  const [inline, virtual]

check the existence AND validity of the histogram with given title

Implements IHistoTool.

Definition at line 314 of file HistoTool.h.

References GaudiHistos< GaudiTool >::histoExists().

00315   { return GaudiHistoTool::histoExists ( title ) ; }

virtual bool HistoTool::histoExists ( const HistoID &  ID  )  const [inline, virtual]

check the existence AND validity of the histogram with given title

Implements IHistoTool.

Definition at line 318 of file HistoTool.h.

References GaudiHistos< GaudiTool >::histoExists().

00319   { return GaudiHistoTool::histoExists ( ID ) ; }

HistoTool& HistoTool::operator= ( const HistoTool &   )  [private]

The documentation for this class was generated from the following files:
Generated at Fri Jul 18 12:07:51 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
