Gaudi Framework, version v20r2
	Generated: 18 Jul 2008

IParticlePropertySvc Class Reference

#include <GaudiKernel/IParticlePropertySvc.h>

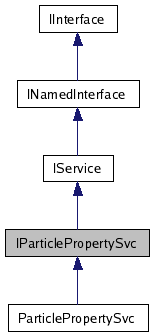

Inheritance diagram for IParticlePropertySvc:

[legend]Collaboration diagram for IParticlePropertySvc:

[legend]List of all members.

---

Detailed Description

This class is an interface to the ParticlePropertySvc.

Author:

Iain Last

G.Corti

Definition at line 22 of file IParticlePropertySvc.h.

Public Types
typedef std::vector< ParticleProperty * >	VectPP
typedef VectPP::const_iterator	const_iterator
typedef VectPP::iterator	iterator
Public Member Functions
virtual StatusCode	push_back (const std::string &particle, int geantId, int jetsetId, double charge, double mass, double tlife, const std::string &evtName, int pythiaId, double maxWidth)=0
	Create a new particle property.
virtual StatusCode	push_back (ParticleProperty *pp)=0
	Create a new particle property.
virtual const_iterator	begin () const=0
	Get a const reference to the begining of the container.
virtual const_iterator	end () const=0
	Get a const reference to the end of the container.
virtual int	size () const=0
	Get the container size.
virtual ParticleProperty *	find (int geantId)=0
	Retrieve an object by geant3 id.
virtual ParticleProperty *	findByStdHepID (int stdHepID)=0
	Retrieve an object by StdHep id.
virtual ParticleProperty *	find (const std::string &name)=0
	Retrieve an object by name.
virtual ParticleProperty *	findByPythiaID (int pythiaID)=0
	Retrieve an object by PythiaID.
virtual StatusCode	erase (int geantId)=0
	Erase a property by geant3 id.
virtual StatusCode	erase (const std::string &name)=0
	Erase a property by particle name.
virtual StatusCode	eraseByStdHepID (int stdHepID)=0
	Erase a property by StdHep id.
Static Public Member Functions
static const InterfaceID &	interfaceID ()
	Retrieve interface ID.

---

Member Typedef Documentation

typedef std::vector<ParticleProperty*> IParticlePropertySvc::VectPP

Reimplemented in ParticlePropertySvc.

Definition at line 26 of file IParticlePropertySvc.h.

typedef VectPP::const_iterator IParticlePropertySvc::const_iterator

Reimplemented in ParticlePropertySvc.

Definition at line 27 of file IParticlePropertySvc.h.

typedef VectPP::iterator IParticlePropertySvc::iterator

Reimplemented in ParticlePropertySvc.

Definition at line 28 of file IParticlePropertySvc.h.

---

Member Function Documentation

static const InterfaceID& IParticlePropertySvc::interfaceID

(

)

[inline, static]

Retrieve interface ID.

Reimplemented from IService.

Definition at line 31 of file IParticlePropertySvc.h.

References IID_IParticlePropertySvc.

{ return IID_IParticlePropertySvc; }

virtual StatusCode IParticlePropertySvc::push_back	(	const std::string &	particle,
		int	geantId,
		int	jetsetId,
		double	charge,
		double	mass,
		double	tlife,
		const std::string &	evtName,
		int	pythiaId,
		double	maxWidth
	)			[pure virtual]

Create a new particle property.

Parameters:

	particle	String name of the particle
	geantId	Geant3 ID of the particle
	jetsetId	Jetset ID of the particle
	charge	Particle charge (/e)
	mass	Particle mass (MeV)
	tlife	Particle lifetime (s)
	evtName	String name of the particle in EvtGen
	pythiaId	ID of particle in Pythia

Returns:

StatusCode - SUCCESS if the particle property was added

Implemented in ParticlePropertySvc.

virtual StatusCode IParticlePropertySvc::push_back

(

ParticleProperty *

pp

)

[pure virtual]

Create a new particle property.

Parameters:

pp

a particle property class

Returns:

StatusCode - SUCCESS if the particle property was added

Implemented in ParticlePropertySvc.

virtual const_iterator IParticlePropertySvc::begin

(

)

const [pure virtual]

Get a const reference to the begining of the container.

Implemented in ParticlePropertySvc.

virtual const_iterator IParticlePropertySvc::end

(

)

const [pure virtual]

Get a const reference to the end of the container.

Implemented in ParticlePropertySvc.

virtual int IParticlePropertySvc::size

(

)

const [pure virtual]

Get the container size.

Implemented in ParticlePropertySvc.

virtual ParticleProperty* IParticlePropertySvc::find

(

int

geantId

)

[pure virtual]

Retrieve an object by geant3 id.

Implemented in ParticlePropertySvc.

virtual ParticleProperty* IParticlePropertySvc::findByStdHepID

(

int

stdHepID

)

[pure virtual]

Retrieve an object by StdHep id.

Implemented in ParticlePropertySvc.

virtual ParticleProperty* IParticlePropertySvc::find

(

const std::string &

name

)

[pure virtual]

Retrieve an object by name.

Implemented in ParticlePropertySvc.

virtual ParticleProperty* IParticlePropertySvc::findByPythiaID

(

int

pythiaID

)

[pure virtual]

Retrieve an object by PythiaID.

Implemented in ParticlePropertySvc.

virtual StatusCode IParticlePropertySvc::erase

(

int

geantId

)

[pure virtual]

Erase a property by geant3 id.

Implemented in ParticlePropertySvc.

virtual StatusCode IParticlePropertySvc::erase

(

const std::string &

name

)

[pure virtual]

Erase a property by particle name.

Implemented in ParticlePropertySvc.

virtual StatusCode IParticlePropertySvc::eraseByStdHepID

(

int

stdHepID

)

[pure virtual]

Erase a property by StdHep id.

Implemented in ParticlePropertySvc.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r2/GaudiKernel/v25r2/GaudiKernel/IParticlePropertySvc.h

---
