ParticlePropertySvc Class Reference

#include <ParticlePropertySvc.h>

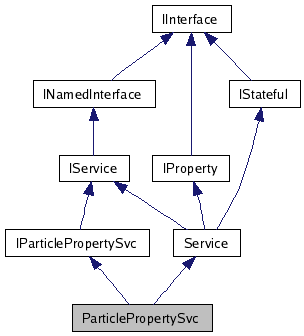

Inheritance diagram for ParticlePropertySvc:

Inheritance graph
[legend]

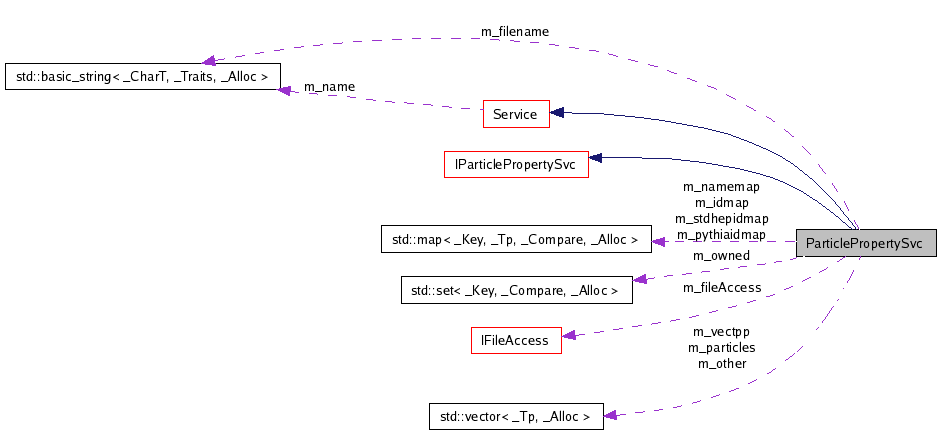

Collaboration diagram for ParticlePropertySvc:

Collaboration graph
[legend]
List of all members.

Detailed Description

This service provides access to particle properties.

The settable property of this service is the ParticlePropertiesFile, an ASCII file containing the list of properties for the particles. The default file is: "$PARAMFILESROOT/data/ParticleTable.txt" or if $PARAMFILESROOT is not defined "ParticleTable.txt"

Author:
Iain Last

Gloria Corti 8/11/1999 change default file from $CDF/particle.cdf to $LHCBDBASE/cdf/particle.cdf on Unix and use environment variable also on WinNT Also introduce finding of particle by StdHepID

Vanya BELYAEV

Date:
2006-09-22 1) Modified to add possibility to redefine properties of existing particles and to read addiitonal files. New propeety "OtherFiles" (default is empty vector) is introduces. Service parsed additional files after the main one.
    // read additional properties
    ParticlePropertySvc.OtherFiles = {
       "$SOMELOCATION1/file1.txt" ,
       "$SOMELOCATION2/file2.txt"
    } ;

2) Add possibility to modify only certain partiles through the new property "Particles" (default is enpty list), Each line is interpreted as a line in particle data table, e.g.

   // redefine the properties of H_20 and H_30 particles:
   ParticlePropertySvc.Particles = {
       "H_20 88 35 0.0 120.0 9.4e-26 Higgs'0 35 0.0e+00" ,
       "H_30 89 36 0.0  40.0 1.0e-12      A0 36 0.0e+00"
     } ;

The replaces/modified particles are reported.

Definition at line 75 of file ParticlePropertySvc.h.

Public Types

typedef ParticleProperty * mapped_type
typedef std::map< int, mapped_type > MapID
typedef std::map< std::string,
mapped_type > 		MapName
typedef std::map< int, mapped_type > MapStdHepID
typedef std::map< int, mapped_type > MapPythiaID
typedef IParticlePropertySvc::VectPP VectPP
typedef IParticlePropertySvc::const_iterator const_iterator
typedef IParticlePropertySvc::iterator iterator
typedef std::set< ParticleProperty * > Set

Public Member Functions

virtual StatusCode initialize ()
 Initialise the service.
virtual StatusCode finalize ()
 Finalise the service.
virtual StatusCode queryInterface (const InterfaceID &riid, void **ppvInterface)
 Query the interfaces.
virtual const InterfaceID & type () const
 Service type.
virtual StatusCode push_back (const std::string &particle, int geantId, int jetsetId, double charge, double mass, double tlife, const std::string &evtName, int pythiaId, double maxWidth)
 Create a new particle property.
virtual StatusCode push_back (ParticleProperty *pp)
 Add a new particle property.
virtual const_iterator begin () const
 Get a const reference to the begining of the container.
virtual const_iterator end () const
 Get a const reference to the end of the container.
virtual int size () const
 Get the container size.
virtual ParticleProperty * find (int geantId)
 Retrieve a property by geant3 id.
virtual ParticleProperty * find (const std::string &name)
 Retrieve a property by particle name.
virtual ParticleProperty * findByStdHepID (int stdHepId)
 Retrieve a property by StdHep id.
virtual ParticleProperty * findByPythiaID (int pythiaID)
 Retrieve a property by Pythia id.
virtual StatusCode erase (int geantId)
 Erase a property by geant3 id.
virtual StatusCode erase (const std::string &name)
 Erase a property by particle name.
virtual StatusCode eraseByStdHepID (int stdHepId)
 Erase a property by StdHep id ???
 ParticlePropertySvc (const std::string &name, ISvcLocator *svc)
 Standard Constructor.
virtual ~ParticlePropertySvc ()
 Destructor.

Protected Member Functions

const ParticleProperty * anti (const ParticleProperty *pp) const
 helper (protected) function to find an antiparticle for the given particle ID (StdHepID)
StatusCode setAntiParticles ()
 helper (protected) function to set the valid particle<-->antiparticle relations
StatusCode rebuild ()
 rebuild "the linear container" from the map
StatusCode erase (const ParticleProperty *pp)
 remove particle property from all maps
StatusCode parse (const std::string &file)
 parse the file
StatusCode parse ()
 Parses the file and fill all the maps.
StatusCode addParticles ()
bool diff (const ParticleProperty *o, const ParticleProperty *n, const MSG::Level l=MSG::DEBUG) const

Private Types

typedef std::vector< std::string > Files
typedef std::vector< std::string > Particles

Private Attributes

std::string m_filename
 Filename of the particle properties file.
Files m_other
 additional file names
Particles m_particles
VectPP m_vectpp
 Vector of all particle properties.
MapID m_idmap
 Map for geant IDs.
MapName m_namemap
 Map for particle names.
MapStdHepID m_stdhepidmap
 Map for StdHep Ids.
MapPythiaID m_pythiaidmap
 Map for Pythia Ids.
Set m_owned
std::set< std::string > m_replaced
IFileAccess * m_fileAccess

Member Typedef Documentation

typedef ParticleProperty* ParticlePropertySvc::mapped_type

Definition at line 81 of file ParticlePropertySvc.h.

typedef std::map< int, mapped_type > ParticlePropertySvc::MapID

Definition at line 82 of file ParticlePropertySvc.h.

typedef std::map< std::string, mapped_type > ParticlePropertySvc::MapName

Definition at line 83 of file ParticlePropertySvc.h.

typedef std::map< int, mapped_type > ParticlePropertySvc::MapStdHepID

Definition at line 84 of file ParticlePropertySvc.h.

typedef std::map< int, mapped_type > ParticlePropertySvc::MapPythiaID

Definition at line 85 of file ParticlePropertySvc.h.

typedef IParticlePropertySvc::VectPP ParticlePropertySvc::VectPP

Reimplemented from IParticlePropertySvc.

Definition at line 86 of file ParticlePropertySvc.h.

typedef IParticlePropertySvc::const_iterator ParticlePropertySvc::const_iterator

Reimplemented from IParticlePropertySvc.

Definition at line 87 of file ParticlePropertySvc.h.

typedef IParticlePropertySvc::iterator ParticlePropertySvc::iterator

Reimplemented from IParticlePropertySvc.

Definition at line 88 of file ParticlePropertySvc.h.

typedef std::set<ParticleProperty*> ParticlePropertySvc::Set

Definition at line 89 of file ParticlePropertySvc.h.

typedef std::vector<std::string> ParticlePropertySvc::Files [private]

Definition at line 193 of file ParticlePropertySvc.h.

typedef std::vector<std::string> ParticlePropertySvc::Particles [private]

Definition at line 194 of file ParticlePropertySvc.h.

Constructor & Destructor Documentation

ParticlePropertySvc::ParticlePropertySvc ( const std::string &  name,
ISvcLocator *  svc
)

Standard Constructor.

Parameters:
name String with service name
svc Pointer to service locator interface

Definition at line 46 of file ParticlePropertySvc.cpp.

00048   : Service( name, svc )
00049   // the default name of input data file
00050   , m_filename ( "ParticleTable.txt" )
00051   , m_other ()
00052   , m_particles ()
00053   // storages :
00054   , m_vectpp  ()
00055   , m_idmap   ()
00056   , m_namemap ()
00057   , m_stdhepidmap()
00058   , m_pythiaidmap()
00059   //
00060   , m_owned ()
00061   , m_replaced ()
00062   , m_fileAccess (0)
00063 {
00064   // Redefine the default name:
00065   if( NULL != getenv("PARAMFILESROOT") )
00066   {
00067     m_filename  = getenv( "PARAMFILESROOT" ) ;
00068     m_filename += "/data/ParticleTable.txt"  ;
00069   }
00070   //
00071   declareProperty ( "ParticlePropertiesFile" , m_filename  ) ;
00072   declareProperty ( "OtherFiles"             , m_other     ) ;
00073   declareProperty ( "Particles"              , m_particles ) ;
00074 }

ParticlePropertySvc::~ParticlePropertySvc (  )  [virtual]

Destructor.

Definition at line 78 of file ParticlePropertySvc.cpp.

References std::set< _Key, _Compare, _Alloc >::begin(), std::set< _Key, _Compare, _Alloc >::end(), and m_owned.

00079 {
00080   for ( Set::iterator i = m_owned.begin(); i != m_owned.end() ; ++i )
00081   { if ( 0 != *i ) { delete *i ; } }
00082 }

Member Function Documentation

StatusCode ParticlePropertySvc::initialize (  )  [virtual]

Initialise the service.

Reimplemented from Service.

Definition at line 91 of file ParticlePropertySvc.cpp.

References addParticles(), MSG::DEBUG, std::vector< _Tp, _Alloc >::empty(), endreq(), MSG::ERROR, MSG::INFO, Service::initialize(), StatusCode::isFailure(), m_fileAccess, m_idmap, m_namemap, m_particles, m_pythiaidmap, m_replaced, m_stdhepidmap, Service::msgSvc(), Service::name(), parse(), Service::service(), Service::setProperties(), StatusCode::SUCCESS, and Gaudi::Utils::toString().

00092 {
00093   StatusCode sc = Service::initialize();
00094   if ( sc.isFailure() ) { return sc ; }
00095
00096   MsgStream log( msgSvc() , name() ) ;
00097
00098   sc = setProperties();
00099   if ( sc.isFailure() )
00100   {
00101     log << MSG::ERROR << " Could not set the properties " << endreq ;
00102     return sc ;
00103   }
00104
00105
00106   sc = service("VFSSvc",m_fileAccess);
00107   if ( sc.isFailure() )
00108   {
00109     log << MSG::ERROR << " Cannot retrieve the VFS service " << endreq ;
00110     return sc ;
00111   }
00112
00113   sc = parse();
00114   if ( sc.isFailure() )
00115   {
00116     log << MSG::ERROR << " Could not parse the file " << endreq ;
00117     return sc ;
00118   }
00119   if ( !m_particles.empty() )
00120   {
00121     sc = addParticles () ;
00122     if ( sc.isFailure() )
00123     {
00124       log << MSG::ERROR << " Could not treat particles! " << endreq ;
00125       return sc ;
00126     }
00127   }
00128   log << MSG::DEBUG << "ParticleProperties parsed successfully" << endreq;
00129
00130   log << MSG::DEBUG << "Access properties" << endreq;
00131   // For debugging purposes print out the size of the internal maps
00132   // particle name as key: all particles in database are present here
00133   log << MSG::DEBUG << "NameMap size =" << m_namemap.size() << endreq;
00134   // Geant3 ID as key: all particles in database are present here
00135   log << MSG::DEBUG << "GeantID Map size =" << m_idmap.size() << endreq;
00136   // StdHep ID as key: some particles have no valid StdHep ID
00137   log << MSG::DEBUG << "StdHepID Map size =" << m_stdhepidmap.size()
00138       << endreq;
00139   // Pythia ID as key: some particles are not defined in Pythia
00140   log << MSG::DEBUG << "PythiaID Map size =" << m_pythiaidmap.size()
00141       << endreq;
00142
00143   if ( !m_replaced.empty() )
00144   {
00145     log << MSG::INFO
00146         << "Properties have beed redefined for "
00147         << m_replaced.size() << " particles : "
00148         << Gaudi::Utils::toString( m_replaced )
00149         << endreq ;
00150   }
00151
00152   return StatusCode::SUCCESS ;
00153 }

StatusCode ParticlePropertySvc::finalize (  )  [virtual]

Finalise the service.

finalize the base class

Reimplemented from Service.

Definition at line 157 of file ParticlePropertySvc.cpp.

References MSG::ALWAYS, std::vector< _Tp, _Alloc >::empty(), endreq(), Service::finalize(), MSG::INFO, m_fileAccess, m_other, m_replaced, Service::msgSvc(), Service::name(), IInterface::release(), and Gaudi::Utils::toString().

00158 {
00159   if ( !m_other.empty() )
00160   {
00161     MsgStream log( msgSvc() , name() ) ;
00162     log << MSG::INFO
00163         << "Additional Properties have beed read from files: "
00164         << Gaudi::Utils::toString ( m_other )
00165         << endreq ;
00166   }
00167
00168   if ( !m_replaced.empty() )
00169   {
00170     MsgStream log( msgSvc() , name() ) ;
00171     log << MSG::ALWAYS
00172         << "Properties have beed redefined for "
00173         << m_replaced.size() << " particles : "
00174         << Gaudi::Utils::toString( m_replaced )
00175         << endreq ;
00176   }
00177
00178   if (m_fileAccess) {
00179     m_fileAccess->release();
00180     m_fileAccess = 0;
00181   }
00182
00184   return Service::finalize () ;
00185 }

StatusCode ParticlePropertySvc::queryInterface ( const InterfaceID &  riid,
void **  ppvInterface
) [virtual]

Query the interfaces.

< IMPORTANT: increment the reference counter

Reimplemented from Service.

Definition at line 190 of file ParticlePropertySvc.cpp.

References StatusCode::FAILURE, IID_IParticlePropertySvc, Service::queryInterface(), and StatusCode::SUCCESS.

00192 {
00193   // chech the placeholder for result
00194   if ( !ppvInterface ) { return StatusCode::FAILURE ; }
00195   //
00196   *ppvInterface = 0;
00197   //
00198   if ( riid == IID_IParticlePropertySvc )
00199   {
00200     *ppvInterface = static_cast<IParticlePropertySvc*>(this);
00201     addRef();
00202     return StatusCode::SUCCESS ;
00203   }
00204   //
00205   return  Service::queryInterface( riid, ppvInterface ) ;
00206 }

const InterfaceID & ParticlePropertySvc::type (  )  const [virtual]

Service type.

Reimplemented from Service.

Definition at line 86 of file ParticlePropertySvc.cpp.

References IID_IParticlePropertySvc.

00087 { return IID_IParticlePropertySvc; }

StatusCode ParticlePropertySvc::push_back ( const std::string &  particle,
int  geantId,
int  jetsetId,
double  charge,
double  mass,
double  tlife,
const std::string &  evtName,
int  pythiaId,
double  maxWidth
) [virtual]

Create a new particle property.

Attention:
ParticlePropertySvc *IS* the owner if this property! String name of the particle.
Parameters:
geantId Geant3 ID of the particle.
jetsetId Jetset ID of the particle.
charge Particle charge (/e).
mass Particle mass (GeV).
tlife Particle lifetime (s).
evtName String name of the particle in EvtGen.
pythiaId Pythia ID of the particle.
Returns:
StatusCode - SUCCESS if the particle property was added.

Implements IParticlePropertySvc.

Definition at line 211 of file ParticlePropertySvc.cpp.

Referenced by addParticles(), and parse().

00220 {
00221   ParticleProperty* pp = new ParticleProperty
00222     ( particle , geantId  , jetsetId ,
00223       charge   , mass     , tlife    ,
00224       evtName  , pythiaId , maxWidth ) ;
00225   //
00226   m_owned.insert ( pp ) ;
00227   //
00228   return push_back( pp );
00229 }

StatusCode ParticlePropertySvc::push_back ( ParticleProperty *  pp  )  [virtual]

Add a new particle property.

Attention:
ParticlePropertySvc is not the owner of this property!
Parameters:
pp,a particle property class.
Returns:
StatusCode - SUCCESS if the particle property was added.

Implements IParticlePropertySvc.

Definition at line 233 of file ParticlePropertySvc.cpp.

References diff(), StatusCode::FAILURE, ParticleProperty::geantID(), ParticleProperty::jetsetID(), m_idmap, m_namemap, m_pythiaidmap, m_replaced, m_stdhepidmap, ParticleProperty::particle(), ParticleProperty::pythiaID(), and rebuild().

00234 {
00235   if ( 0 == pp ) { return StatusCode::FAILURE ; }
00236   //
00237   { // try to add into Geant(3)ID map
00238     const int ID = pp->geantID() ;
00239     // is this already in the map?
00240     MapID::const_iterator ifind = m_idmap.find( ID ) ;
00241     if ( m_idmap.end() != ifind && 0 != m_idmap[ ID ])
00242     {
00243       diff ( ifind->second , pp ) ;
00244       m_replaced.insert( m_idmap[ ID ]->particle() ) ;
00245     }
00246     // put it into the map
00247     m_idmap[ ID ] = pp ;
00248   }
00249   //
00250   { // try to add into Name map
00251     const std::string& particle = pp->particle() ;
00252     // is this already in the map?
00253     MapName::const_iterator ifind = m_namemap.find( particle ) ;
00254     if ( m_namemap.end() != ifind && 0 != m_namemap[ particle ] )
00255     {
00256       diff ( ifind->second , pp ) ;
00257       m_replaced.insert( m_namemap[ particle ]->particle() ) ;
00258     }
00259     // put it into the map
00260     m_namemap[ particle ] = pp ;
00261   }
00262   //
00263   // add to StdHep map only if StdHep ID different from zero and if
00264   // not Cerenkov (StdHep ID = gamma)
00265   if ( 0 != pp->jetsetID() && "Tcherenkov" != pp->particle() )
00266   { // try to add into StdHepID map
00267     const int ID = pp->jetsetID() ;
00268     // is this already in the map?
00269     MapStdHepID::const_iterator ifind = m_stdhepidmap.find( ID ) ;
00270     if ( m_stdhepidmap.end() != ifind && 0 != m_stdhepidmap[ ID ])
00271     {
00272       diff ( ifind->second , pp ) ;
00273       m_replaced.insert( m_stdhepidmap[ ID ]->particle() ) ;
00274     }
00275     // put it into the map
00276     m_stdhepidmap[ ID ] = pp ;
00277   }
00278   //
00279   // add to Pythia map only if Pythia ID is different from
00280   // zero ( StdHep id is always different from zero in this case )
00281   if ( 0 != pp->pythiaID() &&
00282        0 != pp->jetsetID() &&
00283        "Tcherenkov" != pp->particle() )
00284   { // try to add into PythiaID map
00285     const int ID = pp->pythiaID() ;
00286     // is this already in the map?
00287     MapPythiaID::const_iterator ifind = m_pythiaidmap.find( ID ) ;
00288     if ( m_pythiaidmap.end() != ifind && 0 != m_pythiaidmap[ ID ])
00289     {
00290       diff ( ifind->second , pp ) ;
00291       m_replaced.insert( m_pythiaidmap[ ID ]->particle() ) ;
00292     }
00293     // put it into the map
00294     m_pythiaidmap[ ID ] = pp ;
00295   }
00296   //
00297   return rebuild() ;
00298 }

virtual const_iterator ParticlePropertySvc::begin (  )  const [inline, virtual]

Get a const reference to the begining of the container.

Implements IParticlePropertySvc.

Definition at line 130 of file ParticlePropertySvc.h.

References std::vector< _Tp, _Alloc >::begin(), and m_vectpp.

00130 { return m_vectpp.begin() ; }

virtual const_iterator ParticlePropertySvc::end (  )  const [inline, virtual]

Get a const reference to the end of the container.

Implements IParticlePropertySvc.

Definition at line 132 of file ParticlePropertySvc.h.

References std::vector< _Tp, _Alloc >::end(), and m_vectpp.

00132 { return m_vectpp.end() ; }

virtual int ParticlePropertySvc::size (  )  const [inline, virtual]

Get the container size.

Implements IParticlePropertySvc.

Definition at line 134 of file ParticlePropertySvc.h.

References m_vectpp, and std::vector< _Tp, _Alloc >::size().

00134 { return m_vectpp.size() ; };

virtual ParticleProperty* ParticlePropertySvc::find ( int  geantId  )  [inline, virtual]

Retrieve a property by geant3 id.

Implements IParticlePropertySvc.

Definition at line 136 of file ParticlePropertySvc.h.

References m_idmap.

Referenced by erase().

00137   { return m_idmap[ geantId ] ; }

virtual ParticleProperty* ParticlePropertySvc::find ( const std::string &  name  )  [inline, virtual]

Retrieve a property by particle name.

Implements IParticlePropertySvc.

Definition at line 139 of file ParticlePropertySvc.h.

References m_namemap, and Service::name().

00140   { return m_namemap[ name ] ; }

virtual ParticleProperty* ParticlePropertySvc::findByStdHepID ( int  stdHepId  )  [inline, virtual]

Retrieve a property by StdHep id.

Implements IParticlePropertySvc.

Definition at line 142 of file ParticlePropertySvc.h.

References m_stdhepidmap.

Referenced by eraseByStdHepID().

00143   { return m_stdhepidmap[ stdHepId ] ; }

virtual ParticleProperty* ParticlePropertySvc::findByPythiaID ( int  pythiaID  )  [inline, virtual]

Retrieve a property by Pythia id.

Implements IParticlePropertySvc.

Definition at line 145 of file ParticlePropertySvc.h.

References m_pythiaidmap.

00146   { return m_pythiaidmap[ pythiaID ]; }

virtual StatusCode ParticlePropertySvc::erase ( int  geantId  )  [inline, virtual]

Erase a property by geant3 id.

Implements IParticlePropertySvc.

Definition at line 148 of file ParticlePropertySvc.h.

References find().

Referenced by erase(), and eraseByStdHepID().

00149   { return erase ( find ( geantId ) ) ; }

virtual StatusCode ParticlePropertySvc::erase ( const std::string &  name  )  [inline, virtual]

Erase a property by particle name.

Implements IParticlePropertySvc.

Definition at line 151 of file ParticlePropertySvc.h.

References erase(), find(), and Service::name().

00152   { return erase ( find ( name ) ) ; }

virtual StatusCode ParticlePropertySvc::eraseByStdHepID ( int  stdHepId  )  [inline, virtual]

Erase a property by StdHep id ???

Implements IParticlePropertySvc.

Definition at line 154 of file ParticlePropertySvc.h.

References erase(), and findByStdHepID().

00155   { return erase( findByStdHepID ( stdHepId ) ) ; }

const ParticleProperty * ParticlePropertySvc::anti ( const ParticleProperty *  pp  )  const [protected]

helper (protected) function to find an antiparticle for the given particle ID (StdHepID)

Parameters:
pp pointer to particle property
Returns:
pointer to antiparticle

Definition at line 437 of file ParticlePropertySvc.cpp.

References std::vector< _Tp, _Alloc >::begin(), std::vector< _Tp, _Alloc >::end(), m_vectpp, and ParticleProperty::pdgID().

Referenced by setAntiParticles().

00438 {
00439   if ( 0 == pp ) { return 0 ; }
00440   const int     ID = pp->pdgID() ;
00441   const int antiID = -1 * ID     ;
00442   for ( const_iterator it = m_vectpp.begin() ; m_vectpp.end() != it ; ++it )
00443   {
00444     const ParticleProperty* ap = *it ;
00445     if ( 0 == ap               ) { continue  ; }                // CONTINUE
00446     if ( antiID == ap->pdgID() ) { return ap ; }                // RETURN
00447   };
00448   //
00449   return pp ;                                                   // RETURN
00450 }

StatusCode ParticlePropertySvc::setAntiParticles (  )  [protected]

helper (protected) function to set the valid particle<-->antiparticle relations

Returns:
status code

Definition at line 457 of file ParticlePropertySvc.cpp.

References anti(), std::vector< _Tp, _Alloc >::begin(), std::vector< _Tp, _Alloc >::end(), m_vectpp, and StatusCode::SUCCESS.

Referenced by rebuild().

00458 {
00459   // initialize particle<-->antiParticle relations
00460   for ( iterator ip = m_vectpp.begin() ; m_vectpp.end() != ip ; ++ip )
00461   {
00462     ParticleProperty* pp = *ip ;
00463     if ( 0 == pp                    ) { continue ; }   // CONTINUE
00464     const ParticleProperty* ap = anti ( pp ) ;
00465     if ( 0 != ap                    ) { pp->setAntiParticle( ap ) ; }
00466   }
00467   return StatusCode::SUCCESS ;
00468 }

StatusCode ParticlePropertySvc::rebuild (  )  [protected]

rebuild "the linear container" from the map

Definition at line 483 of file ParticlePropertySvc.cpp.

References _load_(), std::set< _Key, _Compare, _Alloc >::begin(), std::vector< _Tp, _Alloc >::clear(), std::set< _Key, _Compare, _Alloc >::end(), m_idmap, m_namemap, m_pythiaidmap, m_stdhepidmap, m_vectpp, std::vector< _Tp, _Alloc >::push_back(), std::vector< _Tp, _Alloc >::reserve(), and setAntiParticles().

Referenced by erase(), and push_back().

00484 {
00485   Set local ;
00486   m_vectpp.clear() ;
00487   m_vectpp.reserve ( m_idmap.size() + 100 ) ;
00488   // load information from maps into the set
00489   _load_ ( m_idmap       , local ) ;
00490   _load_ ( m_namemap     , local ) ;
00491   _load_ ( m_stdhepidmap , local ) ;
00492   _load_ ( m_pythiaidmap , local ) ;
00493   // load information from set to the linear container vector
00494   for ( Set::iterator i = local.begin() ; local.end() != i ; ++i )
00495   { m_vectpp.push_back ( *i ) ; }
00496   return setAntiParticles() ;
00497 }

StatusCode ParticlePropertySvc::erase ( const ParticleProperty *  pp  )  [protected]

remove particle property from all maps

Definition at line 313 of file ParticlePropertySvc.cpp.

References _remove_(), StatusCode::FAILURE, m_idmap, m_namemap, m_pythiaidmap, m_stdhepidmap, and rebuild().

00314 {
00315   if ( 0 == pp ) { return StatusCode::FAILURE ; }
00316
00317   _remove_ ( m_idmap       , pp ) ;
00318   _remove_ ( m_namemap     , pp ) ;
00319   _remove_ ( m_stdhepidmap , pp ) ;
00320   _remove_ ( m_pythiaidmap , pp ) ;
00321   //
00322   return rebuild() ;
00323 }

StatusCode ParticlePropertySvc::parse ( const std::string &  file  )  [protected]

parse the file

Definition at line 356 of file ParticlePropertySvc.cpp.

References std::basic_string< _CharT, _Traits, _Alloc >::c_str(), endreq(), MSG::ERROR, StatusCode::FAILURE, std::auto_ptr< _Tp >::get(), std::basic_istream< _CharT, _Traits >::getline(), Gaudi::Units::GeV, MSG::INFO, StatusCode::isFailure(), m_fileAccess, Service::msgSvc(), Service::name(), IFileAccess::open(), push_back(), Gaudi::Units::s, and StatusCode::SUCCESS.

00357 {
00358   StatusCode sc = StatusCode::FAILURE;
00359
00360   MsgStream log( msgSvc(), name() );
00361   char line[ 255 ];
00362
00363   std::auto_ptr<std::istream> infileptr;
00364   if (m_fileAccess) infileptr = m_fileAccess->open(file);
00365
00366   if ( infileptr.get() == 0 )
00367   {
00368     log << MSG::ERROR << "Unable to open properties file : " << file
00369         << endreq;
00370     return StatusCode::FAILURE ;
00371   }
00372
00373   std::istream &infile = *infileptr;
00374   sc = StatusCode::SUCCESS;
00375   log << MSG::INFO
00376       << "Opened particle properties file : " << file << endreq;
00377
00378   while( infile )
00379   {
00380     // parse each line of the file (comment lines begin with # in the cdf
00381     // file,
00382     infile.getline( line, 255 );
00383
00384     if ( line[0] == '#' ) continue;
00385
00386     std::string par, gid, jid, chg, mas, lif, evt, pyt, mwi ;
00387     char* token = strtok( line, " " );
00388     if ( token ) { par = token; token = strtok( NULL, " " );} else continue;
00389     if ( token ) { gid = token; token = strtok( NULL, " " );} else continue;
00390     if ( token ) { jid = token; token = strtok( NULL, " " );} else continue;
00391     if ( token ) { chg = token; token = strtok( NULL, " " );} else continue;
00392     if ( token ) { mas = token; token = strtok( NULL, " " );} else continue;
00393     if ( token ) { lif = token; token = strtok( NULL, " " );} else continue;
00394     if ( token ) { evt = token; token = strtok( NULL, " " );} else continue;
00395     if ( token ) { pyt = token; token = strtok( NULL, " " );} else continue;
00396     if ( token ) { mwi = token; token = strtok( NULL, " " );} else continue;
00397     if ( token != NULL ) continue;
00398
00399     // In SICb cdf file mass and lifetime units are GeV and sec, specify it so
00400     // that they are converted to Gaudi units (MeV and ns)
00401     double mass = atof( mas.c_str() ) * Gaudi::Units::GeV;
00402     double tlife = atof( lif.c_str() ) * Gaudi::Units::s;
00403     long   ljid = atoi( jid.c_str() );
00404     long   lgid = atoi( gid.c_str() );
00405     long   lpyt = atoi( pyt.c_str() ) ;
00406     double mW = atof( mwi.c_str() ) * Gaudi::Units::GeV ;
00407
00408     // Change the particles that do not corresopond to a pdg number
00409     if ( ljid == 0 ) {
00410       ljid = 10000000*lgid;
00411     }
00412
00413     // add a particle property
00414     sc = push_back( par, lgid, ljid,
00415                     atof( chg.c_str() ), mass, tlife, evt, lpyt, mW ) ;
00416     if ( sc.isFailure() )
00417     {
00418       log << MSG::ERROR
00419           << "Error from ParticlePropertySvc::push_back for particle='"
00420           << par << "'" << endreq ;
00421     }
00422
00423   }
00424
00425   //infile.close();
00426
00427   return StatusCode::SUCCESS ;
00428 }

StatusCode ParticlePropertySvc::parse (  )  [protected]

Parses the file and fill all the maps.

Definition at line 327 of file ParticlePropertySvc.cpp.

References std::vector< _Tp, _Alloc >::begin(), std::vector< _Tp, _Alloc >::end(), endreq(), MSG::ERROR, StatusCode::FAILURE, StatusCode::isFailure(), m_filename, m_namemap, m_other, Service::msgSvc(), and Service::name().

Referenced by initialize().

00328 {
00329
00330   // parse "the main" file
00331   StatusCode sc = parse ( m_filename ) ;
00332   if ( sc.isFailure() ) { return sc ; }
00333
00334   // parse "other" files
00335   for ( Files::const_iterator file = m_other.begin() ;
00336         m_other.end() != file ; ++file )
00337   {
00338     sc = parse ( *file ) ;
00339     if ( sc.isFailure() ) { return sc ; }
00340   }
00341
00342   // Now check that the file format was consistent with what parser
00343   // expected
00344   if ( m_namemap.size() == 0 )
00345   {
00346     MsgStream log( msgSvc(), name() );
00347     log << MSG::ERROR
00348         << "Format of input file inconsistent with what expected"
00349         << " - Check you are using ParticleData.txt" << endreq;
00350     return StatusCode::FAILURE;
00351   }
00352
00353   return sc;
00354 }

StatusCode ParticlePropertySvc::addParticles (  )  [protected]

Definition at line 501 of file ParticlePropertySvc.cpp.

References MSG::ALWAYS, std::vector< _Tp, _Alloc >::begin(), std::vector< _Tp, _Alloc >::end(), endreq(), MSG::ERROR, StatusCode::FAILURE, Gaudi::Units::GeV, StatusCode::isFailure(), m_particles, Service::msgSvc(), Service::name(), push_back(), Gaudi::Units::s, and StatusCode::SUCCESS.

Referenced by initialize().

00502 {
00503
00504   MsgStream log ( msgSvc() , name() ) ;
00505   // loop over all "explicit" particles
00506   for ( Particles::const_iterator ip = m_particles.begin() ;
00507         m_particles.end() != ip ; ++ip )
00508   {
00509     const std::string item = *ip ;
00510     std::istringstream input( item ) ;
00511     // get the name
00512     std::string p_name   ;
00513     int         p_geant  ;
00514     int         p_jetset ;
00515     double      p_charge ;
00516     double      p_mass   ;
00517     double      p_ltime  ;
00518     std::string p_evtgen ;
00519     int         p_pythia ;
00520     double      p_maxwid ;
00521     if ( input
00522          >> p_name
00523          >> p_geant
00524          >> p_jetset
00525          >> p_charge
00526          >> p_mass
00527          >> p_ltime
00528          >> p_evtgen
00529          >> p_pythia
00530          >> p_maxwid )
00531     {
00532       log << MSG::ALWAYS
00533           << " Add/Modify the particle: "
00534           << " name='"   << p_name   << "'"
00535           << " geant="   << p_geant
00536           << " jetset="  << p_jetset
00537           << " charge="  << p_charge
00538           << " mass="    << p_mass
00539           << " ltime="   << p_ltime
00540           << " evtgen='" << p_evtgen << "'"
00541           << " pythia="  << p_pythia
00542           << " maxwid="  << p_maxwid << endreq ;
00543       //
00544       StatusCode sc = push_back
00545         ( p_name                        ,
00546           p_geant                       ,
00547           p_jetset                      ,
00548           p_charge                      ,
00549           p_mass    * Gaudi::Units::GeV ,
00550           p_ltime   * Gaudi::Units::s   ,
00551           p_evtgen                      ,
00552           p_pythia                      ,
00553           p_maxwid  * Gaudi::Units::GeV ) ;
00554       if ( sc.isFailure() ) { return sc ; }                        // RETURN
00555     }
00556     else
00557     {
00558       log << MSG::ERROR
00559           << " could not parse '" << item << "'" << endreq ;
00560       return StatusCode::FAILURE ;                                 // RETURN
00561     }
00562   }
00563   //
00564   return StatusCode::SUCCESS ;
00565 }

bool ParticlePropertySvc::diff ( const ParticleProperty *  o,
const ParticleProperty *  n,
const MSG::Level  l = MSG::DEBUG
) const [protected]

Definition at line 568 of file ParticlePropertySvc.cpp.

References endreq(), name, and MSG::WARNING.

Referenced by push_back().

00571 {
00572   //
00573   if ( o == n ) { return false ; }
00574   //
00575   MsgStream log ( msgSvc() , name() ) ;
00576   log << l ;
00577   if ( 0 == o || 0 == n  )
00578   {
00579     log << MSG::WARNING << " ParticleProperty* point to NULL" << endreq ;
00580     return true ;                                                    // RETURN
00581   }
00582   //
00583   bool result = false ;
00584   if ( o -> particle () != n -> particle () )
00585   {
00586     result = true ;
00587     log << " Name:'"  << o -> particle () << "'/'" << n -> particle () << "'" ;
00588   }
00589   if ( o -> geantID  () != n -> geantID  () )
00590   {
00591     result = true ;
00592     log << " G3ID:"   << o -> geantID  () << "/"   << n -> geantID  () << "'" ;
00593   }
00594   if ( o -> pdgID    () != n -> pdgID    () )
00595   {
00596     result = true ;
00597     log << " PDGID:"  << o -> pdgID    () << "/"   << n -> pdgID    () << "'" ;
00598   }
00599   if ( o -> pythiaID () != n -> pythiaID () )
00600   {
00601     result = true ;
00602     log << " PYID:"   << o -> pythiaID () << "/"   << n -> pythiaID () << "'" ;
00603   }
00604   if ( o -> charge   () != n -> charge   () )
00605   {
00606     result = true ;
00607     log << " Q:"      << o -> charge   () << "/"   << n -> charge   () << "'" ;
00608   }
00609   if ( o -> mass     () != n -> mass     () )
00610   {
00611     result = true ;
00612     log << " M:"      << o -> mass     () << "/"   << n -> mass     () << "'" ;
00613   }
00614   if ( o -> lifetime () != n -> lifetime () )
00615   {
00616     result = true ;
00617     log << " T:"      << o -> lifetime () << "/"   << n -> lifetime () << "'" ;
00618   }
00619   if ( o -> evtGenName () != n -> evtGenName () )
00620   {
00621     result = true ;
00622     log << " EvtGen:" << o -> evtGenName () << "/"   << n -> evtGenName () << "'" ;
00623   }
00624   if ( o -> maxWidth () != n -> maxWidth () )
00625   {
00626     result = true ;
00627     log << " WMAX:"   << o -> maxWidth () << "/"   << n -> maxWidth () << "'" ;
00628   }
00629   if ( result ) { log << endreq ; }
00630   //
00631   return result ;
00632 }

Member Data Documentation

std::string ParticlePropertySvc::m_filename [private]

Filename of the particle properties file.

Definition at line 196 of file ParticlePropertySvc.h.

Referenced by parse().

Files ParticlePropertySvc::m_other [private]

additional file names

Definition at line 197 of file ParticlePropertySvc.h.

Referenced by finalize(), and parse().

Particles ParticlePropertySvc::m_particles [private]

Definition at line 199 of file ParticlePropertySvc.h.

Referenced by addParticles(), and initialize().

VectPP ParticlePropertySvc::m_vectpp [private]

Vector of all particle properties.

Definition at line 201 of file ParticlePropertySvc.h.

Referenced by anti(), begin(), end(), rebuild(), setAntiParticles(), and size().

MapID ParticlePropertySvc::m_idmap [private]

Map for geant IDs.

Definition at line 202 of file ParticlePropertySvc.h.

Referenced by erase(), find(), initialize(), push_back(), and rebuild().

MapName ParticlePropertySvc::m_namemap [private]

Map for particle names.

Definition at line 203 of file ParticlePropertySvc.h.

Referenced by erase(), find(), initialize(), parse(), push_back(), and rebuild().

MapStdHepID ParticlePropertySvc::m_stdhepidmap [private]

Map for StdHep Ids.

Definition at line 204 of file ParticlePropertySvc.h.

Referenced by erase(), findByStdHepID(), initialize(), push_back(), and rebuild().

MapPythiaID ParticlePropertySvc::m_pythiaidmap [private]

Map for Pythia Ids.

Definition at line 205 of file ParticlePropertySvc.h.

Referenced by erase(), findByPythiaID(), initialize(), push_back(), and rebuild().

Set ParticlePropertySvc::m_owned [private]

Definition at line 208 of file ParticlePropertySvc.h.

Referenced by ~ParticlePropertySvc().

std::set<std::string> ParticlePropertySvc::m_replaced [private]

Definition at line 209 of file ParticlePropertySvc.h.

Referenced by finalize(), initialize(), and push_back().

IFileAccess* ParticlePropertySvc::m_fileAccess [private]

Definition at line 211 of file ParticlePropertySvc.h.

Referenced by finalize(), initialize(), and parse().

The documentation for this class was generated from the following files:
Generated at Fri Jul 18 12:08:47 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
