Gaudi Framework, version v20r2
	Generated: 18 Jul 2008

NTuple::_ArrayImp< TYP > Class Template Reference

#include <NTupleItems.h>

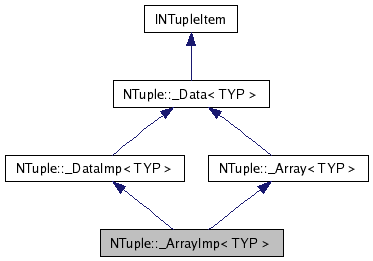

Inheritance diagram for NTuple::_ArrayImp< TYP >:

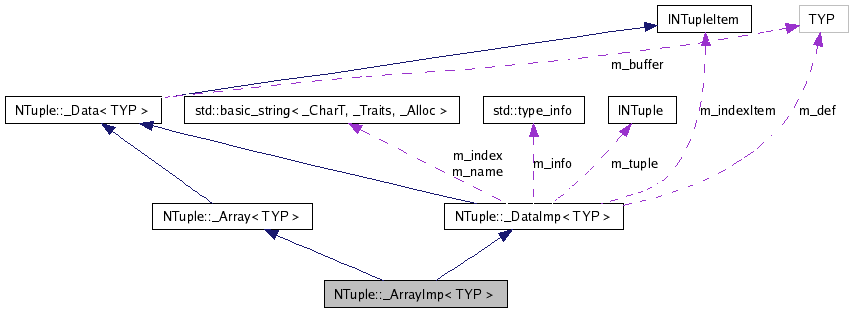

[legend]Collaboration diagram for NTuple::_ArrayImp< TYP >:

[legend]List of all members.

---

Detailed Description

template<class TYP>
class NTuple::_ArrayImp< TYP >

Concrete class discribing a column-array in a N tuple.

Definition at line 183 of file NTupleItems.h.

Public Types
typedef Range< TYP >	ItemRange
	Set type definition to make life more easy easy.
Public Member Functions
	_ArrayImp (INTuple *tup, const std::string &name, const std::type_info &typ, const std::string &index, long len, TYP min, TYP max, TYP def)
	Standard Constructor.
virtual	~_ArrayImp ()
	Standard Destructor.
virtual void	setDefault (const TYP val)
	Set default value.
virtual const ItemRange &	range () const
	Access the range if specified.
virtual long	size () const
	Size of entire object.
virtual long	ndim () const
	Dimension.
virtual long	dim (long i) const
	Access individual dimensions.

---

Member Typedef Documentation

template<class TYP>

typedef Range<TYP> NTuple::_ArrayImp< TYP >::ItemRange

Set type definition to make life more easy easy.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 187 of file NTupleItems.h.

---

Constructor & Destructor Documentation

template<class TYP>

NTuple::_ArrayImp< TYP >::_ArrayImp	(	INTuple *	tup,
		const std::string &	name,
		const std::type_info &	typ,
		const std::string &	index,
		long	len,
		TYP	min,
		TYP	max,
		TYP	def
	)			[inline]

Standard Constructor.

Definition at line 189 of file NTupleItems.h.

    : _DataImp<TYP>(tup, name, typ, index, len, min, max, def)    {                }

template<class TYP>

virtual NTuple::_ArrayImp< TYP >::~_ArrayImp

(

)

[inline, virtual]

Standard Destructor.

Definition at line 192 of file NTupleItems.h.

{                                     }

---

Member Function Documentation

template<class TYP>

virtual void NTuple::_ArrayImp< TYP >::setDefault

(

const TYP

val

)

[inline, virtual]

Set default value.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 196 of file NTupleItems.h.

References NTuple::_DataImp< TYP >::m_def.

{ this->m_def = val;                  }

template<class TYP>

virtual const ItemRange& NTuple::_ArrayImp< TYP >::range

(

)

const [inline, virtual]

Access the range if specified.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 198 of file NTupleItems.h.

References NTuple::_DataImp< TYP >::m_range.

{ return this->m_range;               }

template<class TYP>

virtual long NTuple::_ArrayImp< TYP >::size

(

)

const [inline, virtual]

Size of entire object.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 200 of file NTupleItems.h.

References NTuple::_DataImp< TYP >::m_length.

{ return this->m_length*sizeof(TYP);  }

template<class TYP>

virtual long NTuple::_ArrayImp< TYP >::ndim

(

)

const [inline, virtual]

Dimension.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 202 of file NTupleItems.h.

{ return 1;                     }

template<class TYP>

virtual long NTuple::_ArrayImp< TYP >::dim

(

long

i

)

const [inline, virtual]

Access individual dimensions.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 204 of file NTupleItems.h.

                                   {
      return (i!=0 || this->hasIndex()) ? 0 : this->m_length;
    }

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r2/GaudiKernel/v25r2/GaudiKernel/NTupleItems.h

---
