Gaudi Framework, version v20r2

Generated: 18 Jul 2008

PoolDbNTupleCnv Class Reference

#include <PoolDb/PoolDbNTupleCnv.h>

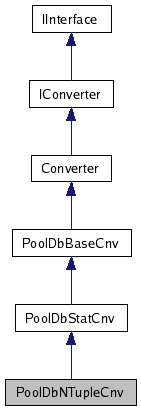

Inheritance diagram for PoolDbNTupleCnv:

Inheritance graph
[legend]

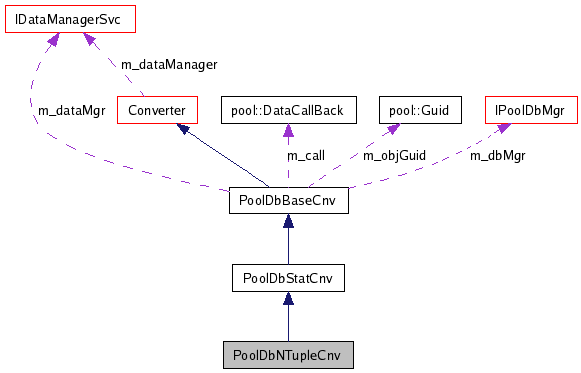

Collaboration diagram for PoolDbNTupleCnv:

Collaboration graph
[legend]
List of all members.

Detailed Description

NTuple converter class definition.

Description: Definition of the generic converter for row wise and column wise Ntuples.

Author:
M.Frank
Version:
1.0

Definition at line 30 of file PoolDbNTupleCnv.h.

Public Member Functions

 PoolDbNTupleCnv (long typ, const CLID &clid, ISvcLocator *svc)

Parameters:
clid [IN] Class ID of the object type to be converted.

virtual ~PoolDbNTupleCnv ()
 Standard destructor.
virtual StatusCode createRep (DataObject *pObject, IOpaqueAddress *&refpAddress)
 Converter overrides: Convert the transient object to the requested representation.
virtual StatusCode fillRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)

Parameters:
pAddress [IN] Valid pointer to the object's opaque address

virtual StatusCode createObj (IOpaqueAddress *pAddress, DataObject *&refpObject)
 Converter overrides: Update the references of an updated transient object.
virtual StatusCode fillObjRefs (IOpaqueAddress *, DataObject *)
 Converter overrides: Update the references of an updated transient object.
virtual StatusCode updateObj (IOpaqueAddress *pAddress, DataObject *pObject)
 Update the transient object: NTuples end here when reading records.
virtual StatusCode updateObjRefs (IOpaqueAddress *, DataObject *)
 Converter overrides: Update the references of an updated transient object.
virtual StatusCode updateRep (IOpaqueAddress *, DataObject *)
 Converter overrides: Update the converted representation of a transient object.
virtual StatusCode updateRepRefs (IOpaqueAddress *, DataObject *)
 Converter overrides: Update the converted representation of a transient object.

Protected Member Functions

StatusCode bindRead (INTuple *pTuple, PoolDbTupleCallback *call)

Parameters:
pTuple [IN] Pointer to N-tuple structure

StatusCode readData (INTuple *pTuple, PoolDbTupleCallback *call)

Parameters:
pTuple [IN] Pointer to N-tuple structure

StatusCode bindWrite (INTuple *pTuple, PoolDbTupleCallback *call)

Parameters:
pTuple [IN] Pointer to N-tuple structure

Constructor & Destructor Documentation

PoolDbNTupleCnv::PoolDbNTupleCnv ( long  typ,
const CLID &  clid,
ISvcLocator *  svc
)

Parameters:
clid [IN] Class ID of the object type to be converted.

Parameters:
db [IN] Pointer to POOL database interface
svc [IN] Pointer to Gaudi service locator
Returns:
Reference to PoolDbNTupleCnv object

Definition at line 221 of file PoolDbNTupleCnv.cpp.

References PoolDbBaseCnv::m_class.

00222 : PoolDbStatCnv(typ, clid, svc)
00223 {
00224   m_class = 0;
00225 }

PoolDbNTupleCnv::~PoolDbNTupleCnv (  )  [virtual]

Standard destructor.

Definition at line 227 of file PoolDbNTupleCnv.cpp.

00227                                    {
00228 }

Member Function Documentation

StatusCode PoolDbNTupleCnv::bindRead ( INTuple *  pTuple,
PoolDbTupleCallback *  call
) [protected]

Parameters:
pTuple [IN] Pointer to N-tuple structure

Parameters:
call [IN] Pointer to N-tuple callback structure
Returns:
StatusCode indicating success or failure

Definition at line 662 of file PoolDbNTupleCnv.cpp.

References PoolDbTupleCallback::addresses(), count(), INTuple::items(), PoolDbTupleCallback::links(), PoolDbTupleCallback::mapping(), DataTypeInfo::OBJECT_ADDR, and S_OK.

Referenced by updateObj().

00664 {
00665   typedef INTuple::ItemContainer Cont;
00666   int cnt = 0;
00667   //pool::DbBlob&                  s       = cb->stream();
00668   std::vector<void*>&            addr    = cb->addresses();
00669   std::vector<PoolDbTokenWrap*>& links   = cb->links();
00670   const std::vector<int>&        mapping = cb->mapping();
00671   Cont&                          items   = nt->items();
00672   for (Cont::iterator i = items.begin(); i != items.end(); ++i, ++cnt )   {
00673     int count = mapping[cnt];
00674     if ( count >= 0 )  {
00675       char* buf = (char*)(*i)->buffer();
00676       switch( (*i)->type() )   {
00677         case DataTypeInfo::OBJECT_ADDR:
00678           addr[count] = &links[cnt];
00679           break;
00680         default:
00681           addr[count] = buf;
00682           break;
00683       }
00684     }
00685   }
00686   return S_OK;
00687 }

StatusCode PoolDbNTupleCnv::readData ( INTuple *  pTuple,
PoolDbTupleCallback *  call
) [protected]

Parameters:
pTuple [IN] Pointer to N-tuple structure

Parameters:
call [IN] Pointer to N-tuple callback structure
Returns:
StatusCode indicating success or failure

Definition at line 689 of file PoolDbNTupleCnv.cpp.

References std::vector< _Tp, _Alloc >::begin(), DataTypeInfo::BOOL, DataTypeInfo::CHAR, count(), MSG::DEBUG, DataTypeInfo::DOUBLE, std::vector< _Tp, _Alloc >::end(), endmsg(), DataTypeInfo::FLOAT, DataTypeInfo::INT, INTuple::items(), PoolDbTupleCallback::links(), load(), DataTypeInfo::LONG, PoolDbTupleCallback::mapping(), Converter::msgSvc(), DataTypeInfo::NTCHAR, DataTypeInfo::OBJECT_ADDR, DataTypeInfo::POINTER, Gaudi::Units::s, S_OK, DataTypeInfo::SHORT, PoolDbTupleCallback::stream(), DataTypeInfo::STRING, DataTypeInfo::UCHAR, DataTypeInfo::UINT, DataTypeInfo::ULONG, DataTypeInfo::UNKNOWN, and DataTypeInfo::USHORT.

Referenced by updateObj().

00691 {
00692   typedef INTuple::ItemContainer Cont;
00693   int cnt = 0;
00694   pool::DbBlob&                  s       = cb->stream();
00695   std::vector<PoolDbTokenWrap*>& links   = cb->links();
00696   const std::vector<int>&        mapping = cb->mapping();
00697   INTuple::ItemContainer&        items   = nt->items();
00698   for (Cont::iterator i = items.begin(); i != items.end(); ++i, ++cnt )   {
00699     int count = mapping[cnt];
00700     int typ   = (*i)->type();
00701     if(count < 0 || typ == DataTypeInfo::OBJECT_ADDR || typ == DataTypeInfo::POINTER)  {
00702       char* buf = (char*)(*i)->buffer();
00703       int sc = 11;
00704       switch( (*i)->type() )   {
00705       case DataTypeInfo::UCHAR:       sc=load<unsigned char> (s,buf); break;
00706       case DataTypeInfo::USHORT:      sc=load<unsigned short>(s,buf); break;
00707       case DataTypeInfo::UINT:        sc=load<unsigned int>  (s,buf); break;
00708       case DataTypeInfo::ULONG:       sc=load<unsigned long> (s,buf); break;
00709       case DataTypeInfo::CHAR:        sc=load<char>          (s,buf); break;
00710       case DataTypeInfo::SHORT:       sc=load<short>         (s,buf); break;
00711       case DataTypeInfo::INT:         sc=load<int>           (s,buf); break;
00712       case DataTypeInfo::LONG:        sc=load<long>          (s,buf); break;
00713       case DataTypeInfo::BOOL:        sc=load<bool>          (s,buf); break;
00714       case DataTypeInfo::FLOAT:       sc=load<float>         (s,buf); break;
00715       case DataTypeInfo::DOUBLE:      sc=load<double>        (s,buf); break;
00716       case DataTypeInfo::STRING:      sc=load<std::string>   (s,buf); break;
00717       case DataTypeInfo::NTCHAR:      sc=load<char*>         (s,buf); break;
00718       case DataTypeInfo::OBJECT_ADDR: sc=load(buf,links[count]);      break;
00719       case DataTypeInfo::POINTER:                                     break;
00720       case DataTypeInfo::UNKNOWN:                                     break;
00721       default:                                                        break;
00722       }
00723       if ( 0 != sc )  {
00724         MsgStream log(msgSvc(), "PoolDbNTupleCnv");
00725         log << MSG::DEBUG;
00726         switch (sc)  {
00727           case 10:
00728             log << "CANNOT Set Ntuple token: dynamic_cast<GenericAddress*> is NULL";
00729           break;
00730           case 11:
00731               log << "CANNOT Set Ntuple token: invalid address buffer";
00732           break;
00733         }
00734         log << endmsg;
00735       }
00736     }
00737   }
00738   return S_OK;
00739 }

StatusCode PoolDbNTupleCnv::bindWrite ( INTuple *  pTuple,
PoolDbTupleCallback *  call
) [protected]

Parameters:
pTuple [IN] Pointer to N-tuple structure

Parameters:
call [IN] Pointer to N-tuple callback structure
Returns:
StatusCode indicating success or failure

Definition at line 742 of file PoolDbNTupleCnv.cpp.

References PoolDbTupleCallback::addresses(), b, std::vector< _Tp, _Alloc >::begin(), DataTypeInfo::BOOL, DataTypeInfo::CHAR, count(), DataTypeInfo::DOUBLE, std::vector< _Tp, _Alloc >::end(), DataTypeInfo::FLOAT, DataTypeInfo::INT, INTuple::items(), PoolDbTupleCallback::links(), DataTypeInfo::LONG, PoolDbTupleCallback::mapping(), DataTypeInfo::NTCHAR, DataTypeInfo::OBJECT_ADDR, DataTypeInfo::POINTER, Gaudi::Units::s, S_OK, save(), DataTypeInfo::SHORT, PoolDbTupleCallback::stream(), DataTypeInfo::STRING, DataTypeInfo::UCHAR, DataTypeInfo::UINT, DataTypeInfo::ULONG, DataTypeInfo::UNKNOWN, DataTypeInfo::USHORT, and pool::DbBlob::WRITING.

Referenced by fillRepRefs().

00743 {
00744   int cnt = 0;
00745   pool::DbBlob&                  s       = cb->stream();
00746   std::vector<void*>&            addr    = cb->addresses();
00747   std::vector<PoolDbTokenWrap*>& links   = cb->links();
00748   const std::vector<int>&        mapping = cb->mapping();
00749   const INTuple::ItemContainer&  items   = nt->items();
00750   INTuple::ItemContainer::const_iterator i;
00751
00752   s.setMode(pool::DbBlob::WRITING);
00753   for(i = items.begin(); i != items.end(); ++i, ++cnt )   {
00754     char* b     = (char*)(*i)->buffer();
00755     int   len   = (*i)->filled();
00756     long  ndim  = (*i)->ndim();
00757     int   count = mapping[cnt];
00758     void* ptr = 0;
00759     switch( (*i)->type() )  {
00760     case DataTypeInfo::UCHAR:       ptr=save<unsigned char >(s,b,len,ndim>0); break;
00761     case DataTypeInfo::USHORT:      ptr=save<unsigned short>(s,b,len,ndim>0); break;
00762     case DataTypeInfo::UINT:        ptr=save<unsigned int  >(s,b,len,ndim>0); break;
00763     case DataTypeInfo::ULONG:       ptr=save<unsigned long >(s,b,len,ndim>0); break;
00764     case DataTypeInfo::CHAR:        ptr=save<char          >(s,b,len,ndim>0); break;
00765     case DataTypeInfo::SHORT:       ptr=save<short         >(s,b,len,ndim>0); break;
00766     case DataTypeInfo::INT:         ptr=save<int           >(s,b,len,ndim>0); break;
00767     case DataTypeInfo::LONG:        ptr=save<long          >(s,b,len,ndim>0); break;
00768     case DataTypeInfo::BOOL:        ptr=save<bool          >(s,b,len,ndim>0); break;
00769     case DataTypeInfo::FLOAT:       ptr=save<float         >(s,b,len,ndim>0); break;
00770     case DataTypeInfo::DOUBLE:      ptr=save<double        >(s,b,len,ndim>0); break;
00771     case DataTypeInfo::STRING:      ptr=save<std::string   >(s,b,len,ndim>0); break;
00772     case DataTypeInfo::NTCHAR:      ptr=save<char*         >(s,b,len,ndim>0); break;
00773     case DataTypeInfo::POINTER:     ptr=*(void**)b;                           break;
00774     case DataTypeInfo::OBJECT_ADDR: ptr=save(b,links[count]);                 break;
00775     case DataTypeInfo::UNKNOWN:                                               break;
00776     default:                     /* Do we have to take some action here ? */  break;
00777     }
00778     if ( count >= 0 )  {
00779       addr[count] = ptr;
00780     }
00781   }
00782   return S_OK;
00783 }

StatusCode PoolDbNTupleCnv::createRep ( DataObject *  pObject,
IOpaqueAddress *&  refpAddress
) [virtual]

Converter overrides: Convert the transient object to the requested representation.

Parameters:
pObject [IN] Valid pointer to DataObject
refpAddress [OUT] Location to store pointer to the object's opaque address
Returns:
Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 409 of file PoolDbNTupleCnv.cpp.

References IRegistry::address(), pool::DbColumn::BLOB, pool::DbColumn::BOOL, DataTypeInfo::BOOL, pool::DbColumn::CHAR, DataTypeInfo::CHAR, DataObject::clID(), cntH, IPoolDbMgr::commitOutput(), IPoolDbMgr::connectContainer(), PoolDbStatCnv::containerName(), std::cout, pool::DbTypeInfo::createEx(), INTupleItem::dim(), pool::DbColumn::DOUBLE, DataTypeInfo::DOUBLE, std::endl(), endreq(), MSG::ERROR, PoolDbStatCnv::fileName(), pool::DbColumn::FLOAT, DataTypeInfo::FLOAT, genMD5(), INTupleItem::hasIndex(), INTupleItem::index(), INTupleItem::indexItem(), pool::DbColumn::INT, DataTypeInfo::INT, StatusCode::isSuccess(), INTuple::items(), INTupleItem::length(), pool::DbColumn::LONG, DataTypeInfo::LONG, PoolDbBaseCnv::m_dbMgr, Converter::msgSvc(), IRegistry::name(), INTupleItem::name(), INTupleItem::ndim(), pool::DbColumn::NTCHAR, DataTypeInfo::NTCHAR, DataTypeInfo::OBJECT_ADDR, pool::Token::oid(), Gaudi::Utils::Histos::path(), DataTypeInfo::POINTER, pool::DbColumn::POINTER, POOL_StorageType, std::vector< _Tp, _Alloc >::push_back(), putRange(), pool::RECREATE, DataObject::registry(), pool::Token::release(), S_FAIL, S_OK, PoolDbStatCnv::saveDescription(), pool::DbColumn::SHORT, DataTypeInfo::SHORT, DataTypeInfo::size(), std::vector< _Tp, _Alloc >::size(), pool::DbColumn::STRING, DataTypeInfo::STRING, INTuple::title(), INTupleItem::type(), INTupleItem::typeName(), pool::typeName(), pool::DbColumn::UCHAR, DataTypeInfo::UCHAR, pool::DbColumn::UINT, DataTypeInfo::UINT, pool::DbColumn::ULONG, DataTypeInfo::ULONG, IPoolDbMgr::UNKNOWN, DataTypeInfo::UNKNOWN, pool::UPDATE, pool::DbColumn::USHORT, and DataTypeInfo::USHORT.

00409                                                                     {
00410   IRegistry* pRegistry = pObj->registry();
00411   if ( 0 != pRegistry )  {
00412     pAddr = pRegistry->address();
00413     PoolDbAddress* pdbA = dynamic_cast<PoolDbAddress*>(pAddr);
00414     if ( 0 == pdbA )  {
00415       const INTuple* nt  = dynamic_cast<const INTuple*>(pObj);
00416       std::string    loc = containerName(pObj->registry());
00417       if ( 0 != nt )  {
00418         const INTuple::ItemContainer& items = nt->items();
00419         std::vector<const pool::DbColumn*> cols;
00420         std::vector<int> item_map(items.size()+1,-1);
00421         std::ostringstream os;
00422         int pool_type = 0;
00423         size_t item_no;
00424         os << nt->title()<<';'<<pObj->clID()<<';'<<items.size()<< ';';
00425         for(item_no = 0; item_no < items.size(); ++item_no ) {
00426           pool::DbColumn* col = 0;
00427           INTupleItem* it = items[item_no];
00428           os << '{'
00429              << it->name()      << ';'
00430              << it->type()      << ';'
00431              << it->length()    << ';'
00432              << it->ndim()      << ';'
00433              << it->hasIndex()  << ';';
00434           if ( it->hasIndex() )   {
00435             os << it->index() << ';';
00436             INTupleItem* itm = it->indexItem();
00437             switch( itm->type() )    {
00438             case DataTypeInfo::UCHAR:
00439               putRange(os, dynamic_cast<NTuple::_Data<unsigned char>*>(itm));
00440               break;
00441             case DataTypeInfo::USHORT:
00442               putRange(os, dynamic_cast<NTuple::_Data<unsigned short>*>(itm));
00443               break;
00444             case DataTypeInfo::UINT:
00445               putRange(os, dynamic_cast<NTuple::_Data<unsigned int>*>(itm));
00446               break;
00447             case DataTypeInfo::ULONG:
00448               putRange(os, dynamic_cast<NTuple::_Data<unsigned long>*>(itm));
00449               break;
00450             case DataTypeInfo::CHAR:
00451               putRange(os, dynamic_cast<NTuple::_Data<char>*>(itm));
00452               break;
00453             case DataTypeInfo::SHORT:
00454               putRange(os, dynamic_cast<NTuple::_Data<short>*>(itm));
00455               break;
00456             case DataTypeInfo::INT:
00457               putRange(os, dynamic_cast<NTuple::_Data<int>*>(itm));
00458               break;
00459             case DataTypeInfo::LONG:
00460               putRange(os, dynamic_cast<NTuple::_Data<long>*>(itm));
00461               break;
00462             default: {
00463               MsgStream err(msgSvc(), "NTuple:"+pRegistry->name());
00464               err << MSG::ERROR << "Column " << it->index()
00465                   << " is not a valid index column!" << endreq;
00466               return S_FAIL;
00467               }
00468             }
00469           }
00470           for ( long k = 0; k < it->ndim(); k++ )  {
00471             os << it->dim(k) << ';';
00472           }
00473           switch(it->type())  {
00474             case DataTypeInfo::STRING:
00475               pool_type = pool::DbColumn::STRING;
00476               os << 0 << ';' << 0 << ';';
00477               break;
00478             case DataTypeInfo::NTCHAR:
00479               pool_type = pool::DbColumn::NTCHAR;
00480               os << 0 << ';' << 0 << ';';
00481               break;
00482             case DataTypeInfo::OBJECT_ADDR:
00483               if ( it->length() == 1 )  {
00484                 col = new pool::DbColumn(it->name(),
00485                                          pool::typeName(typeid(PoolDbTokenWrap)),
00486                                          pool::DbColumn::POINTER,
00487                                          0);
00488                 item_map[item_no] = cols.size();
00489                 cols.push_back(col);
00490               }
00491               os << 0 << ';' << 0 << ';';
00492               break;
00493             case DataTypeInfo::POINTER:
00494               if ( it->length() == 1 )  {
00495                 ROOT::Reflex::Type typ = ROOT::Reflex::Type::ByName(it->typeName());
00496                 col = new pool::DbColumn(it->name(),
00497                                          typ.Name(ROOT::Reflex::SCOPED),
00498                                          pool::DbColumn::POINTER,
00499                                          0);
00500                 item_map[item_no] = cols.size();
00501                 cols.push_back(col);
00502                 os << 0 << ';' << 0 << ';';
00503               }
00504               break;
00505             case DataTypeInfo::UCHAR:
00506               pool_type = pool::DbColumn::UCHAR;
00507               putRange(os, dynamic_cast<NTuple::_Data<unsigned char>*>(it));
00508               goto MakeCol;
00509             case DataTypeInfo::USHORT:
00510               pool_type = pool::DbColumn::USHORT;
00511               putRange(os, dynamic_cast<NTuple::_Data<unsigned short>*>(it));
00512               goto MakeCol;
00513             case DataTypeInfo::UINT:
00514               pool_type = pool::DbColumn::UINT;
00515               putRange(os, dynamic_cast<NTuple::_Data<unsigned int>*>(it));
00516               goto MakeCol;
00517             case DataTypeInfo::ULONG:
00518               pool_type = pool::DbColumn::ULONG;
00519               putRange(os, dynamic_cast<NTuple::_Data<unsigned long>*>(it));
00520               goto MakeCol;
00521             case DataTypeInfo::CHAR:
00522               pool_type = pool::DbColumn::CHAR;
00523               putRange(os, dynamic_cast<NTuple::_Data<char>*>(it));
00524               goto MakeCol;
00525             case DataTypeInfo::SHORT:
00526               pool_type = pool::DbColumn::SHORT;
00527               putRange(os, dynamic_cast<NTuple::_Data<short>*>(it));
00528               goto MakeCol;
00529             case DataTypeInfo::INT:
00530               pool_type = pool::DbColumn::INT;
00531               putRange(os, dynamic_cast<NTuple::_Data<int>*>(it));
00532               goto MakeCol;
00533             case DataTypeInfo::LONG:
00534               pool_type = pool::DbColumn::LONG;
00535               putRange(os, dynamic_cast<NTuple::_Data<long>*>(it));
00536               goto MakeCol;
00537             case DataTypeInfo::BOOL:
00538               pool_type = pool::DbColumn::BOOL;
00539               putRange(os, dynamic_cast<NTuple::_Data<bool>*>(it));
00540               goto MakeCol;
00541             case DataTypeInfo::FLOAT:
00542               pool_type = pool::DbColumn::FLOAT;
00543               putRange(os, dynamic_cast<NTuple::_Data<float>*>(it));
00544               goto MakeCol;
00545             case DataTypeInfo::DOUBLE:
00546               pool_type = pool::DbColumn::DOUBLE;
00547               putRange(os, dynamic_cast<NTuple::_Data<double>*>(it));
00548               goto MakeCol;
00549   MakeCol:
00550               if ( it->length() == 1 )  {
00551                 pool::DbColumn* col = new pool::DbColumn(it->name(),
00552                                                          pool_type,
00553                                                          0,
00554                                                          DataTypeInfo::size(it->type()));
00555                 item_map[item_no] = cols.size();
00556                 cols.push_back(col);
00557               }
00558               // Everything else CANNOT be identified using SQL
00559             break;
00560             case DataTypeInfo::UNKNOWN:
00561             default:
00562               std::cout << "Create item[FAIL]]: " << it->name()
00563                         << " Typ:" << it->type() << std::endl;
00564               break;
00565           }
00566           os << '}';
00567         }
00568         item_map[item_no] = cols.size();
00569         pool::DbColumn* col =
00570           new pool::DbColumn("BlobData",
00571                              pool::DbColumn::BLOB,
00572                              0,
00573                              DataTypeInfo::size(pool::DbColumn::BLOB));
00574         cols.push_back(col);
00575         pool::Guid guid;
00576         std::string cntName = containerName(pRegistry);
00577         std::string path    = fileName(pRegistry);
00578         genMD5(os.str(), &guid);
00579         const pool::DbTypeInfo* typH = pool::DbTypeInfo::createEx(guid, cols);
00580         StatusCode sc = saveDescription(path,
00581                                         cntName,
00582                                         os.str(),
00583                                         typH->toString(),
00584                                         guid,
00585                                         pObj->clID(),
00586                                         "UPDATE");
00587         if ( sc.isSuccess() )  {
00588           // Check if the database container can be connected
00589           pool::DbContainer cntH(POOL_StorageType);
00590           StatusCode sc =
00591             m_dbMgr->connectContainer(IPoolDbMgr::UNKNOWN,
00592                                       path,
00593                                       cntName,
00594                                       pool::RECREATE|pool::UPDATE,
00595                                       typH,
00596                                       cntH);
00597           if ( sc.isSuccess() )  {
00598             PoolDbTupleCallback* hdlr = new PoolDbTupleCallback(pObj);
00599             pool::Token*         tok = new pool::Token(cntH.token());
00600             PoolDbAddress*       add = new PoolDbAddress(tok);
00601             hdlr->configure(nt, typH, cntH);
00602             tok->oid().second = 0;
00603             tok->release();
00604             pAddr = add;
00605             add->setHandler(hdlr);
00606             return m_dbMgr->commitOutput(path, true);
00607           }
00608           return S_FAIL;
00609         }
00610         return sc;
00611       }
00612     }
00613     else  {
00614       return S_OK;
00615     }
00616   }
00617   return S_FAIL;
00618 }

StatusCode PoolDbNTupleCnv::fillRepRefs ( IOpaqueAddress *  pAddress,
DataObject *  pObject
) [virtual]

Parameters:
pAddress [IN] Valid pointer to the object's opaque address

Parameters:
pObject [IN] Valid pointer to DataObject
Returns:
Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 622 of file PoolDbNTupleCnv.cpp.

References IRegistry::address(), bindWrite(), PoolDbTupleCallback::clone(), IPoolDbMgr::commitOutput(), IPoolDbMgr::connectOutput(), PoolDbStatCnv::containerName(), endmsg(), MSG::ERROR, PoolDbStatCnv::fileName(), PoolDbAddress::handler(), StatusCode::isSuccess(), PoolDbBaseCnv::m_dbMgr, IPoolDbMgr::markWrite(), Converter::msgSvc(), Gaudi::Utils::Histos::path(), DataObject::registry(), S_FAIL, S_OK, and pool::DbObjectCallBack::shape().

00623 {
00624   INTuple* pTuple = dynamic_cast<INTuple*>(pObj);
00625   if ( pTuple )  {
00626     IRegistry* pRegistry = pObj->registry();
00627     if ( 0 != pRegistry )  {
00628       pAddr = pRegistry->address();
00629       PoolDbAddress* pdbA = dynamic_cast<PoolDbAddress*>(pAddr);
00630       if ( 0 != pdbA )  {
00631         PoolDbTupleCallback* cb = dynamic_cast<PoolDbTupleCallback*>(pdbA->handler());
00632         if ( cb )  {
00633           const pool::DbTypeInfo* typH = dynamic_cast<const pool::DbTypeInfo*>(cb->shape());
00634           if ( typH )  {
00635             if ( bindWrite(pTuple, cb).isSuccess() )  {
00636               std::string path = fileName(pRegistry);
00637               std::string cntName = containerName(pRegistry);
00638               if ( !m_dbMgr->connectOutput(path, "UPDATE").isSuccess() )  {
00639                 MsgStream log(msgSvc(), "PoolDbNTupleCnv");
00640                 log << MSG::ERROR << "Error: connectOutput(path, UPDATE)" << endmsg;
00641                 return S_FAIL;
00642               }
00643               if ( m_dbMgr->markWrite(cb->clone(), cntName, &pdbA).isSuccess() ) {
00644                             if ( m_dbMgr->commitOutput(path, true).isSuccess() )  {
00645                               typedef INTuple::ItemContainer Cont;
00646                               Cont& it = pTuple->items();
00647                               for(Cont::iterator i = it.begin(); i != it.end(); ++i)  {
00648                                 (*i)->reset();
00649                               }
00650                               return S_OK;
00651                             }
00652               }
00653             }
00654           }
00655         }
00656       }
00657     }
00658   }
00659   return S_FAIL;
00660 }

StatusCode PoolDbNTupleCnv::createObj ( IOpaqueAddress *  pAddress,
DataObject *&  refpObject
) [virtual]

Converter overrides: Update the references of an updated transient object.

Parameters:
pAddress [IN] Valid pointer to the object's opaque address
refpObject [OUT] Location to store pointer to DataObject
Returns:
Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 232 of file PoolDbNTupleCnv.cpp.

References DataTypeInfo::BOOL, c, DataTypeInfo::CHAR, cntH, IPoolDbMgr::connect(), PoolDbNTupleDescriptor::container, pool::Token::contID(), createItem(), IPoolDbMgr::createSelect(), Converter::dataProvider(), pool::Token::dbID(), PoolDbNTupleDescriptor::description, DataTypeInfo::DOUBLE, std::basic_string< _CharT, _Traits, _Alloc >::empty(), endmsg(), MSG::FATAL, DataTypeInfo::FLOAT, pool::DbReflex::forTypeName(), pool::DbTypeInfo::fromString(), std::auto_ptr< _Tp >::get(), std::getline(), PoolDbNTupleDescriptor::guid, IID_INTupleSvc, DataTypeInfo::INT, DataTypeInfo::LONG, PoolDbBaseCnv::m_dbMgr, PoolDbBaseCnv::makeError(), Converter::msgSvc(), pool::DbObjectCallBack::object(), DataTypeInfo::OBJECT_ADDR, PoolDbNTupleDescriptor::optional, DataTypeInfo::POINTER, pool::READ, DataObject::release(), pool::DataCallBack::release(), S_FAIL, PoolDbAddress::setHandler(), DataTypeInfo::SHORT, pool::Token::technology(), PoolDbAddress::token(), DataTypeInfo::UCHAR, DataTypeInfo::UINT, DataTypeInfo::ULONG, DataTypeInfo::UNKNOWN, and DataTypeInfo::USHORT.

00233 {
00234   StatusCode status = S_FAIL;
00235   PoolDbAddress* pdbA = dynamic_cast<PoolDbAddress*>(pAddress);
00236   if ( 0 != pdbA )  {
00237     const pool::Token* tok = pdbA->token();
00238     if ( tok )  {
00239       pool::DbContainer cntH(tok->technology());
00240       status = m_dbMgr->connect(tok->dbID(),tok->contID(),cntH);
00241       if ( status.isSuccess() ) {
00242         std::string par_val, par_guid, par_typ;
00243         std::auto_ptr<pool::DbSelect> iter(m_dbMgr->createSelect("*", tok->dbID(), "GaudiStatisticsDescription"));
00244         if ( iter.get() )  {
00245           pool::Token* token;
00246           ROOT::Reflex::Type typ = pool::DbReflex::forTypeName("PoolDbNTupleDescriptor");
00247           pool::DbObjectCallBack* call = new pool::DbObjectCallBack(typ);
00248           while( iter->next(token).isSuccess() )  {
00249             typedef pool::DbObjectHandle<pool::DbObject> ObjH;
00250             pool::DbContainer& cH = iter->container();
00251             if ( ObjH::openEx(cH, *token, call, pool::READ).isSuccess() )  {
00252               PoolDbNTupleDescriptor* ref = (PoolDbNTupleDescriptor*)call->object();
00253               if ( ref->container == tok->contID() )  {
00254                 par_val  = ref->description;
00255                 par_typ  = ref->optional;
00256                 par_guid = ref->guid;
00257                 token->release();
00258                 call->release();
00259                 call = 0;
00260                 delete ref;
00261                 break;
00262               }
00263               delete ref;
00264             }
00265             token->release();
00266           }
00267           if ( call ) call->release();
00268         }
00269         if ( !par_val.empty() && !par_guid.empty() && !par_typ.empty() )
00270         {
00271           SmartIF<INTupleSvc> ntupleSvc(IID_INTupleSvc, dataProvider());
00272           if ( ntupleSvc.isValid() )  {
00273             char c;
00274             CLID clid;
00275             int siz, typ;
00276             std::string title;
00277             NTuple::Tuple* nt = 0;
00278             std::istringstream is(par_val);
00279             std::getline(is, title, ';') >> clid >> c >> siz >> c;
00280             status = ntupleSvc->create(clid, title, nt);
00281             for ( int j = 0; j < siz && status.isSuccess(); j++ ) {
00282               is >> c;
00283               std::getline(is, title, ';') >> typ >> c;
00284               switch ( typ )    {
00285               case DataTypeInfo::UCHAR:
00286                 status = createItem(nt, is, title, (unsigned char)0);
00287                 break;
00288               case DataTypeInfo::USHORT:
00289                 status = createItem(nt, is, title, (unsigned short)0);
00290                 break;
00291               case DataTypeInfo::UINT:
00292                 status = createItem(nt, is, title, (unsigned int)0);
00293                 break;
00294               case DataTypeInfo::ULONG:
00295                 status = createItem(nt, is, title, (unsigned long)0);
00296                 break;
00297               case DataTypeInfo::CHAR:
00298                 status = createItem(nt, is, title, char(0));
00299                 break;
00300               case DataTypeInfo::SHORT:
00301                 status = createItem(nt, is, title, short(0));
00302                 break;
00303               case DataTypeInfo::INT:
00304                 status = createItem(nt, is, title, int(0));
00305                 break;
00306               case DataTypeInfo::LONG:
00307                 status = createItem(nt, is, title, long(0));
00308                 break;
00309               case DataTypeInfo::BOOL:
00310                 status = createItem(nt, is, title, false);
00311                 break;
00312               case DataTypeInfo::FLOAT:
00313                 status = createItem(nt, is, title, float(0.0));
00314                 break;
00315               case DataTypeInfo::DOUBLE:
00316                 status = createItem(nt, is, title, double(0.0));
00317                 break;
00318                 /*
00319               case DataTypeInfo::NTCHAR:
00320               case DataTypeInfo::LONG_NTCHAR:
00321                 status =
00322                 createItem(nt, is, title, (char*)0);
00323                 break;
00324               case DataTypeInfo::STRING:
00325               case DataTypeInfo::LONG_STRING:
00326                 status =
00327                 createItem(nt, is, title, std::string(""));
00328                 break;
00329                 */
00330               case DataTypeInfo::OBJECT_ADDR:
00331                 status = createItem(nt, is, title, (IOpaqueAddress*)0);
00332                 break;
00333               case DataTypeInfo::POINTER:
00334                 status = createItem(nt, is, title, (void*)0);
00335                 break;
00336               case DataTypeInfo::UNKNOWN:
00337               default:
00338                 status = S_FAIL;
00339                 break;
00340               }
00341               if ( !status.isSuccess() )  {
00342                 MsgStream err(msgSvc(),"NTupleCnv");
00343                 err << MSG::FATAL
00344                     << "Error connecting (Unknown) column:" << j << endmsg
00345                     << par_val << endmsg;
00346                 return makeError("createObj[NTuple]> Cannot determine column!");
00347               }
00348             }
00349             if ( status.isSuccess() )  {
00350               PoolDbTupleCallback* hdlr = new PoolDbTupleCallback(nt);
00351               const pool::DbTypeInfo* typ = pool::DbTypeInfo::fromString(par_typ);
00352               hdlr->configure(nt, typ, cntH);
00353               pdbA->setHandler(hdlr);
00354               refpObject  = nt;
00355             }
00356             else {
00357               refpObject = 0;
00358               if ( nt ) nt->release();
00359             }
00360           }
00361         }
00362       }
00363     }
00364   }
00365   return status;
00366 }

virtual StatusCode PoolDbNTupleCnv::fillObjRefs ( IOpaqueAddress *  ,
DataObject *
) [inline, virtual]

Converter overrides: Update the references of an updated transient object.

Parameters:
pAddress [IN] Valid pointer to the object's opaque address
pObject [IN] Valid pointer to DataObject
Returns:
Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 117 of file PoolDbNTupleCnv.h.

References StatusCode::SUCCESS.

00119   {  return StatusCode::SUCCESS;                                      }

StatusCode PoolDbNTupleCnv::updateObj ( IOpaqueAddress *  pAddress,
DataObject *  pObject
) [virtual]

Update the transient object: NTuples end here when reading records.

Parameters:
pAddress [IN] Valid pointer to the object's opaque address
pObject [IN] Valid pointer to DataObject
Returns:
Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 370 of file PoolDbNTupleCnv.cpp.

References bindRead(), PoolDbTupleCallback::iterator(), PoolDbBaseCnv::m_dbMgr, PoolDbBaseCnv::makeError(), pool::DbSelect::next(), IPoolDbMgr::read(), readData(), S_FAIL, S_OK, PoolDbTupleCallback::select(), and INTuple::selector().

00370                                                                    {
00371   INTuple*       tupl = dynamic_cast<INTuple*>(pObj);
00372   PoolDbAddress* pdbA = dynamic_cast<PoolDbAddress*>(pAddr);
00373   if ( 0 != tupl && 0 != pdbA )  {
00374     PoolDbTupleCallback* hdlr = dynamic_cast<PoolDbTupleCallback*>(pdbA->handler());
00375     pool::DbSelect* it = hdlr->iterator();
00376     if ( 0 == it )  {
00377       it = hdlr->select(tupl->selector());
00378     }
00379     if ( it )  {
00380       pool::Token* t = 0;
00381       if ( hdlr->iterator()->next(t).isSuccess() )  {
00382         std::auto_ptr<pool::Token> next(t);
00383         // Now reload!
00384         if ( bindRead(tupl, hdlr).isSuccess() )  {
00385           // No support for SmartRefs<T> for N-tuples
00386           //pushCurrentDataObject((DataObject**)&pObj);
00387           if ( m_dbMgr->read(hdlr, *next.get()).isSuccess() )  {
00388             if ( readData(tupl, hdlr).isSuccess() )  {
00389               //popCurrentDataObject();
00390               return S_OK;
00391             }
00392             //popCurrentDataObject();
00393             return makeError("updateObj> Cannot interprete data.");
00394           }
00395           //popCurrentDataObject();
00396           return makeError("updateObj> Cannot read data.");
00397         }
00398         return makeError("updateObj> Cannot bind data.");
00399       }
00400       return S_FAIL;
00401     }
00402     return makeError("updateObj> Token selection failed!");
00403   }
00404   return makeError("updateObj> Invalid Tuple reference.");
00405 }

virtual StatusCode PoolDbNTupleCnv::updateObjRefs ( IOpaqueAddress *  ,
DataObject *
) [inline, virtual]

Converter overrides: Update the references of an updated transient object.

Parameters:
pAddress [IN] Valid pointer to the object's opaque address
pObject [IN] Valid pointer to DataObject
Returns:
Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 139 of file PoolDbNTupleCnv.h.

References StatusCode::SUCCESS.

00141   {  return StatusCode::SUCCESS;                                      }

virtual StatusCode PoolDbNTupleCnv::updateRep ( IOpaqueAddress *  ,
DataObject *
) [inline, virtual]

Converter overrides: Update the converted representation of a transient object.

Parameters:
pAddress [IN] Valid pointer to the object's opaque address
pObject [IN] Valid pointer to DataObject
Returns:
Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 151 of file PoolDbNTupleCnv.h.

References StatusCode::SUCCESS.

00153   {  return StatusCode::SUCCESS;                                      }

virtual StatusCode PoolDbNTupleCnv::updateRepRefs ( IOpaqueAddress *  ,
DataObject *
) [inline, virtual]

Converter overrides: Update the converted representation of a transient object.

Parameters:
pAddress [IN] Valid pointer to the object's opaque address
pObject [IN] Valid pointer to DataObject
Returns:
Status code indicating success or failure

Reimplemented from PoolDbBaseCnv.

Definition at line 163 of file PoolDbNTupleCnv.h.

References StatusCode::SUCCESS.

00165   {  return StatusCode::SUCCESS;                                      }

The documentation for this class was generated from the following files:
Generated at Fri Jul 18 12:08:58 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
