StoreExplorerAlg Class Reference

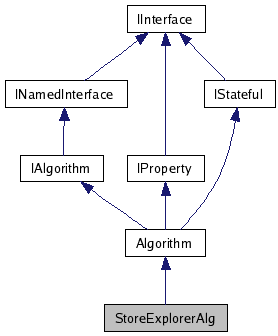

Inheritance diagram for StoreExplorerAlg:

Inheritance graph
[legend]

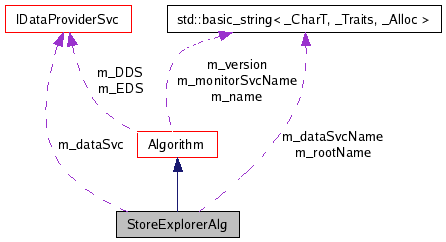

Collaboration diagram for StoreExplorerAlg:

Collaboration graph
[legend]
List of all members.

Detailed Description

Small algorith, which traverses the data store and prints generic information about all leaves, which can be loaded/accessed.

Author:
: M.Frank
Version:
: 1.0

Definition at line 32 of file StoreExplorerAlg.cpp.

Public Member Functions

 StoreExplorerAlg (const std::string &name, ISvcLocator *pSvcLocator)
 Standard algorithm constructor.
virtual ~StoreExplorerAlg ()
 Standard Destructor.
template<class T>
std::string access (T *p)
void printObj (IRegistry *pReg, std::vector< bool > &flg)
 Print datastore leaf.
void explore (IRegistry *pObj, std::vector< bool > &flg)
virtual StatusCode initialize ()
 Initialize.
virtual StatusCode finalize ()
 Finalize.
virtual StatusCode execute ()
 Execute procedure.

Private Attributes

long m_print
 Job option to limit printout to first nnn events.
double m_frequency
 Job option to set the printout frequency.
bool m_exploreRelations
 Flag to check if relations should be followed.
long m_printMissing
 Flag to indicate if missing entities should be printed.
long m_total
 Internal counter to trigger printouts.
long m_frqPrint
 Internal counter to adjust printout frequency.
bool m_load
 Flag to load non existing items.
bool m_testAccess
 Flag to test access to objects (DataObject and ContainedObject).
bool m_accessForeign
 Flag to indicate if foreign files should be opened.
IDataProviderSvc * m_dataSvc
 Reference to data provider service.
std::string m_dataSvcName
 Name of the data provider service.
std::string m_rootName
 Name of the root leaf (obtained at initialize).

Constructor & Destructor Documentation

StoreExplorerAlg::StoreExplorerAlg ( const std::string &  name,
ISvcLocator *  pSvcLocator
) [inline]

Standard algorithm constructor.

Definition at line 60 of file StoreExplorerAlg.cpp.

References Algorithm::declareProperty(), m_accessForeign, m_dataSvcName, m_exploreRelations, m_frequency, m_frqPrint, m_load, m_print, m_printMissing, m_testAccess, and m_total.

00061   :     Algorithm(name, pSvcLocator), m_dataSvc(0)
00062   {
00063     m_total = m_frqPrint = 0;
00064     declareProperty("Load",             m_load = false);
00065     declareProperty("PrintEvt",         m_print = 1);
00066     declareProperty("PrintMissing",     m_printMissing = 0);
00067     declareProperty("PrintFreq",        m_frequency = 0.0);
00068     declareProperty("ExploreRelations", m_exploreRelations = false);
00069     declareProperty("DataSvc",          m_dataSvcName="EventDataSvc");
00070     declareProperty("TestAccess",       m_testAccess = false);
00071     declareProperty("AccessForeign",    m_accessForeign = false);
00072   }

virtual StoreExplorerAlg::~StoreExplorerAlg (  )  [inline, virtual]

Standard Destructor.

Definition at line 74 of file StoreExplorerAlg.cpp.

00074                                   {
00075   }

Member Function Documentation

template<class T>
std::string StoreExplorerAlg::access ( T *  p  )  [inline]

Definition at line 78 of file StoreExplorerAlg.cpp.

References std::basic_string< _CharT, _Traits, _Alloc >::length(), Gaudi::Units::s, and std::basic_string< _CharT, _Traits, _Alloc >::substr().

Referenced by printObj().

00078                           {
00079     if ( p )  {
00080       std::stringstream s;
00081       for (typename T::const_iterator i = p->begin(); i != p->end(); ++i )  {
00082         int idx = p->index(*i);
00083         s << idx << ":" << (*i)->clID() << ",";
00084       }
00085       std::string result = s.str();
00086       return result.substr(0, result.length()-2);
00087     }
00088     return "Access FAILED.";
00089   }

void StoreExplorerAlg::printObj ( IRegistry *  pReg,
std::vector< bool > &  flg
) [inline]

Print datastore leaf.

Definition at line 93 of file StoreExplorerAlg.cpp.

References access(), IRegistry::address(), DataObject::clID(), IOpaqueAddress::clID(), CLID_ObjectList, CLID_ObjectVector, endmsg(), std::hex(), MSG::INFO, m_testAccess, Algorithm::msgSvc(), IRegistry::name(), Algorithm::name(), ObjectContainerBase::numberOfObjects(), IRegistry::object(), std::showbase(), std::vector< _Tp, _Alloc >::size(), std::basic_string< _CharT, _Traits, _Alloc >::substr(), IOpaqueAddress::svcType(), and System::typeinfoName().

Referenced by explore().

00093                                                           {
00094     MsgStream log(msgSvc(), name());
00095     log << MSG::INFO;
00096     for (size_t j = 1; j < flg.size(); j++ )     {
00097       if ( !flg[j-1] && flg[j] ) log << "| ";
00098       else if ( flg[j] ) log << "  ";
00099       else          log << "| ";
00100     }
00101     log << "+--> " << pReg->name();
00102     if ( pReg->address() )  {
00103       log << " [Address: CLID="
00104           << std::showbase << std::hex << pReg->address()->clID();
00105       log << " Type=" << (void*)pReg->address()->svcType() << "]";
00106     }
00107     else  {
00108       log << " [No Address]";
00109     }
00110     DataObject* p = pReg->object();
00111     if ( p )   {
00112       try  {
00113         std::string typ = System::typeinfoName(typeid(*p));
00114         if ( m_testAccess )  {
00115           p->clID();
00116         }
00117         log << "  " << typ.substr(0,32);
00118       }
00119       catch (...)  {
00120         log << "Access test FAILED";
00121       }
00122     }
00123     else    {
00124       log << "  (Unloaded) ";
00125     }
00126     ObjectContainerBase* base = dynamic_cast<ObjectContainerBase*>(p);
00127     if ( base )  {
00128       try   {
00129         int numObj = base->numberOfObjects();
00130         const CLID id = p->clID();
00131         log << " [" << numObj << "]";
00132         if ( m_testAccess )  {
00133           CLID idd = id>>16;
00134           switch(idd) {
00135             case CLID_ObjectList>>16:                /* ObjectList    */
00136               access((ObjectList<ContainedObject>*)base);
00137               break;
00138             case CLID_ObjectVector>>16:              /* ObjectVector  */
00139               access((ObjectVector<ContainedObject>*)base);
00140               break;
00141             case (CLID_ObjectVector+0x00030000)>>16: /* Keyed Map     */
00142               access((KeyedContainer<KeyedObject<int>,Containers::Map>*)base);
00143               break;
00144             case (CLID_ObjectVector+0x00040000)>>16: /* Keyed Hashmap */
00145               access((KeyedContainer<KeyedObject<int>,Containers::HashMap>*)base);
00146               break;
00147             case (CLID_ObjectVector+0x00050000)>>16: /* Keyed array   */
00148               access((KeyedContainer<KeyedObject<int>,Containers::Array>*)base);
00149               break;
00150           }
00151         }
00152       }
00153       catch (...)  {
00154         log << "Access test FAILED";
00155       }
00156     }
00157     log << endmsg;
00158   }

void StoreExplorerAlg::explore ( IRegistry *  pObj,
std::vector< bool > &  flg
) [inline]

Definition at line 160 of file StoreExplorerAlg.cpp.

References IRegistry::address(), Algorithm::eventSvc(), IDataProviderSvc::findObject(), StatusCode::isSuccess(), m_accessForeign, m_exploreRelations, m_load, IOpaqueAddress::par(), std::vector< _Tp, _Alloc >::pop_back(), printObj(), std::vector< _Tp, _Alloc >::push_back(), and IDataProviderSvc::retrieveObject().

Referenced by execute().

00160                                                          {
00161     printObj(pObj, flg);
00162     if ( 0 != pObj )    {
00163       SmartIF<IDataManagerSvc> mgr(eventSvc());
00164       if ( mgr )    {
00165         typedef std::vector<IRegistry*> Leaves;
00166         Leaves leaves;
00167         StatusCode sc = mgr->objectLeaves(pObj, leaves);
00168         const std::string* par0 = 0;
00169         if ( pObj->address() )  {
00170           par0 = pObj->address()->par();
00171         }
00172         if ( sc.isSuccess() )  {
00173           for ( Leaves::const_iterator i=leaves.begin(); i != leaves.end(); i++ )   {
00174             const std::string& id = (*i)->identifier();
00175             DataObject* p = 0;
00176             if ( !m_accessForeign && (*i)->address() )  {
00177               if ( par0 )  {
00178                 const std::string* par1 = (*i)->address()->par();
00179                 if ( par1 )  {
00180                   if ( par0[0] != par1[0] )  {
00181                     continue;
00182                   }
00183                 }
00184               }
00185             }
00186             if ( m_load )  {
00187               sc = eventSvc()->retrieveObject(id, p);
00188             }
00189             else {
00190               sc = eventSvc()->findObject(id, p);
00191             }
00192             if ( sc.isSuccess() )  {
00193               if ( id != "/Event/Rec/Relations" || m_exploreRelations )   {
00194                 flg.push_back(i+1 == leaves.end());
00195                 explore(*i, flg);
00196                 flg.pop_back();
00197               }
00198             }
00199             else {
00200               flg.push_back(i+1 == leaves.end());
00201               printObj(*i, flg);
00202               flg.pop_back();
00203             }
00204           }
00205         }
00206       }
00207     }
00208   }

virtual StatusCode StoreExplorerAlg::initialize (  )  [inline, virtual]

Initialize.

Reimplemented from Algorithm.

Definition at line 211 of file StoreExplorerAlg.cpp.

References endmsg(), MSG::ERROR, StatusCode::FAILURE, StatusCode::isSuccess(), m_dataSvc, m_dataSvcName, m_rootName, Algorithm::msgSvc(), Algorithm::name(), and Algorithm::service().

00211                                     {
00212     MsgStream log(msgSvc(), name());
00213     m_rootName = "";
00214     StatusCode sc = service(m_dataSvcName, m_dataSvc, true);
00215     if ( sc.isSuccess() )  {
00216       SmartIF<IDataManagerSvc> mgr(m_dataSvc);
00217       if ( mgr )  {
00218         m_rootName = mgr->rootName();
00219         return sc;
00220       }
00221       log << MSG::ERROR << "Failed to retrieve IDataManagerSvc interface." << endmsg;
00222       return StatusCode::FAILURE;
00223     }
00224     log << MSG::ERROR << "Failed to access service \""
00225         << m_dataSvcName << "\"." << endmsg;
00226     return StatusCode::FAILURE;
00227   }

virtual StatusCode StoreExplorerAlg::finalize ( void   )  [inline, virtual]

Finalize.

Reimplemented from Algorithm.

Definition at line 230 of file StoreExplorerAlg.cpp.

References m_dataSvc, IInterface::release(), and StatusCode::SUCCESS.

00230                                 {
00231     if ( m_dataSvc ) m_dataSvc->release();
00232     m_dataSvc = 0;
00233     return StatusCode::SUCCESS;
00234   }

virtual StatusCode StoreExplorerAlg::execute (  )  [inline, virtual]

Execute procedure.

Implements IAlgorithm.

Definition at line 237 of file StoreExplorerAlg.cpp.

References IRegistry::dataSvc(), std::dec(), endmsg(), MSG::ERROR, explore(), StatusCode::FAILURE, std::hex(), MSG::INFO, m_dataSvc, m_frequency, m_frqPrint, m_print, m_rootName, m_total, Algorithm::msgSvc(), Algorithm::name(), SmartDataStorePtr< TYPE, SmartDataObjectPtr::ObjectLoader >::ptr(), std::vector< _Tp, _Alloc >::push_back(), and StatusCode::SUCCESS.

00237                                   {
00238     MsgStream log(msgSvc(), name());
00239     SmartDataPtr<DataObject>   root(m_dataSvc,m_rootName);
00240     if ( ((m_print > m_total++) || (m_frequency*m_total > m_frqPrint)) && root )    {
00241       if ( m_frequency*m_total > m_frqPrint )  {
00242         m_frqPrint++;
00243       }
00244       std::string store_name = "Unknown";
00245       IRegistry* pReg = root->registry();
00246       if ( pReg )  {
00247         SmartIF<IService> isvc(pReg->dataSvc());
00248         if ( isvc )  {
00249           store_name = isvc->name();
00250         }
00251       }
00252       log << MSG::INFO << "========= " << m_rootName << "["
00253           << "0x" << std::hex << (unsigned long) root.ptr() << std::dec
00254           << "@" << store_name << "]:" << endmsg;
00255       std::vector<bool> flg;
00256       flg.push_back(true);
00257       explore(root->registry(), flg);
00258       return StatusCode::SUCCESS;
00259     }
00260     else if ( root )   {
00261       return StatusCode::SUCCESS;
00262     }
00263     log << MSG::ERROR << "Cannot retrieve \"/Event\"!" << endmsg;
00264     return StatusCode::FAILURE;
00265   }

Member Data Documentation

long StoreExplorerAlg::m_print [private]

Job option to limit printout to first nnn events.

Definition at line 34 of file StoreExplorerAlg.cpp.

Referenced by execute(), and StoreExplorerAlg().

double StoreExplorerAlg::m_frequency [private]

Job option to set the printout frequency.

Definition at line 36 of file StoreExplorerAlg.cpp.

Referenced by execute(), and StoreExplorerAlg().

bool StoreExplorerAlg::m_exploreRelations [private]

Flag to check if relations should be followed.

Definition at line 38 of file StoreExplorerAlg.cpp.

Referenced by explore(), and StoreExplorerAlg().

long StoreExplorerAlg::m_printMissing [private]

Flag to indicate if missing entities should be printed.

Definition at line 40 of file StoreExplorerAlg.cpp.

Referenced by StoreExplorerAlg().

long StoreExplorerAlg::m_total [private]

Internal counter to trigger printouts.

Definition at line 42 of file StoreExplorerAlg.cpp.

Referenced by execute(), and StoreExplorerAlg().

long StoreExplorerAlg::m_frqPrint [private]

Internal counter to adjust printout frequency.

Definition at line 44 of file StoreExplorerAlg.cpp.

Referenced by execute(), and StoreExplorerAlg().

bool StoreExplorerAlg::m_load [private]

Flag to load non existing items.

Definition at line 46 of file StoreExplorerAlg.cpp.

Referenced by explore(), and StoreExplorerAlg().

bool StoreExplorerAlg::m_testAccess [private]

Flag to test access to objects (DataObject and ContainedObject).

Definition at line 48 of file StoreExplorerAlg.cpp.

Referenced by printObj(), and StoreExplorerAlg().

bool StoreExplorerAlg::m_accessForeign [private]

Flag to indicate if foreign files should be opened.

Definition at line 50 of file StoreExplorerAlg.cpp.

Referenced by explore(), and StoreExplorerAlg().

IDataProviderSvc* StoreExplorerAlg::m_dataSvc [private]

Reference to data provider service.

Definition at line 52 of file StoreExplorerAlg.cpp.

Referenced by execute(), finalize(), and initialize().

std::string StoreExplorerAlg::m_dataSvcName [private]

Name of the data provider service.

Definition at line 54 of file StoreExplorerAlg.cpp.

Referenced by initialize(), and StoreExplorerAlg().

std::string StoreExplorerAlg::m_rootName [private]

Name of the root leaf (obtained at initialize).

Definition at line 56 of file StoreExplorerAlg.cpp.

Referenced by execute(), and initialize().

The documentation for this class was generated from the following file:
Generated at Fri Jul 18 12:09:24 2008 for Gaudi Framework, version v20r2 by Doxygen version 1.5.1 written by Dimitri van Heesch, © 1997-2004
