Converter Class Reference

#include <GaudiKernel/Converter.h>

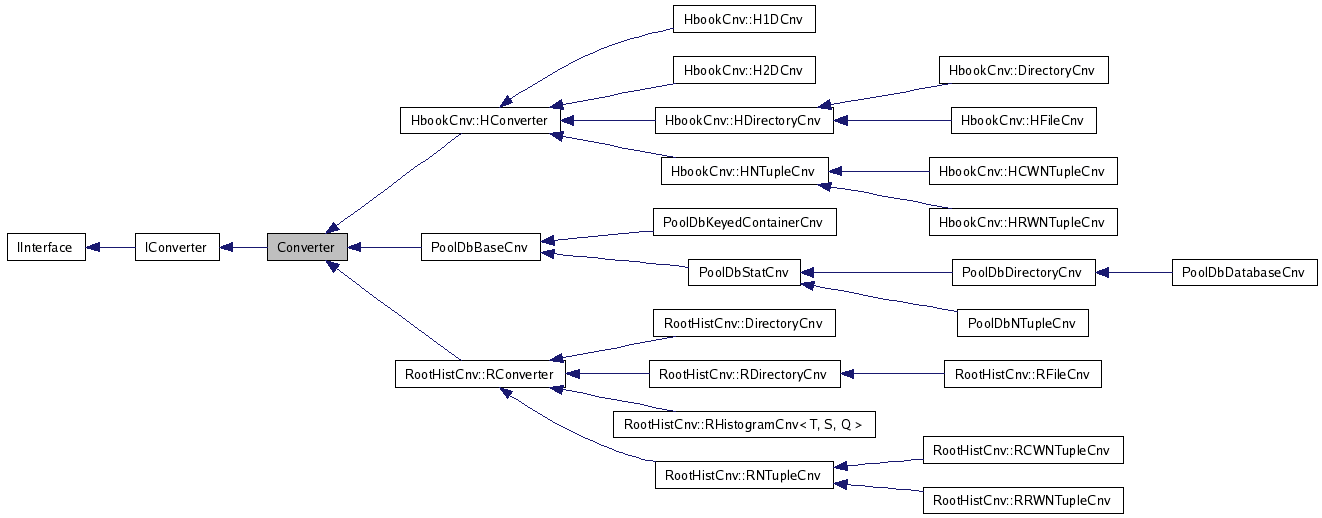

Inheritance diagram for Converter:

[legend]

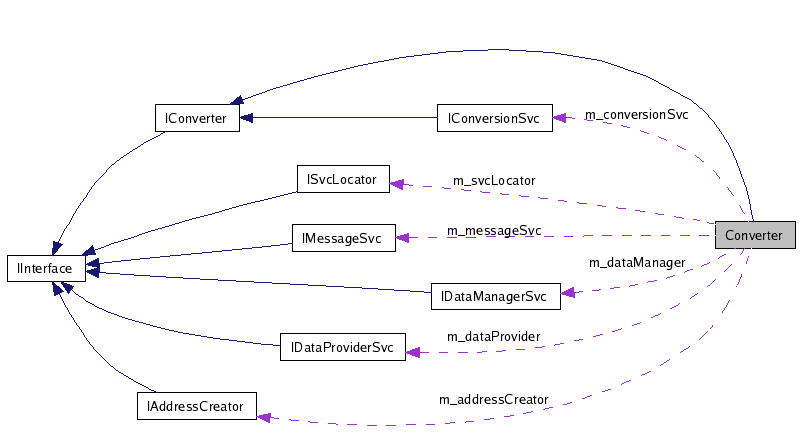

Collaboration diagram for Converter:

[legend]

List of all members.

Detailed Description

Converter base class.

See interface for detailed description, arguments and return values

Author:: Markus Frank

Version:: 1.0

Definition at line 25 of file Converter.h.


Public Member Functions
virtual StatusCode	queryInterface (const InterfaceID &riid, void **ppvInterface)
	Query interfaces of Interface.
virtual unsigned long	addRef ()
	Reference Interface instance.
virtual unsigned long	release ()
	Release Interface instance.
virtual StatusCode	initialize ()
	Initialize the converter.
virtual StatusCode	finalize ()
	Initialize the converter.
virtual StatusCode	setDataProvider (IDataProviderSvc *svc)
	Set Data provider service.
virtual IDataProviderSvc *	dataProvider () const
	Get Data provider service.
virtual StatusCode	setConversionSvc (IConversionSvc *svc)
	Set conversion service the converter is connected to.
virtual IConversionSvc *	conversionSvc () const
	Get conversion service the converter is connected to.
virtual StatusCode	setAddressCreator (IAddressCreator *creator)
	Set address creator facility.
virtual IAddressCreator *	addressCreator () const
	Retrieve address creator facility.
virtual const CLID &	objType () const
	Retrieve the class type of objects the converter produces.
virtual long	i_repSvcType () const
	Retrieve the class type of the data store the converter uses.
virtual StatusCode	createObj (IOpaqueAddress pAddress, DataObject &refpObject)
	Create the transient representation of an object.
virtual StatusCode	fillObjRefs (IOpaqueAddress pAddress, DataObject pObject)
	Resolve the references of the created transient object.
virtual StatusCode	updateObj (IOpaqueAddress pAddress, DataObject refpObject)
	Update the transient object from the other representation.
virtual StatusCode	updateObjRefs (IOpaqueAddress pAddress, DataObject pObject)
	Update the references of an updated transient object.
virtual StatusCode	createRep (DataObject pObject, IOpaqueAddress &refpAddress)
	Convert the transient object to the requested representation.
virtual StatusCode	fillRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Resolve the references of the converted object.
virtual StatusCode	updateRep (IOpaqueAddress pAddress, DataObject pObject)
	Update the converted representation of a transient object.
virtual StatusCode	updateRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Update the references of an already converted object.
	Converter (long storage_type, const CLID &class_type, ISvcLocator *svc)
	Standard Constructor.
template<class T>
StatusCode	service (const std::string &name, T *&psvc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist.
template<class T>
StatusCode	service (const std::string &type, const std::string &name, T *&psvc) const
	Access a service by name, type creating it if it doesn't already exist.
Protected Member Functions
virtual	~Converter ()
	Standard Destructor.
ISvcLocator *	serviceLocator () const
	Retrieve pointer to service locator.
IMessageSvc *	msgSvc () const
	Retrieve pointer to message service.
IMessageSvc *	messageService () const
IDataManagerSvc *	dataManager () const
	Get Data Manager service.
Private Member Functions
StatusCode	service_i (const std::string &svcName, bool createIf, const InterfaceID &iid, void **ppSvc) const
	implementation of service method
StatusCode	service_i (const std::string &svcType, const std::string &svcName, const InterfaceID &iid, void **ppSvc) const
Private Attributes
unsigned long	m_refCount
	Reference counter.
long	m_storageType
	Storage type.
const CLID	m_classType
	Class type the converter can handle.
IAddressCreator *	m_addressCreator
	Pointer to the address creation service interface.
IDataProviderSvc *	m_dataProvider
	Pointer to data provider service.
IDataManagerSvc *	m_dataManager
	Pointer to data manager service.
IConversionSvc *	m_conversionSvc
	Pointer to the connected conversion service.
ISvcLocator *	m_svcLocator
	Service Locator reference.
IMessageSvc *	m_messageSvc
	MessageSvc reference.

Constructor & Destructor Documentation

Converter::Converter	(	long	storage_type,
		const CLID &	class_type,
		ISvcLocator *	svc = `0`
	)

Standard Constructor.

Definition at line 196 of file Converter.cpp.

00196                                                                                   :
00197   m_refCount(0),
00198   m_storageType(storage_type),
00199   m_classType(class_type),
00200   m_dataProvider(0),
00201   m_dataManager(0),
00202   m_conversionSvc(0),
00203   m_svcLocator(svc),
00204   m_messageSvc(0)
00205 {
00206   if ( 0 != m_svcLocator ) m_svcLocator->addRef();
00207 }

Converter::~Converter ( ) [protected, virtual]

Standard Destructor.

Definition at line 210 of file Converter.cpp.

00210                         {
00211   if ( 0 != m_svcLocator ) m_svcLocator->release();
00212 }

Member Function Documentation

StatusCode Converter::queryInterface	(	const InterfaceID &	riid,
		void **	ppvInterface
	)			`[virtual]`

Query interfaces of Interface.

Implements IInterface.

Definition at line 30 of file Converter.cpp.

00030                                                                                   {
00031   if ( IID_IInterface.versionMatch(riid) )   {
00032     *ppvInterface = (IInterface*)this;
00033   }
00034   else if ( IID_IConverter.versionMatch(riid) )  {
00035     *ppvInterface = (IConverter*)this;
00036   }
00037   else   {
00038      return NO_INTERFACE;
00039   }
00040   addRef();
00041   return StatusCode::SUCCESS;
00042 }

unsigned long Converter::addRef ( ) [virtual]

Reference Interface instance.

Implements IInterface.

Definition at line 15 of file Converter.cpp.

00015                                   {
00016   m_refCount++;
00017   return m_refCount;
00018 }

unsigned long Converter::release ( ) [virtual]

Release Interface instance.

Implements IInterface.

Definition at line 21 of file Converter.cpp.

00021                                    {
00022   long count = --m_refCount;
00023   if ( count <= 0 ) {
00024     delete this;
00025   }
00026   return count;
00027 }

StatusCode Converter::initialize ( ) [virtual]

Initialize the converter.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, HbookCnv::HFileCnv, HbookCnv::HNTupleCnv, and RootHistCnv::RNTupleCnv.

Definition at line 96 of file Converter.cpp.

00096                                     {
00097   StatusCode status = StatusCode::SUCCESS;
00098   // Get a reference to the Message Service
00099   status = serviceLocator()->service("MessageSvc",m_messageSvc, true );
00100   if ( status.isFailure() )   {
00101     return status;
00102   }
00103   return status;
00104 }

StatusCode Converter::finalize ( void ) [virtual]

Initialize the converter.

Finalize the converter.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, HbookCnv::HNTupleCnv, and RootHistCnv::RNTupleCnv.

Definition at line 107 of file Converter.cpp.

00107                                   {
00108   if ( 0 != m_messageSvc )    {
00109     m_messageSvc->release();
00110     m_messageSvc = 0;
00111   }
00112   if ( 0 != m_dataManager )  {
00113     m_dataManager->release();
00114     m_dataManager = 0;
00115   }
00116   if ( 0 != m_dataProvider )  {
00117     m_dataProvider->release();
00118     m_dataProvider = 0;
00119   }
00120   return StatusCode::SUCCESS;
00121 }

StatusCode Converter::setDataProvider ( IDataProviderSvc * svc ) [virtual]

Set Data provider service.

Set data provider service.

Implements IConverter.

Definition at line 124 of file Converter.cpp.

00124                                                             {
00125   IDataManagerSvc* oldDataManager = m_dataManager;
00126   IDataProviderSvc* oldDataProvider = m_dataProvider;
00127   m_dataProvider = svc;
00128   m_dataManager  = 0;
00129   if ( 0 != m_dataProvider )  {
00130     m_dataProvider->addRef();
00131     svc->queryInterface(IDataManagerSvc::interfaceID(), pp_cast<void>(&m_dataManager)).ignore();
00132   }
00133   if ( oldDataManager )  {
00134     oldDataManager->release();
00135   }
00136   if ( oldDataProvider )  {
00137     oldDataProvider->release();
00138   }
00139   return StatusCode::SUCCESS;
00140 }

IDataProviderSvc * Converter::dataProvider ( ) const [virtual]

Get Data provider service.

Get data provider service.

Implements IConverter.

Definition at line 143 of file Converter.cpp.

00143                                                     {
00144   return m_dataProvider;
00145 }

StatusCode Converter::setConversionSvc ( IConversionSvc * svc ) [virtual]

Set conversion service the converter is connected to.

Implements IConverter.

Definition at line 153 of file Converter.cpp.

00153                                                             {
00154   m_conversionSvc = svc;
00155   return StatusCode::SUCCESS;
00156 }

IConversionSvc * Converter::conversionSvc ( ) const [virtual]

Get conversion service the converter is connected to.

Get data conversion service the converter is connected to.

Implements IConverter.

Definition at line 159 of file Converter.cpp.

00159                                                    {
00160   return m_conversionSvc;
00161 }

StatusCode Converter::setAddressCreator ( IAddressCreator * creator ) [virtual]

Set address creator facility.

Implements IConverter.

Definition at line 164 of file Converter.cpp.

00164                                                                   {
00165   m_addressCreator = creator;
00166   return StatusCode::SUCCESS;
00167 }

IAddressCreator * Converter::addressCreator ( ) const [virtual]

Retrieve address creator facility.

Access the transient store.

Implements IConverter.

Definition at line 170 of file Converter.cpp.

00170                                                     {
00171   return m_addressCreator;
00172 }

const CLID & Converter::objType ( ) const [virtual]

Retrieve the class type of objects the converter produces.

Implements IConverter.

Definition at line 45 of file Converter.cpp.

00045                                         {
00046   return m_classType;
00047 }

long Converter::i_repSvcType ( ) const [virtual]

Retrieve the class type of the data store the converter uses.

Definition at line 50 of file Converter.cpp.

00050                                      {
00051   return m_storageType;
00052 }

StatusCode Converter::createObj	(	IOpaqueAddress *	pAddress,
		DataObject *&	refpObject
	)			`[virtual]`

Create the transient representation of an object.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, PoolDbDatabaseCnv, PoolDbDirectoryCnv, PoolDbNTupleCnv, HbookCnv::H1DCnv, HbookCnv::H2DCnv, HbookCnv::HDirectoryCnv, HbookCnv::HFileCnv, HbookCnv::HNTupleCnv, RootHistCnv::DirectoryCnv, RootHistCnv::RDirectoryCnv, RootHistCnv::RFileCnv, RootHistCnv::RHistogramCnv< T, S, Q >, and RootHistCnv::RNTupleCnv.

Definition at line 55 of file Converter.cpp.

00055                                                                {
00056   return StatusCode::SUCCESS;
00057 }

StatusCode Converter::fillObjRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Resolve the references of the created transient object.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, PoolDbDirectoryCnv, PoolDbNTupleCnv, HbookCnv::HDirectoryCnv, and RootHistCnv::RDirectoryCnv.

Definition at line 61 of file Converter.cpp.

00061                                                                  {
00062   return StatusCode::SUCCESS;
00063 }

StatusCode Converter::updateObj	(	IOpaqueAddress *	pAddress,
		DataObject *	refpObject
	)			`[virtual]`

Update the transient object from the other representation.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, PoolDbDirectoryCnv, PoolDbNTupleCnv, HbookCnv::H1DCnv, HbookCnv::H2DCnv, HbookCnv::HNTupleCnv, RootHistCnv::RHistogramCnv< T, S, Q >, and RootHistCnv::RNTupleCnv.

Definition at line 66 of file Converter.cpp.

00066                                                               {
00067   return StatusCode::SUCCESS;
00068 }

StatusCode Converter::updateObjRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Update the references of an updated transient object.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, PoolDbDirectoryCnv, PoolDbKeyedContainerCnv, and PoolDbNTupleCnv.

Definition at line 71 of file Converter.cpp.

00071                                                                  {
00072   return StatusCode::SUCCESS;
00073 }

StatusCode Converter::createRep	(	DataObject *	pObject,
		IOpaqueAddress *&	refpAddress
	)			`[virtual]`

Convert the transient object to the requested representation.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, PoolDbDirectoryCnv, PoolDbNTupleCnv, HbookCnv::HConverter, HbookCnv::HDirectoryCnv, HbookCnv::HFileCnv, HbookCnv::HNTupleCnv, RootHistCnv::DirectoryCnv, RootHistCnv::RConverter, RootHistCnv::RDirectoryCnv, RootHistCnv::RFileCnv, and RootHistCnv::RNTupleCnv.

Definition at line 76 of file Converter.cpp.

00076                                                               {
00077   return StatusCode::SUCCESS;
00078 }

StatusCode Converter::fillRepRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Resolve the references of the converted object.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, and PoolDbNTupleCnv.

Definition at line 81 of file Converter.cpp.

00081                                                                {
00082   return StatusCode::SUCCESS;
00083 }

StatusCode Converter::updateRep	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Update the converted representation of a transient object.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, PoolDbDirectoryCnv, PoolDbNTupleCnv, HbookCnv::H1DCnv, HbookCnv::H2DCnv, HbookCnv::HDirectoryCnv, HbookCnv::HFileCnv, HbookCnv::HNTupleCnv, RootHistCnv::RDirectoryCnv, RootHistCnv::RFileCnv, and RootHistCnv::RNTupleCnv.

Definition at line 86 of file Converter.cpp.

00086                                                              {
00087   return StatusCode::SUCCESS;
00088 }

StatusCode Converter::updateRepRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Update the references of an already converted object.

Implements IConverter.

Reimplemented in PoolDbBaseCnv, PoolDbDirectoryCnv, and PoolDbNTupleCnv.

Definition at line 91 of file Converter.cpp.

00091                                                                    {
00092   return StatusCode::SUCCESS;
00093 }

template<class T>

StatusCode Converter::service	(	const std::string &	name,
		T *&	psvc,
		bool	createIf = `false`
	)			const `[inline]`

Access a service by name, creating it if it doesn't already exist.

Definition at line 98 of file Converter.h.

00098                                                                                      {
00099     return service_i(name, createIf, T::interfaceID(), (void**)&psvc);
00100   }

template<class T>

StatusCode Converter::service	(	const std::string &	type,
		const std::string &	name,
		T *&	psvc
	)			const `[inline]`

Access a service by name, type creating it if it doesn't already exist.

Definition at line 104 of file Converter.h.

00104                                                                                     {
00105     return service_i(type, name, T::interfaceID(), (void**)&psvc);
00106   }

ISvcLocator * Converter::serviceLocator ( ) const [protected]

Retrieve pointer to service locator.

--- Retrieve pointer to service locator

Definition at line 175 of file Converter.cpp.

00175                                                   {
00176   return m_svcLocator;
00177 }

IMessageSvc * Converter::msgSvc ( ) const [protected]

Retrieve pointer to message service.

--- Retrieve pointer to message service

Definition at line 180 of file Converter.cpp.

00180                                         {
00181   if ( 0 == m_messageSvc ) {
00182     StatusCode sc = serviceLocator()->service( "MessageSvc", m_messageSvc, true );
00183     if( sc.isFailure() ) {
00184       throw GaudiException("Service [MessageSvc] not found", "Converter", sc);
00185     }
00186   }
00187   return m_messageSvc;
00188 }

IMessageSvc * Converter::messageService ( ) const [protected]

Definition at line 191 of file Converter.cpp.

00191                                                 {
00192   return m_messageSvc;
00193 }

IDataManagerSvc * Converter::dataManager ( ) const [protected]

Get Data Manager service.

Get data manager service.

Definition at line 148 of file Converter.cpp.

00148                                                   {
00149   return m_dataManager;
00150 }

StatusCode Converter::service_i	(	const std::string &	svcName,
		bool	createIf,
		const InterfaceID &	iid,
		void **	ppSvc
	)			const `[private]`

implementation of service method

Definition at line 215 of file Converter.cpp.

00216                                                                  {
00217   StatusCode sc(StatusCode::FAILURE);
00218   // Check for name of conversion service
00219   ConversionSvc* cnvsvc =
00220     dynamic_cast<ConversionSvc*> (Converter::conversionSvc());
00221   if( cnvsvc != 0 ) {
00222     MsgStream log(msgSvc(),"Converter");
00223     ServiceLocatorHelper helper(*serviceLocator(), log, cnvsvc->name());
00224     sc = helper.getService(svcName, createIf, iid, ppSvc);
00225   }
00226   return sc;
00227 }

StatusCode Converter::service_i	(	const std::string &	svcType,
		const std::string &	svcName,
		const InterfaceID &	iid,
		void **	ppSvc
	)			const `[private]`

Definition at line 230 of file Converter.cpp.

00231                                                                  {
00232   StatusCode sc(StatusCode::FAILURE);
00233   // Check for name of conversion service
00234   ConversionSvc* cnvsvc =
00235     dynamic_cast<ConversionSvc*> (Converter::conversionSvc());
00236   if( cnvsvc != 0 ) {
00237     MsgStream log(msgSvc(),"Converter");
00238     ServiceLocatorHelper helper(*serviceLocator(), log, cnvsvc->name());
00239     sc = helper.createService(svcType, svcName, iid, ppSvc);
00240   }
00241   return sc;
00242 }

Member Data Documentation

unsigned long Converter::m_refCount [private]

Reference counter.

Definition at line 125 of file Converter.h.

long Converter::m_storageType [private]

Storage type.

Definition at line 127 of file Converter.h.

const CLID Converter::m_classType [private]

Class type the converter can handle.

Definition at line 129 of file Converter.h.

IAddressCreator* Converter::m_addressCreator [private]

Pointer to the address creation service interface.

Definition at line 131 of file Converter.h.

IDataProviderSvc* Converter::m_dataProvider [private]

Pointer to data provider service.

Definition at line 133 of file Converter.h.

IDataManagerSvc* Converter::m_dataManager [private]

Pointer to data manager service.

Definition at line 135 of file Converter.h.

IConversionSvc* Converter::m_conversionSvc [private]

Pointer to the connected conversion service.

Definition at line 137 of file Converter.h.

ISvcLocator* Converter::m_svcLocator [private]

Service Locator reference.

Definition at line 139 of file Converter.h.

IMessageSvc* Converter::m_messageSvc [mutable, private]

MessageSvc reference.

Definition at line 141 of file Converter.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiKernel/GaudiKernel/Converter.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiKernel/src/Lib/Converter.cpp

	Gaudi Framework, version v20r4
	Generated: 8 Jan 2009

Gaudi Framework, version v20r4

Converter Class Reference

Detailed Description

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
