HbookCnv::H2DCnv Class Reference

#include <H2DCnv.h>

Inheritance diagram for HbookCnv::H2DCnv:

[legend]

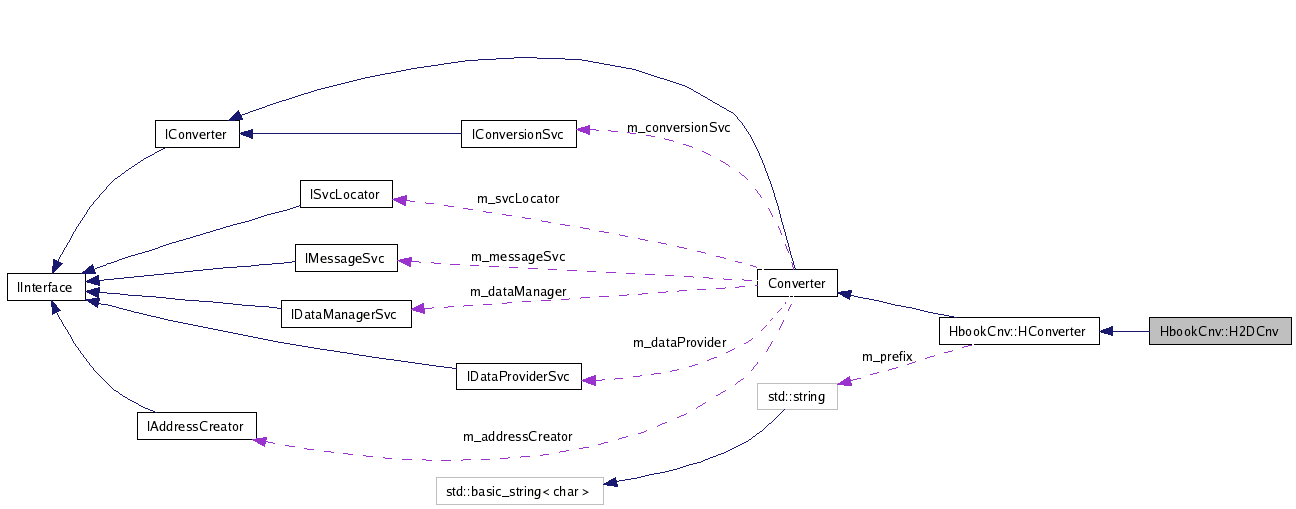

Collaboration diagram for HbookCnv::H2DCnv:

[legend]

List of all members.

Detailed Description

Definition at line 30 of file H2DCnv.h.


Public Member Functions
virtual StatusCode	createObj (IOpaqueAddress pAddr, DataObject &pObj)
	Create the transient representation of an object.
virtual StatusCode	updateObj (IOpaqueAddress pAddr, DataObject pObj)
	Update the transient object from the other representation.
virtual StatusCode	updateRep (IOpaqueAddress pAddr, DataObject pObj)
	Update the converted representation of a transient object.
	H2DCnv (ISvcLocator *svc)
	Standard constructor.
virtual	~H2DCnv ()
	Standard destructor.
Static Public Member Functions
static const CLID &	classID ()
	Inquire class type.
Protected Member Functions
virtual StatusCode	book (IOpaqueAddress pAddr, DataObject pObj)
	Book 2 D histogram.
Friends
class	CnvFactory< H2DCnv >

Constructor & Destructor Documentation

HbookCnv::H2DCnv::H2DCnv ( ISvcLocator * svc ) [inline]

Standard constructor.

Definition at line 44 of file H2DCnv.h.

00044                                : HConverter( classID(), svc )   {
00045       m_prefix = "/stat";
00046       m_deleteAfterSave = true;
00047     }

virtual HbookCnv::H2DCnv::~H2DCnv ( ) [inline, virtual]

Standard destructor.

Definition at line 49 of file H2DCnv.h.

00049                          {
00050     }

Member Function Documentation

static const CLID& HbookCnv::H2DCnv::classID ( ) [inline, static]

Inquire class type.

Definition at line 34 of file H2DCnv.h.

00034                                    {
00035       return CLID_H2D;
00036     }

StatusCode HbookCnv::H2DCnv::createObj	(	IOpaqueAddress *	pAddr,
		DataObject *&	pObj
	)			`[virtual]`

Create the transient representation of an object.

Create 2 D histogram from disk representation.

Reimplemented from Converter.

Definition at line 195 of file H2DCnv.cpp.

00197 {
00198   //MsgStream log(msgSvc(), "HHistoCnv");
00199   IHistogramFactory* pFac = dynamic_cast<IHistogramFactory*>(dataProvider());
00200   if ( 0 != pAddr && pFac ) {
00201     std::string loc = pAddr->registry()->identifier();
00202     long id = pAddr->ipar()[0];
00203     if ( readObject(loc, id).isSuccess() )  {
00204       std::string title;
00205       int nx, ny, nwt, lpaw;
00206       float xmi, xma, ymi, yma;
00207       ::HGIVE(id, title, nx, xmi, xma, ny, ymi, yma, nwt, lpaw);
00208       pAddr->addRef();
00209       refpObj = dynamic_cast<DataObject*>(pFac->createHistogram2D(loc, title,
00210                                                                   nx, xmi, xma,
00211                                                                   ny, ymi, yma));
00212       refpObj->registry()->setAddress(pAddr);
00213       StatusCode sc = updateObj(pAddr, refpObj);
00214       pAddr->release();
00215       return sc;
00216     }
00217   }
00218   return StatusCode::FAILURE;
00219 }

StatusCode HbookCnv::H2DCnv::updateObj	(	IOpaqueAddress *	pAddr,
		DataObject *	pObj
	)			`[virtual]`

Update the transient object from the other representation.

Convert the transient object to the requested representation.

Reimplemented from Converter.

Definition at line 222 of file H2DCnv.cpp.

00223                                                           {
00224   IHistogram2D* h = dynamic_cast<IHistogram2D*>(pObj);
00225
00226   if ( 0 != h && 0 != pAddr ) {
00227     int    id  = pAddr->ipar()[0]; // Histogram ID
00228     std::string loc = pAddr->registry()->identifier();
00229     if ( !::HEXIST( id ) )  {
00230       readObject(loc, id);
00231     }
00232     if ( ::HEXIST( id ) )  {
00233       const  IAxis& x = h->xAxis();
00234       int    nBinX    = x.bins();         // Number of bins
00235       double xLow     = x.lowerEdge();    // Histogram lower edge
00236       double xHigh    = x.upperEdge();    // Histogram upper edge
00237       double x_uflow  = xLow  - 1.0;      // Underflow coordinate
00238       double x_oflow  = xHigh + 1.0;      // Overflow coordinate
00239
00240       const  IAxis& y = h->yAxis();
00241       int    nBinY    = y.bins();         // Number of bins in the axis Y
00242       double yLow     = y.lowerEdge();    // Y-lower edge
00243       double yHigh    = y.upperEdge();    // Y-upper edge
00244       double y_uflow  = yLow  - 1.0;      // Underflow coordinate Y
00245       double y_oflow  = yHigh + 1.0;      // Overflow coordinate Y
00246       // float x_mean  = xLow + (xHigh-xLow)/2.0;
00247       // float y_mean  = yLow + (yHigh-yLow)/2.0;
00248       double centreX, centreY, height, err;
00249       int ix, iy;
00250
00251       h->reset();
00252
00253       for ( ix = 0; ix < nBinX; ix++ )  {
00254         for ( iy = 0; iy < nBinY; iy++ )  {
00255           centreX = h->binMeanX(ix,iy);
00256           centreY = h->binMeanY(ix,iy);
00257           height  = ::HIJ(id, ix+1, iy+1);
00258           err     = ::HIJE(id, ix+1, iy+1);
00259           // Unfortunately IHistogram2D does not support to set bins
00260           // and bin errors....errors will be SQRT(height)
00261           h->fill(centreX, centreY, height);
00262         }
00263       }
00264
00265       // Underflow and overflow bins
00266       // W
00267       for ( iy = 0; iy < nBinY; iy++ )  {
00268         centreY = h->binMeanY(IAxis::UNDERFLOW_BIN,iy);
00269         height  = ::HIJ(id, 0, iy+1);
00270         h->fill(x_uflow, centreY, height);
00271       }
00272       // NW
00273       height  = ::HIJ(id, 0, nBinY+1);
00274       h->fill(x_uflow, y_oflow, height);
00275       // N
00276       for ( ix = 0; ix < nBinX; ix++ )  {
00277         double centreX = h->binMeanX(ix,IAxis::OVERFLOW_BIN);
00278         double height  = ::HIJ(id, ix+1, nBinY+1);
00279         h->fill(centreX, y_oflow, height);
00280       }
00281       // NE

00282       height  = ::HIJ(id, nBinX+1, nBinY+1);
00283       h->fill(x_oflow, y_oflow, height);
00284       // E
00285       for ( iy = 0; iy < nBinY; iy++ )  {
00286         double centreY = h->binMeanY(IAxis::OVERFLOW_BIN,iy);
00287         double height  = ::HIJ(id, nBinX+1, iy+1);
00288         h->fill(x_oflow, centreY, height);
00289       }
00290       // SE
00291       height  = ::HIJ(id, nBinX+1, 0);
00292       h->fill(x_oflow, y_uflow, height);
00293       // S
00294       for ( ix = 0; ix < nBinX; ix++ )  {
00295         double centreX = h->binMeanX(ix,IAxis::UNDERFLOW_BIN);
00296         double height  = ::HIJ(id, ix+1, 0);
00297         h->fill(centreX, y_uflow, height);
00298       }
00299       // SW
00300       height  = ::HIJ(id, 0, 0);
00301       h->fill(x_uflow, y_uflow, height);
00302
00303       ::HDELET(id);
00304       return StatusCode::SUCCESS;
00305     }
00306   }
00307   return StatusCode::FAILURE;
00308 }

StatusCode HbookCnv::H2DCnv::updateRep	(	IOpaqueAddress *	pAddr,
		DataObject *	pObj
	)			`[virtual]`

Update the converted representation of a transient object.

Convert the transient object to the requested representation.

Reimplemented from Converter.

Definition at line 61 of file H2DCnv.cpp.

00062                                                           {
00063   IHistogram2D* h = dynamic_cast<IHistogram2D*>(pObj);
00064   if ( 0 != h ) {
00065     const IAxis& x = h->xAxis();
00066     int    histoID  = pAddr->ipar()[0]; // Histogram ID
00067     int    nBinX    = x.bins();         // Number of bins in the axis X
00068     double xLow     = x.lowerEdge();    // X-lower edge
00069     double xHigh    = x.upperEdge();    // X-upper edge
00070     double x_uflow  = xLow  - 1.0;      // Underflow coordinate X
00071     double x_oflow  = xHigh + 1.0;      // Overflow coordinate X
00072
00073     const IAxis& y = h->yAxis();
00074     int    nBinY    = y.bins();         // Number of bins in the axis Y
00075     double yLow     = y.lowerEdge();    // Y-lower edge
00076     double yHigh    = y.upperEdge();    // Y-upper edge
00077     double y_uflow  = yLow  - 1.0;      // Underflow coordinate Y
00078     double y_oflow  = yHigh + 1.0;      // Overflow coordinate Y
00079
00080     int    entries  = 0;                // Number of entries in a bin
00081     double height   = 0.;               // Height if a bin
00082     double centreX  = 0.;               // Centre of a bin on the axis X
00083     double centreY  = 0.;               // Centre of a bin on the axis Y
00084     double weight   = 0.;               // height / entries
00085     int    ix       = 0;                // Bin index on the axis X
00086     int    iy       = 0;                // Bin index on the axis Y
00087     int    j        = 0;                // Fill index
00088
00089     double* errs     = new double[nBinX*nBinY];  // Array of bin errors
00090     int    ind      = 0;                       // Index of bin errors
00091
00092     double x_mean  = xLow + (xHigh-xLow)/2.0;
00093     double y_mean  = yLow + (yHigh-yLow)/2.0;
00094
00095     ::HRESET(histoID, " ", 1);
00096
00097     // Fill the HBOOK 2D histogram with fixed binning
00098     for ( ix = 0; ix < nBinX; ix++ )  {
00099       for ( iy = 0; iy < nBinY; iy++, ind++ )  {
00100         errs[ind] = h->binError(ix,iy);
00101         height = h->binHeight(ix,iy);
00102         if( 0 != height ) {
00103           centreX = h->binMeanX( ix, iy );
00104           centreY = h->binMeanY( ix, iy );
00105           entries = h->binEntries(ix,iy);
00106           weight  = height / entries;
00107           for( j = 0; j < entries; j++ ) {
00108             ::HFILL(histoID, (float)centreX, (float)centreY, (float)weight);
00109           }
00110         }
00111       }
00112     }
00113     ::HPAKE(histoID,errs);
00114     delete [] errs;
00115
00116     // Underflow and overflow bins
00117     // W
00118     entries          = h->binEntriesX( IAxis::UNDERFLOW_BIN ) -
00119                        h->binEntries ( IAxis::UNDERFLOW_BIN,  IAxis::OVERFLOW_BIN ) -
00120                        h->binEntries ( IAxis::UNDERFLOW_BIN, IAxis::UNDERFLOW_BIN );
00121     height           = h->binHeightX ( IAxis::UNDERFLOW_BIN ) -
00122                        h->binHeight  ( IAxis::UNDERFLOW_BIN, IAxis::OVERFLOW_BIN ) -
00123                        h->binHeight  ( IAxis::UNDERFLOW_BIN, IAxis::UNDERFLOW_BIN );
00124     weight  = height / entries;
00125     for( j = 0; j < entries; j++ ) {
00126       ::HFILL(histoID, (float)x_uflow, (float)y_mean, (float)weight);
00127     }
00128     // NW
00129     entries          = h->binEntries ( IAxis::UNDERFLOW_BIN, IAxis::OVERFLOW_BIN  );
00130     height           = h->binHeight  ( IAxis::UNDERFLOW_BIN, IAxis::OVERFLOW_BIN  );
00131     weight  = height / entries;
00132     for( j = 0; j < entries; j++ ) {
00133       ::HFILL(histoID, (float)x_uflow, (float)y_oflow, (float)weight);
00134     }
00135     // N
00136     entries          = h->binEntriesY( IAxis::OVERFLOW_BIN  ) -
00137                        h->binEntries ( IAxis::UNDERFLOW_BIN, IAxis::OVERFLOW_BIN  ) -
00138                        h->binEntries ( IAxis::OVERFLOW_BIN,  IAxis::OVERFLOW_BIN  );
00139     height           = h->binHeightY ( IAxis::OVERFLOW_BIN  ) -
00140                        h->binHeight  ( IAxis::UNDERFLOW_BIN, IAxis::OVERFLOW_BIN  ) -
00141                        h->binHeight  ( IAxis::OVERFLOW_BIN,  IAxis::OVERFLOW_BIN  );
00142     weight  = height / entries;
00143     for( j = 0; j < entries; j++ ) {
00144       ::HFILL(histoID, (float)x_mean, (float)y_oflow, (float)weight);
00145     }
00146     // NE
00147     entries          = h->binEntries ( IAxis::OVERFLOW_BIN,  IAxis::OVERFLOW_BIN  );
00148     height           = h->binHeight  ( IAxis::OVERFLOW_BIN,  IAxis::OVERFLOW_BIN  );
00149     weight  = height / entries;
00150     for( j = 0; j < entries; j++ ) {
00151       ::HFILL(histoID, (float)x_oflow, (float)y_oflow, (float)weight);
00152     }
00153     // E
00154     entries          = h->binEntriesX( IAxis::OVERFLOW_BIN  ) -
00155                        h->binEntries ( IAxis::OVERFLOW_BIN, IAxis::UNDERFLOW_BIN  ) -
00156                        h->binEntries ( IAxis::OVERFLOW_BIN, IAxis::OVERFLOW_BIN  );
00157     height           = h->binHeightX ( IAxis::OVERFLOW_BIN  ) -
00158                        h->binHeight  ( IAxis::OVERFLOW_BIN, IAxis::UNDERFLOW_BIN  ) -
00159                        h->binHeight  ( IAxis::OVERFLOW_BIN, IAxis::OVERFLOW_BIN  );
00160     weight  = height / entries;
00161     for( j = 0; j < entries; j++ ) {
00162       ::HFILL(histoID, (float)x_oflow, (float)y_mean, (float)weight);
00163     }
00164     // SE
00165     entries          = h->binEntries ( IAxis::OVERFLOW_BIN,  IAxis::UNDERFLOW_BIN );
00166     height           = h->binHeight  ( IAxis::OVERFLOW_BIN,  IAxis::UNDERFLOW_BIN );
00167     weight  = height / entries;
00168     for( j = 0; j < entries; j++ ) {
00169       ::HFILL(histoID, (float)x_oflow, (float)y_uflow, (float)weight);
00170     }
00171     // S
00172     entries          = h->binEntriesY( IAxis::UNDERFLOW_BIN  ) -
00173                        h->binEntries ( IAxis::OVERFLOW_BIN,  IAxis::UNDERFLOW_BIN  ) -
00174                        h->binEntries ( IAxis::UNDERFLOW_BIN, IAxis::UNDERFLOW_BIN  );
00175     height           = h->binHeightY ( IAxis::UNDERFLOW_BIN  ) -
00176                        h->binHeight  ( IAxis::OVERFLOW_BIN,  IAxis::UNDERFLOW_BIN  ) -
00177                        h->binHeight  ( IAxis::UNDERFLOW_BIN, IAxis::UNDERFLOW_BIN  );
00178     weight  = height / entries;
00179     for( j = 0; j < entries; j++ ) {
00180       ::HFILL(histoID, (float)x_mean, (float)y_uflow, (float)weight);
00181     }
00182     // SW
00183     entries          = h->binEntries ( IAxis::UNDERFLOW_BIN, IAxis::UNDERFLOW_BIN );
00184     height           = h->binHeight  ( IAxis::UNDERFLOW_BIN, IAxis::UNDERFLOW_BIN );
00185     weight  = height / entries;
00186     for( j = 0; j < entries; j++ ) {
00187       ::HFILL(histoID, (float)x_uflow, (float)y_uflow, (float)weight);
00188     }
00189     return StatusCode::SUCCESS;
00190   }
00191   return StatusCode::FAILURE;
00192 }

StatusCode HbookCnv::H2DCnv::book	(	IOpaqueAddress *	pAddr,
		DataObject *	pObj
	)			`[protected, virtual]`

Book 2 D histogram.

Reimplemented from HbookCnv::HConverter.

Definition at line 36 of file H2DCnv.cpp.

00036                                                                      {
00037   IHistogram2D* h = dynamic_cast<IHistogram2D*>(pObj);
00038   if ( 0 != h ) {
00039     int idh = pAdd->ipar()[0];
00040     const IAxis& x = h->xAxis();
00041     const IAxis& y = h->yAxis();
00042     ::HBOOK2( idh, h->title(),
00043               x.bins(), float(x.lowerEdge()), float(x.upperEdge()),
00044               y.bins(), float(y.lowerEdge()), float(y.upperEdge()));
00045     ::HIDOPT(idh, "STAT");
00046
00047     if ( !x.isFixedBinning() || !y.isFixedBinning() ) {
00048       MsgStream log( msgSvc(), "HbookCnv::H2DCnv" );
00049       log << MSG::WARNING
00050           << "2D variable bin size histograms not supported in HBOOK" << endreq
00051           << "  -> Persistent 2D histogram " << idh << " '" + h->title() + "' INACCURATE!"
00052           << endreq;
00053     }
00054
00055     return StatusCode::SUCCESS;
00056   }
00057   return StatusCode::FAILURE;
00058 }

Friends And Related Function Documentation

friend class CnvFactory< H2DCnv > [friend]

Definition at line 31 of file H2DCnv.h.
