ISequencerTimerTool Class Reference

#include <ISequencerTimerTool.h>

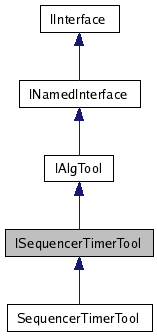

Inheritance diagram for ISequencerTimerTool:

[legend]

Collaboration diagram for ISequencerTimerTool:

[legend]

List of all members.

---

Detailed Description

Implements the time measurement inside a sequencer.

Author:

Olivier Callot

Date:

2004-05-19

Definition at line 18 of file ISequencerTimerTool.h.

Public Member Functions
virtual int	addTimer (std::string name)=0
	add a timer entry with the specified name
virtual void	increaseIndent ()=0
	Increase the indentation of the name.
virtual void	decreaseIndent ()=0
	Decrease the indentation fo the name.
virtual void	start (int index)=0
	start the counter, i.e.
virtual double	stop (int index)=0
	stop the counter, return the elapsed time
virtual std::string	name (int index)=0
	returns the name of the counter
virtual double	lastTime (int index)=0
	returns the last measured time time
virtual int	indexByName (std::string name)=0
	returns the index of the counter with that name, or -1
virtual bool	globalTiming ()=0
	returns the flag telling that global timing is wanted
Static Public Member Functions
static const InterfaceID &	interfaceID ()
	Retrieve interface ID.

---

Member Function Documentation

static const InterfaceID& ISequencerTimerTool::interfaceID

(

)

[inline, static]

Retrieve interface ID.

Reimplemented from IAlgTool.

Definition at line 21 of file ISequencerTimerTool.h.

{ return IID_ISequencerTimerTool; }

virtual int ISequencerTimerTool::addTimer

(

std::string

name

)

[pure virtual]

add a timer entry with the specified name

Implemented in SequencerTimerTool.

virtual void ISequencerTimerTool::increaseIndent

(

)

[pure virtual]

Increase the indentation of the name.

Implemented in SequencerTimerTool.

virtual void ISequencerTimerTool::decreaseIndent

(

)

[pure virtual]

Decrease the indentation fo the name.

Implemented in SequencerTimerTool.

virtual void ISequencerTimerTool::start

(

int

index

)

[pure virtual]

start the counter, i.e.

register the current time

Implemented in SequencerTimerTool.

virtual double ISequencerTimerTool::stop

(

int

index

)

[pure virtual]

stop the counter, return the elapsed time

Implemented in SequencerTimerTool.

virtual std::string ISequencerTimerTool::name

(

int

index

)

[pure virtual]

returns the name of the counter

Implemented in SequencerTimerTool.

virtual double ISequencerTimerTool::lastTime

(

int

index

)

[pure virtual]

returns the last measured time time

Implemented in SequencerTimerTool.

virtual int ISequencerTimerTool::indexByName

(

std::string

name

)

[pure virtual]

returns the index of the counter with that name, or -1

Implemented in SequencerTimerTool.

virtual bool ISequencerTimerTool::globalTiming

(

)

[pure virtual]

returns the flag telling that global timing is wanted

Implemented in SequencerTimerTool.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiAlg/GaudiAlg/ISequencerTimerTool.h
