SequencerTimerTool Class Reference

#include <SequencerTimerTool.h>

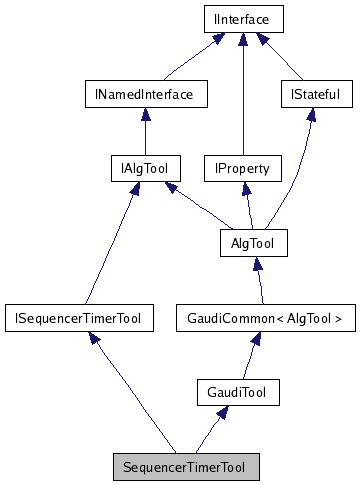

Inheritance diagram for SequencerTimerTool:

[legend]

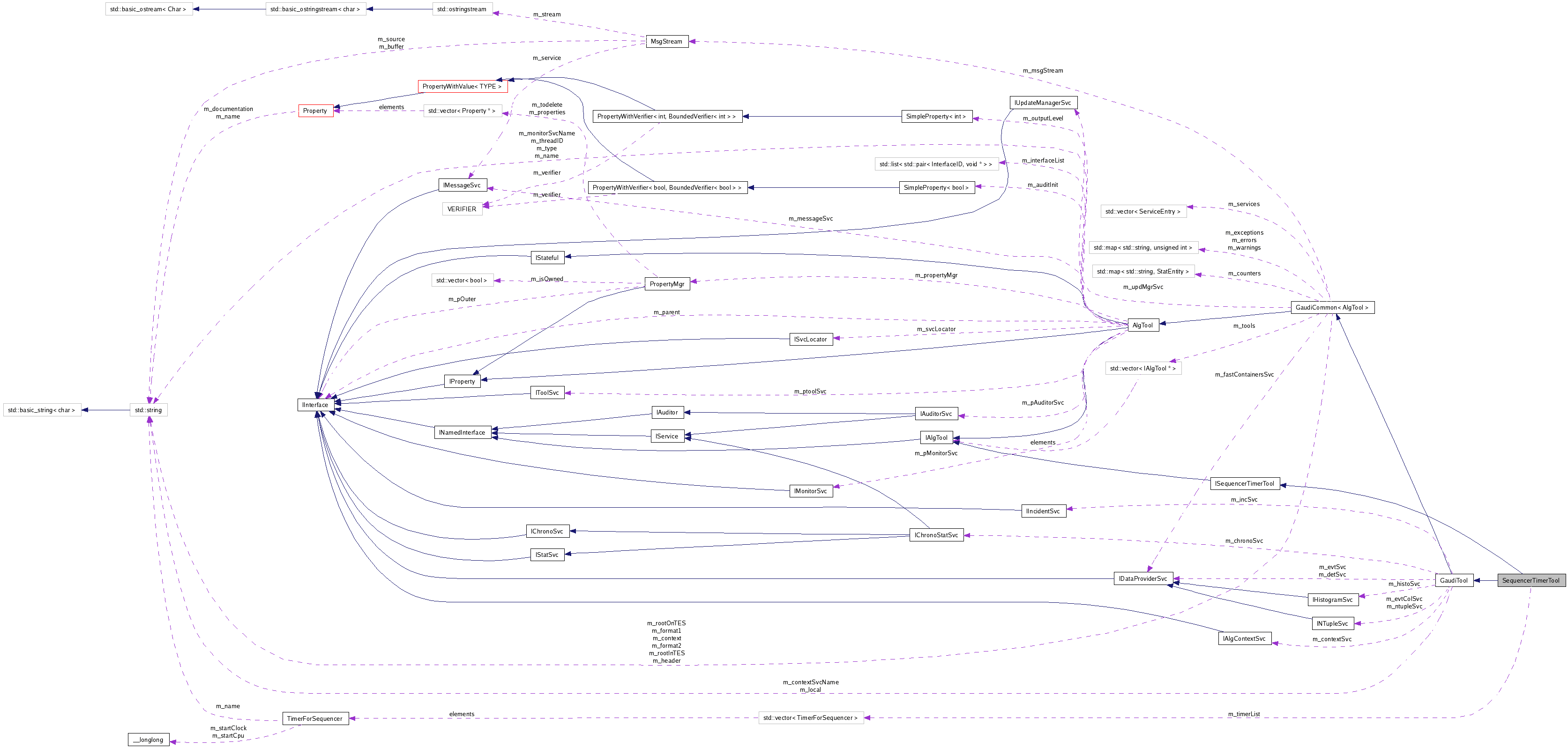

Collaboration diagram for SequencerTimerTool:

[legend]

List of all members.

Detailed Description

Implements the time measurement inside a sequencer.

Author:: Olivier Callot

Date:: 2004-05-19

Definition at line 21 of file SequencerTimerTool.h.


Public Member Functions
	SequencerTimerTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.
virtual	~SequencerTimerTool ()
	Destructor.
virtual StatusCode	initialize ()
	initialize method, to compute the normalisation factor
virtual StatusCode	finalize ()
	finalize method, to print the time summary table
virtual int	addTimer (std::string name)
	add a timer entry with the specified name
virtual void	increaseIndent ()
	Increase the indentation of the name.
virtual void	decreaseIndent ()
	Decrease the indentation fo the name.
void	start (int index)
	start the counter, i.e.
double	stop (int index)
	stop the counter, return the elapsed time
double	lastTime (int index)
	returns the last time
std::string	name (int index)
	returns the name of the counter
int	indexByName (std::string name)
	returns the index of the counter with that name, or -1
virtual bool	globalTiming ()
	returns the flag telling that global timing is wanted
Private Attributes
int	m_shots
	Number of shots for CPU normalisation.
bool	m_normalised
	Is the time scaled to a nominal PIII ?
int	m_indent
	Amount of indentation.
std::vector< TimerForSequencer >	m_timerList
double	m_normFactor
	Factor to convert to standard CPU (1 GHz PIII).
double	m_speedRatio
bool	m_globalTiming

Constructor & Destructor Documentation

SequencerTimerTool::SequencerTimerTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

Definition at line 24 of file SequencerTimerTool.cpp.

00027   : GaudiTool ( type, name , parent )
00028   , m_indent( 0 )
00029   , m_normFactor( 0.001 )
00030 {
00031   declareInterface<ISequencerTimerTool>(this);
00032
00033   m_shots = 3500000 ; // 1s on 2.8GHz Xeon, gcc 3.2, -o2
00034   declareProperty( "shots"        , m_shots );
00035   declareProperty( "Normalised"   , m_normalised = false );
00036   declareProperty( "GlobalTiming" , m_globalTiming = false );
00037 }

SequencerTimerTool::~SequencerTimerTool ( ) [virtual]

Destructor.

Definition at line 41 of file SequencerTimerTool.cpp.

00041 {};

Member Function Documentation

StatusCode SequencerTimerTool::initialize ( ) [virtual]

initialize method, to compute the normalisation factor

Reimplemented from GaudiTool.

Definition at line 47 of file SequencerTimerTool.cpp.

00047                                             {
00048   GaudiTool::initialize();
00049   double sum = 0;
00050   TimerForSequencer norm( "normalize", m_normFactor );
00051   norm.start();
00052   IRndmGenSvc* rsvc = svc<IRndmGenSvc>( "RndmGenSvc", true );
00053   { // Use dummy loop suggested by Vanya Belyaev:
00054     Rndm::Numbers gauss;
00055     gauss.initialize( rsvc , Rndm::Gauss(0.,1.0) ).ignore();
00056     unsigned int shots = m_shots;
00057     while( 0 < --shots ) { sum += gauss() * sum ; }
00058   }
00059   norm.stop();
00060   double time = norm.lastCpu();
00061   m_speedRatio = 1./time;
00062   info() << "This machine has a speed about "
00063          << format( "%6.2f", 1000.*m_speedRatio)
00064          << " times the speed of a 2.8 GHz Xeon." << endreq ;
00065    if ( m_normalised ) {
00066     m_normFactor = m_speedRatio;
00067   }
00068   return StatusCode::SUCCESS;
00069 }

StatusCode SequencerTimerTool::finalize ( void ) [virtual]

finalize method, to print the time summary table

Reimplemented from GaudiTool.

Definition at line 73 of file SequencerTimerTool.cpp.

00073                                           {
00074
00075   std::string line(96, '-');
00076   info() << line << endreq
00077          << "This machine has a speed about "
00078          << format( "%6.2f", 1000.*m_speedRatio)
00079          << " times the speed of a 2.8 GHz Xeon.";
00080   if ( m_normalised ) info() <<" *** All times are renormalized ***";
00081   info() << endreq << m_timerList[0].header() << endreq
00082          << line << endreq;
00083
00084   std::string lastName = "";
00085   for ( unsigned int kk=0 ; m_timerList.size() > kk ; kk++ ) {
00086     if ( lastName == m_timerList[kk].name() ) continue; // suppress duplicate
00087     lastName = m_timerList[kk].name();
00088     info() << m_timerList[kk] << endreq;
00089   }
00090   info() << line << endreq;
00091
00092   return GaudiTool::finalize();
00093 }

virtual int SequencerTimerTool::addTimer ( std::string name ) [inline, virtual]

add a timer entry with the specified name

Implements ISequencerTimerTool.

Definition at line 38 of file SequencerTimerTool.h.

00038                                          {
00039     std::string myName;
00040     if ( 0 < m_indent ) {
00041       std::string prefix( m_indent, ' ' );
00042       myName += prefix;
00043     }
00044     unsigned int headerSize = 30;
00045
00046     std::string space( headerSize, ' ' );
00047     myName += name + space ;
00048     myName = myName.substr( 0, headerSize );
00049
00050     m_timerList.push_back( TimerForSequencer(myName, m_normFactor) );
00051     return m_timerList.size() -1;
00052   };

virtual void SequencerTimerTool::increaseIndent ( ) [inline, virtual]

Increase the indentation of the name.

Implements ISequencerTimerTool.

Definition at line 55 of file SequencerTimerTool.h.

00055 { m_indent += 2; };

virtual void SequencerTimerTool::decreaseIndent ( ) [inline, virtual]

Decrease the indentation fo the name.

Implements ISequencerTimerTool.

Definition at line 58 of file SequencerTimerTool.h.

00058                                    {
00059     m_indent -= 2;
00060     if ( 0 > m_indent ) m_indent = 0;
00061   };

void SequencerTimerTool::start ( int index ) [inline, virtual]

start the counter, i.e.

register the current time

Implements ISequencerTimerTool.

Definition at line 64 of file SequencerTimerTool.h.

00064 {   m_timerList[index].start();  };

double SequencerTimerTool::stop ( int index ) [inline, virtual]

stop the counter, return the elapsed time

Implements ISequencerTimerTool.

Definition at line 67 of file SequencerTimerTool.h.

00067 {   return m_timerList[index].stop();  };

double SequencerTimerTool::lastTime ( int index ) [inline, virtual]

returns the last time

Implements ISequencerTimerTool.

Definition at line 70 of file SequencerTimerTool.h.

00070 {   return m_timerList[index].lastTime();  };

std::string SequencerTimerTool::name ( int index ) [inline, virtual]

returns the name of the counter

Implements ISequencerTimerTool.

Definition at line 73 of file SequencerTimerTool.h.

00073 {   return m_timerList[index].name();  };

int SequencerTimerTool::indexByName ( std::string name ) [virtual]

returns the index of the counter with that name, or -1

Implements ISequencerTimerTool.

Definition at line 98 of file SequencerTimerTool.cpp.

00098                                                      {
00099   std::string::size_type beg = name.find_first_not_of(" \t");
00100   std::string::size_type end = name.find_last_not_of(" \t");
00101   std::string temp = name.substr( beg, end-beg+1 );
00102   for ( unsigned int kk=0 ; m_timerList.size() > kk ; kk++ ) {
00103     beg =  m_timerList[kk].name().find_first_not_of(" \t");
00104     end =  m_timerList[kk].name().find_last_not_of(" \t");
00105     if ( m_timerList[kk].name().substr(beg,end-beg+1) == temp ) return kk;
00106   }
00107   return -1;
00108 }

virtual bool SequencerTimerTool::globalTiming ( ) [inline, virtual]

returns the flag telling that global timing is wanted

Implements ISequencerTimerTool.

Definition at line 79 of file SequencerTimerTool.h.

00079 { return m_globalTiming; };

Member Data Documentation

int SequencerTimerTool::m_shots [private]

Number of shots for CPU normalisation.

Definition at line 79 of file SequencerTimerTool.h.

bool SequencerTimerTool::m_normalised [private]

Is the time scaled to a nominal PIII ?

Definition at line 85 of file SequencerTimerTool.h.

int SequencerTimerTool::m_indent [private]

Amount of indentation.

Definition at line 86 of file SequencerTimerTool.h.

std::vector<TimerForSequencer> SequencerTimerTool::m_timerList [private]

Definition at line 87 of file SequencerTimerTool.h.

double SequencerTimerTool::m_normFactor [private]

Factor to convert to standard CPU (1 GHz PIII).

Definition at line 88 of file SequencerTimerTool.h.

double SequencerTimerTool::m_speedRatio [private]

Definition at line 89 of file SequencerTimerTool.h.

bool SequencerTimerTool::m_globalTiming [private]

Definition at line 90 of file SequencerTimerTool.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiAlg/src/components/SequencerTimerTool.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v20r4/GaudiAlg/src/components/SequencerTimerTool.cpp
