RootHistCnv::RConverter Class Reference

#include <RConverter.h>

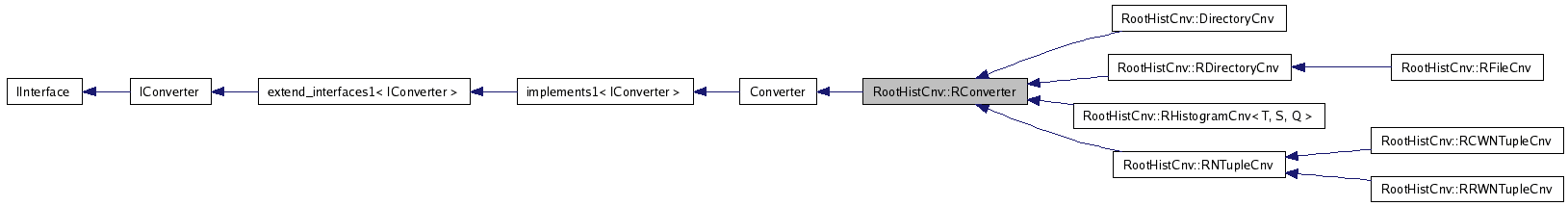

Inheritance diagram for RootHistCnv::RConverter:

[legend]

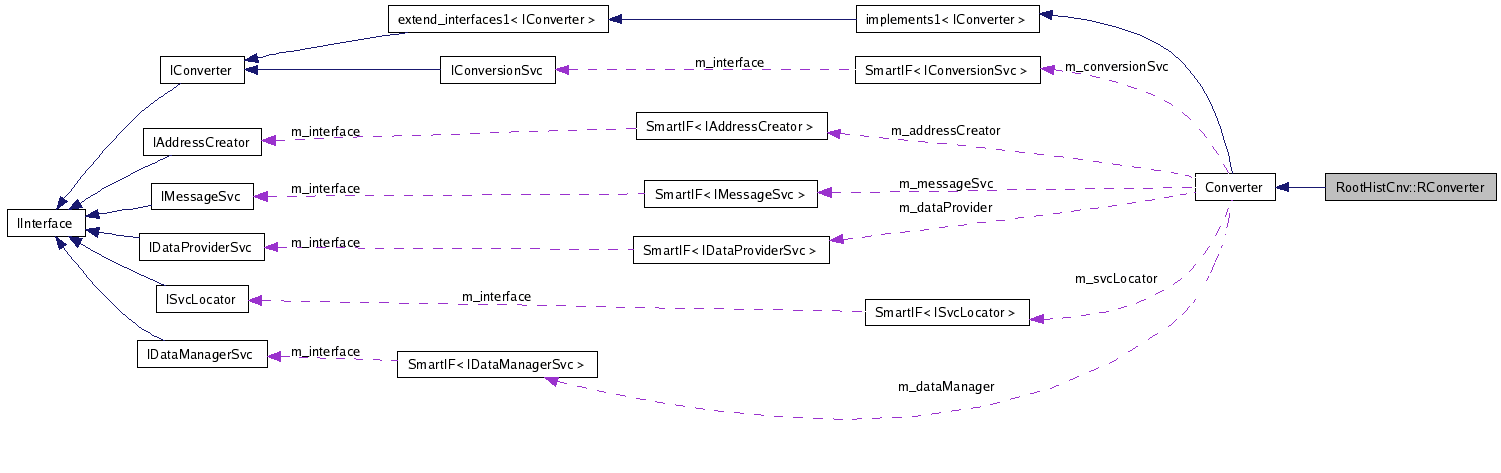

Collaboration diagram for RootHistCnv::RConverter:

[legend]

List of all members.

Detailed Description

Root Converter.

Author:: Charles Leggett

Definition at line 36 of file RConverter.h.


Public Member Functions
virtual StatusCode	createRep (DataObject pObj, IOpaqueAddress &refpAddr)
	Convert the transient object to the requested representation.
long	repSvcType () const
	Retrieve the class type of the data store the converter uses.
StatusCode	error (const std::string &msg)
StatusCode	regTFile (const std::string, const TFile *)
StatusCode	findTFile (const std::string, TFile *&)
std::string	diskDirectory (const std::string &loc)
std::string	directory (const std::string &loc)
void	setDirectory (const std::string &loc)
void	setDiskDirectory (const std::string &loc)
StatusCode	createDirectory (const std::string &loc)
StatusCode	createDiskDirectory (const std::string &loc)
std::string	getDirectory ()
std::string	convertId (const std::string &) const
Static Public Member Functions
static long	storageType ()
	Inquire storage type.
Protected Member Functions
	RConverter (const CLID &clid, ISvcLocator *svc)
	Standard constructor.
virtual	~RConverter ()
	Standard destructor.
virtual StatusCode	readObject (IOpaqueAddress pAddr, DataObject &refpObj)
	Create the transient representation of an object.
virtual TObject *	createPersistent (DataObject *pObj)
	Create the persistent representation of an object.
StatusCode	createAddress (DataObject pObject, TDirectory pDir, TObject pTObject, IOpaqueAddress &refpAddr)
	Create address of the transient object according to the requested representation.
StatusCode	createAddress (const std::string &rzdir, const CLID &clid, long id, TObject pTobj, IOpaqueAddress &refpAddress)
StatusCode	createAddress (const std::string &rzdir, const CLID &clid, const std::string &title, TObject pTobj, IOpaqueAddress &refpAddress)
TDirectory *	changeDirectory (DataObject *pObject)
	Switch to object directory (=Parent directory).

Constructor & Destructor Documentation

RootHistCnv::RConverter::RConverter	(	const CLID &	clid,
		ISvcLocator *	svc
	)			`[inline, protected]`

Standard constructor.

Definition at line 61 of file RConverter.h.

00062     : Converter(storageType(), clid, svc)  {    }

virtual RootHistCnv::RConverter::~RConverter ( ) [inline, protected, virtual]

Standard destructor.

Definition at line 64 of file RConverter.h.

00064 {     }

Member Function Documentation

StatusCode RootHistCnv::RConverter::createRep	(	DataObject *	pObj,
		IOpaqueAddress *&	refpAddr
	)			`[virtual]`

Convert the transient object to the requested representation.

Reimplemented from Converter.

Reimplemented in RootHistCnv::DirectoryCnv, RootHistCnv::RDirectoryCnv, RootHistCnv::RFileCnv, and RootHistCnv::RNTupleCnv.

Definition at line 265 of file RConverter.cpp.

00268 {
00269   GlobalDirectoryRestore restore;
00270   pAddr = 0;
00271   try   {
00272     TDirectory* pParentDir = changeDirectory(pObject);
00273     if ( pParentDir )   {
00274       TObject* pTObj = createPersistent(pObject);
00275       if ( pTObj )   {
00276         pTObj->Write();
00277         delete pTObj;
00278         return createAddress(pObject, pParentDir, 0, pAddr);
00279       }
00280     }
00281   }
00282   catch (...)   {
00283   }
00284   MsgStream log (msgSvc(), "RConverter");
00285   log << MSG::ERROR << "Failed to create persistent Object!" << endmsg;
00286   return StatusCode::FAILURE;
00287 }

static long RootHistCnv::RConverter::storageType ( ) [inline, static]

Inquire storage type.

Definition at line 42 of file RConverter.h.

00042 {         return ROOT_StorageType;    }

long RootHistCnv::RConverter::repSvcType ( ) const [inline, virtual]

Retrieve the class type of the data store the converter uses.

Returns:: Class type information about the source data store type the converter will use to retrieve the information.

Implements IConverter.

Definition at line 43 of file RConverter.h.

00043 {         return i_repSvcType();      }

StatusCode RootHistCnv::RConverter::error ( const std::string & msg )

Definition at line 387 of file RConverter.cpp.

00389 {
00390   MsgStream log(msgSvc(), "RootHistCnv");
00391   log << MSG::ERROR << msg << endmsg;
00392   return StatusCode::FAILURE;
00393 }

StatusCode RootHistCnv::RConverter::regTFile	(	const std::string	id,
		const TFile *	tfile
	)

Definition at line 310 of file RConverter.cpp.

00313 {
00314
00315   MsgStream log(msgSvc(), "RConverter");
00316
00317   std::map<std::string,TFile*>::const_iterator imap;
00318   imap = s_fileMap.find(id);
00319
00320   if ( imap != s_fileMap.end() ) {
00321     log << MSG::ERROR << "cannot register TTree " << id
00322         << ": already exists" << endmsg;
00323     return StatusCode::FAILURE;
00324   }
00325
00326   s_fileMap[id] = const_cast<TFile*>(tfile);
00327
00328   return StatusCode::SUCCESS;
00329 }

StatusCode RootHistCnv::RConverter::findTFile	(	const std::string	id,
		TFile *&	tfile
	)

Definition at line 332 of file RConverter.cpp.

00335 {
00336   MsgStream log(msgSvc(), "RConverter");
00337   tfile = 0;
00338
00339   std::string idm;
00340
00341   // make sure we only get first two parts of id
00342   int i1,i2,i3;
00343   i1 = id.find("/",0);
00344   if (i1 != 0) {
00345     log << MSG::ERROR << "Directory name does not start with \"/\": "
00346         << id << endmsg;
00347     return StatusCode::FAILURE;
00348   }
00349   i2 = id.find("/",i1+1);
00350   if (i2 == -1) {
00351     log << MSG::ERROR << "Directory name has only one part: " << id << endmsg;
00352     return StatusCode::FAILURE;
00353   }
00354   i3 = id.find("/",i2+1);
00355   if (i3 == -1) {
00356     idm = id;
00357   } else {
00358     idm = id.substr(0,i3);
00359   }
00360
00361   std::map<std::string,TFile*>::const_iterator imap;
00362   imap = s_fileMap.find(idm);
00363
00364   if ( imap == s_fileMap.end() ) {
00365     return StatusCode::FAILURE;
00366   }
00367   tfile = (*imap).second;
00368   return StatusCode::SUCCESS;
00369 }

std::string RootHistCnv::RConverter::diskDirectory ( const std::string & loc )

Definition at line 81 of file RConverter.cpp.

00083 {
00084   // Get rid of leading /NTUPLES/{INPUT_STREAM} or /stat/{INPUT_STREAM}
00085   std::string dir;
00086   long lf1 = loc.find("/NTUPLES/");
00087   long lf2 = loc.find("/stat/");
00088   long ll;
00089   if (lf1 != -1) {
00090     ll = loc.find("/",lf1+9);
00091
00092   } else if (lf2 != -1) {
00093     ll = loc.find("/",lf2+6);
00094
00095   } else {
00096     MsgStream log(msgSvc(), "RConverter");
00097     log << MSG::ERROR << "diskDirectory(" << loc << ")"
00098         << " --> no leading /NTUPLES/ or /stat/" << endmsg;
00099     return loc;
00100   }
00101   //  dir = loc.substr(ll+8,loc.length()-ll-8);
00102
00103   if (ll == -1) {
00104     dir = "/";
00105   } else {
00106     dir = loc.substr(ll,loc.length()-ll);
00107   }
00108
00109   return dir;
00110 }

std::string RootHistCnv::RConverter::directory ( const std::string & loc )

Definition at line 113 of file RConverter.cpp.

00115 {
00116   return ( diskDirectory(loc) );
00117 }

void RootHistCnv::RConverter::setDirectory ( const std::string & loc )

Definition at line 120 of file RConverter.cpp.

00122 {
00123   MsgStream log(msgSvc(), "RConverter");
00124   std::string full, id;
00125   TFile *tf;
00126
00127   full = diskDirectory( loc );
00128
00129   // get associated TFile
00130   if ( findTFile(loc,tf).isSuccess() ) {
00131     tf->cd();
00132   } else {
00133     log << MSG::ERROR << "error getting TFile name " << loc << endmsg;
00134   }
00135
00136   int p,i=1;
00137   std::string cur,sdir;
00138
00139   gDirectory->cd("/");
00140   while ( (p = full.find("/",i)) != -1) {
00141     sdir = full.substr(i,p-i);
00142     if (! gDirectory->GetKey(sdir.c_str()) ) {
00143       log << MSG::ERROR << "cannot cd to " << full << " from "
00144           << gDirectory->GetPath() << endmsg;
00145       return;
00146     }
00147     gDirectory->cd(sdir.c_str());
00148
00149     i = p+1;
00150   }
00151   gDirectory->cd( full.substr(i,full.length()-i).c_str() );
00152 }

void RootHistCnv::RConverter::setDiskDirectory ( const std::string & loc )

Definition at line 155 of file RConverter.cpp.

00157 {
00158   setDirectory(loc);
00159 }

StatusCode RootHistCnv::RConverter::createDirectory ( const std::string & loc )

Definition at line 26 of file RConverter.cpp.

00028 {
00029   MsgStream log(msgSvc(), "RConverter::createDir");
00030
00031   // Get rid of leading /NTUPLES
00032   std::string full;
00033   full = diskDirectory( loc );
00034
00035   int p,i;
00036   std::string fil,cur,s;
00037   TDirectory *gDir;
00038
00039   gDir = gDirectory;
00040
00041   TFile *tf;
00042   if ( findTFile(loc,tf).isSuccess() ) {
00043     tf->cd();
00044   }
00045
00046   std::list<std::string> lpath;
00047   i = 1;
00048
00049   if ( (p=full.find(":",0)) != -1 ) {
00050     fil = full.substr(0,p);
00051     i = p+1;
00052     fil += ":/";
00053     gDirectory->cd(fil.c_str());
00054   }
00055
00056   while ( (p = full.find("/",i)) != -1) {
00057     s = full.substr(i,p-i);
00058     lpath.push_back(s);
00059     i = p+1;
00060   }
00061   lpath.push_back( full.substr(i,full.length()-i) );
00062
00063   if ( full.substr(0,1) == "/") {
00064     gDirectory->cd("/");
00065   }
00066
00067   std::list<std::string>::const_iterator litr;
00068   for(litr=lpath.begin(); litr!=lpath.end(); ++litr) {
00069     cur = *litr;
00070     if (! gDirectory->GetKey(litr->c_str()) ) {
00071       gDirectory->mkdir(litr->c_str());
00072     }
00073     gDirectory->cd(litr->c_str());
00074   }
00075
00076   gDirectory = gDir;
00077
00078   return StatusCode::SUCCESS;
00079 }

StatusCode RootHistCnv::RConverter::createDiskDirectory ( const std::string & loc )

std::string RootHistCnv::RConverter::getDirectory ( )

Definition at line 162 of file RConverter.cpp.

00164 {
00165   std::string dir = gDirectory->GetPath();
00166   return (dir);
00167 }

std::string RootHistCnv::RConverter::convertId ( const std::string & id ) const

Definition at line 371 of file RConverter.cpp.

00373 {
00374   bool forced = false;
00375   if ( id.size() > 0 && isdigit(id[0]) ) {
00376     try {
00377       BooleanProperty tmp;
00378       tmp.assign(SmartIF<IProperty>(conversionSvc())->getProperty( "ForceAlphaIds"));
00379       forced = (bool)tmp;
00380     }
00381     catch ( ... ) { }
00382   }
00383   if (forced )  return std::string("h") + id;
00384   else          return id;
00385 }

StatusCode RootHistCnv::RConverter::readObject	(	IOpaqueAddress *	pAddr,
		DataObject *&	refpObj
	)			`[protected, virtual]`

Create the transient representation of an object.

Definition at line 290 of file RConverter.cpp.

00292 {
00293 //    MsgStream log(msgSvc(), "RConverter::readObject");
00294 //    log << MSG::WARNING << pAddr->par()[0] << " <> " << pAddr->par()[1]
00295 //        << " <> "
00296 //        << pAddr->ipar()[0] << " <> " << pAddr->ipar()[1] << " <> "
00297 //        << pAddr->registry()->identifier() << endmsg;
00298
00299   return StatusCode::SUCCESS;
00300 }

TObject * RootHistCnv::RConverter::createPersistent ( DataObject * pObj ) [protected, virtual]

Create the persistent representation of an object.

Reimplemented in RootHistCnv::RHistogramCnv< T, S, Q >.

Definition at line 303 of file RConverter.cpp.

00304 {
00305   return 0;
00306 }

StatusCode RootHistCnv::RConverter::createAddress	(	DataObject *	pObject,
		TDirectory *	pDir,
		TObject *	pTObject,
		IOpaqueAddress *&	refpAddr
	)			`[protected]`

Create address of the transient object according to the requested representation.

Definition at line 171 of file RConverter.cpp.

00176 {
00177   // Get address again....it does not change
00178   IRegistry* pReg = pObj->registry();
00179   if ( 0 != pReg )    {
00180     refpAddr = pReg->address();
00181     if ( 0 == refpAddr )    {
00182       refpAddr = new RootObjAddress(repSvcType(),
00183                                     objType(),
00184                                     pReg->name(),
00185                                     "",
00186                                     (unsigned long)(pDir),
00187                                     (unsigned long)(pTObj),
00188                                     pTObj);
00189
00190       return StatusCode::SUCCESS;
00191     }
00192   }
00193   return StatusCode::FAILURE;
00194 }

StatusCode RootHistCnv::RConverter::createAddress	(	const std::string &	rzdir,
		const CLID &	clid,
		long	id,
		TObject *	pTobj,
		IOpaqueAddress *&	refpAddress
	)			`[protected]`

Definition at line 218 of file RConverter.cpp.

00224 {
00225   char obj[32];
00226   StatusCode status = createAddress(rzdir, clid,
00227                                     ::_itoa(id, obj, 10), pTobj, refpAddress);
00228   if ( status.isSuccess() )   {
00229     unsigned long* ipar = (unsigned long*)refpAddress->ipar();
00230     ipar[0] = id;
00231   }
00232   return status;
00233 }

StatusCode RootHistCnv::RConverter::createAddress	(	const std::string &	rzdir,
		const CLID &	clid,
		const std::string &	title,
		TObject *	pTobj,
		IOpaqueAddress *&	refpAddress
	)			`[protected]`

Definition at line 197 of file RConverter.cpp.

00203 {
00204   RootObjAddress* pA = new RootObjAddress(repSvcType(),
00205                                           clid,
00206                                           rzdir,
00207                                           title,
00208                                           0,
00209                                           0,
00210                                           pTObj );
00211
00212   refpAddress = pA;
00213   return StatusCode::SUCCESS;
00214 }

TDirectory * RootHistCnv::RConverter::changeDirectory ( DataObject * pObject ) [protected]

Switch to object directory (=Parent directory).

Definition at line 237 of file RConverter.cpp.

00239 {
00240   if ( pObject )    {
00241     IRegistry* pReg = pObject->registry();
00242     if ( pReg )    {
00243       SmartIF<IDataManagerSvc> dataMgr(dataProvider());
00244       if ( dataMgr.isValid() )    {
00245         IRegistry* pParentReg = 0;
00246         StatusCode status = dataMgr->objectParent(pReg, pParentReg);
00247         if ( status.isSuccess() )  {
00248           IOpaqueAddress* pParAddr = pParentReg->address();
00249           if ( pParAddr )   {
00250             TDirectory* pParentDir = (TDirectory*)pParAddr->ipar()[0];
00251             if ( pParentDir )   {
00252               gDirectory->cd(pParentDir->GetPath());
00253               return pParentDir;
00254             }
00255           }
00256         }
00257       }
00258     }
00259   }
00260   return 0;
00261 }

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r4/RootHistCnv/src/RConverter.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r4/RootHistCnv/src/RConverter.cpp

Gaudi Framework, version v21r4

RootHistCnv::RConverter Class Reference

Detailed Description

Public Member Functions

Static Public Member Functions

Protected Member Functions

Constructor & Destructor Documentation

Member Function Documentation
