RootHistCnv::RFileCnv Class Reference

#include <RFileCnv.h>

Inheritance diagram for RootHistCnv::RFileCnv:

[legend]

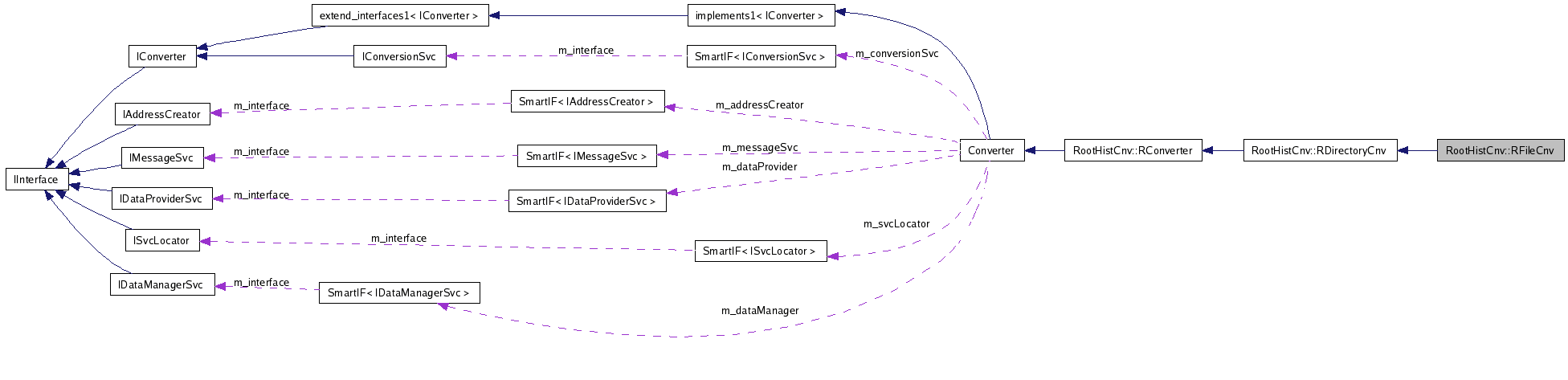

Collaboration diagram for RootHistCnv::RFileCnv:

[legend]

List of all members.

---

Detailed Description

NTuple converter class definition.

• Major cleanup and debugging for Gaudi v9
• Removal of all static storage

Author:

Charles Leggett

Markus Frank

Definition at line 23 of file RFileCnv.h.

Public Member Functions
virtual StatusCode	createObj (IOpaqueAddress *pAddress, DataObject *&refpObject)
	Create the transient representation of an object.
virtual StatusCode	createRep (DataObject *pObject, IOpaqueAddress *&refpAddress)
	Convert the transient object to the requested representation.
virtual StatusCode	updateRep (IOpaqueAddress *pAddress, DataObject *pObject)
	Convert the transient object to the requested representation.
	RFileCnv (ISvcLocator *svc)
	Standard constructor.
virtual	~RFileCnv ()
	Standard destructor.
Static Public Member Functions
static const CLID &	classID ()
	Inquire class type.
Protected Attributes
TFile *	rfile

---

Constructor & Destructor Documentation

RootHistCnv::RFileCnv::RFileCnv

(

ISvcLocator *

svc

)

[inline]

Standard constructor.

Definition at line 37 of file RFileCnv.h.

                                 : RDirectoryCnv(svc, classID())    {
    }

RootHistCnv::RFileCnv::~RFileCnv

(

)

[virtual]

Standard destructor.

Definition at line 176 of file RFileCnv.cpp.

{
}

---

Member Function Documentation

StatusCode RootHistCnv::RFileCnv::createObj	(	IOpaqueAddress *	pAddress,
		DataObject *&	refpObject
	)			[virtual]

Create the transient representation of an object.

Reimplemented from RootHistCnv::RDirectoryCnv.

Definition at line 19 of file RFileCnv.cpp.

{
  MsgStream log(msgSvc(), "RFileCnv");
  unsigned long*     ipar = (unsigned long*)pAddress->ipar();
  char mode[2] = { char(ipar[1]), 0 };

  std::string fname  = pAddress->par()[0]; // Container name
  std::string ooname = pAddress->par()[1]; // Object name

  const std::string* spar = pAddress->par();
  // Strip of store name to get the top level RZ directory
  std::string oname = spar[1].substr(spar[1].find("/",1)+1, spar[1].length());

  // Protect against multiple instances of TROOT
  if ( 0 == gROOT )   {
    static TROOT root("root","ROOT I/O");
    //    gDebug = 99;
  } else {
    log << MSG::VERBOSE << "ROOT already initialized, debug = "
        << gDebug<< endmsg;
  }


  // Determine access mode:

  if ( mode[0] == 'O' ) {

    if (findTFile(ooname,rfile).isFailure()) {

      log << MSG::INFO << "opening Root file \"" << fname << "\" for reading"
          << endmsg;

      rfile = TFile::Open(fname.c_str(),"READ");
      if ( rfile != 0 && rfile->IsOpen() ) {
        regTFile(ooname,rfile).ignore();

        ipar[0] = (unsigned long)rfile;
        NTuple::File* pFile = new NTuple::File(objType(), fname, oname);
        pFile->setOpen(true);
        refpObject = pFile;

        return StatusCode::SUCCESS;

      } else {
        log << MSG::ERROR << "Couldn't open \"" << fname << "\" for reading"
            << endmsg;
        return StatusCode::FAILURE;
      }

    } else {
      log << MSG::DEBUG << "Root file \"" << fname << "\" already opened"
          << endmsg;
      return StatusCode::SUCCESS;
    }


  } else if ( mode[0] == 'U' ) {
    log << MSG::INFO << "opening Root file \"" << fname << "\" for updating"
        << endmsg;

    log << MSG::ERROR << "don't know how to do this yet. Aborting." << endmsg;
    exit(1);


  } else if ( mode[0] == 'N' ) {
    log << MSG::INFO << "opening Root file \"" << fname << "\" for writing"
        << endmsg;


    rfile = TFile::Open(fname.c_str(),"RECREATE","Gaudi Trees");
    if (! rfile->IsOpen() ) {
      log << MSG::ERROR << "Could not open file " << fname << " for writing"
          << endmsg;
      return StatusCode::FAILURE;
    }

    regTFile(ooname,rfile).ignore();

    log << MSG::DEBUG << "creating ROOT file " << fname << endmsg;

    ipar[0] = (unsigned long)rfile;
    NTuple::File* pFile = new NTuple::File(objType(), fname, oname);
    pFile->setOpen(true);
    refpObject = pFile;
    return StatusCode::SUCCESS;

  } else {

    log << MSG::ERROR << "Uknown mode to access ROOT file" << endmsg;
    return StatusCode::FAILURE;

  }

  return StatusCode::FAILURE;


  //    TFile* rfile = TFile::Open(spar[0].c_str(),"RECREATE","Gaudi ROOT Ntuples");
  //    if (! rfile->IsOpen() ) {
  //      log << MSG::ERROR << "Could not open file " << spar[0] << " for writing" << endmsg;
  //      return StatusCode::FAILURE;
  //    }
  //    ipar[0] = (unsigned long)rfile;
  //    NTuple::File* pFile = new NTuple::File(objType(), spar[0], oname);
  //    pFile->setOpen(true);
  //    refpObject = pFile;
  //    return StatusCode::SUCCESS;

}

StatusCode RootHistCnv::RFileCnv::createRep	(	DataObject *	pObject,
		IOpaqueAddress *&	refpAddress
	)			[virtual]

Convert the transient object to the requested representation.

Reimplemented from RootHistCnv::RDirectoryCnv.

Definition at line 132 of file RFileCnv.cpp.

{
  refpAddress = pObject->registry()->address();
  return RFileCnv::updateRep( refpAddress, pObject );
}

StatusCode RootHistCnv::RFileCnv::updateRep	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			[virtual]

Convert the transient object to the requested representation.

Reimplemented from RootHistCnv::RDirectoryCnv.

Definition at line 141 of file RFileCnv.cpp.

{
  MsgStream log(msgSvc(), "RFileCnv");
  std::string ooname = pAddress->par()[1];

  NTuple::File* pFile = dynamic_cast<NTuple::File*>(pObject);
  if ( pFile != 0 && pFile->isOpen() )    {

    unsigned long* ipar = (unsigned long*)pAddress->ipar();
    if (findTFile(ooname,rfile).isFailure()) {
      log << MSG::ERROR << "Problems closing TFile " << ooname << endmsg;
      return StatusCode::FAILURE;
    }

    rfile->Write(0,TObject::kOverwrite);
    if ( log.level() <= MSG::INFO ) {
      log << MSG::INFO << "dumping contents of " << ooname << endmsg;
      rfile->Print();
    }
    rfile->Close();
    delete rfile;

    ipar[0] = 0;
    pFile->setOpen(false);
    return StatusCode::SUCCESS;

  } else {
    log << MSG::ERROR << "TFile " << ooname << " is not open" << endmsg;
  }
  return StatusCode::FAILURE;
}

static const CLID& RootHistCnv::RFileCnv::classID

(

)

[inline, static]

Inquire class type.

Reimplemented from RootHistCnv::RDirectoryCnv.

Definition at line 32 of file RFileCnv.h.

                                    {
      return CLID_NTupleFile;
    }

---

Member Data Documentation

TFile* RootHistCnv::RFileCnv::rfile [protected]

Definition at line 43 of file RFileCnv.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r4/RootHistCnv/src/RFileCnv.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r4/RootHistCnv/src/RFileCnv.cpp
