THistSvc Class Reference

#include <THistSvc.h>

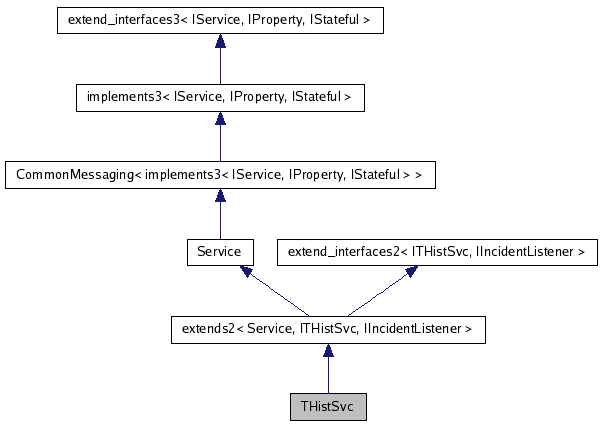

Inheritance diagram for THistSvc:

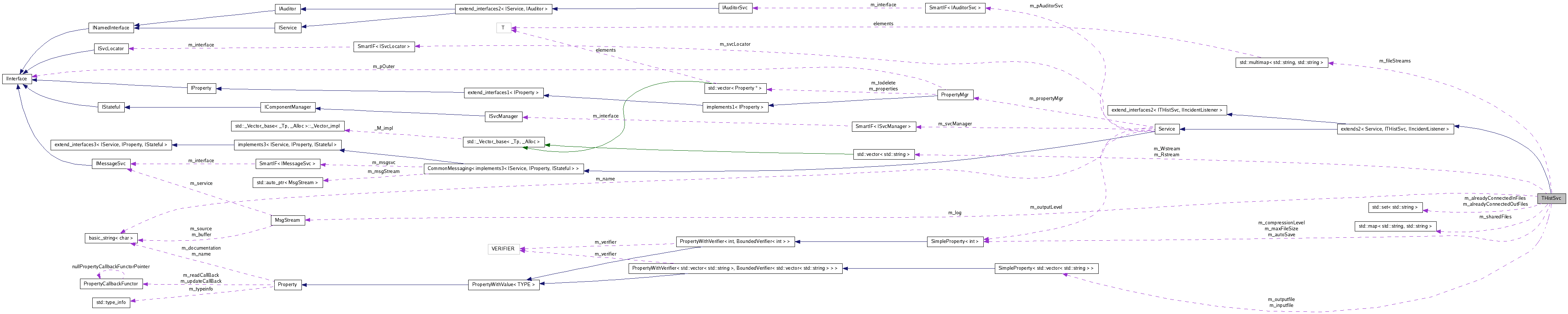

Collaboration diagram for THistSvc:

Detailed Description

Definition at line 26 of file THistSvc.h.

Member Typedef Documentation

typedef std::map<std::string, THistID> THistSvc::uidMap [private]

Definition at line 114 of file THistSvc.h.

typedef std::multimap<std::string, THistID> THistSvc::idMap [private]

Definition at line 115 of file THistSvc.h.

typedef std::map<TObject*, THistID> THistSvc::objMap [private]

Definition at line 116 of file THistSvc.h.

typedef std::multimap<std::string, std::string> THistSvc::streamMap [private]

Definition at line 117 of file THistSvc.h.

Member Enumeration Documentation

enum THistSvc::Mode [private]

Enumerator:

READ
WRITE
UPDATE
APPEND
SHARE

Definition at line 104 of file THistSvc.h.

00104             {
00105     READ,
00106     WRITE,
00107     UPDATE,
00108     APPEND,
00109     SHARE
00110   };

Constructor & Destructor Documentation

THistSvc::THistSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Definition at line 40 of file THistSvc.cpp.

00041   : base_class(name, svc), m_log(msgSvc(), name ), signaledStop(false) {
00042
00043   declareProperty ("Output", m_outputfile );
00044   declareProperty ("Input", m_inputfile );
00045   declareProperty ("AutoSave", m_autoSave=0 );
00046   declareProperty ("PrintAll", m_print=false);
00047   declareProperty ("CompressionLevel", m_compressionLevel=1 );
00048   declareProperty ("MaxFileSize", m_maxFileSize=5120,
00049                    "maximum file size in MB. if exceeded, will cause an abort");
00050
00051   m_inputfile.declareUpdateHandler ( &THistSvc::setupInputFile,  this );
00052   m_outputfile.declareUpdateHandler( &THistSvc::setupOutputFile, this );
00053 }

THistSvc::~THistSvc ( ) [protected, virtual]

Definition at line 57 of file THistSvc.cpp.

00057                     {
00058
00059 }

Member Function Documentation

StatusCode THistSvc::initialize ( ) [virtual]

Reimplemented from Service.

Definition at line 64 of file THistSvc.cpp.

00064                      {
00065   GlobalDirectoryRestore restore;
00066
00067   m_alreadyConnectedOutFiles.clear();
00068   m_alreadyConnectedInFiles.clear();
00069
00070   StatusCode status = Service::initialize();
00071   m_log.setLevel( m_outputLevel.value() );
00072
00073   if (status.isFailure()) {
00074     MsgStream log ( msgSvc(), name() );
00075     log << MSG::ERROR << "initializing service" << endmsg;
00076     return status;
00077   }
00078
00079   vector<string>::const_iterator itr;
00080   StatusCode st(StatusCode::SUCCESS);
00081
00082   try {
00083     setupOutputFile( m_outputfile );
00084   } catch ( GaudiException& err ) {
00085     m_log << MSG::ERROR
00086           << "Caught: " << err << endmsg;
00087     st = StatusCode::FAILURE;
00088   }
00089
00090   try {
00091     setupInputFile( m_inputfile );
00092   } catch ( GaudiException& err ) {
00093     m_log << MSG::ERROR
00094           << "Caught: " << err << endmsg;
00095     st = StatusCode::FAILURE;
00096   }
00097
00098   // Protect against multiple instances of TROOT
00099   if ( 0 == gROOT )   {
00100     static TROOT root("root","ROOT I/O");
00101     //    gDebug = 99;
00102   } else {
00103     m_log << MSG::VERBOSE << "ROOT already initialized, debug = "
00104           << gDebug<< endmsg;
00105   }
00106
00107   IIncidentSvc* p_incSvc(0);
00108
00109   if (service("IncidentSvc", p_incSvc, true).isFailure()) {
00110     m_log << MSG::ERROR << "unable to get the IncidentSvc" << endmsg;
00111     st = StatusCode::FAILURE;
00112   } else {
00113     p_incSvc->addListener( this, "EndEvent", 100, true);
00114   }
00115
00116   if (st.isFailure()) {
00117     m_log << MSG::FATAL << "Unable to initialize THistSvc" << endmsg;
00118   }
00119
00120   return st;
00121
00122 }

StatusCode THistSvc::reinitialize ( ) [virtual]

Reimplemented from Service.

Definition at line 127 of file THistSvc.cpp.

00127                        {
00128
00129   GlobalDirectoryRestore restore;
00130
00131   m_log << MSG::WARNING << "reinitialize not implemented" << endmsg;
00132
00133
00134   return StatusCode::SUCCESS;
00135
00136 }

StatusCode THistSvc::finalize ( void ) [virtual]

Reimplemented from Service.

Definition at line 141 of file THistSvc.cpp.

00141                    {
00142
00143   GlobalDirectoryRestore restore;
00144
00145   m_log << MSG::DEBUG << "THistSvc::finalize" << endmsg;
00146
00147   uidMap::const_iterator uitr;
00148   for (uitr=m_uids.begin(); uitr != m_uids.end(); ++uitr) {
00149
00150     TObject* to = uitr->second.obj;
00151
00152     string dirname("none");
00153     if (to->IsA()->InheritsFrom("TTree")) {
00154       TTree* tr = dynamic_cast<TTree*>(to);
00155       if (tr->GetDirectory() != 0) {
00156         dirname = tr->GetDirectory()->GetPath();
00157       }
00158     } else if (to->IsA()->InheritsFrom("TGraph")) {
00159       if (!uitr->second.temp) {
00160         dirname = uitr->second.file->GetPath();
00161         string id2(uitr->second.id);
00162         id2.erase(0,id2.find("/",1));
00163         id2.erase(id2.rfind("/"), id2.length());
00164         if (id2.find("/") == 0) {
00165           id2.erase(0,1);
00166         }
00167         dirname += id2;
00168       } else {
00169         dirname = "/tmp";
00170       }
00171     } else if (to->IsA()->InheritsFrom("TH1")) {
00172       TH1* th = dynamic_cast<TH1*>(to);
00173       if (th == 0) {
00174         m_log << MSG::ERROR << "Couldn't dcast: " << uitr->first << endmsg;
00175       } else {
00176         if (th->GetDirectory() != 0) {
00177           dirname = th->GetDirectory()->GetPath();
00178         }
00179       }
00180     }
00181
00182     m_log << MSG::DEBUG << "uid: \"" << uitr->first << "\"  temp: "
00183         << uitr->second.temp << "  dir: " << dirname
00184         << endmsg;
00185
00186
00187 //     if (uitr->second.temp == true) {
00188 //       log << MSG::INFO << "Deleting \"" << uitr->first << "\"" << endmsg;
00189 //       delete uitr->second.obj;
00190 //     }
00191   }
00192
00193   StatusCode sc = write();
00194   if (sc.isFailure()) {
00195     m_log << MSG::ERROR << "problems writing histograms" << endmsg;
00196   }
00197
00198   if (m_print) {
00199     m_log << MSG::INFO << "Listing contents of ROOT files: " << endmsg;
00200   }
00201   vector<TFile*> deleted_files;
00202   map<string, pair<TFile*,Mode> >::const_iterator itr;
00203   for (itr = m_files.begin(); itr != m_files.end(); ++itr) {
00204
00205     if (find(deleted_files.begin(), deleted_files.end(), itr->second.first) ==
00206         deleted_files.end()) {
00207       deleted_files.push_back(itr->second.first);
00208
00209       m_log << MSG::DEBUG << "finalizing stream/file " << itr->first << ":"
00210             << itr->second.first->GetName()
00211             << endmsg;
00212     } else {
00213       m_log << MSG::DEBUG << "already finalized stream " << itr->first << endmsg;
00214       continue;
00215     }
00216
00217
00218     if (m_print && m_log.level() <= MSG::INFO) {
00219
00220       m_log << MSG::INFO;
00221       m_log << "==> File: " << itr->second.first->GetName()
00222             << "  stream: " << itr->first << endmsg;
00223
00224       itr->second.first->Print("base");
00225     }
00226
00227     string tmpfn=itr->second.first->GetName();
00228
00229     itr->second.first->Close();
00230
00231     if (itr->second.second==SHARE) {
00232       TFile *outputfile;
00233       //Merge File
00234       try {
00235         m_log << MSG::DEBUG << "Opening Final Output File: " <<m_sharedFiles[itr->first].c_str()<<endmsg;
00236         outputfile = new TFile(m_sharedFiles[itr->first].c_str(), "UPDATE");
00237       } catch (const std::exception& Exception) {
00238       m_log << MSG::ERROR << "exception caught while trying to open root"
00239             << " file for appending: " << Exception.what() << std::endl
00240             << "  -> file probably corrupt." << endmsg;
00241       return StatusCode::FAILURE;
00242       } catch (...) {
00243         m_log << MSG::ERROR << "Problems opening output file  \"" << m_sharedFiles[itr->first]
00244             << "\" for append: probably corrupt" << endmsg;
00245         return StatusCode::FAILURE;
00246       }
00247
00248       m_log << MSG::DEBUG << "THistSvc::write()::Merging Rootfile "<<endmsg;
00249       TFile *inputfile;
00250       try {
00251         m_log << MSG::DEBUG << "Openning again Temporary File: " <<tmpfn.c_str()<<endmsg;
00252         inputfile=new TFile(tmpfn.c_str(),"READ");
00253       } catch (const std::exception& Exception) {
00254         m_log << MSG::ERROR << "exception caught while trying to open root"
00255               << " file for appending: " << Exception.what() << std::endl
00256               << "  -> file probably corrupt." << endmsg;
00257         return StatusCode::FAILURE;
00258       } catch (...) {
00259         m_log << MSG::ERROR << "Problems opening output file  \""
00260               << tmpfn.c_str()
00261               << "\" for append: probably corrupt" << endmsg;
00262         return StatusCode::FAILURE;
00263       }
00264
00265       MergeRootFile(outputfile, inputfile);
00266
00267       outputfile->SetCompressionLevel( m_compressionLevel );
00268
00269       outputfile->Write();
00270       outputfile->Close();
00271       inputfile->Close();
00272
00273       m_log << MSG::DEBUG << "Trying to remove temporary file \"" << tmpfn
00274             << "\""<<endmsg;
00275
00276       std::remove(tmpfn.c_str());
00277     }
00278     delete itr->second.first;
00279   }
00280
00281   m_sharedFiles.clear();
00282   m_fileStreams.clear();
00283   m_files.clear();
00284   m_uids.clear();
00285   m_ids.clear();
00286   m_tobjs.clear();
00287
00288   return Service::finalize();
00289 }

StatusCode THistSvc::regHist ( const std::string & name ) [virtual]

Definition at line 512 of file THistSvc.cpp.

00512                                      {
00513
00514   TH1 *hist(0);
00515
00516   return regHist_i(hist, id);
00517 }

StatusCode THistSvc::regHist	(	const std::string &	name,
		TH1 *	hist
	)			`[virtual]`

Definition at line 522 of file THistSvc.cpp.

00522                                                 {
00523   return regHist_i(hist, id);
00524 }

StatusCode THistSvc::regHist	(	const std::string &	name,
		TH2 *	hist
	)			`[virtual]`

Definition at line 529 of file THistSvc.cpp.

00529                                                 {
00530   return regHist_i(hist, id);
00531 }

StatusCode THistSvc::regHist	(	const std::string &	name,
		TH3 *	hist
	)			`[virtual]`

Definition at line 536 of file THistSvc.cpp.

00536                                                 {
00537   return regHist_i(hist, id);
00538 }

StatusCode THistSvc::getHist	(	const std::string &	name,
		TH1 *&	hist
	)			const `[virtual]`

Definition at line 590 of file THistSvc.cpp.

00590                                                        {
00591   return getHist_i(id, hist);
00592 }

StatusCode THistSvc::getHist	(	const std::string &	name,
		TH2 *&	hist
	)			const `[virtual]`

Definition at line 597 of file THistSvc.cpp.

00597                                                        {
00598   return getHist_i(id, hist);
00599 }

StatusCode THistSvc::getHist	(	const std::string &	name,
		TH3 *&	hist
	)			const `[virtual]`

Definition at line 604 of file THistSvc.cpp.

00604                                                        {
00605   return getHist_i(id, hist);
00606 }

StatusCode THistSvc::regTree ( const std::string & name ) [virtual]

Definition at line 543 of file THistSvc.cpp.

00543                                      {
00544   TTree *hist(0);
00545   return regHist_i(hist, id);
00546 }

StatusCode THistSvc::regTree	(	const std::string &	name,
		TTree *	hist
	)			`[virtual]`

Definition at line 551 of file THistSvc.cpp.

00551                                                   {
00552   StatusCode sc = regHist_i(hist, id);
00553   if (hist != 0 && m_autoSave != 0 && sc.isSuccess()) {
00554     hist->SetAutoSave(m_autoSave);
00555   }
00556   return sc;
00557 }

StatusCode THistSvc::getTree	(	const std::string &	name,
		TTree *&	hist
	)			const `[virtual]`

Definition at line 632 of file THistSvc.cpp.

00632                                                          {
00633   return getHist_i(id, hist);
00634 }

StatusCode THistSvc::regGraph ( const std::string & name ) [virtual]

Definition at line 562 of file THistSvc.cpp.

00562                                       {
00563   TGraph *hist(0);
00564   return regHist_i(hist, id);
00565 }

StatusCode THistSvc::regGraph	(	const std::string &	name,
		TGraph *	hist
	)			`[virtual]`

Definition at line 570 of file THistSvc.cpp.

00570                                                     {
00571   if ( strcmp(hist->GetName(),"Graph") == 0 ) {
00572
00573     std::string id2(id);
00574     string::size_type i = id2.rfind("/");
00575     if (i != string::npos) {
00576       id2.erase(0,i+1);
00577     }
00578
00579     m_log << MSG::INFO << "setting name of TGraph id: \"" << id << "\" to \""
00580           << id2 << "\" since it is unset" << endmsg;
00581     hist->SetName(id2.c_str());
00582   }
00583
00584   return regHist_i(hist, id);
00585 }

StatusCode THistSvc::getGraph	(	const std::string &	name,
		TGraph *&	hist
	)			const `[virtual]`

Definition at line 660 of file THistSvc.cpp.

00660                                                            {
00661   return getHist_i(id, hist);
00662 }

StatusCode THistSvc::deReg ( TObject * obj ) [virtual]

Definition at line 437 of file THistSvc.cpp.

00437                             {
00438
00439   objMap::iterator itr = m_tobjs.find(obj);
00440   if (itr != m_tobjs.end()) {
00441     THistID hid = itr->second;
00442
00443     uidMap::iterator itr2 = m_uids.find(hid.id);
00444     if (itr2 == m_uids.end()) {
00445       m_log << MSG::ERROR << "Problems deregistering TObject \""
00446             << obj->GetName()
00447             << "\" with id \"" << hid.id << "\"" << endmsg;
00448       return StatusCode::FAILURE;
00449     }
00450
00451     std::string id,root,rem;
00452     parseString(hid.id, root, rem);
00453
00454     idMap::iterator itr3;
00455     bool found(false);
00456
00457     std::pair<idMap::iterator, idMap::iterator> mitr = m_ids.equal_range(rem);
00458     if (mitr.first == mitr.second) {
00459       m_log << MSG::ERROR << "Problems deregistering TObject \""
00460             << obj->GetName()
00461             << "\" with id \"" << hid.id << "\"" << endmsg;
00462       return StatusCode::FAILURE;
00463     } else {
00464       for (itr3 = mitr.first; itr3 != mitr.second; ++itr3) {
00465         if (itr3->second.obj == obj) {
00466           found = true;
00467           break;
00468         }
00469       }
00470       if (!found) {
00471         m_log << MSG::ERROR << "Problems deregistering TObject \""
00472               << obj->GetName()
00473               << "\" with id \"" << hid.id << "\"" << endmsg;
00474       }
00475     }
00476
00477     m_tobjs.erase(itr);
00478     m_uids.erase(itr2);
00479     m_ids.erase(itr3);
00480
00481     return StatusCode::SUCCESS;
00482
00483   } else {
00484     m_log << MSG::ERROR << "Cannot unregister TObject \"" << obj->GetName()
00485           << "\": not known to THistSvc" << endmsg;
00486     return StatusCode::FAILURE;
00487   }
00488
00489 }

StatusCode THistSvc::deReg ( const std::string & name ) [virtual]

Definition at line 495 of file THistSvc.cpp.

00495                                    {
00496
00497   uidMap::iterator itr = m_uids.find(id);
00498   if (itr == m_uids.end()) {
00499     m_log << MSG::ERROR << "Problems deregistering id \""
00500           << id << "\"" << endmsg;
00501     return StatusCode::FAILURE;
00502   }
00503
00504   TObject* obj = itr->second.obj;
00505
00506   return deReg(obj);
00507 }

std::vector< std::string > THistSvc::getHists ( ) const [virtual]

Definition at line 611 of file THistSvc.cpp.

00611                          {
00612
00613   std::vector<std::string> names;
00614   names.reserve(m_uids.size());
00615
00616   uidMap::const_iterator itr;
00617   for (itr = m_uids.begin(); itr != m_uids.end(); ++itr) {
00618     THistID tid = itr->second;
00619
00620     if (tid.obj->IsA()->InheritsFrom("TH1")) {
00621       names.push_back(itr->first);
00622     }
00623
00624   }
00625
00626   return names;
00627
00628 }

std::vector< std::string > THistSvc::getTrees ( ) const [virtual]

Definition at line 639 of file THistSvc.cpp.

00639                          {
00640
00641   std::vector<std::string> names;
00642   names.reserve(m_uids.size());
00643
00644   uidMap::const_iterator itr;
00645   for (itr = m_uids.begin(); itr != m_uids.end(); ++itr) {
00646     THistID tid = itr->second;
00647
00648     if (tid.obj->IsA()->InheritsFrom("TTree")) {
00649       names.push_back(itr->first);
00650     }
00651
00652   }
00653
00654   return names;
00655
00656 }

std::vector< std::string > THistSvc::getGraphs ( ) const [virtual]

Definition at line 667 of file THistSvc.cpp.

00667                           {
00668
00669   std::vector<std::string> names;
00670   names.reserve(m_uids.size());
00671
00672   uidMap::const_iterator itr;
00673   for (itr = m_uids.begin(); itr != m_uids.end(); ++itr) {
00674     THistID tid = itr->second;
00675
00676     if (tid.obj->IsA()->InheritsFrom("TGraph")) {
00677       names.push_back(itr->first);
00678     }
00679
00680   }
00681
00682   return names;
00683
00684 }

StatusCode THistSvc::getTHists	(	TDirectory *	td,
		TList &	tl
	)			const `[virtual]`

Definition at line 339 of file THistSvc.cpp.

00339                                                     {
00340
00341   GlobalDirectoryRestore restore;
00342
00343   gErrorIgnoreLevel = kBreak;
00344
00345   if (!td->cd()) {
00346     m_log << MSG::ERROR << "No such TDirectory \"" << td->GetPath() << "\""
00347           << endmsg;
00348     return StatusCode::FAILURE;
00349   }
00350
00351   TIter nextkey(td->GetList());
00352   while (TObject *key = (TObject*)nextkey()) {
00353     if (key != 0) {
00354       if (key->IsA()->InheritsFrom("TH1")) { tl.Add(key); }
00355     }
00356   }
00357
00358
00359   return StatusCode::SUCCESS;
00360
00361 }

StatusCode THistSvc::getTHists	(	const std::string &	name,
		TList &	tl
	)			const `[virtual]`

Definition at line 366 of file THistSvc.cpp.

00366                                                           {
00367
00368   GlobalDirectoryRestore restore;
00369
00370   gErrorIgnoreLevel = kBreak;
00371
00372   StatusCode sc;
00373
00374   if (!gDirectory->cd(dir.c_str())) {
00375     m_log << MSG::ERROR << "No such TDirectory \"" << dir << "\""
00376           << endmsg;
00377     sc = StatusCode::FAILURE;
00378   } else {
00379     sc = getTHists(gDirectory,tl);
00380   }
00381
00382   return sc;
00383
00384 }

StatusCode THistSvc::getTTrees	(	TDirectory *	td,
		TList &	tl
	)			const `[virtual]`

Definition at line 388 of file THistSvc.cpp.

00388                                                     {
00389
00390   GlobalDirectoryRestore restore;
00391
00392   gErrorIgnoreLevel = kBreak;
00393
00394   if (!td->cd()) {
00395     m_log << MSG::ERROR << "No such TDirectory \"" << td->GetPath() << "\""
00396           << endmsg;
00397     return StatusCode::FAILURE;
00398   }
00399
00400   TIter nextkey(td->GetList());
00401   while (TObject *key = (TObject*)nextkey()) {
00402     if (key != 0) {
00403       if (key->IsA()->InheritsFrom("TTree")) { tl.Add(key); }
00404     }
00405   }
00406
00407   return StatusCode::SUCCESS;
00408
00409 }

StatusCode THistSvc::getTTrees	(	const std::string &	name,
		TList &	tl
	)			const `[virtual]`

Definition at line 414 of file THistSvc.cpp.

00414                                                           {
00415
00416   GlobalDirectoryRestore restore;
00417
00418   gErrorIgnoreLevel = kBreak;
00419
00420   StatusCode sc;
00421
00422   if (!gDirectory->cd(dir.c_str())) {
00423     m_log << MSG::ERROR << "No such TDirectory \"" << dir << "\""
00424           << endmsg;
00425     sc = StatusCode::FAILURE;
00426   } else {
00427     sc = getTTrees(gDirectory,tl);
00428   }
00429
00430   return sc;
00431
00432 }

bool THistSvc::exists ( const std::string & name ) const [virtual]

Definition at line 1351 of file THistSvc.cpp.

01351                                               {
01352
01353   TH1* h;
01354
01355   return getHist_i(name,h,true).isSuccess();
01356
01357
01358 }

void THistSvc::handle ( const Incident & )

Definition at line 1363 of file THistSvc.cpp.

01363                                             {
01364
01365   if (signaledStop) return ;
01366
01367   // convert to bytes.
01368   Long64_t mfs = (Long64_t)m_maxFileSize.value() * (Long64_t)1048576;
01369
01370   updateFiles();
01371
01372   map<string, pair<TFile*,Mode> >::const_iterator itr;
01373   for (itr=m_files.begin(); itr!= m_files.end(); ++itr) {
01374     TFile* tf = itr->second.first;
01375
01376 #ifndef NDEBUG
01377     m_log << MSG::DEBUG << "stream: " << itr->first << "  name: "
01378           << tf->GetName() << "  size: " << tf->GetSize()
01379           << endmsg;
01380 #endif
01381
01382     // Signal job to terminate if output file is too large
01383     if (tf->GetSize() > mfs) {
01384
01385       signaledStop = true;
01386
01387       m_log << MSG::FATAL << "file \"" << tf->GetName()
01388             << "\" associated with stream \"" << itr->first
01389             << "\" has exceeded the max file size of "
01390             << m_maxFileSize.value() << "MB. Terminating Job."
01391             << endmsg;
01392
01393       IEventProcessor* evt(0);
01394       if (service("ApplicationMgr", evt, true).isSuccess()) {
01395         evt->stopRun();
01396         evt->release();
01397       } else {
01398         abort();
01399       }
01400     }
01401   }
01402 }

template<typename T>

StatusCode THistSvc::regHist_i	(	T *	hist,
		const std::string &	name
	)			`[inline, private]`

template<typename T>

StatusCode THistSvc::getHist_i	(	const std::string &	name,
		T *&	hist,
		bool	quiet = `false`
	)			const `[inline, private]`

template<typename T>

StatusCode THistSvc::readHist_i	(	const std::string &	name,
		T *&	hist
	)			const `[inline, private]`

StatusCode THistSvc::readHist	(	const std::string &	name,
		TH1 *&	hist
	)			const `[private]`

Definition at line 688 of file THistSvc.cpp.

00688                                                         {
00689   return readHist_i(id, hist);
00690 }

StatusCode THistSvc::readHist	(	const std::string &	name,
		TH2 *&	hist
	)			const `[private]`

Definition at line 695 of file THistSvc.cpp.

00695                                                         {
00696   return readHist_i(id, hist);
00697 }

StatusCode THistSvc::readHist	(	const std::string &	name,
		TH3 *&	hist
	)			const `[private]`

Definition at line 702 of file THistSvc.cpp.

00702                                                         {
00703   return readHist_i(id, hist);
00704 }

StatusCode THistSvc::readTree	(	const std::string &	name,
		TTree *&	hist
	)			const `[private]`

Definition at line 709 of file THistSvc.cpp.

00709                                                           {
00710   return readHist_i(id, hist);
00711 }

void THistSvc::updateFiles ( ) [private]

Definition at line 844 of file THistSvc.cpp.

00844                       {
00845
00846   // If TTrees grow beyond TTree::fgMaxFileSize, a new file is
00847   // automatically created by root, and the old one closed. We
00848   // need to migrate all the UIDs over to show the correct file
00849   // pointer. This is ugly.
00850
00851   uidMap::iterator uitr, uitr2;
00852   for (uitr=m_uids.begin(); uitr != m_uids.end(); ++uitr) {
00853     TObject* to = uitr->second.obj;
00854     TFile* oldFile = uitr->second.file;
00855     if (to->IsA()->InheritsFrom("TTree")) {
00856       TTree* tr = dynamic_cast<TTree*>(to);
00857       TFile* newFile = tr->GetCurrentFile();
00858
00859       if (oldFile != newFile) {
00860         std::string newFileName = newFile->GetName();
00861         std::string oldFileName(""), streamName, rem;
00862         TFile* dummy;
00863         findStream(uitr->second.id, streamName, rem, dummy);
00864
00865         map<string, pair<TFile*,Mode> >::iterator itr;
00866         for (itr=m_files.begin(); itr!= m_files.end(); ++itr) {
00867           if (itr->second.first == oldFile) {
00868             itr->second.first = newFile;
00869
00870           }
00871         }
00872
00873         uitr2 = uitr;
00874         for (; uitr2 != m_uids.end(); ++uitr2) {
00875           if (uitr2->second.file == oldFile) {
00876             uitr2->second.file = newFile;
00877           }
00878         }
00879
00880         streamMap::iterator sitr;
00881         for (sitr = m_fileStreams.begin(); sitr!=m_fileStreams.end(); ++sitr) {
00882           if (sitr->second == streamName) {
00883             oldFileName = sitr->first;
00884             break;
00885           }
00886         }
00887
00888
00889 #ifndef NDEBUG
00890         m_log << MSG::DEBUG << "migrating uid: " << uitr->second.id
00891               << "   stream: " << streamName
00892               << "   oldFile: " << oldFileName
00893               << "   newFile: " << newFileName
00894               << endmsg;
00895 #endif
00896
00897
00898         if (oldFileName != "") {
00899           while ( (sitr=m_fileStreams.find(oldFileName)) != m_fileStreams.end() ) {
00900
00901 #ifndef NDEBUG
00902             m_log << MSG::DEBUG << "changing filename \"" << oldFileName
00903                   << "\" to \"" << newFileName << "\" for stream \""
00904                   << sitr->second << "\"" << endmsg;
00905 #endif
00906             m_fileStreams.erase(sitr);
00907             m_fileStreams.insert( make_pair<std::string,std::string>(newFileName,streamName) );
00908           }
00909
00910
00911         } else {
00912           m_log << MSG::ERROR
00913                 << "Problems updating fileStreams with new file name" << endmsg;
00914         }
00915
00916       }
00917
00918     }
00919   }
00920
00921 }

StatusCode THistSvc::write ( ) [private]

Definition at line 926 of file THistSvc.cpp.

00926                 {
00927
00928   updateFiles();
00929
00930   map<string, pair<TFile*,Mode> >::const_iterator itr;
00931   for (itr=m_files.begin(); itr!= m_files.end(); ++itr) {
00932     if (itr->second.second == WRITE || itr->second.second == UPDATE
00933         ||itr->second.second==SHARE) {
00934       itr->second.first->Write("",TObject::kOverwrite);
00935     } else if (itr->second.second == APPEND) {
00936       itr->second.first->Write("");
00937     }
00938   }
00939
00940
00941   m_log << MSG::DEBUG << "THistSvc::write()::List of Files connected in ROOT "
00942         << endmsg;
00943
00944   TSeqCollection *filelist=gROOT->GetListOfFiles();
00945   for (int ii=0; ii<filelist->GetEntries(); ii++) {
00946     m_log << MSG::DEBUG
00947           << "THistSvc::write()::List of Files connected in ROOT: \""
00948           << filelist->At(ii)->GetName()<<"\""<<endmsg;
00949   }
00950
00951   return StatusCode::SUCCESS;
00952
00953 }

StatusCode THistSvc::connect ( const std::string & ident ) [private]

Definition at line 958 of file THistSvc.cpp.

00958                                         {
00959
00960   Tokenizer tok(true);
00961
00962   string::size_type loc = ident.find(" ");
00963   string stream = ident.substr(0,loc);
00964   char typ(0);
00965   typedef std::pair<std::string,std::string>      Prop;
00966   std::vector<Prop> props;
00967   string val,VAL,TAG,filename,db_typ("ROOT");
00968
00969   tok.analyse(ident.substr(loc+1,ident.length()), " ", "", "", "=", "'", "'");
00970
00971   for ( Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); i++)    {
00972     const std::string& tag = (*i).tag();
00973     TAG = tag;
00974     toupper(TAG);
00975
00976     val = (*i).value();
00977     VAL = val;
00978     toupper(VAL);
00979
00980     if (TAG == "FILE" || TAG == "DATAFILE") {
00981       filename = val;
00982       removeDoubleSlash( filename );
00983     } else if ( TAG == "OPT" ) {
00984       if ( VAL == "APPEND" || VAL == "UPDATE" ) {
00985         typ = 'A';
00986       } else if ( VAL == "CREATE" || VAL == "NEW" || VAL == "WRITE" ) {
00987         typ = 'N';
00988       } else if ( VAL == "RECREATE" ) {
00989         typ = 'R';
00990       } else if (VAL == "SHARE") {
00991         typ = 'S';
00992       } else if ( VAL == "OLD" || VAL == "READ" ) {
00993         typ = 'O';
00994       } else {
00995         m_log << MSG::ERROR << "Unknown OPT: \"" << (*i).value() << "\""
00996             << endmsg;
00997         typ = 0;
00998       }
00999     } else if (TAG == "TYP") {
01000       db_typ = (*i).value();
01001     } else {
01002       props.push_back( Prop((*i).tag(), (*i).value()));
01003     }
01004
01005   }
01006
01007   if (stream == "temp") {
01008     m_log << MSG::ERROR << "in JobOption \"" << ident
01009           << "\": stream name \"temp\" reserved."
01010           << endmsg;
01011     return StatusCode::FAILURE;
01012   }
01013
01014   if (db_typ != "ROOT") {
01015     m_log << MSG::ERROR << "in JobOption \"" << ident
01016           << "\": technology type \"" << db_typ << "\" not supported."
01017           << endmsg;
01018     return StatusCode::FAILURE;
01019   }
01020
01021
01022   if (m_files.find(stream) != m_files.end()) {
01023     m_log << MSG::ERROR << "in JobOption \"" << ident
01024           << "\":\n stream \"" << stream << "\" already connected to file: \""
01025           << m_files[stream].first->GetName() << "\""
01026           << endmsg;
01027     return StatusCode::FAILURE;
01028   }
01029
01030   Mode newMode;
01031   if (typ == 'O') {
01032     newMode = THistSvc::READ;
01033   } else if (typ == 'N') {
01034     newMode = THistSvc::WRITE;
01035   } else if (typ == 'A') {
01036     newMode = THistSvc::APPEND;
01037   } else if (typ == 'R') {
01038     newMode = THistSvc::UPDATE;
01039   } else if (typ == 'S') {
01040     newMode = THistSvc::SHARE;
01041   } else {
01042     // something else?
01043     m_log << MSG::ERROR << "No OPT= specified or unknown access mode in: "
01044           << ident << endmsg;
01045     return StatusCode::FAILURE;
01046   }
01047
01048   // Is this file already connected to another stream?
01049   if (m_fileStreams.find(filename) != m_fileStreams.end()) {
01050     std::pair<streamMap::iterator, streamMap::iterator> fitr =
01051       m_fileStreams.equal_range(filename);
01052
01053     std::string oldstream = (fitr.first)->second;
01054
01055     std::pair<TFile*,Mode> f_info = m_files[oldstream];
01056
01057     if (newMode != f_info.second) {
01058       m_log << MSG::ERROR << "in JobOption \"" << ident
01059             << "\":\n file \"" << filename << "\" already opened by stream: \""
01060             << oldstream << "\" with different access mode."
01061             << endmsg;
01062       return StatusCode::FAILURE;
01063     } else {
01064       TFile *f2 = f_info.first;
01065       m_files[stream] = make_pair<TFile*,Mode>(f2,newMode);
01066       m_log << MSG::DEBUG << "Connecting stream: \"" << stream
01067             << "\" to previously opened TFile: \"" << filename << "\""
01068             << endmsg;
01069       return StatusCode::SUCCESS;
01070     }
01071   }
01072
01073
01074   TFile *f(0) ;
01075   if (newMode == THistSvc::READ) {
01076     // old file
01077
01078     try {
01079       f = TFile::Open(filename.c_str(),"READ");
01080     } catch (const std::exception& Exception) {
01081       m_log << MSG::ERROR << "exception caught while trying to open root"
01082             << " file for reading: " << Exception.what() << std::endl
01083             << "  -> file probably corrupt." << endmsg;
01084       return StatusCode::FAILURE;
01085     } catch (...) {
01086       m_log << MSG::ERROR << "Problems opening input file  \"" << filename
01087             << "\": probably corrupt" << endmsg;
01088       return StatusCode::FAILURE;
01089     }
01090
01091     if (!f->IsOpen()) {
01092       m_log << MSG::ERROR << "Unable to open input file \"" << filename
01093             << "\": file does not exist" << endmsg;
01094       return StatusCode::FAILURE;
01095     }
01096
01097
01098   } else if (newMode == THistSvc::WRITE) {
01099     // new file
01100
01101     f = TFile::Open(filename.c_str(),"NEW");
01102     if (!f->IsOpen()) {
01103       m_log << MSG::ERROR << "Unable to create new output file \"" << filename
01104             << "\" for writing: file already exists" << endmsg;
01105       return StatusCode::FAILURE;
01106     }
01107     f->SetCompressionLevel( m_compressionLevel );
01108
01109   } else if (newMode == THistSvc::APPEND) {
01110     // update file
01111
01112     try {
01113       f =  TFile::Open(filename.c_str(),"UPDATE");
01114     } catch (const std::exception& Exception) {
01115       m_log << MSG::ERROR << "exception caught while trying to open root"
01116             << " file for appending: " << Exception.what() << std::endl
01117             << "  -> file probably corrupt." << endmsg;
01118       return StatusCode::FAILURE;
01119     } catch (...) {
01120       m_log << MSG::ERROR << "Problems opening output file  \"" << filename
01121             << "\" for append: probably corrupt" << endmsg;
01122       return StatusCode::FAILURE;
01123     }
01124
01125     if (!f->IsOpen()) {
01126       m_log << MSG::ERROR << "Unable to open output file \"" << filename
01127             << "\" for appending" << endmsg;
01128       return StatusCode::FAILURE;
01129     }
01130     f->SetCompressionLevel( m_compressionLevel );
01131
01132   } else if (newMode == THistSvc::SHARE) {
01133     // SHARE file type
01134     //For SHARE files, all data will be stored in a temp file and will be merged into the target file
01135     //in write() when finalize(), this help to solve some confliction. e.g. with storegate
01136
01137     static int ishared = 0;
01138     stringstream out;
01139     string realfilename=filename;
01140     out << ishared++;
01141     filename = string("tmp_THistSvc_")+out.str()+string(".root");
01142
01143     m_log << MSG::DEBUG << "Creating temp file \"" << filename
01144           << "\" and realfilename="<<realfilename << endmsg;
01145     m_sharedFiles[stream]=realfilename;
01146
01147     try {
01148       f = TFile::Open(filename.c_str(),"NEW");
01149     } catch (const std::exception& Exception) {
01150       m_log << MSG::ERROR << "exception caught while trying to open root"
01151             << " file for appending: " << Exception.what() << std::endl
01152             << "  -> file probably corrupt." << endmsg;
01153       return StatusCode::FAILURE;
01154     } catch (...) {
01155       m_log << MSG::ERROR << "Problems opening output file  \"" << filename
01156             << "\" for append: probably corrupt" << endmsg;
01157       return StatusCode::FAILURE;
01158     }
01159
01160     if (!f->IsOpen()) {
01161       m_log << MSG::ERROR << "Unable to open output file \"" << filename
01162           << "\" for appending" << endmsg;
01163       return StatusCode::FAILURE;
01164     }
01165     f->SetCompressionLevel( m_compressionLevel );
01166
01167   } else if (newMode == THistSvc::UPDATE) {
01168     // update file
01169
01170     try {
01171       f =  TFile::Open(filename.c_str(),"RECREATE");
01172     } catch (const std::exception& Exception) {
01173       m_log << MSG::ERROR << "exception caught while trying to open root"
01174             << " file for updating: " << Exception.what() << std::endl
01175             << "  -> file probably corrupt." << endmsg;
01176       return StatusCode::FAILURE;
01177     } catch (...) {
01178       m_log << MSG::ERROR << "Problems opening output file  \"" << filename
01179             << "\" for update: probably corrupt" << endmsg;
01180       return StatusCode::FAILURE;
01181     }
01182
01183     if (!f->IsOpen()) {
01184       m_log << MSG::ERROR << "Unable to open output file \"" << filename
01185             << "\" for updating" << endmsg;
01186       return StatusCode::FAILURE;
01187     }
01188     f->SetCompressionLevel( m_compressionLevel );
01189
01190   }
01191
01192   m_files[stream] = make_pair<TFile*,Mode>(f,newMode);
01193   m_fileStreams.insert(make_pair<std::string,std::string>(filename,stream));
01194
01195   m_log << MSG::DEBUG << "Opening TFile \"" << filename << "\"  stream: \""
01196         << stream << "\"  mode: \"" << typ << "\""
01197         << endmsg;
01198
01199   return StatusCode::SUCCESS;
01200 }

TDirectory * THistSvc::changeDir ( const THistSvc::THistID & hid ) const [private]

Definition at line 1205 of file THistSvc.cpp.

01205                                                     {
01206
01207   string uid = hid.id;
01208   TFile* file = hid.file;
01209   string stream, fdir, bdir, dir, id;
01210
01211   if (file != 0) {
01212     file->cd("/");
01213   } else {
01214     gROOT->cd();
01215   }
01216
01217   fdir = uid;
01218   bdir = dirname(fdir);
01219
01220   while ( (dir = dirname(fdir)) != "") {
01221     if (! gDirectory->GetKey(dir.c_str())) {
01222       gDirectory->mkdir(dir.c_str());
01223     }
01224     gDirectory->cd(dir.c_str());
01225   }
01226
01227   return gDirectory;
01228
01229 }

std::string THistSvc::dirname ( std::string & dir ) const [private]

Definition at line 1234 of file THistSvc.cpp.

01234                                       {
01235
01236
01237   string::size_type i = dir.find("/");
01238
01239   if (i == string::npos) {
01240     return "";
01241   }
01242
01243   if ( i == 0 ) {
01244     dir.erase(0,1);
01245     return dirname(dir);
01246   }
01247
01248   string root = dir.substr(0,i);
01249   dir.erase(0,i);
01250
01251   return root;
01252
01253 }

void THistSvc::removeDoubleSlash ( std::string & id ) const [private]

Definition at line 1272 of file THistSvc.cpp.

01272                                                {
01273
01274   while (id.find("//") != std::string::npos) {
01275     id.replace(id.find("//"),2,"/");
01276   }
01277
01278 }

bool THistSvc::browseTDir ( TDirectory * dir ) const [private]

Definition at line 294 of file THistSvc.cpp.

00294                                           {
00295
00296   if (dir == 0) {
00297     std::cerr << "TDirectory == 0" << std::endl;
00298     return false;
00299   }
00300
00301   GlobalDirectoryRestore restore;
00302
00303   dir->cd();
00304
00305
00306   cout << "-> " << dir->GetPath() << "  "
00307        << dir->GetListOfKeys()->GetSize() << endl;
00308
00309   //  TIter nextkey(dir->GetListOfKeys());
00310   TIter nextkey(dir->GetList());
00311   while (TKey *key = (TKey*)nextkey()) {
00312
00313     TObject *obj = key->ReadObj();
00314     if (obj == 0) { cout << key->GetName() << " obj==0"<< endl; continue; }
00315     //    if (obj->IsA()->InheritsFrom("TDirectory")) {
00316       cout << "  Key: " << key->GetName() << "   "
00317            << " tit: " << obj->GetTitle() << "   "
00318            << " (" << key->GetClassName() << ")" << endl;
00319       //    }
00320   }
00321
00322   nextkey = dir->GetListOfKeys();
00323   while (TKey *key = (TKey*)nextkey()) {
00324
00325     TObject *obj = key->ReadObj();
00326     if (obj == 0) { cout << key->GetName() << " obj==0"<< endl; continue; }
00327     if (obj->IsA()->InheritsFrom("TDirectory")) {
00328       TDirectory *tt = dynamic_cast<TDirectory*>(obj);
00329       browseTDir(tt);
00330     }
00331   }
00332
00333   return true;
00334 }

bool THistSvc::findStream	(	const std::string &	name,
		std::string &	root,
		std::string &	rem,
		TFile *&	file
	)			const `[private]`

Definition at line 716 of file THistSvc.cpp.

00717                                        {
00718
00719   string::size_type pos = id.find("/");
00720
00721   if (pos == string::npos) {
00722     stream = "temp";
00723     rem = id;
00724   } else if (pos != 0) {
00725     stream = "temp";
00726     rem = id;
00727   } else {
00728
00729     string::size_type pos2 = id.find("/",pos+1);
00730
00731     if (pos2 == string::npos) {
00732       m_log << MSG::ERROR << "badly formed Hist/Tree id: \"" << id << "\""
00733             << endmsg;
00734       return false;
00735     }
00736
00737     parseString(id,stream,rem);
00738
00739   }
00740
00741   if (stream == "temp") {
00742     file = 0;
00743     return true;
00744   }
00745
00746   map< string,pair<TFile*,Mode> >::const_iterator itr = m_files.find(stream);
00747   if (itr != m_files.end()) {
00748     file = itr->second.first;
00749   } else {
00750     file = 0;
00751     m_log << MSG::WARNING << "no stream \"" << stream
00752           << "\" associated with id: \"" << id << "\""
00753           << endmsg;
00754   }
00755
00756   return true;
00757
00758 }

void THistSvc::parseString	(	const std::string &	id,
		std::string &	root,
		std::string &	rem
	)			const `[private]`

Definition at line 763 of file THistSvc.cpp.

00763                                                                        {
00764   string::size_type pos = id.find("/");
00765
00766   if (pos == string::npos) {
00767     root = "";
00768     rem = id;
00769     return;
00770   }
00771
00772   if (pos == 0) {
00773     parseString(id.substr(1,id.length()),root,rem);
00774   } else {
00775     root = id.substr(0,pos);
00776     rem = id.substr(pos+1,id.length());
00777   }
00778
00779 }

void THistSvc::setupInputFile ( Property & inputfile ) [private]

call-back method to handle input stream property

Definition at line 784 of file THistSvc.cpp.

00785 {
00786   StatusCode sc = StatusCode::SUCCESS;
00787
00788   typedef std::vector<std::string> Strings_t;
00789   for ( Strings_t::const_iterator
00790           itr  = m_inputfile.value().begin(),
00791           iEnd = m_inputfile.value().end();
00792         itr != iEnd;
00793         ++itr ) {
00794     if ( m_alreadyConnectedInFiles.end() ==
00795          m_alreadyConnectedInFiles.find( *itr ) ) {
00796       if ( connect(*itr).isFailure() ) {
00797         sc = StatusCode::FAILURE;
00798       } else {
00799         m_alreadyConnectedInFiles.insert( *itr );
00800       }
00801     }
00802   }
00803
00804   if ( !sc.isSuccess() ) {
00805     throw GaudiException( "Problem connecting inputfile !!", name(),
00806                           StatusCode::FAILURE );
00807   }
00808   return;
00809 }

void THistSvc::setupOutputFile ( Property & outputfile ) [private]

call-back method to handle output stream property

Definition at line 814 of file THistSvc.cpp.

00815 {
00816   StatusCode sc = StatusCode::SUCCESS;
00817
00818   typedef std::vector<std::string> Strings_t;
00819   for ( Strings_t::const_iterator
00820           itr  = m_outputfile.value().begin(),
00821           iEnd = m_outputfile.value().end();
00822         itr != iEnd;
00823         ++itr ) {
00824     if ( m_alreadyConnectedOutFiles.end() ==
00825          m_alreadyConnectedOutFiles.find( *itr ) ) {
00826       if ( connect(*itr).isFailure() ) {
00827         sc = StatusCode::FAILURE;
00828       } else {
00829         m_alreadyConnectedOutFiles.insert( *itr );
00830       }
00831     }
00832   }
00833
00834   if ( !sc.isSuccess() ) {
00835     throw GaudiException( "Problem connecting outputfile !!", name(),
00836                           StatusCode::FAILURE );
00837   }
00838   return;
00839 }

void THistSvc::MergeRootFile	(	TDirectory *	target,
		TDirectory *	source
	)			`[private]`

Definition at line 1282 of file THistSvc.cpp.

01282                                                                    {
01283
01284   m_log <<MSG::DEBUG << "Target path: " << target->GetPath() << endmsg;
01285   TString path( (char*)strstr(target->GetPath(), ":") );
01286   path.Remove( 0, 2);
01287
01288   source->cd(path);
01289   TDirectory *current_sourcedir = gDirectory;
01290
01291   // loop over all keys in this directory
01292   TList *lkeys=current_sourcedir->GetListOfKeys();
01293   int nkeys=lkeys->GetEntries();
01294   TKey *key;
01295   for (int jj=0; jj<nkeys; jj++) {
01296     key=(TKey*) lkeys->At(jj);
01297     string pathnameinsource=current_sourcedir->GetPath()+string("/")+key->GetName();
01298     m_log <<MSG::DEBUG << "Reading Key:" << pathnameinsource << endmsg;
01299     //key->Dump();
01300     //TObject *obj=key->ReadObj();
01301     TObject *obj=source->Get(pathnameinsource.c_str());
01302
01303     if (obj->IsA()->InheritsFrom("TDirectory") ) {
01304       // it's a subdirectory
01305
01306       m_log <<MSG::DEBUG << "Found subdirectory " << obj->GetName()
01307             << endmsg;
01308
01309       // create a new subdir of same name and title in the target file
01310       target->cd();
01311       TDirectory *newtargetdir =
01312         target->mkdir(obj->GetName(), obj->GetTitle() );
01313
01314       MergeRootFile(newtargetdir, source);
01315
01316     } else if (obj->IsA()->InheritsFrom("TTree")) {
01317       m_log <<MSG::DEBUG << "Found TTree " << obj->GetName() << endmsg;
01318       TTree *mytree=dynamic_cast<TTree*>(obj);
01319       int nentries=(int) mytree->GetEntries();
01320       mytree->SetBranchStatus("*",1);
01321
01322       m_log <<MSG::DEBUG << "Dumping TTree " << nentries <<" entries"
01323           << endmsg;
01324       //mytree->Print();
01325       //for (int ij=0; ij<nentries; ij++) {
01326       //m_log <<MSG::DEBUG << "Dumping TTree Show( " << ij <<" )"
01327       //<< endmsg;
01328       //mytree->Show(ij);
01329       //}
01330       target->cd();
01331       mytree->CloneTree();
01332
01333       //m_log <<MSG::DEBUG << "Writing TTree to target file: ( "
01334       //<< mycopiedtree->Write(key->GetName()) <<" ) bytes written"
01335       //<< endmsg;
01336
01337     } else if (obj) {
01338       target->cd();
01339       obj->Write(key->GetName() );
01340     }
01341
01342   } // while ( ( TKey *key = (TKey*)nextkey() ) )
01343
01344   // save modifications to target file
01345
01346 }

Member Data Documentation

MsgStream THistSvc::m_log [mutable, private]

Definition at line 112 of file THistSvc.h.

StringArrayProperty THistSvc::m_inputfile [private]

Definition at line 152 of file THistSvc.h.

StringArrayProperty THistSvc::m_outputfile [private]

Definition at line 152 of file THistSvc.h.

std::vector<std::string> THistSvc::m_Rstream [private]

Definition at line 153 of file THistSvc.h.

std::vector<std::string> THistSvc::m_Wstream [private]

Definition at line 153 of file THistSvc.h.

IntegerProperty THistSvc::m_autoSave [private]

Definition at line 154 of file THistSvc.h.

IntegerProperty THistSvc::m_compressionLevel [private]

Definition at line 154 of file THistSvc.h.

IntegerProperty THistSvc::m_maxFileSize [private]

Definition at line 154 of file THistSvc.h.

BooleanProperty THistSvc::m_print [private]

Definition at line 155 of file THistSvc.h.

std::set<std::string> THistSvc::m_alreadyConnectedInFiles [private]

list of already connected files.

This is to keep track of files registered by the setupInputFile callback method

Definition at line 159 of file THistSvc.h.

std::set<std::string> THistSvc::m_alreadyConnectedOutFiles [private]

list of already connected files.

This is to keep track of files registered by the setupOutputFile callback method

Definition at line 163 of file THistSvc.h.

uidMap THistSvc::m_uids [private]

Definition at line 167 of file THistSvc.h.

idMap THistSvc::m_ids [private]

Definition at line 168 of file THistSvc.h.

objMap THistSvc::m_tobjs [private]

Definition at line 169 of file THistSvc.h.

std::map<std::string, std::pair<TFile*,Mode> > THistSvc::m_files [private]

Definition at line 171 of file THistSvc.h.

streamMap THistSvc::m_fileStreams [private]

Definition at line 172 of file THistSvc.h.

std::map<std::string, std::string > THistSvc::m_sharedFiles [private]

Definition at line 174 of file THistSvc.h.

bool THistSvc::signaledStop [private]

Definition at line 177 of file THistSvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiSvc/src/THistSvc/THistSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiSvc/src/THistSvc/THistSvc.cpp


Public Member Functions
virtual StatusCode	initialize ()
virtual StatusCode	reinitialize ()
virtual StatusCode	finalize ()
virtual StatusCode	regHist (const std::string &name)
virtual StatusCode	regHist (const std::string &name, TH1 *)
virtual StatusCode	regHist (const std::string &name, TH2 *)
virtual StatusCode	regHist (const std::string &name, TH3 *)
virtual StatusCode	getHist (const std::string &name, TH1 *&) const
virtual StatusCode	getHist (const std::string &name, TH2 *&) const
virtual StatusCode	getHist (const std::string &name, TH3 *&) const
virtual StatusCode	regTree (const std::string &name)
virtual StatusCode	regTree (const std::string &name, TTree *)
virtual StatusCode	getTree (const std::string &name, TTree *&) const
virtual StatusCode	regGraph (const std::string &name)
virtual StatusCode	regGraph (const std::string &name, TGraph *)
virtual StatusCode	getGraph (const std::string &name, TGraph *&) const
virtual StatusCode	deReg (TObject *obj)
virtual StatusCode	deReg (const std::string &name)
virtual std::vector< std::string >	getHists () const
virtual std::vector< std::string >	getTrees () const
virtual std::vector< std::string >	getGraphs () const
virtual StatusCode	getTHists (TDirectory *td, TList &) const
virtual StatusCode	getTHists (const std::string &name, TList &) const
virtual StatusCode	getTTrees (TDirectory *td, TList &) const
virtual StatusCode	getTTrees (const std::string &name, TList &) const
virtual bool	exists (const std::string &name) const
	THistSvc (const std::string &name, ISvcLocator *svc)
void	handle (const Incident &)
Protected Member Functions
virtual	~THistSvc ()
Private Types
enum	Mode { READ, WRITE, UPDATE, APPEND, SHARE }
typedef std::map< std::string, THistID >	uidMap
typedef std::multimap < std::string, THistID >	idMap
typedef std::map< TObject *, THistID >	objMap
typedef std::multimap < std::string, std::string >	streamMap
Private Member Functions
template<typename T>
StatusCode	regHist_i (T *hist, const std::string &name)
template<typename T>
StatusCode	getHist_i (const std::string &name, T *&hist, bool quiet=false) const
template<typename T>
StatusCode	readHist_i (const std::string &name, T *&hist) const
StatusCode	readHist (const std::string &name, TH1 *&) const
StatusCode	readHist (const std::string &name, TH2 *&) const
StatusCode	readHist (const std::string &name, TH3 *&) const
StatusCode	readTree (const std::string &name, TTree *&) const
void	updateFiles ()
StatusCode	write ()
StatusCode	connect (const std::string &)
TDirectory *	changeDir (const THistSvc::THistID &hid) const
std::string	dirname (std::string &dir) const
void	removeDoubleSlash (std::string &) const
bool	browseTDir (TDirectory *dir) const
bool	findStream (const std::string &name, std::string &root, std::string &rem, TFile *&file) const
void	parseString (const std::string &id, std::string &root, std::string &rem) const
void	setupInputFile (Property &inputfile)
	call-back method to handle input stream property
void	setupOutputFile (Property &outputfile)
	call-back method to handle output stream property
void	MergeRootFile (TDirectory target, TDirectory source)
Private Attributes
MsgStream	m_log
StringArrayProperty	m_inputfile
StringArrayProperty	m_outputfile
std::vector< std::string >	m_Rstream
std::vector< std::string >	m_Wstream
IntegerProperty	m_autoSave
IntegerProperty	m_compressionLevel
IntegerProperty	m_maxFileSize
BooleanProperty	m_print
std::set< std::string >	m_alreadyConnectedInFiles
	list of already connected files.
std::set< std::string >	m_alreadyConnectedOutFiles
	list of already connected files.
uidMap	m_uids
idMap	m_ids
objMap	m_tobjs
std::map< std::string, std::pair< TFile *, Mode > >	m_files
streamMap	m_fileStreams
std::map< std::string, std::string >	m_sharedFiles
bool	signaledStop
Classes
class	GlobalDirectoryRestore
struct	THistID

Gaudi Framework, version v21r8

THistSvc Class Reference

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Classes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
