GaudiAlgorithm Class Reference

The useful base class for data processing algorithms. More...

#include <GaudiAlg/GaudiAlgorithm.h>

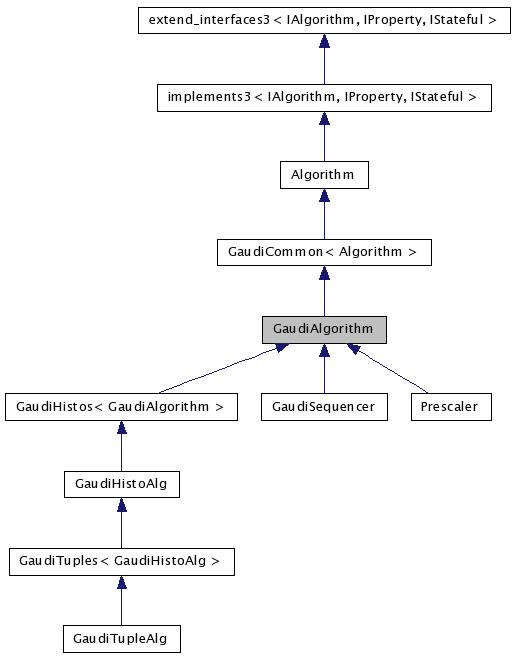

Inheritance diagram for GaudiAlgorithm:

Inheritance graph
[legend]

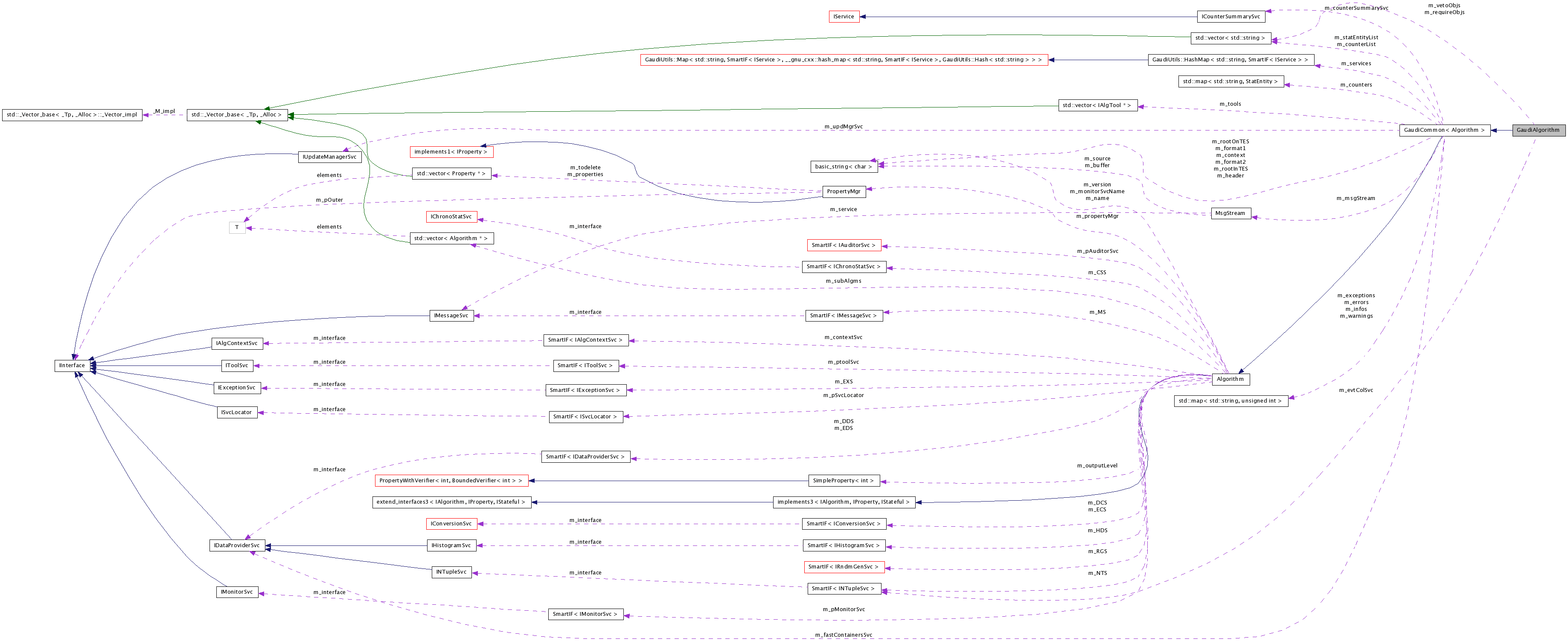

Collaboration diagram for GaudiAlgorithm:

Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual StatusCode initialize ()
 standard initialization method
virtual StatusCode execute ()
 standard execution method
virtual StatusCode finalize ()
 standard finalization method
virtual StatusCode sysExecute ()
 the generic actions for the execution.
void put (IDataProviderSvc *svc, DataObject *object, const std::string &address, const bool useRootInTES=true) const
 Register a data object or container into Gaudi Event Transient Store.
void put (DataObject *object, const std::string &address, const bool useRootInTES=true) const
 Register a data object or container into Gaudi Event Transient Store.
template<class TYPE>
Gaudi::Utils::GetData< TYPE >
::return_type 		get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
 Templated access to the data in Gaudi Transient Store.
template<class TYPE>
Gaudi::Utils::GetData< TYPE >
::return_type 		get (const std::string &location, const bool useRootInTES=true) const
 Templated access to the data from Gaudi Event Transient Store.
template<class TYPE>
TYPE * getDet (IDataProviderSvc *svc, const std::string &location) const
 Templated access to the detector data from the Gaudi Detector Transient Store.
template<class TYPE>
TYPE * getDet (const std::string &location) const
 Templated access to the detector data from the Gaudi Detector Transient Store.
template<class TYPE>
bool exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
 Check the existence of a data object or container in the Gaudi Transient Event Store.
template<class TYPE>
bool exist (const std::string &location, const bool useRootInTES=true) const
 Check the existence of a data object or container in the Gaudi Transient Event Store.
template<class TYPE>
bool existDet (IDataProviderSvc *svc, const std::string &location) const
 Check the existence of detector objects in the Gaudi Transient Detector Store.
template<class TYPE>
bool existDet (const std::string &location) const
 Check the existence of detector objects in the Gaudi Transient Detector Store.
template<class TYPE, class TYPE2>
Gaudi::Utils::GetData< TYPE >
::return_type 		getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
 Get the existing data object from Gaudi Event Transient store.
template<class TYPE, class TYPE2>
Gaudi::Utils::GetData< TYPE >
::return_type 		getOrCreate (const std::string &location, const bool useRootInTES=true) const
 Get the existing data object from Gaudi Event Transient store.
 GaudiAlgorithm (const std::string &name, ISvcLocator *pSvcLocator)
 Standard constructor (protected).
virtual ~GaudiAlgorithm ()
 destructor, virtual and protected
SmartIF< INTupleSvc > & evtColSvc () const
 Access the standard event collection service.

Private Member Functions

 GaudiAlgorithm ()
 no public default constructor
 GaudiAlgorithm (const GaudiAlgorithm &)
 no public copy
GaudiAlgorithm & operator= (const GaudiAlgorithm &)
 no public assignment

Private Attributes

SmartIF< INTupleSvc > m_evtColSvc
 Event Tag Collection Service.
std::vector< std::string > m_vetoObjs
 skip the event if any of these objects are present in TES
std::vector< std::string > m_requireObjs
 process the event only if one or more of these objects are present in TES

Friends

class AlgFactory< GaudiAlgorithm >

Detailed Description

The useful base class for data processing algorithms.

Small extension of ordinary the Algorithm base class.

This base class allows "easy"(=="1 line") access to tools and services. This access is safe in the sense that there is no need to worry about the reference counts for tools and services.

The base class allows "easy" (=="1 line") access to data in Gaudi Transient Stores. The functionality includes the checking of the presence of the data at the given location, checking the validity of the data, retrieval of valid data and "forced" retrieve of valid data (create if there is no data).

The base class allows to perform an easy error, warning and exception treatments, including the accumulated statistics of exceptions, errors and warnings.

The base class also includes utilities for general statistical counters.

It has been reported that usage of this base class results in significant shrinkage of existing code lines.

Attention:
See also the class GaudiCommon, which implements some of the common functionality between GaudiTool and GaudiAlgorithm.
Author:
Vanya BELYAEV Ivan.Belyaev@itep.ru

Chris Jones Christopher.Rob.Jones@cern.ch

Date:
30/06/2001

Definition at line 95 of file GaudiAlgorithm.h.

Constructor & Destructor Documentation

GaudiAlgorithm::GaudiAlgorithm ( const std::string &  name,
ISvcLocator *  pSvcLocator
)

Standard constructor (protected).

See also:
Algorithm
Parameters:
name name of the algorithm
pSvcLocator pointer to Service Locator

Definition at line 36 of file GaudiAlgorithm.cpp.

00038   : GaudiCommon<Algorithm> ( name , pSvcLocator )
00039   //
00040   , m_evtColSvc  ()  // pointer to Event Tag Collection Service
00041 {
00042   m_vetoObjs.clear();
00043   m_requireObjs.clear();
00044
00045   setProperty ( "RegisterForContextService" , true ).ignore() ;
00046
00047   declareProperty( "VetoObjects", m_vetoObjs,
00048                    "Skip execute if one or more of these TES objects exists" );
00049   declareProperty( "RequireObjects", m_requireObjs,
00050                    "Execute only if one or more of these TES objects exists" );
00051 }

GaudiAlgorithm::~GaudiAlgorithm (  )  [virtual]

destructor, virtual and protected

Definition at line 55 of file GaudiAlgorithm.cpp.

00055 { }

GaudiAlgorithm::GaudiAlgorithm (  )  [private]

no public default constructor

GaudiAlgorithm::GaudiAlgorithm ( const GaudiAlgorithm &   )  [private]

no public copy

Member Function Documentation

StatusCode GaudiAlgorithm::initialize (  )  [virtual]

standard initialization method

See also:
Algorithm

IAlgorithm

Returns:
status code

Reimplemented from GaudiCommon< Algorithm >.

Reimplemented in GaudiHistoAlg, GaudiSequencer, GaudiTupleAlg, Prescaler, GaudiHistos< GaudiAlgorithm >, and GaudiTuples< GaudiHistoAlg >.

Definition at line 59 of file GaudiAlgorithm.cpp.

00060 {
00061   // initialize the base class
00062   const StatusCode sc = GaudiCommon<Algorithm>::initialize() ;
00063   if ( sc.isFailure() ) { return sc; }
00064
00065   // Add any customisations here, that cannot go in GaudiCommon
00066
00067   // return
00068   return sc;
00069 }

StatusCode GaudiAlgorithm::execute (  )  [virtual]

standard execution method

See also:
Algorithm

IAlgorithm

Returns:
status code

Reimplemented in GaudiSequencer, and Prescaler.

Definition at line 87 of file GaudiAlgorithm.cpp.

00088 {
00089   return Error ( "Default GaudiAlgorithm execute method called !!" ) ;
00090 }

StatusCode GaudiAlgorithm::finalize ( void   )  [virtual]

standard finalization method

See also:
Algorithm

IAlgorithm

Returns:
status code

Reimplemented from GaudiCommon< Algorithm >.

Reimplemented in GaudiHistoAlg, GaudiSequencer, GaudiTupleAlg, Prescaler, GaudiHistos< GaudiAlgorithm >, and GaudiTuples< GaudiHistoAlg >.

Definition at line 73 of file GaudiAlgorithm.cpp.

00074 {
00075   if ( msgLevel(MSG::DEBUG) )
00076     debug() << "Finalize base class GaudiAlgorithm" << endmsg;
00077
00078   // reset pointers
00079   m_evtColSvc.reset() ;
00080
00081   // finalize the base class and return
00082   return GaudiCommon<Algorithm>::finalize() ;
00083 }

StatusCode GaudiAlgorithm::sysExecute (  )  [virtual]

the generic actions for the execution.

See also:
Algorithm

IAlgorithm

Algorithm::sysExecute

Returns:
status code

< guard/sentry

Reimplemented from Algorithm.

Definition at line 109 of file GaudiAlgorithm.cpp.

00110 {
00111   IAlgContextSvc* ctx = 0 ;
00112   if ( registerContext() ) { ctx = contextSvc() ; }
00113   // Lock the context
00114   Gaudi::Utils::AlgContext cnt ( ctx , this ) ;
00115
00116   // Do not execute if one or more of the m_vetoObjs exist in TES
00117   for( std::vector<std::string>::iterator it  = m_vetoObjs.begin();
00118                                           it != m_vetoObjs.end(); it++ ) {
00119     if( exist<DataObject>(*it) ) {
00120       debug() << *it << " found, skipping event " << endmsg;
00121       return StatusCode::SUCCESS;
00122     }
00123   }
00124
00125   // Execute if m_requireObjs is empty
00126   bool doIt = m_requireObjs.empty() ? true : false;
00127
00128   // Execute also if one or more of the m_requireObjs exist in TES
00129   for( std::vector<std::string>::iterator it  = m_requireObjs.begin();
00130                                           it != m_requireObjs.end(); it++ ) {
00131     if( exist<DataObject>(*it) ) {
00132       doIt = true;
00133       break;
00134     }
00135   }
00136
00137   if( doIt )
00138     // execute the generic method:
00139     return Algorithm::sysExecute() ;
00140   else
00141     return StatusCode::SUCCESS;
00142 }

void GaudiAlgorithm::put ( IDataProviderSvc *  svc,
DataObject *  object,
const std::string &  address,
const bool  useRootInTES = true
) const [inline]

Register a data object or container into Gaudi Event Transient Store.

  MCHits * hits = new MCHits();
  put( evtSvc(), hits, "/Event/MC/Hits" );

Attention:
The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false
See also:
IDataProviderSvc
Parameters:
svc Pointer to data provider service
object Data object or container to be registered
address Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property
Exceptions:
GaudiException for invalid event data service
GaudiException for invalid object
GaudiException for error result from event data service
Returns:
StatusCode
Return values:
StatusCode::SUCCESS Data was successfully placed in the TES.
StatusCode::FAILURE Failed to store data in the TES.

Reimplemented from GaudiCommon< Algorithm >.

Definition at line 169 of file GaudiAlgorithm.h.

00173   {
00174     GaudiCommon<Algorithm>::put ( svc , object , address , useRootInTES ) ;
00175   }

void GaudiAlgorithm::put ( DataObject *  object,
const std::string &  address,
const bool  useRootInTES = true
) const [inline]

Register a data object or container into Gaudi Event Transient Store.

See also:
IDataProviderSvc
  MCHits * hits = new MCHits();
  put( hits, "/Event/MC/Hits" );

Attention:
The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false
Parameters:
object Data object or container to be registered
address Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property
Exceptions:
GaudiException for invalid event data service
GaudiException for invalid object
GaudiException for error result from event data service
Returns:
StatusCode
Return values:
StatusCode::SUCCESS Data was successfully placed in the TES.
StatusCode::FAILURE Failed to store data in the TES.

Definition at line 208 of file GaudiAlgorithm.h.

00211   {
00212     GaudiCommon<Algorithm>::put ( evtSvc() , object , address , useRootInTES ) ;
00213   }

template<class TYPE>
Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::get ( IDataProviderSvc *  svc,
const std::string &  location,
const bool  useRootInTES = true
) const [inline]

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data

  MCHits* hits = get<MCHits>( evtSvc() , "/Event/MC/Hits" );

Attention:
The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false
See also:
IDataProviderSvc

SmartDataPtr

Exceptions:
GaudiException for Invalid Data Provider Service
GaudiException for invalid/unavailable data
Parameters:
svc Pointer to data service (data provider)
location data location/address in Gaudi Transient Store
useRootInTES Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property
Returns:
pointer to the data object

Reimplemented from GaudiCommon< Algorithm >.

Definition at line 249 of file GaudiAlgorithm.h.

00252   {
00253     return GaudiCommon<Algorithm>::get<TYPE> ( svc , location , useRootInTES ) ;
00254   }

template<class TYPE>
Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::get ( const std::string &  location,
const bool  useRootInTES = true
) const [inline]

Templated access to the data from Gaudi Event Transient Store.

Quick and safe access to the data in Gaudi transient store.

The method located the data at the given address and perform the debug printout about located data.

  MCParticles* mcps = get<MCParticles>( MCParticleLocation::Default );

Attention:
The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false
Parameters:
location Data location/address in Gaudi Transient Store
useRootInTES Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property
Returns:
Pointer to the data object

Definition at line 284 of file GaudiAlgorithm.h.

00286   {
00287     return GaudiCommon<Algorithm>::get<TYPE> ( evtSvc() , location , useRootInTES ) ;
00288   }

template<class TYPE>
TYPE* GaudiAlgorithm::getDet ( IDataProviderSvc *  svc,
const std::string &  location
) const [inline]

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

  MyDet* mdet = getDet<MyDet>( detSvc() , "/dd/Structure/LHCb/MyDet" );

Parameters:
svc Pointer to data service (data provider)
location Detector location/address in Gaudi Transient Store
Returns:
Pointer to the detector object

Definition at line 309 of file GaudiAlgorithm.h.

00311   {
00312     return GaudiCommon<Algorithm>::get<TYPE> ( svc , location , false ) ;
00313   }

template<class TYPE>
TYPE* GaudiAlgorithm::getDet ( const std::string &  location  )  const [inline]

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

  MyDet* mdet = getDet<MyDet>( "/dd/Structure/LHCb/MyDet" );

Parameters:
location Detector location/address in Gaudi Transient Store
Returns:
Pointer to the detector object

Definition at line 333 of file GaudiAlgorithm.h.

00334   {
00335     return GaudiCommon<Algorithm>::get<TYPE> ( detSvc() , location , false ) ;
00336   }

template<class TYPE>
bool GaudiAlgorithm::exist ( IDataProviderSvc *  svc,
const std::string &  location,
const bool  useRootInTES = true
) const [inline]

Check the existence of a data object or container in the Gaudi Transient Event Store.

  bool a1 = exist<DataObject>( evtSvc(), "/Event/MyObject" ) ;
  bool a2 = exist<MyHits>    ( evtSvc(), "/Event/MyHits"   ) ;

Attention:
The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false
Parameters:
svc Pointer to data service (data provider)
location Address in Gaudi Transient Event Store
useRootInTES Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property
Returns:
Boolean indicating status of the request
Return values:
true Data object or container exists and implements a proper interface
true Failed to locate the data object or container

Reimplemented from GaudiCommon< Algorithm >.

Definition at line 365 of file GaudiAlgorithm.h.

00368   {
00369     return GaudiCommon<Algorithm>::exist<TYPE> ( svc , location , useRootInTES ) ;
00370   }

template<class TYPE>
bool GaudiAlgorithm::exist ( const std::string &  location,
const bool  useRootInTES = true
) const [inline]

Check the existence of a data object or container in the Gaudi Transient Event Store.

  bool a1 = exist<DataObject>( "/Event/MyObject" ) ;
  bool a2 = exist<MyHits>    ( "/Event/MyHits"   ) ;

Attention:
The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false
Parameters:
location Address in Gaudi Transient Event Store
useRootInTES Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property
Returns:
Boolean indicating status of the request
Return values:
true Data object or container exists and implements a proper interface
true Failed to locate the data object or container

Definition at line 398 of file GaudiAlgorithm.h.

00400   {
00401     return GaudiCommon<Algorithm>::exist<TYPE> ( evtSvc() , location , useRootInTES ) ;
00402   }

template<class TYPE>
bool GaudiAlgorithm::existDet ( IDataProviderSvc *  svc,
const std::string &  location
) const [inline]

Check the existence of detector objects in the Gaudi Transient Detector Store.

  bool a1 = existDet<DataObject> ( detSvc(), "/dd/Structure/MyObject"     ) ;
  bool a2 = existDet<Material>   ( detSvc(), "/dd/Structure/Material/Air" ) ;

Parameters:
svc Pointer to data service (data provider)
location Address in Gaudi Transient Detector Store
Returns:
Boolean indicating status of the request
Return values:
true Detector object exists and implements a proper interface
false Failed to locate the data object

Definition at line 421 of file GaudiAlgorithm.h.

00423   {
00424     return GaudiCommon<Algorithm>::exist<TYPE> ( svc , location , false ) ;
00425   }

template<class TYPE>
bool GaudiAlgorithm::existDet ( const std::string &  location  )  const [inline]

Check the existence of detector objects in the Gaudi Transient Detector Store.

  bool a1 = existDet<DataObject> ( "/dd/Structure/MyObject"     ) ;
  bool a2 = existDet<Material>   ( "/dd/Structure/Material/Air" ) ;

Parameters:
location Address in Gaudi Transient Detector Store
Returns:
Boolean indicating status of the request
Return values:
true Detector object exists and implements a proper interface
false Failed to locate the data object

Definition at line 443 of file GaudiAlgorithm.h.

00444   {
00445     return GaudiCommon<Algorithm>::exist<TYPE> ( detSvc() , location , false ) ;
00446   }

template<class TYPE, class TYPE2>
Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getOrCreate ( IDataProviderSvc *  svc,
const std::string &  location,
const bool  useRootInTES = true
) const [inline]

Get the existing data object from Gaudi Event Transient store.

Alternatively, create new object and register it in TES and return if object does not exist.

  MyHits* hits = getOrCreate<MyHits,MyHits>( evtSvc() , "/Event/MyHits" ) ;

Attention:
The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false
Exceptions:
GaudiException for Invalid Data Provider Service
GaudiException for invalid/unavailable data
Parameters:
svc Pointer to data service (data provider)
location Location in Gaudi Transient Event Store
useRootInTES Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property
Returns:
A valid pointer to the object

Reimplemented from GaudiCommon< Algorithm >.

Definition at line 477 of file GaudiAlgorithm.h.

00480   {
00481     return GaudiCommon<Algorithm>::getOrCreate<TYPE,TYPE2> ( svc , location , useRootInTES ) ;
00482   }

template<class TYPE, class TYPE2>
Gaudi::Utils::GetData<TYPE>::return_type GaudiAlgorithm::getOrCreate ( const std::string &  location,
const bool  useRootInTES = true
) const [inline]

Get the existing data object from Gaudi Event Transient store.

Alternatively, create new object and register it in TES and return if object does not exist.

  MyHits* hits = getOrCreate<MyHits,MyHits>( "/Event/MyHits" ) ;

Attention:
The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false
Exceptions:
GaudiException for Invalid Data Provider Service
GaudiException for invalid/unavailable data
Parameters:
location Location in Gaudi Transient Event Store
useRootInTES Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property
Returns:
A valid pointer to the object

Definition at line 512 of file GaudiAlgorithm.h.

00514   {
00515     return GaudiCommon<Algorithm>::getOrCreate<TYPE,TYPE2> ( evtSvc() , location , useRootInTES ) ;
00516   }

SmartIF< INTupleSvc > & GaudiAlgorithm::evtColSvc (  )  const

Access the standard event collection service.

Returns:
pointer to the event collection service

Definition at line 94 of file GaudiAlgorithm.cpp.

00095 {
00096   if ( !m_evtColSvc.isValid() )
00097   { m_evtColSvc = svc< INTupleSvc > ( "EvtTupleSvc" , true ) ; }
00098   //
00099   return m_evtColSvc ;
00100 }

GaudiAlgorithm& GaudiAlgorithm::operator= ( const GaudiAlgorithm &   )  [private]

no public assignment

Friends And Related Function Documentation

friend class AlgFactory< GaudiAlgorithm > [friend]

Definition at line 98 of file GaudiAlgorithm.h.

Member Data Documentation

SmartIF<INTupleSvc> GaudiAlgorithm::m_evtColSvc [mutable, private]

Event Tag Collection Service.

Definition at line 551 of file GaudiAlgorithm.h.

std::vector<std::string> GaudiAlgorithm::m_vetoObjs [private]

skip the event if any of these objects are present in TES

Definition at line 553 of file GaudiAlgorithm.h.

std::vector<std::string> GaudiAlgorithm::m_requireObjs [private]

process the event only if one or more of these objects are present in TES

Definition at line 555 of file GaudiAlgorithm.h.

The documentation for this class was generated from the following files:
Generated at Mon May 3 12:24:21 2010 for Gaudi Framework, version v21r9 by Doxygen version 1.5.6 written by Dimitri van Heesch, © 1997-2004
