RefTableBase< FROM, MAPENTRY > Class Template Reference

template <class FROM, class TO, class MAPENTRY> class RefTable More...

#include <RefTable.h>

Inheritance diagram for RefTableBase< FROM, MAPENTRY >:

Inheritance graph

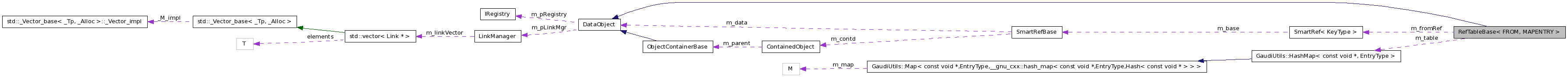

Collaboration diagram for RefTableBase< FROM, MAPENTRY >:

Collaboration graph

List of all members.

Public Types
typedef FROM	KeyType
typedef MAPENTRY	EntryType
typedef RefTableBase< FROM, EntryType >	BaseType
typedef GaudiUtils::HashMap < const void *, EntryType >	TableType
	Define Reference map.
typedef TableType::iterator	iterator
	Definition of map iterator.
typedef TableType::const_iterator	const_iterator
	Definition of map iterator (CONST).
Public Member Functions
	RefTableBase (const CLID &clid, int len)
	Constructors.
virtual	~RefTableBase ()
	Destructor.
virtual void	clear ()
	Clear Reference map.
iterator	begin ()
	Start of direct access iterator.
const_iterator	begin () const
	Start of direct access iterator (CONST).
iterator	end ()
	End of direct access iterator.
const_iterator	end () const
	End of direct access iterator (CONST).
long	size () const
	Size of References.
void	reserve (int len)
	Size of References.
virtual StreamBuffer &	serialize (StreamBuffer &s) const
	Serialize the object for writing.
virtual StreamBuffer &	serialize (StreamBuffer &s)
	Serialize the object for reading.
Public Attributes
CLID	m_clid
	Class id of the reference table.
Protected Member Functions
bool	insertMapElement (const KeyType *from, EntryType &to)
	Insert new Entry into Reference container.
EntryType *	i_reference (const KeyType *from)
	Find Reference from it's source entry.
const EntryType *	i_reference (const KeyType *from) const
	Find Reference from it's source entry (CONST).
Private Attributes
TableType	m_table
	Reference map.
SmartRef< KeyType >	m_fromRef
	This is a completely useless entry, but the compiler wants it to be instantiated before the serialize function is defined.

Detailed Description

template<class FROM, class MAPENTRY>
class RefTableBase< FROM, MAPENTRY >

template <class FROM, class TO, class MAPENTRY> class RefTable

ClassName: RefTableBase

Description: Essential information of the RefTable References can be of several kinds: multiplicity: FROM TO 1 0 = 1 (no existing Reference) 1 1 <-> 1 relationship n 1 <-> n relationship Template parameters: FROM type of the source object TO type of the referenced object(s) MAPENTRY entry type used for the referenced objects within the map.

Author: Markus Frank

Definition at line 46 of file RefTable.h.

Member Typedef Documentation

template<class FROM, class MAPENTRY>

typedef RefTableBase<FROM, EntryType> RefTableBase< FROM, MAPENTRY >::BaseType

Definition at line 53 of file RefTable.h.

template<class FROM, class MAPENTRY>

typedef TableType::const_iterator RefTableBase< FROM, MAPENTRY >::const_iterator

Definition of map iterator (CONST).

Definition at line 61 of file RefTable.h.

template<class FROM, class MAPENTRY>

typedef MAPENTRY RefTableBase< FROM, MAPENTRY >::EntryType

Definition at line 51 of file RefTable.h.

template<class FROM, class MAPENTRY>

typedef TableType::iterator RefTableBase< FROM, MAPENTRY >::iterator

Definition of map iterator.

Definition at line 59 of file RefTable.h.

template<class FROM, class MAPENTRY>

typedef FROM RefTableBase< FROM, MAPENTRY >::KeyType

Definition at line 49 of file RefTable.h.

template<class FROM, class MAPENTRY>

typedef GaudiUtils::HashMap< const void* , EntryType > RefTableBase< FROM, MAPENTRY >::TableType

Define Reference map.

Need to use index into vector, because location of vector entries is not fixed

Definition at line 57 of file RefTable.h.

Constructor & Destructor Documentation

template<class FROM, class MAPENTRY>

RefTableBase< FROM, MAPENTRY >::RefTableBase	(	const CLID &	clid,
		int	len
	)			`[inline]`

Constructors.

Definition at line 97 of file RefTable.h.

00097                                           : m_clid(clid), m_table(len)   {
00098   }

template<class FROM, class MAPENTRY>

virtual RefTableBase< FROM, MAPENTRY >::~RefTableBase ( ) [inline, virtual]

Destructor.

Definition at line 100 of file RefTable.h.

00100                            {
00101     clear();
00102   }

Member Function Documentation

template<class FROM, class MAPENTRY>

const_iterator RefTableBase< FROM, MAPENTRY >::begin ( ) const [inline]

Start of direct access iterator (CONST).

Definition at line 112 of file RefTable.h.

00112                                  {
00113     return m_table.begin();
00114   }

template<class FROM, class MAPENTRY>

iterator RefTableBase< FROM, MAPENTRY >::begin ( ) [inline]

Start of direct access iterator.

Definition at line 108 of file RefTable.h.

00108                      {
00109     return m_table.begin();
00110   }

template<class FROM, class MAPENTRY>

virtual void RefTableBase< FROM, MAPENTRY >::clear ( ) [inline, virtual]

Clear Reference map.

Definition at line 104 of file RefTable.h.

00104                           {
00105     m_table.clear();
00106   }

template<class FROM, class MAPENTRY>

const_iterator RefTableBase< FROM, MAPENTRY >::end ( ) const [inline]

End of direct access iterator (CONST).

Definition at line 120 of file RefTable.h.

00120                                {
00121     return m_table.end();
00122   }

template<class FROM, class MAPENTRY>

iterator RefTableBase< FROM, MAPENTRY >::end ( ) [inline]

End of direct access iterator.

Definition at line 116 of file RefTable.h.

00116                    {
00117     return m_table.end();
00118   }

template<class FROM, class MAPENTRY>

const EntryType* RefTableBase< FROM, MAPENTRY >::i_reference ( const KeyType * from ) const [inline, protected]

Find Reference from it's source entry (CONST).

Definition at line 87 of file RefTable.h.

00087                                                             {
00088     const_iterator i = m_table.find( from );
00089     if ( i != m_table.end() )    {
00090       return &((*i).second);
00091     }
00092     return 0;
00093   }

template<class FROM, class MAPENTRY>

EntryType* RefTableBase< FROM, MAPENTRY >::i_reference ( const KeyType * from ) [inline, protected]

Find Reference from it's source entry.

Definition at line 79 of file RefTable.h.

00079                                                {
00080     iterator i = m_table.find( from );
00081     if ( i != 0 )    {
00082       return &((*i).second);
00083     }
00084     return 0;
00085   }

template<class FROM, class MAPENTRY>

bool RefTableBase< FROM, MAPENTRY >::insertMapElement	(	const KeyType *	from,
		EntryType &	to
	)			`[inline, protected]`

Insert new Entry into Reference container.

Definition at line 75 of file RefTable.h.

00075                                                                   {
00076     return m_table.insert( from, to );
00077   }

template<class FROM, class MAPENTRY>

void RefTableBase< FROM, MAPENTRY >::reserve ( int len ) [inline]

Size of References.

Definition at line 128 of file RefTable.h.

00128                           {
00129     m_table.reserve(len);
00130   }

template<class FROM, class MAPENTRY>

virtual StreamBuffer& RefTableBase< FROM, MAPENTRY >::serialize ( StreamBuffer & s ) [inline, virtual]

Serialize the object for reading.

Definition at line 143 of file RefTable.h.

00143                                                              {
00144     long siz;
00145     DataObject::serialize(s) >> siz;
00146     m_table.reserve(siz);
00147     //for ( long i = 0; i < siz; i++ )   {
00148     //  SmartRef<KeyType> fromRef;
00149     //  EntryType entry;
00150     //  s >> fromRef(this);
00151     //  s >> entry(this);
00152     //  insertMapElement( fromRef, entry);
00153     //}
00154     return s;
00155   }

template<class FROM, class MAPENTRY>

virtual StreamBuffer& RefTableBase< FROM, MAPENTRY >::serialize ( StreamBuffer & s ) const [inline, virtual]

Serialize the object for writing.

Definition at line 132 of file RefTable.h.

00132                                                              {
00133     DataObject::serialize(s) << m_table.size();
00134     //for (TableType::const_iterator i = m_table.begin(), stop = m_table.end(); i != stop; i++ )    {
00135     //  SmartRef<KeyType> fromRef;
00136     //  fromRef = (KeyType*)(*i).first;
00137     //  s << fromRef(this);
00138     //  s << (*i).second(this);
00139     //}
00140     return s;
00141   }

template<class FROM, class MAPENTRY>

long RefTableBase< FROM, MAPENTRY >::size ( ) const [inline]

Size of References.

Definition at line 124 of file RefTable.h.

00124                         {
00125     return m_table.size();
00126   }

Member Data Documentation

template<class FROM, class MAPENTRY>

CLID RefTableBase< FROM, MAPENTRY >::m_clid

Class id of the reference table.

Definition at line 63 of file RefTable.h.

template<class FROM, class MAPENTRY>

SmartRef<KeyType> RefTableBase< FROM, MAPENTRY >::m_fromRef [private]

This is a completely useless entry, but the compiler wants it to be instantiated before the serialize function is defined.

Definition at line 71 of file RefTable.h.

template<class FROM, class MAPENTRY>

TableType RefTableBase< FROM, MAPENTRY >::m_table [private]

Reference map.

Definition at line 66 of file RefTable.h.

The documentation for this class was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r0/GaudiKernel/GaudiKernel/RefTable.h
