The useful base class for tools. More...

#include <GaudiTools/GaudiTool.h>

Inheritance diagram for GaudiTool:

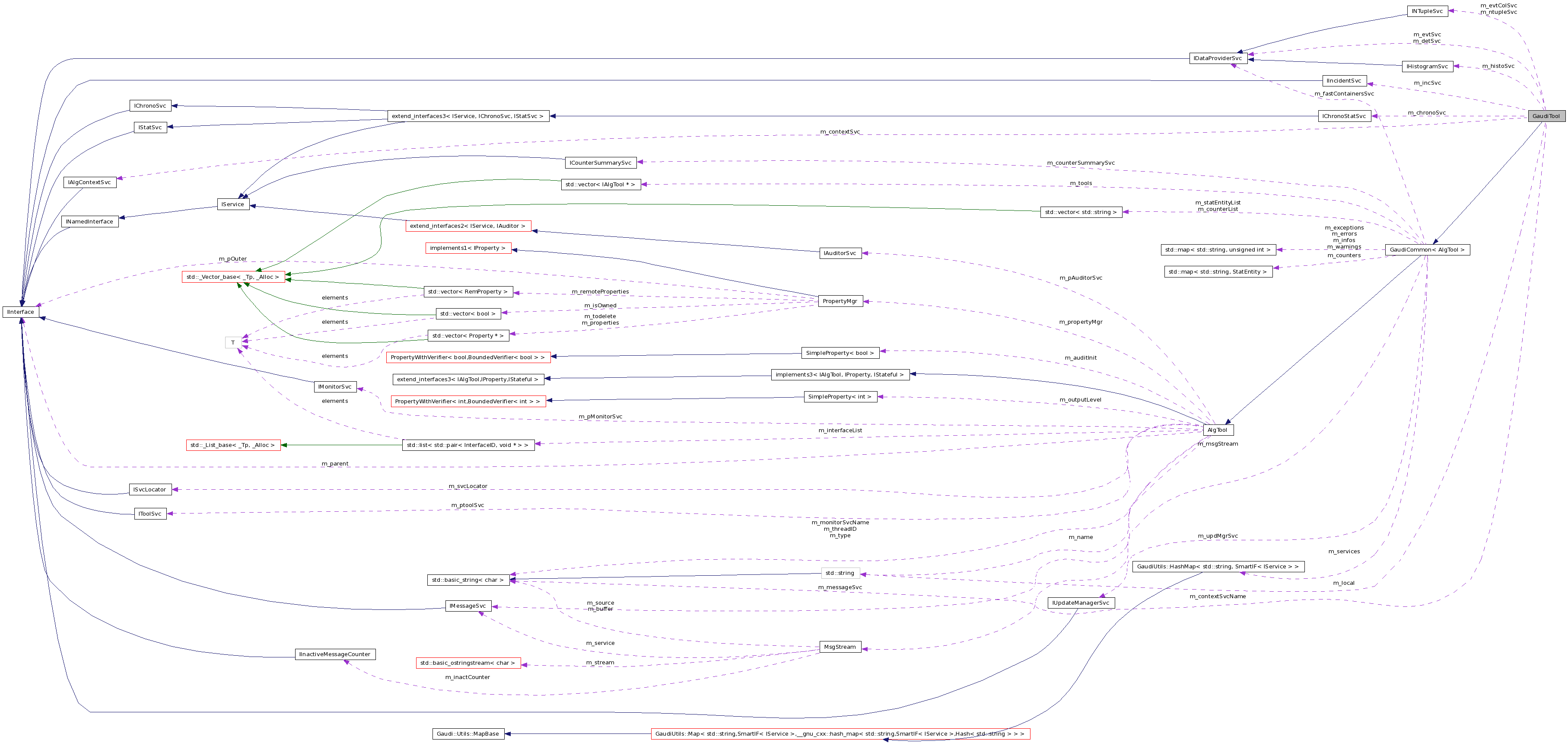

Collaboration diagram for GaudiTool:

Public Member Functions
virtual StatusCode	initialize ()
	standard initialization method
virtual StatusCode	finalize ()
	standard finalization method
INTupleSvc *	ntupleSvc () const
	Access the standard N-Tuple.
INTupleSvc *	evtColSvc () const
	Access the standard event collection service.
IDataProviderSvc *	detSvc () const
	accessor to detector service
IDataProviderSvc *	evtSvc () const
	accessor to event service service
IIncidentSvc *	incSvc () const
	accessor to Incident Service
IChronoStatSvc *	chronoSvc () const
	accessor to Chrono & Stat Service
IHistogramSvc *	histoSvc () const
	acessor to the histogram service
IAlgContextSvc *	contextSvc () const
	acessor to the Algorithm Context Service
DataObject *	put (IDataProviderSvc svc, DataObject object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store.
DataObject *	put (DataObject *object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store.
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store.
template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	get (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data from Gaudi Event Transient Store.
template<class TYPE >
TYPE *	getDet (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store.
template<class TYPE >
TYPE *	getDet (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store.
template<class TYPE >
bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store.
template<class TYPE >
bool	exist (const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store.
template<class TYPE >
bool	existDet (IDataProviderSvc *svc, const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store.
template<class TYPE >
bool	existDet (const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store.
template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store.
template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store.
Protected Member Functions
	GaudiTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.
virtual	~GaudiTool ()
	destructor, virtual and protected
Private Member Functions
	GaudiTool ()
	no public default constructor
	GaudiTool (const GaudiTool &)
	no public copy constructor
GaudiTool &	operator= (const GaudiTool &)
	no public assignment operator
Private Attributes
INTupleSvc *	m_ntupleSvc
	pointer to the N-Tuple service
INTupleSvc *	m_evtColSvc
	pointer to the event tag collection service
IDataProviderSvc *	m_evtSvc
	pointer to Event Data Service
IDataProviderSvc *	m_detSvc
	pointer to Detector Data Service
IChronoStatSvc *	m_chronoSvc
	pointer to Chrono & Stat Service
IIncidentSvc *	m_incSvc
	pointer to Incident Service
IHistogramSvc *	m_histoSvc
	pointer for histogram service
IAlgContextSvc *	m_contextSvc
	Algorithm Context Service.
std::string	m_contextSvcName
	Algorithm Context Service.
const std::string	m_local
	full tool name "type/name"

Detailed Description

The useful base class for tools.

Small extension of ordinary the AlgTool base class.

This base class allows "easy"(=="1 line") access to tools and services. This access is safe in the sense that there is no need to worry about the reference counts for tools and services.

The base class allows "easy" (=="1 line") access to data in Gaudi Transient Stores. The functionality includes the checking of the presence of the data at the given location, checking the validity of the data, retrieval of valid data and "forced" retrive of valid data (create if there is no data).

The base class allows to perform an easy error, warning and exception treatments, including the accumulated statistics of exceptions, errors and warnings.

The base class also includes utilities for general statistical counters.

It has been reported that usage of this base class results in significant shrinkage of existing code lines.

Attention:: See the class GaudiCommon, which implements some of the common functionality between GaudiTool and GaudiAlgorithm

Author:: Vanya BELYAEV Ivan.Belyaev@itep.ru; Chris Jones Christopher.Rob.Jones@cern.ch

Date:: 2003-07-07

Definition at line 99 of file GaudiTool.h.

Constructor & Destructor Documentation

GaudiTool::GaudiTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)		`[protected]`

Standard constructor.

See also:: AlgTool

Parameters:

type	tool type (useless)
name	tool name
parent	pointer to parent object (service, algorithm or tool)

Definition at line 114 of file GaudiTool.cpp.

  : GaudiCommon<AlgTool> ( this_type , this_name , parent )
  //  services
  , m_ntupleSvc   ( 0 )
  , m_evtColSvc   ( 0 )
  , m_evtSvc      ( 0 )
  , m_detSvc      ( 0 )
  , m_chronoSvc   ( 0 )
  , m_incSvc      ( 0 )
  , m_histoSvc    ( 0 )
  , m_contextSvc  ( 0 ) // pointer to Algorithm Context Service
  , m_contextSvcName ( "AlgContextSvc" ) // Algorithm Context Service name
  //
  , m_local       ( this_type + "/" + this_name )
{
  declareProperty
    ( "ContextService" ,
      m_contextSvcName ,
      "The name of Algorithm Context Service" ) ;
  // make instance counts
  GaudiToolLocal::s_InstanceCounter.increment ( m_local ) ;
}

GaudiTool::~GaudiTool ( ) [protected, virtual]

destructor, virtual and protected

Definition at line 141 of file GaudiTool.cpp.

{
  GaudiToolLocal::s_InstanceCounter.decrement ( m_local ) ;
}

GaudiTool::GaudiTool ( ) [private]

no public default constructor

GaudiTool::GaudiTool ( const GaudiTool & ) [private]

no public copy constructor

Member Function Documentation

IChronoStatSvc * GaudiTool::chronoSvc ( ) const

accessor to Chrono & Stat Service

Returns:: pointer to the Chrono & Stat Service

Definition at line 246 of file GaudiTool.cpp.

{
  if ( 0 == m_chronoSvc )
  {
    m_chronoSvc =
      svc<IChronoStatSvc> ( GaudiToolServices::s_ChronoStatSvc , true ) ;
  }
  return m_chronoSvc ;
}

IAlgContextSvc * GaudiTool::contextSvc ( ) const

acessor to the Algorithm Context Service

Returns:: pointer to the Algorithm Contetx Service

Definition at line 269 of file GaudiTool.cpp.

{
  if ( 0 == m_contextSvc )
  {
    m_contextSvc = svc<IAlgContextSvc> ( m_contextSvcName , true ) ;
  }
  return m_contextSvc;
}

IDataProviderSvc * GaudiTool::detSvc ( ) const

accessor to detector service

Returns:: pointer to detector service

Definition at line 188 of file GaudiTool.cpp.

{
  if ( 0 == m_detSvc )
  {
    m_detSvc =
      svc<IDataProviderSvc>( GaudiToolServices::s_DetectorDataSvc , true ) ;
  }
  return m_detSvc ;
}

INTupleSvc * GaudiTool::evtColSvc ( ) const

Access the standard event collection service.

Returns:: pointer to the event collection service

Definition at line 211 of file GaudiTool.cpp.

{
  if ( 0 == m_evtColSvc )
  {
    m_evtColSvc = svc< INTupleSvc > ( "EvtTupleSvc" , true ) ;
  }
  return m_evtColSvc ;
}

IDataProviderSvc * GaudiTool::evtSvc ( ) const

accessor to event service service

Returns:: pointer to detector service

Definition at line 222 of file GaudiTool.cpp.

{
  if ( 0 == m_evtSvc )
  {
    m_evtSvc =
      svc<IDataProviderSvc>( GaudiToolServices::s_EventDataSvc , true ) ;
  }
  return m_evtSvc ;
}

template<class TYPE >

bool GaudiTool::exist	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const `[inline]`

Check the existence of a data object or container in the Gaudi Transient Event Store.

  bool a1 = exist<DataObject>( evtSvc(), "/Event/MyObject" ) ;
  bool a2 = exist<MyHits>    ( evtSvc(), "/Event/MyHits"   ) ;

Attention:: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behaviour can be suppressed by passing the arguement useRootInTES = false

Parameters:

svc	Pointer to data service (data provider)
location	Address in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns:: Boolean indicating status of the request

Return values:

true	Data object or container exists and implements a proper interface
true	Failed to locate the data object or container

Reimplemented from GaudiCommon< AlgTool >.

Definition at line 386 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::exist<TYPE> ( svc , location , useRootInTES ) ;
  }

template<class TYPE >

bool GaudiTool::exist	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const `[inline]`

Check the existence of a data object or container in the Gaudi Transient Event Store.

  bool a1 = exist<DataObject>( "/Event/MyObject" ) ;
  bool a2 = exist<MyHits>    ( "/Event/MyHits"   ) ;

Attention:: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behaviour can be suppressed by passing the arguement useRootInTES = false

Parameters:

location Address in Gaudi Transient Event Store

Returns:: Boolean indicating status of the request

Return values:

true	Data object or container exists and implements a proper interface
true	Failed to locate the data object or container

Definition at line 416 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::exist<TYPE> ( evtSvc() , location , useRootInTES ) ;
  }

template<class TYPE >

bool GaudiTool::existDet	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const `[inline]`

Check the existence of detector objects in the Gaudi Transient Detector Store.

  bool a1 = existDet<DataObject> ( detSvc(), "/dd/Structure/MyObject"     ) ;
  bool a2 = existDet<Material>   ( detSvc(), "/dd/Structure/Material/Air" ) ;

Parameters:

svc	Pointer to data service (data provider)
location	Address in Gaudi Transient Detector Store

Returns:: Boolean indicating status of the request

Return values:

true	Detector object exists and implements a proper interface
false	Failed to locate the data object

Definition at line 439 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::exist<TYPE> ( svc , location , false ) ;
  }

template<class TYPE >

bool GaudiTool::existDet ( const std::string & location ) const [inline]

Check the existence of detector objects in the Gaudi Transient Detector Store.

  bool a1 = existDet<DataObject> ( "/dd/Structure/MyObject"     ) ;
  bool a2 = existDet<Material>   ( "/dd/Structure/Material/Air" ) ;

Parameters:

location Address in Gaudi Transient Detector Store

Returns:: Boolean indicating status of the request

Return values:

true	Detector object exists and implements a proper interface
false	Failed to locate the data object

Definition at line 461 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::exist<TYPE> ( detSvc() , location , false ) ;
  }

StatusCode GaudiTool::finalize ( void ) [virtual]

standard finalization method

See also:: AlgTool; IAlgTool

Returns:: status code

Reimplemented from GaudiCommon< AlgTool >.

Reimplemented in GaudiHistoTool, GaudiTupleTool, SequencerTimerTool, EqSolver, FuncMinimum, GaudiHistos< GaudiTool >, and GaudiTuples< GaudiHistoTool >.

Definition at line 163 of file GaudiTool.cpp.

{
  if ( msgLevel(MSG::DEBUG) )
    debug() << " ==> Finalize the base class GaudiTool " << endmsg;

  // clear "explicit services"
    m_evtSvc    = 0 ;
    m_detSvc    = 0 ;
    m_chronoSvc = 0 ;
    m_incSvc    = 0 ;
    m_histoSvc  = 0 ;

  // finalize the base class
  const StatusCode sc = GaudiCommon<AlgTool>::finalize() ;
  if ( sc.isFailure() ) { return sc; }

  // Decrement the counter
  GaudiToolLocal::s_FinalizeCounter.decrement( m_local ) ;

  // return
  return sc;
}

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::get	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const `[inline]`

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data

  MCHits* hits = get<MCHits>( evtSvc() , "/Event/MC/Hits" );

Attention:: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behaviour can be suppressed by passing the arguement useRootInTES = false

See also:: IDataProviderSvc; SmartDataPtr

Exceptions:

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters:

svc	Pointer to data service (data provider)
location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns:: pointer to the data object

Reimplemented from GaudiCommon< AlgTool >.

Definition at line 272 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::get<TYPE> ( svc , location , useRootInTES ) ;
  }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::get	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const `[inline]`

Templated access to the data from Gaudi Event Transient Store.

Quick and safe access to the data in Gaudi transient store.

The method located the data at the given address and perform the debug printout about located data.

  MCParticles* mcps = get<MCParticles>( MCParticleLocation::Default );

Attention:: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behaviour can be suppressed by passing the arguement useRootInTES = false

Parameters:

location	Data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns:: Pointer to the data object

Definition at line 306 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::get<TYPE> ( evtSvc() , location , useRootInTES ) ;
  }

template<class TYPE >

TYPE* GaudiTool::getDet	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const `[inline]`

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

  MyDet* mdet = getDet<MyDet>( detSvc() , "/dd/Structure/LHCb/MyDet" );

Parameters:

svc	Pointer to data service (data provider)
location	Detector location/address in Gaudi Transient Store

Returns:: Pointer to the detector object

Definition at line 331 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::get<TYPE> ( svc , location , false ) ;
  }

template<class TYPE >

TYPE* GaudiTool::getDet ( const std::string & location ) const [inline]

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

  MyDet* mdet = getDet<MyDet>( "/dd/Structure/LHCb/MyDet" );

Parameters:

location Detector location/address in Gaudi Transient Store

Returns:: Pointer to the detector object

Definition at line 355 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::get<TYPE> ( detSvc() , location , false ) ;
  }

template<class TYPE , class TYPE2 >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::getOrCreate	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const `[inline]`

Get the existing data object from Gaudi Event Transient store.

Alternatively, create new object and register it in TES and return if object does not exist.

  MyHits* hits = getOrCreate<MyHits,MyHits>( evtSvc() , "/Event/MyHits" ) ;

Attention:: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behaviour can be suppressed by passing the arguement useRootInTES = false

Exceptions:

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters:

svc	Pointer to data service (data provider)
location	Location in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns:: A valid pointer to the object

Reimplemented from GaudiCommon< AlgTool >.

Definition at line 494 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::getOrCreate<TYPE,TYPE2> ( svc , location , useRootInTES ) ;
  }

template<class TYPE , class TYPE2 >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::getOrCreate	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const `[inline]`

Get the existing data object from Gaudi Event Transient store.

Alternatively, create new object and register it in TES and return if object does not exist.

  MyHits* hits = getOrCreate<MyHits,MyHits>( "/Event/MyHits" ) ;

Attention:: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behaviour can be suppressed by passing the arguement useRootInTES = false

Exceptions:

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters:

location	Location in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns:: A valid pointer to the object

Definition at line 528 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::getOrCreate<TYPE,TYPE2> ( evtSvc() , location , useRootInTES ) ;
  }

IHistogramSvc * GaudiTool::histoSvc ( ) const

acessor to the histogram service

Returns:: pointer to the histogram service

Definition at line 258 of file GaudiTool.cpp.

{
  if ( 0 == m_histoSvc )
  {
    m_histoSvc = svc<IHistogramSvc> ( GaudiToolServices::s_HistoSvc, true ) ;
  }
  return m_histoSvc;
}

IIncidentSvc * GaudiTool::incSvc ( ) const

accessor to Incident Service

Returns:: pointer to the Incident Service

Definition at line 234 of file GaudiTool.cpp.

{
  if ( 0 == m_incSvc )
  {
    m_incSvc =
      svc<IIncidentSvc> ( GaudiToolServices::s_IncidentSvc , true ) ;
  }
  return m_incSvc ;
}

StatusCode GaudiTool::initialize ( ) [virtual]

standard initialization method

See also:: AlgTool; IAlgTool

Returns:: status code

Reimplemented from GaudiCommon< AlgTool >.

Reimplemented in GaudiHistoTool, GaudiTupleTool, SequencerTimerTool, EqSolver, FuncMinimum, GaudiHistos< GaudiTool >, and GaudiTuples< GaudiHistoTool >.

Definition at line 148 of file GaudiTool.cpp.

{
  // initialize the base class
  const StatusCode sc = GaudiCommon<AlgTool>::initialize() ;
  if ( sc.isFailure() ) { return sc; }

  // increment the counter
  GaudiToolLocal::s_FinalizeCounter.increment( m_local ) ;

  // return
  return sc;
}

INTupleSvc * GaudiTool::ntupleSvc ( ) const

Access the standard N-Tuple.

Returns:: pointer to N-Tuple service .

Definition at line 200 of file GaudiTool.cpp.

{
  if ( 0 == m_ntupleSvc )
  {
    m_ntupleSvc = svc<INTupleSvc>( "NTupleSvc" , true ) ;
  }
  return m_ntupleSvc ;
}

GaudiTool& GaudiTool::operator= ( const GaudiTool & ) [private]

no public assignment operator

DataObject* GaudiTool::put	(	IDataProviderSvc *	svc,
		DataObject *	object,
		const std::string &	address,
		const bool	useRootInTES = `true`
	)		const `[inline]`

Register a data object or container into Gaudi Event Transient Store.

  MCHits * hits = new MCHits();
  put( evtSvc(), hits, "/Event/MC/Hits" );

Attention:: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behaviour can be suppressed by passing the arguement useRootInTES = false

See also:: IDataProviderSvc

Parameters:

svc	Pointer to data provider service
object	Data object or container to be registered
address	Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Exceptions:

GaudiException	for invalid event data service
GaudiException	for invalid object
GaudiException	for error result from event data service

Returns:: StatusCode

Return values:

StatusCode::SUCCESS	Data was successfully placed in the TES.
StatusCode::FAILURE	Failed to store data in the TES.

Reimplemented from GaudiCommon< AlgTool >.

Definition at line 196 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::put ( svc , object , address , useRootInTES ) ;
  }

DataObject* GaudiTool::put	(	DataObject *	object,
		const std::string &	address,
		const bool	useRootInTES = `true`
	)		const `[inline]`

Register a data object or container into Gaudi Event Transient Store.

See also:: IDataProviderSvc

  MCHits * hits = put( new MCHits(), "/Event/MC/Hits" );

Attention:: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behaviour can be suppressed by passing the arguement useRootInTES = false

Parameters:

object	Data object or container to be registered
address	Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Exceptions:

GaudiException	for invalid event data service
GaudiException	for invalid object
GaudiException	for error result from event data service

Returns:: StatusCode

Return values:

StatusCode::SUCCESS	Data was successfully placed in the TES.
StatusCode::FAILURE	Failed to store data in the TES.

Definition at line 232 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::put ( evtSvc() , object , address , useRootInTES ) ;
  }

Member Data Documentation

IChronoStatSvc* GaudiTool::m_chronoSvc [mutable, private]

pointer to Chrono & Stat Service

Definition at line 571 of file GaudiTool.h.

IAlgContextSvc* GaudiTool::m_contextSvc [mutable, private]

Algorithm Context Service.

Definition at line 577 of file GaudiTool.h.

std::string GaudiTool::m_contextSvcName [private]

Algorithm Context Service.

Definition at line 579 of file GaudiTool.h.

IDataProviderSvc* GaudiTool::m_detSvc [mutable, private]

pointer to Detector Data Service

Definition at line 569 of file GaudiTool.h.

INTupleSvc* GaudiTool::m_evtColSvc [mutable, private]

pointer to the event tag collection service

Definition at line 565 of file GaudiTool.h.

IDataProviderSvc* GaudiTool::m_evtSvc [mutable, private]

pointer to Event Data Service

Definition at line 567 of file GaudiTool.h.

IHistogramSvc* GaudiTool::m_histoSvc [mutable, private]

pointer for histogram service

Definition at line 575 of file GaudiTool.h.

IIncidentSvc* GaudiTool::m_incSvc [mutable, private]

pointer to Incident Service

Definition at line 573 of file GaudiTool.h.

const std::string GaudiTool::m_local [private]

full tool name "type/name"

Definition at line 584 of file GaudiTool.h.

INTupleSvc* GaudiTool::m_ntupleSvc [mutable, private]

pointer to the N-Tuple service

Definition at line 563 of file GaudiTool.h.

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiAlg/GaudiAlg/GaudiTool.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiAlg/src/lib/GaudiTool.cpp

Gaudi Framework, version v22r2

GaudiTool Class Reference

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
