SequencerTimerTool Class Reference

Implements the time measurement inside a sequencer. More...

#include <SequencerTimerTool.h>

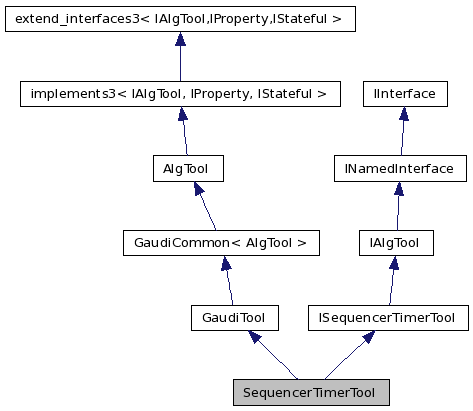

Inheritance diagram for SequencerTimerTool:
Inheritance graph
[legend]

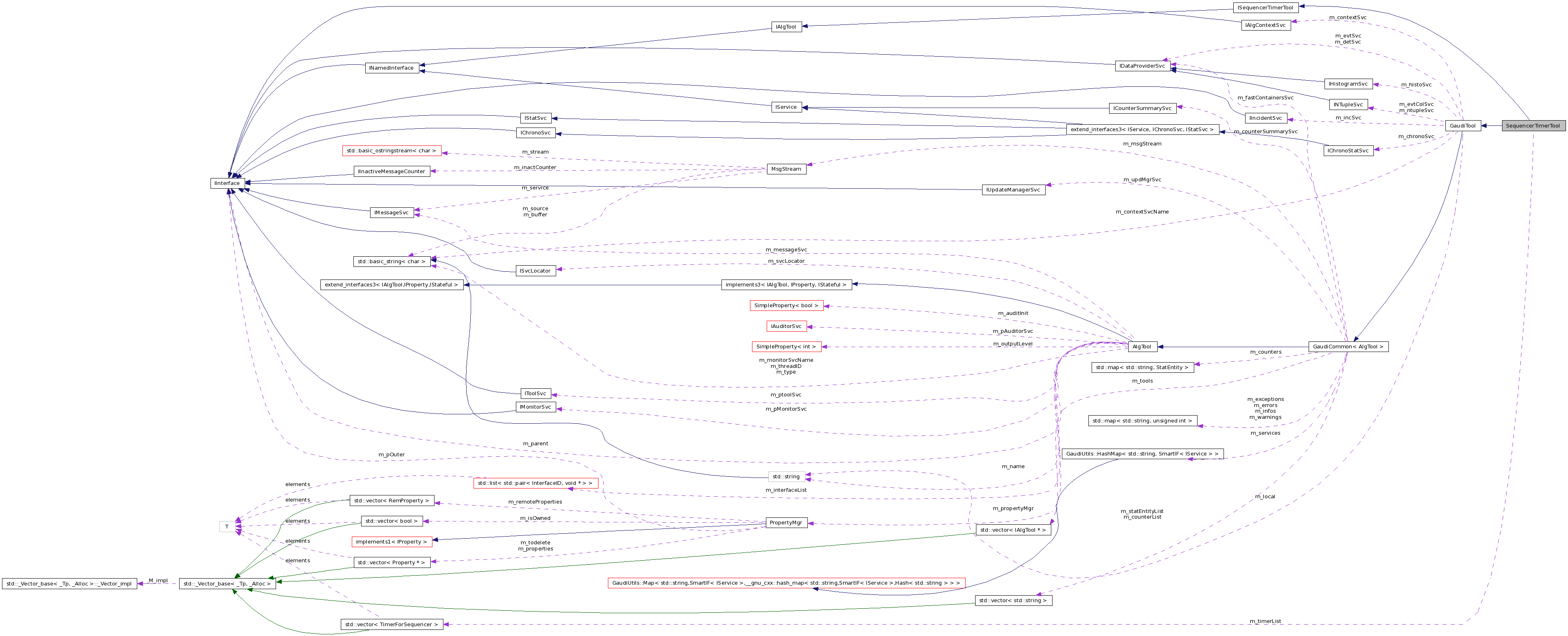

Collaboration diagram for SequencerTimerTool:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 SequencerTimerTool (const std::string &type, const std::string &name, const IInterface *parent)
 Standard constructor.
virtual ~SequencerTimerTool ()
 Destructor.
virtual StatusCode initialize ()
 initialize method, to compute the normalization factor
virtual StatusCode finalize ()
 finalize method, to print the time summary table
virtual int addTimer (std::string name)
 add a timer entry with the specified name
virtual void increaseIndent ()
 Increase the indentation of the name.
virtual void decreaseIndent ()
 Decrease the indentation of the name.
void start (int index)
 start the counter, i.e.
double stop (int index)
 stop the counter, return the elapsed time
double lastTime (int index)
 returns the last time
std::string name (int index)
 returns the name of the counter
int indexByName (std::string name)
 returns the index of the counter with that name, or -1
virtual bool globalTiming ()
 returns the flag telling that global timing is wanted

Private Attributes

int m_shots
 Number of shots for CPU normalization.
bool m_normalised
 Is the time scaled to a nominal PIII ?
int m_indent
 Amount of indentation.
std::vector< TimerForSequencer > m_timerList
double m_normFactor
 Factor to convert to standard CPU (1 GHz PIII)
double m_speedRatio
bool m_globalTiming
std::string::size_type m_headerSize
 Size of the name field.

Detailed Description

Implements the time measurement inside a sequencer.

The width of the timing table column printing the algorithm name is 30 by default. That can be changed via

TimingAuditor().addTool(SequencerTimerTool, name = "TIMER")
TimingAuditor().TIMER.NameSize = 50
Author:
Olivier Callot
Date:
2004-05-19

Definition at line 27 of file SequencerTimerTool.h.

Constructor & Destructor Documentation

SequencerTimerTool::SequencerTimerTool ( const std::string &  type,
const std::string &  name,
const IInterface *  parent
)

Standard constructor.

Definition at line 24 of file SequencerTimerTool.cpp.

  : GaudiTool ( type, name , parent )
  , m_indent( 0 )
  , m_normFactor( 0.001 )
{
  declareInterface<ISequencerTimerTool>(this);

  m_shots = 3500000 ; // 1s on 2.8GHz Xeon, gcc 3.2, -o2
  declareProperty( "shots"        , m_shots );
  declareProperty( "Normalised"   , m_normalised = false );
  declareProperty( "GlobalTiming" , m_globalTiming = false );
  declareProperty( "NameSize"     , m_headerSize = 30, "Number of characters to be used in algorithm name column" );
}
SequencerTimerTool::~SequencerTimerTool (  ) [virtual]

Destructor.

Definition at line 42 of file SequencerTimerTool.cpp.

{}

Member Function Documentation

virtual int SequencerTimerTool::addTimer ( std::string  name ) [inline, virtual]

add a timer entry with the specified name

Implements ISequencerTimerTool.

Definition at line 44 of file SequencerTimerTool.h.

                                         {
    std::string myName;
    if ( 0 < m_indent ) {
      std::string prefix( m_indent, ' ' );
      myName += prefix;
    }
    std::string space( m_headerSize, ' ' );
    myName += name + space ;
    myName = myName.substr( 0, m_headerSize );

    m_timerList.push_back( TimerForSequencer(myName, m_normFactor) );
    return m_timerList.size() -1;
  };
virtual void SequencerTimerTool::decreaseIndent (  ) [inline, virtual]

Decrease the indentation of the name.

Implements ISequencerTimerTool.

Definition at line 62 of file SequencerTimerTool.h.

                                   {
    m_indent -= 2;
    if ( 0 > m_indent ) m_indent = 0;
  };
StatusCode SequencerTimerTool::finalize ( void   ) [virtual]

finalize method, to print the time summary table

Reimplemented from GaudiTool.

Definition at line 74 of file SequencerTimerTool.cpp.

                                          {

  std::string line(m_headerSize + 68, '-');
  info() << line << endmsg
         << "This machine has a speed about "
         << format( "%6.2f", 1000.*m_speedRatio)
         << " times the speed of a 2.8 GHz Xeon.";
  if ( m_normalised ) info() <<" *** All times are renormalized ***";
  info() << endmsg << TimerForSequencer::header( m_headerSize ) << endmsg
         << line << endmsg;

  std::string lastName = "";
  for ( unsigned int kk=0 ; m_timerList.size() > kk ; kk++ ) {
    if ( lastName == m_timerList[kk].name() ) continue; // suppress duplicate
    lastName = m_timerList[kk].name();
    info() << m_timerList[kk] << endmsg;
  }
  info() << line << endmsg;

  return GaudiTool::finalize();
}
virtual bool SequencerTimerTool::globalTiming (  ) [inline, virtual]

returns the flag telling that global timing is wanted

Implements ISequencerTimerTool.

Definition at line 86 of file SequencerTimerTool.h.

{ return m_globalTiming; };
virtual void SequencerTimerTool::increaseIndent (  ) [inline, virtual]

Increase the indentation of the name.

Implements ISequencerTimerTool.

Definition at line 59 of file SequencerTimerTool.h.

{ m_indent += 2; };
int SequencerTimerTool::indexByName ( std::string  name ) [virtual]

returns the index of the counter with that name, or -1

Implements ISequencerTimerTool.

Definition at line 99 of file SequencerTimerTool.cpp.

                                                     {
  std::string::size_type beg = name.find_first_not_of(" \t");
  std::string::size_type end = name.find_last_not_of(" \t");
  std::string temp = name.substr( beg, end-beg+1 );
  for ( unsigned int kk=0 ; m_timerList.size() > kk ; kk++ ) {
    beg =  m_timerList[kk].name().find_first_not_of(" \t");
    end =  m_timerList[kk].name().find_last_not_of(" \t");
    if ( m_timerList[kk].name().substr(beg,end-beg+1) == temp ) return kk;
  }
  return -1;
}
StatusCode SequencerTimerTool::initialize (  ) [virtual]

initialize method, to compute the normalization factor

Reimplemented from GaudiTool.

Definition at line 48 of file SequencerTimerTool.cpp.

                                            {
  GaudiTool::initialize();
  double sum = 0;
  TimerForSequencer norm( "normalize", m_normFactor );
  norm.start();
  IRndmGenSvc* rsvc = svc<IRndmGenSvc>( "RndmGenSvc", true );
  { // Use dummy loop suggested by Vanya Belyaev:
    Rndm::Numbers gauss;
    gauss.initialize( rsvc , Rndm::Gauss(0.,1.0) ).ignore();
    unsigned int shots = m_shots;
    while( 0 < --shots ) { sum += gauss() * sum ; }
  }
  norm.stop();
  double time = norm.lastCpu();
  m_speedRatio = 1./time;
  info() << "This machine has a speed about "
         << format( "%6.2f", 1000.*m_speedRatio)
         << " times the speed of a 2.8 GHz Xeon." << endmsg ;
   if ( m_normalised ) {
    m_normFactor = m_speedRatio;
  }
  return StatusCode::SUCCESS;
}
double SequencerTimerTool::lastTime ( int  index ) [inline, virtual]

returns the last time

Implements ISequencerTimerTool.

Definition at line 76 of file SequencerTimerTool.h.

{   return m_timerList[index].lastTime();  };
std::string SequencerTimerTool::name ( int  index ) [inline, virtual]

returns the name of the counter

Implements ISequencerTimerTool.

Definition at line 80 of file SequencerTimerTool.h.

{   return m_timerList[index].name();  };
void SequencerTimerTool::start ( int  index ) [inline, virtual]

start the counter, i.e.

register the current time

Implements ISequencerTimerTool.

Definition at line 69 of file SequencerTimerTool.h.

{   m_timerList[index].start();  };
double SequencerTimerTool::stop ( int  index ) [inline, virtual]

stop the counter, return the elapsed time

Implements ISequencerTimerTool.

Definition at line 73 of file SequencerTimerTool.h.

{   return m_timerList[index].stop();  };

Member Data Documentation

bool SequencerTimerTool::m_globalTiming [private]

Definition at line 97 of file SequencerTimerTool.h.

std::string::size_type SequencerTimerTool::m_headerSize [private]

Size of the name field.

Definition at line 98 of file SequencerTimerTool.h.

int SequencerTimerTool::m_indent [private]

Amount of indentation.

Definition at line 93 of file SequencerTimerTool.h.

bool SequencerTimerTool::m_normalised [private]

Is the time scaled to a nominal PIII ?

Definition at line 92 of file SequencerTimerTool.h.

double SequencerTimerTool::m_normFactor [private]

Factor to convert to standard CPU (1 GHz PIII)

Definition at line 95 of file SequencerTimerTool.h.

int SequencerTimerTool::m_shots [private]

Number of shots for CPU normalization.

Definition at line 86 of file SequencerTimerTool.h.

double SequencerTimerTool::m_speedRatio [private]

Definition at line 96 of file SequencerTimerTool.h.

std::vector<TimerForSequencer> SequencerTimerTool::m_timerList [private]

Definition at line 94 of file SequencerTimerTool.h.

The documentation for this class was generated from the following files:
