TupleTool Class Reference

#include <components/TupleTool.h>

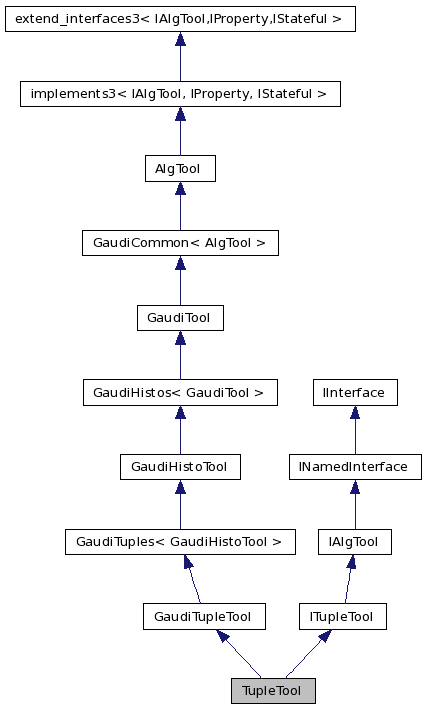

Inheritance diagram for TupleTool:

Collaboration diagram for TupleTool:

List of all members.

Public Types
typedef Tuples::Tuple	Tuple
typedef GaudiAlg::TupleID	TupleID
Public Member Functions
	TupleTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.
virtual	~TupleTool ()
	destructor: virtual and protected
virtual Tuple	nTuple (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	get N-tuple object ( book on-demand ) with unique identidier
virtual Tuple	nTuple (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_ColumnWiseTuple) const
virtual Tuple	evtCol (const std::string &title, const CLID &clid=CLID_RowWiseTuple) const
virtual Tuple	evtCol (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_RowWiseTuple) const
Private Member Functions
	TupleTool ()
	TupleTool (const TupleTool &)
TupleTool &	operator= (const TupleTool &)

---

Detailed Description

Author:

Vanya BELYAEV Ivan.Belyaev@itep.ru

Date:

2004-06-28

Definition at line 20 of file TupleTool.h.

---

Member Typedef Documentation

typedef Tuples::Tuple TupleTool::Tuple

Reimplemented from ITupleTool.

Definition at line 24 of file TupleTool.h.

typedef GaudiAlg::TupleID TupleTool::TupleID

Reimplemented from ITupleTool.

Definition at line 25 of file TupleTool.h.

---

Constructor & Destructor Documentation

TupleTool::TupleTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

See also:

GaudiTupleTool

GaudiHistoTool

GaudiTool

AlgTool

Parameters:

type	tool type (?)
name	tool name
parent	pointer to parent component

Definition at line 37 of file TupleTool.cpp.

  : GaudiTupleTool ( type, name , parent )
{
  declareInterface<ITupleTool>(this);
}

TupleTool::~TupleTool

(

)

[virtual]

destructor: virtual and protected

Definition at line 49 of file TupleTool.cpp.

{}

TupleTool::TupleTool

(

)

[private]

TupleTool::TupleTool

(

const TupleTool &

)

[private]

---

Member Function Documentation

virtual Tuple TupleTool::evtCol	(	const std::string &	title,
		const CLID &	clid = CLID_RowWiseTuple
	)		const [inline, virtual]

Implements ITupleTool.

Definition at line 77 of file TupleTool.h.

  { return GaudiTupleTool::evtCol (      title , clid ) ; }

virtual Tuple TupleTool::evtCol	(	const TupleID &	ID,
		const std::string &	title = "",
		const CLID &	clid = CLID_RowWiseTuple
	)		const [inline, virtual]

Implements ITupleTool.

Definition at line 82 of file TupleTool.h.

  { return GaudiTupleTool::evtCol ( ID , title , clid ) ; }

virtual Tuple TupleTool::nTuple	(	const TupleID &	ID,
		const std::string &	title = "",
		const CLID &	clid = CLID_ColumnWiseTuple
	)		const [inline, virtual]

Implements ITupleTool.

Definition at line 71 of file TupleTool.h.

  { return GaudiTupleTool::nTuple ( ID , title , clid ) ; }

virtual Tuple TupleTool::nTuple	(	const std::string &	title,
		const CLID &	clid = CLID_ColumnWiseTuple
	)		const [inline, virtual]

get N-tuple object ( book on-demand ) with unique identidier

  ITupleTool* tool = .. ;
  Tuple tuple = tool-> nTuple( 'My tuple' ) ;
  tuple->column( "A" , sin(0.1) );
  tuple->column( "B" , cos(0.1) );
  tuple->column( "C" , tan(0.1) );
  tuple->write()

NTuple will be booked with automatically assigned numerical ID

Parameters:

title	unique title for ntuple
clid	class identifier

Returns:

ntuple object

Implements ITupleTool.

Definition at line 65 of file TupleTool.h.

  { return GaudiTupleTool::nTuple (      title , clid ) ; }

TupleTool& TupleTool::operator=

(

const TupleTool &

)

[private]

---

The documentation for this class was generated from the following files:

• /afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiAlg/src/components/TupleTool.h
• /afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiAlg/src/components/TupleTool.cpp
