Simple class to extend the functionality of class GaudiHistoAlg. More...

#include <GaudiAlg/GaudiTupleAlg.h>

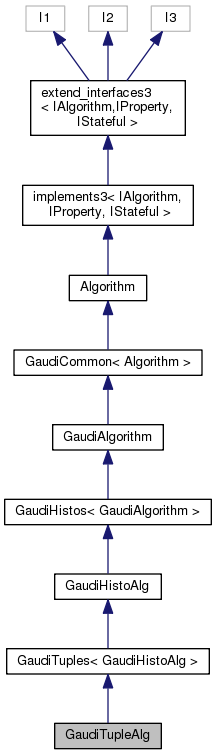

Inheritance diagram for GaudiTupleAlg:

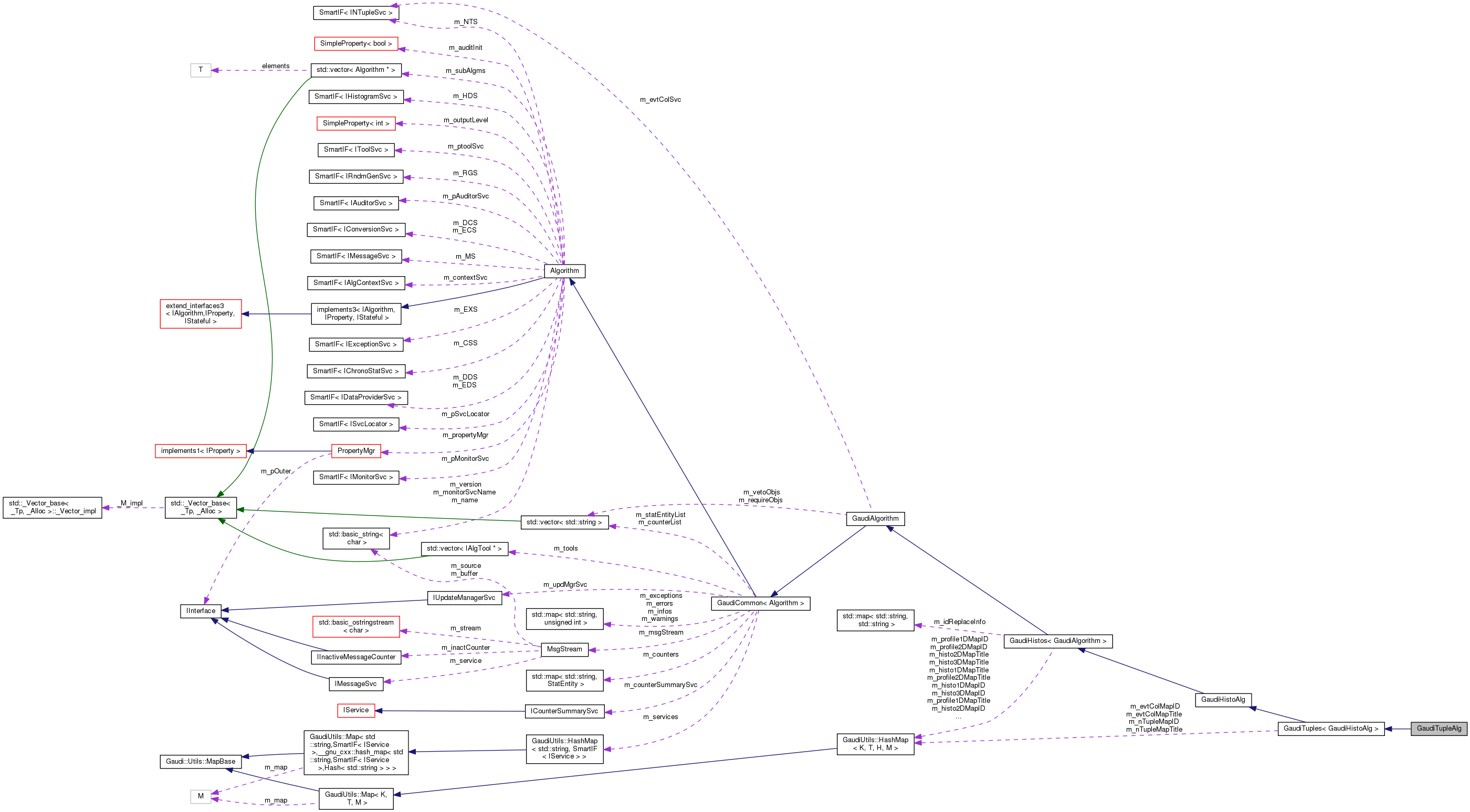

Collaboration diagram for GaudiTupleAlg:

Protected Member Functions
	GaudiTupleAlg (const std::string &name, ISvcLocator *svc)
	standard constructor

virtual	~GaudiTupleAlg ()
	destructor

virtual StatusCode	initialize ()
	standard initialization method

virtual StatusCode	finalize ()
	standard finalization method

Protected Member Functions inherited from GaudiTuples< GaudiHistoAlg >
const TupleMapTitle &	nTupleMapTitle () const
	access to the all ntuples by title

const TupleMapTitle &	evtColMapTitle () const
	access to the all evet tag collections by title

const TupleMapID &	nTupleMapID () const
	access to the all ntuples by numeric ID

const TupleMapID &	evtColMapID () const
	access to the all evet tag collections by numeric ID

virtual Tuples::TupleObj *	createNTuple (const std::string &name, NTuple::Tuple *tuple, const CLID &clid) const
	create TupleObj

virtual Tuples::TupleObj *	createEvtCol (const std::string &name, NTuple::Tuple *tuple, const CLID &clid) const
	create TupleObj for event tag collection

Protected Member Functions inherited from GaudiHistoAlg
	GaudiHistoAlg (const std::string &name, ISvcLocator *pSvc)
	Standard constructor (protected)

virtual	~GaudiHistoAlg ()
	virtual destructor

Protected Member Functions inherited from GaudiHistos< GaudiAlgorithm >
std::string	convertTitleToID (const std::string &title) const
	Create an ID string from a title string.

Private Member Functions
	GaudiTupleAlg ()
	default constructor is disabled

	GaudiTupleAlg (const GaudiTupleAlg &)
	copy constructor is disabled

GaudiTupleAlg &	operator= (const GaudiTupleAlg &)
	assignment operator is disabled

Additional Inherited Members
Public Types inherited from GaudiTuples< GaudiHistoAlg >
typedef GaudiAlg::HistoID	HistoID
	the actual type for histogram identifier

typedef Tuples::Tuple	Tuple
	the actual type of the tuple

typedef GaudiAlg::TupleID	TupleID
	the actual type of N-tuple ID

typedef GaudiAlg::TupleMapTitle	TupleMapTitle
	the actual type of (title) -> (tuple) mappping

typedef GaudiAlg::TupleMapID	TupleMapID
	the actual type of (Numeric ID) -> (tuple) mappping

Public Member Functions inherited from GaudiTuples< GaudiHistoAlg >
Tuple	nTuple (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	Access an N-Tuple object (book on-demand) with unique identifier.

Tuple	nTuple (const TupleID &ID, const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	Access an N-Tuple object (book on-demand) with forced identifier.

Tuple	evtCol (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	Access an Event Tag Collection object (book on-demand) with unique identifier.

Tuple	evtCol (const TupleID &ID, const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	Access an Event Tag Collection object (book on-demand) with forced identifier.

bool	produceNTuples () const
	get the flag for N-Tuple production (property "NTupleProduce")

bool	splitNTupleDir () const
	get the flag for N-Tuple path split (property "NTupleSplitDir")

const std::string &	nTupleLUN () const
	get the logical unit for N-Tuples (property "NTupleLUN")

const std::string &	nTupleTopDir () const
	get the top-level N-Tuple directory (property "NTupleTopDir")

const std::string &	nTupleDir () const
	get the N-Tuple directory (property "NTupleDir")

TupleID::NumericID	nTupleOffSet () const
	get the value for N-Tuple offset (property "NTupleOffSet")

std::string	nTuplePath () const
	get the constructed N-Tuple path

bool	produceEvtCols () const
	get the flag for Event Tag Collection production (property "EvtColsProduce")

bool	splitEvtColDir () const
	get the flag for Event Tag Collection path split (property "EvtColsSplitDir")

const std::string &	evtColLUN () const
	get the logical unit for Event Tag Collections (property "EvtColsLUN")

const std::string &	evtColTopDir () const
	get the top-level Event Tag Collection directory (property "EvtColsTopDir")

const std::string &	evtColDir () const
	get the Event Tag Collection directory (property "EvtColsDir")

TupleID::NumericID	evtColOffSet () const
	get the value for Event Tag Collection offset (property "EvtColsOffSet")

std::string	evtColPath () const
	get the constructed Event Tag Collection path

bool	tuplesPrint () const
	print tuples at finalization

bool	evtColsPrint () const
	print event collections at finalization

long	printTuples () const
	perform the actual printout of N-tuples

long	printEvtCols () const
	perform the actual printout of Event Tag Collections

bool	nTupleExists (const TupleID &ID) const
	check the existence AND validity of the N-Tuple with the given ID

bool	evtColExists (const TupleID &ID) const
	check the existence AND validity of the Event Tag Collection with the given ID

	GaudiTuples (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor.

	GaudiTuples (const std::string &type, const std::string &name, const IInterface *parent)
	Tool constructor.

virtual	~GaudiTuples ()
	Destructor.

Protected Types inherited from GaudiCommon< Algorithm >
typedef std::map< std::string, StatEntity >	Statistics
	the actual type of general counters

typedef std::map< std::string, unsigned int >	Counter
	the actual type error/warning counter

typedef std::vector< IAlgTool * >	AlgTools
	storage for active tools

typedef GaudiUtils::HashMap < std::string, SmartIF < IService > >	Services
	storage for active services

Protected Attributes inherited from GaudiCommon< Algorithm >
ICounterSummarySvc *	m_counterSummarySvc
	a pointer to the CounterSummarySvc

std::vector< std::string >	m_counterList
	list of counters to declare. Set by property CounterList. This can be a regular expression.

std::vector< std::string >	m_statEntityList

Static Protected Attributes inherited from GaudiCommon< Algorithm >
static const bool	IgnoreRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.

static const bool	UseRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.

Detailed Description

Simple class to extend the functionality of class GaudiHistoAlg.

Class is instrumented with few methods for dealing with N-tuples and Event Tag collections

Attention: See the class GaudiTuples, which implements the common functionality between GaudiTupleTool and GaudiTupleAlg

Author: Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru; Chris Jones Chris.nosp@m.toph.nosp@m.er.Ro.nosp@m.b.Jo.nosp@m.nes@c.nosp@m.ern..nosp@m.ch

Date: 2004-01-23

Definition at line 42 of file GaudiTupleAlg.h.

Constructor & Destructor Documentation

GaudiTupleAlg::GaudiTupleAlg	(	const std::string &	name,
		ISvcLocator *	svc
	)

protected

standard constructor

See Also: GaudiHistoAlg; GaudiAlgorithm; Algorithm; IAlgFactory

Definition at line 30 of file GaudiTupleAlg.cpp.

: GaudiTuples<GaudiHistoAlg> ( name , svc ) { }

GaudiTupleAlg::~GaudiTupleAlg ( )

protectedvirtual

destructor

Definition at line 38 of file GaudiTupleAlg.cpp.

{ }

GaudiTupleAlg::GaudiTupleAlg ( )

private

default constructor is disabled

GaudiTupleAlg::GaudiTupleAlg ( const GaudiTupleAlg & )

private

copy constructor is disabled

Member Function Documentation

StatusCode GaudiTupleAlg::finalize ( )

protectedvirtual

standard finalization method

See Also: Algorithm; IAlgorithm

Returns: status code

Reimplemented from GaudiTuples< GaudiHistoAlg >.

Definition at line 54 of file GaudiTupleAlg.cpp.

{
  // finalize the base class and return
  return GaudiTuples<GaudiHistoAlg>::finalize();
}

StatusCode GaudiTupleAlg::initialize ( )

protectedvirtual

standard initialization method

See Also: Algorithm; IAlgorithm

Returns: status code

Reimplemented from GaudiTuples< GaudiHistoAlg >.

Definition at line 44 of file GaudiTupleAlg.cpp.

{
  // initialize the base class and return
  return GaudiTuples<GaudiHistoAlg>::initialize();
}

GaudiTupleAlg& GaudiTupleAlg::operator= ( const GaudiTupleAlg & )

private

assignment operator is disabled

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r5/GaudiAlg/GaudiAlg/GaudiTupleAlg.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r5/GaudiAlg/src/lib/GaudiTupleAlg.cpp

Gaudi Framework, version v23r5
