Base class from which all the concrete tool classes should be derived. More...

#include <GaudiKernel/AlgTool.h>

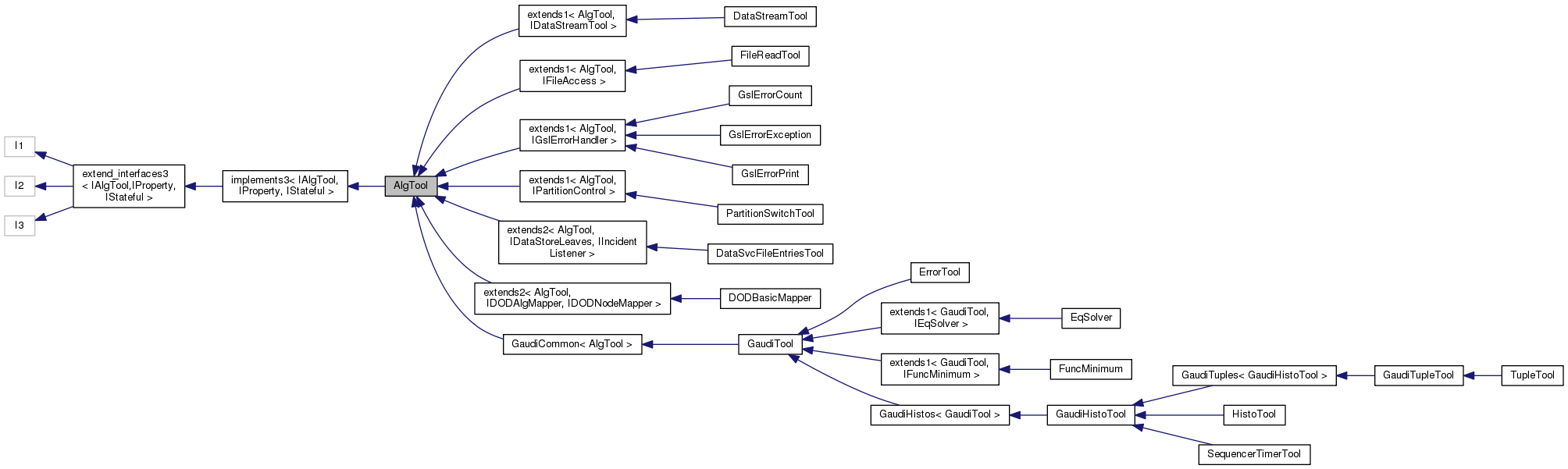

Inheritance diagram for AlgTool:

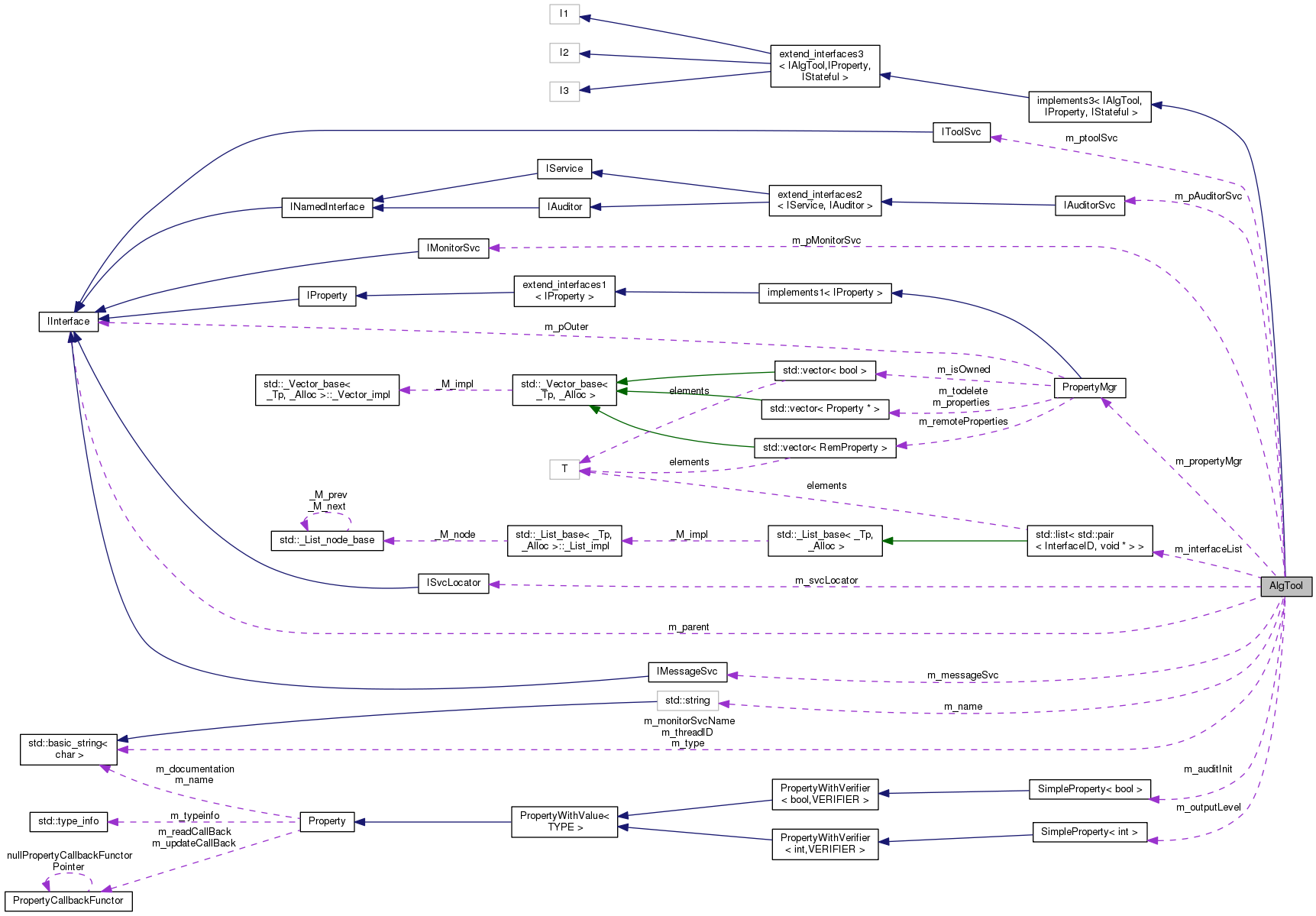

Collaboration diagram for AlgTool:

Classes
class	declareInterface

Public Member Functions
virtual StatusCode	queryInterface (const InterfaceID &riid, void **ppvUnknown)
	Query for a given interface.

virtual const std::string &	name () const
	Retrieve full identifying name of the concrete tool object.

virtual const std::string &	type () const
	Retrieve type (concrete class) of the sub-algtool.

virtual const IInterface *	parent () const
	Retrieve parent of the sub-algtool.

virtual StatusCode	configure ()

virtual StatusCode	initialize ()

virtual StatusCode	start ()

virtual StatusCode	stop ()

virtual StatusCode	finalize ()

virtual StatusCode	terminate ()

virtual StatusCode	reinitialize ()

virtual StatusCode	restart ()

virtual Gaudi::StateMachine::State	FSMState () const

virtual Gaudi::StateMachine::State	targetFSMState () const

virtual StatusCode	sysInitialize ()
	Initialize AlgTool.

virtual StatusCode	sysStart ()
	Start AlgTool.

virtual StatusCode	sysStop ()
	Stop AlgTool.

virtual StatusCode	sysFinalize ()
	Finalize AlgTool.

virtual StatusCode	sysReinitialize ()
	Initialize AlgTool.

virtual StatusCode	sysRestart ()
	Start AlgTool.

virtual StatusCode	setProperty (const Property &p)
	Default implementations for IProperty interface.

virtual StatusCode	setProperty (const std::string &s)

virtual StatusCode	setProperty (const std::string &n, const std::string &v)

virtual StatusCode	getProperty (Property *p) const

virtual const Property &	getProperty (const std::string &name) const

virtual StatusCode	getProperty (const std::string &n, std::string &v) const

virtual const std::vector < Property * > &	getProperties () const

PropertyMgr *	getPropertyMgr ()

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value

	AlgTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard Constructor.

ISvcLocator *	serviceLocator () const
	Retrieve pointer to service locator.

ISvcLocator *	svcLoc () const
	shortcut for the method service locator

IMessageSvc *	msgSvc () const
	Retrieve pointer to message service.

IToolSvc *	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present.

StatusCode	setProperties ()
	Method for setting declared properties to the values specified in the jobOptions via the job option service.

template<class T >
StatusCode	service (const std::string &name, T *&svc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&svc) const
	Access a service by name, type creating it if it doesn't already exist.

SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name")

void	declInterface (const InterfaceID &, void *)
	declare interface

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.

Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.

IAuditorSvc *	auditorSvc () const
	Access the auditor service.

IMonitorSvc *	monitorSvc () const
	Access the monitor service.

template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information.

void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case)

Protected Member Functions
int	outputLevel () const
	get tool's output level

IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property.

void	initOutputLevel (Property &prop)
	callback for output level property

virtual	~AlgTool ()

Private Types
typedef std::list< std::pair < InterfaceID, void * > >	InterfaceList

Private Member Functions
StatusCode	service_i (const std::string &algName, bool createIf, const InterfaceID &iid, void **ppSvc) const
	implementation of service method

StatusCode	service_i (const std::string &svcType, const std::string &svcName, const InterfaceID &iid, void **ppS) const

Private Attributes
IntegerProperty	m_outputLevel
	AlgTool output level.

std::string	m_type
	AlgTool type (concrete class name)

const std::string	m_name
	AlgTool full name.

const IInterface *	m_parent
	AlgTool parent.

ISvcLocator *	m_svcLocator
	Pointer to Service Locator service.

IMessageSvc *	m_messageSvc
	Message service.

IToolSvc *	m_ptoolSvc
	Tool service.

IMonitorSvc *	m_pMonitorSvc
	Online Monitoring Service.

std::string	m_monitorSvcName
	Name to use for Monitor Service.

PropertyMgr *	m_propertyMgr
	Property Manager.

InterfaceList	m_interfaceList
	Interface list.

std::string	m_threadID
	Thread Id for Alg Tool.

IAuditorSvc *	m_pAuditorSvc
	Auditor Service.

BooleanProperty	m_auditInit

bool	m_auditorInitialize
	flag for auditors in "initialize()"

bool	m_auditorStart
	flag for auditors in "start()"

bool	m_auditorStop
	flag for auditors in "stop()"

bool	m_auditorFinalize
	flag for auditors in "finalize()"

bool	m_auditorReinitialize
	flag for auditors in "reinitialize()"

bool	m_auditorRestart
	flag for auditors in "restart()"

Gaudi::StateMachine::State	m_state
	state of the Tool

Gaudi::StateMachine::State	m_targetState
	state of the Tool

Friends
class	ToolSvc

Additional Inherited Members
Public Types inherited from implements3< IAlgTool, IProperty, IStateful >
typedef implements3	base_class
	Typedef to this class.

typedef extend_interfaces3 < IAlgTool, IProperty, IStateful >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Detailed Description

Base class from which all the concrete tool classes should be derived.

Specific methods for doing something useful should be implemented in the concrete tools. Sub-types of this class could implement an additional interface for behavior common to sets of concrete tools (for example vertexers).

Author: Gloria Corti; Pere Mato

Definition at line 33 of file AlgTool.h.

Member Typedef Documentation

typedef std::list<std::pair<InterfaceID,void*> > AlgTool::InterfaceList

private

Definition at line 314 of file AlgTool.h.

Constructor & Destructor Documentation

AlgTool::AlgTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard Constructor.

Parameters

type	the concrete class of the sub-algtool
name	the full name of the concrete sub-algtool
parent	the parent of the concrete sub-algtool

Definition at line 179 of file AlgTool.cpp.

  : m_outputLevel ( MSG::NIL )
  , m_type          ( type )
  , m_name          ( name )
  , m_parent        ( parent )
  , m_svcLocator    ( 0 )
  , m_messageSvc    ( 0 )
  , m_ptoolSvc      ( 0 )
  , m_pMonitorSvc   ( NULL )
  , m_propertyMgr   ( new PropertyMgr() )
  , m_interfaceList (       )
  , m_threadID      (       )
  , m_pAuditorSvc   ( 0     )
  , m_auditInit     ( false )
  , m_state         ( Gaudi::StateMachine::CONFIGURED )
  , m_targetState   ( Gaudi::StateMachine::CONFIGURED )
{
  addRef(); // Initial count set to 1
  declareProperty( "MonitorService", m_monitorSvcName = "MonitorSvc" );
  { // get the "OutputLevel" property from parent
    const Property* _p = Gaudi::Utils::getProperty ( parent , "OutputLevel") ;
    if ( 0 != _p ) { m_outputLevel.assign( *_p ) ; }
    declareProperty ( "OutputLevel"     , m_outputLevel ) ;
     m_outputLevel.declareUpdateHandler(&AlgTool::initOutputLevel, this);
  }
  IInterface* _p = const_cast<IInterface*> ( parent ) ;
  if      ( Algorithm* _alg = dynamic_cast<Algorithm*> ( _p ) )
  {
    m_svcLocator  = _alg -> serviceLocator  () ;
    m_messageSvc  = _alg -> msgSvc          () ;
    m_threadID    = getGaudiThreadIDfromName ( _alg -> name() ) ;
  }
  else if ( Service*   _svc = dynamic_cast<Service*>  ( _p ) )
  {
    m_svcLocator  = _svc -> serviceLocator () ;
    m_messageSvc  = _svc -> msgSvc         () ;
    m_threadID    = getGaudiThreadIDfromName ( _svc -> name() ) ;
  }
  else if ( AlgTool*   _too = dynamic_cast<AlgTool*>  ( _p ) )
  {
    m_svcLocator  = _too -> m_svcLocator;
    m_messageSvc  = _too -> m_messageSvc;
    m_threadID    = getGaudiThreadIDfromName ( _too ->m_threadID ) ;
  }
  else if ( Auditor*   _aud = dynamic_cast<Auditor*>  ( _p ) )
  {
    m_svcLocator  = _aud -> serviceLocator() ;
    m_messageSvc  = _aud -> msgSvc()         ;
    m_threadID    = getGaudiThreadIDfromName ( _aud -> name() )    ;
  }
  else
  {
    throw GaudiException
      ( "Failure to create tool '"
        + type + "/" + name + "': illegal parent type '"
        + System::typeinfoName(typeid(*_p)) + "'", "AlgTool", 0 );
  }
  { // audit tools
    SmartIF<IProperty> appMgr(m_svcLocator->service("ApplicationMgr"));
    if ( !appMgr.isValid() ) {
      throw GaudiException("Could not locate ApplicationMgr","AlgTool",0);
    }
    const Property* p = Gaudi::Utils::getProperty( appMgr , "AuditTools");
    if ( 0 != p ) { m_auditInit.assign ( *p ) ; }
    declareProperty ( "AuditTools", m_auditInit );
    bool audit = m_auditInit.value();
    // Declare common AlgTool properties with their defaults
    declareProperty ( "AuditInitialize" , m_auditorInitialize = audit ) ;
    declareProperty ( "AuditStart"      , m_auditorStart      = audit ) ;
    declareProperty ( "AuditStop"       , m_auditorStop       = audit ) ;
    declareProperty ( "AuditFinalize"   , m_auditorFinalize   = audit ) ;
  }
  // check thread ID and try if tool name indicates thread ID
  if ( m_threadID.empty() )
  { m_threadID = getGaudiThreadIDfromName ( AlgTool::name() ) ; }
}

AlgTool::~AlgTool ( )

protectedvirtual

Definition at line 569 of file AlgTool.cpp.

{
  delete m_propertyMgr;
  if( m_ptoolSvc ) m_ptoolSvc->release();
  if( m_pAuditorSvc ) m_pAuditorSvc->release();
  if ( m_pMonitorSvc ) { m_pMonitorSvc->undeclareAll(this); m_pMonitorSvc->release(); }
}

Member Function Documentation

IAuditorSvc * AlgTool::auditorSvc ( ) const

Access the auditor service.

Definition at line 605 of file AlgTool.cpp.

                                       {
//---------------------------------------------------------------------------
  if ( 0 == m_pAuditorSvc ) {
    StatusCode sc = service( "AuditorSvc", m_pAuditorSvc, true );
    if( sc.isFailure() ) {
      throw GaudiException("Service [AuditorSvc] not found", name(), sc);
    }
  }
  return m_pAuditorSvc;
}

virtual StatusCode AlgTool::configure ( )

inlinevirtual

Definition at line 50 of file AlgTool.h.

{ return StatusCode::SUCCESS; }

template<class T >

void AlgTool::declareInfo	(	const std::string &	name,
		const T &	var,
		const std::string &	desc
	)		const

inline

Declare monitoring information.

Parameters

name	Monitoring information name known to the external system
var	Monitoring Listener address (the item to monitor...)
desc	Textual description of the information being monitored

Definition at line 270 of file AlgTool.h.

  {
    IMonitorSvc* mS = monitorSvc();
    if ( mS ) mS->declareInfo(name, var, desc, this);
  }

void AlgTool::declareInfo	(	const std::string &	name,
		const std::string &	format,
		const void *	var,
		int	size,
		const std::string &	desc
	)		const

inline

Declare monitoring information (special case)

Parameters

name	Monitoring information name known to the external system
format	Format information
var	Monitoring Listener address
size	Monitoring Listener address size
desc	Textual description of the information being monitored

Definition at line 285 of file AlgTool.h.

  {
    IMonitorSvc* mS = monitorSvc();
    if ( mS ) mS->declareInfo(name, format, var, size, desc, this);
  }

template<class T >

Property* AlgTool::declareProperty	(	const std::string &	name,
		T &	property,
		const std::string &	doc = `"none"`
	)		const

inline

Declare the named property.

MyTool ( const std::string& type   ,
         const std::string& name   ,
         const IInterface*  parent )
   : AlgTool  ( type , name , pSvc )
   , m_property1   ( ... )
   , m_property2   ( ... )
 {
   // declare the property
   declareProperty( "Property1" , m_property1 , "Doc for property #1" ) ;
   // declare the property and attach the handler to it
   declareProperty( "Property2" , m_property2 , "Doc for property #2" )
      -> declareUpdateHandler( &MyTool::handler_2 ) ;
 }

See Also: PropertyMgr; PropertyMgr::declareProperty

Parameters

name	the property name
property	the property itself,
doc	the documentation string

Returns: the actual property objects

Definition at line 227 of file AlgTool.h.

  {
    return m_propertyMgr -> declareProperty ( name , property , doc ) ;
  }

Property* AlgTool::declareRemoteProperty	(	const std::string &	name,
		IProperty *	rsvc,
		const std::string &	rname = `""`
	)		const

inline

Declare remote named properties.

Definition at line 235 of file AlgTool.h.

  {
    return m_propertyMgr-> declareRemoteProperty ( name , rsvc , rname ) ;
  }

void AlgTool::declInterface	(	const InterfaceID &	iid,
		void *	ii
	)

declare interface

Definition at line 43 of file AlgTool.cpp.

{
  m_interfaceList.push_back(std::make_pair(iid, ii));
}

StatusCode AlgTool::finalize ( )

virtual

Reimplemented in GaudiHistos< GaudiTool >, GaudiCommon< AlgTool >, GaudiTuples< GaudiHistoTool >, GaudiTool, GaudiHistoTool, GaudiTupleTool, PartitionSwitchTool, FuncMinimum, SequencerTimerTool, DataStreamTool, EqSolver, GslErrorCount, and DataSvcFileEntriesTool.

Definition at line 433 of file AlgTool.cpp.

{
  // For the time being there is nothing to be done here.
  return StatusCode::SUCCESS;
}

virtual Gaudi::StateMachine::State AlgTool::FSMState ( ) const

inlinevirtual

Definition at line 58 of file AlgTool.h.

{ return m_state; }

const std::vector< Property * > & AlgTool::getProperties ( ) const

virtual

Definition at line 140 of file AlgTool.cpp.

{
  return m_propertyMgr->getProperties();
}

StatusCode AlgTool::getProperty ( Property * p ) const

virtual

Definition at line 120 of file AlgTool.cpp.

{
  return m_propertyMgr->getProperty(p);
}

const Property & AlgTool::getProperty ( const std::string & name ) const

virtual

Definition at line 127 of file AlgTool.cpp.

{
  return m_propertyMgr->getProperty(n);
}

StatusCode AlgTool::getProperty	(	const std::string &	n,
		std::string &	v
	)		const

virtual

Definition at line 133 of file AlgTool.cpp.

{
  return m_propertyMgr->getProperty(n,v);
}

PropertyMgr* AlgTool::getPropertyMgr ( )

inline

Definition at line 88 of file AlgTool.h.

{ return m_propertyMgr; }

StatusCode AlgTool::initialize ( )

virtual

Reimplemented in GaudiHistos< GaudiTool >, GaudiCommon< AlgTool >, GaudiTuples< GaudiHistoTool >, GaudiTool, GaudiHistoTool, GaudiTupleTool, FuncMinimum, SequencerTimerTool, EqSolver, PartitionSwitchTool, DataStreamTool, and DataSvcFileEntriesTool.

Definition at line 302 of file AlgTool.cpp.

{
  // For the time being there is nothing to be done here.
  // Setting the properties is done by the ToolSvc calling setProperties()
  // explicitly.
  return StatusCode::SUCCESS;
}

void AlgTool::initOutputLevel ( Property & prop )

protected

callback for output level property

Definition at line 618 of file AlgTool.cpp.

                                          {
//-----------------------------------------------------------------------------
   // do nothing... yet ?
}

IMonitorSvc* AlgTool::monitorSvc ( ) const

inline

Access the monitor service.

Attention: Note that this method will return a NULL pointer if no monitor service is configured to be present. You must take this possibility into account when using the pointer

Returns: Pointer to the Monitor service

Return values

NULL	No monitor service is present
non-NULL	A monitor service is present and available to be used

Definition at line 254 of file AlgTool.h.

  {
    // If not already located try to locate it without forcing a creation
    if ( !m_pMonitorSvc ){
      service_i( m_monitorSvcName, false,
                 IMonitorSvc::interfaceID(), pp_cast<void>(&m_pMonitorSvc) ).ignore();
    }
    return m_pMonitorSvc;
  }

IMessageSvc * AlgTool::msgSvc ( ) const

Retrieve pointer to message service.

Definition at line 79 of file AlgTool.cpp.

{
  return m_messageSvc;
}

const std::string & AlgTool::name ( ) const

virtual

Retrieve full identifying name of the concrete tool object.

Definition at line 51 of file AlgTool.cpp.

{
  return m_name;
}

int AlgTool::outputLevel ( ) const

inlineprotected

get tool's output level

Definition at line 298 of file AlgTool.h.

{ return (int)m_outputLevel ; }

IntegerProperty& AlgTool::outputLevelProperty ( )

inlineprotected

Accessor for the Message level property.

Definition at line 301 of file AlgTool.h.

{ return m_outputLevel; }

const IInterface * AlgTool::parent ( ) const

virtual

Retrieve parent of the sub-algtool.

Definition at line 65 of file AlgTool.cpp.

{
  return m_parent;
}

StatusCode AlgTool::queryInterface	(	const InterfaceID &	riid,
		void **	ppvUnknown
	)

virtual

Query for a given interface.

Reimplemented in extends2< AlgTool, IDODAlgMapper, IDODNodeMapper >, extends2< AlgTool, IDataStoreLeaves, IIncidentListener >, extends1< AlgTool, IDataStreamTool >, extends1< GaudiTool, IFuncMinimum >, extends1< AlgTool, IGslErrorHandler >, extends1< AlgTool, IFileAccess >, extends1< AlgTool, IPartitionControl >, and extends1< GaudiTool, IEqSolver >.

Definition at line 18 of file AlgTool.cpp.

{
  if ( 0 == ppvi ) { return StatusCode::FAILURE ; } // RETURN
  StatusCode sc = base_class::queryInterface(riid,ppvi);
  if (sc.isSuccess()) {
    return sc;
  }
  else {
    for ( InterfaceList::iterator it = m_interfaceList.begin() ;
          m_interfaceList.end() != it ; ++it )
    {
      if ( !it->first.versionMatch ( riid ) ) { continue ; }
      // OK
      *ppvi = it->second ;
      addRef() ;
      return SUCCESS ;     // RETURN
    }
    *ppvi = 0 ;
    return NO_INTERFACE ;  // RETURN
  }
  // cannot reach this point
}

StatusCode AlgTool::reinitialize ( )

virtual

Definition at line 482 of file AlgTool.cpp.

{
  /* @TODO
   * MCl 2008-10-23: the implementation of reinitialize as finalize+initialize
   *                 is causing too many problems
   *
  // Default implementation is finalize+initialize
  StatusCode sc = finalize();
  if (sc.isFailure()) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << "reinitialize(): cannot be finalized" << endmsg;
    return sc;
  }
  sc = initialize();
  if (sc.isFailure()) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << "reinitialize(): cannot be initialized" << endmsg;
    return sc;
  }
  */
  return StatusCode::SUCCESS;
}

StatusCode AlgTool::restart ( )

virtual

Definition at line 549 of file AlgTool.cpp.

{
  // Default implementation is stop+start
  StatusCode sc = stop();
  if (sc.isFailure()) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << "restart(): cannot be stopped" << endmsg;
    return sc;
  }
  sc = start();
  if (sc.isFailure()) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << "restart(): cannot be started" << endmsg;
    return sc;
  }
  return StatusCode::SUCCESS;
}

template<class T >

StatusCode AlgTool::service	(	const std::string &	name,
		T *&	svc,
		bool	createIf = `true`
	)		const

inline

Access a service by name, creating it if it doesn't already exist.

Definition at line 172 of file AlgTool.h.

                                                                 {
    return service_i(name, createIf, T::interfaceID(), (void**)&svc);
  }

template<class T >

StatusCode AlgTool::service	(	const std::string &	type,
		const std::string &	name,
		T *&	svc
	)		const

inline

Access a service by name, type creating it if it doesn't already exist.

Definition at line 179 of file AlgTool.h.

                                                                                   {
    return service_i(type, name, T::interfaceID(), (void**)&svc);
  }

SmartIF< IService > AlgTool::service	(	const std::string &	name,
		const bool	createIf = `true`,
		const bool	quiet = `false`
	)		const

Return a pointer to the service identified by name (or "type/name")

Definition at line 599 of file AlgTool.cpp.

                                                                                                     {
  const ServiceLocatorHelper helper(*serviceLocator(), *this);
  return helper.service(name, quiet, createIf);
}

StatusCode AlgTool::service_i	(	const std::string &	algName,
		bool	createIf,
		const InterfaceID &	iid,
		void **	ppSvc
	)		const

private

implementation of service method

Definition at line 581 of file AlgTool.cpp.

                                       {
  const ServiceLocatorHelper helper(*serviceLocator(), *this);
  return helper.getService(svcName, createIf, iid, ppSvc);
}

StatusCode AlgTool::service_i	(	const std::string &	svcType,
		const std::string &	svcName,
		const InterfaceID &	iid,
		void **	ppS
	)		const

private

Definition at line 591 of file AlgTool.cpp.

                                       {
  const ServiceLocatorHelper helper(*serviceLocator(), *this);
  return  helper.createService(svcType, svcName, iid, ppSvc);
}

ISvcLocator * AlgTool::serviceLocator ( ) const

Retrieve pointer to service locator.

Definition at line 72 of file AlgTool.cpp.

{
  return m_svcLocator;
}

StatusCode AlgTool::setProperties ( )

Method for setting declared properties to the values specified in the jobOptions via the job option service.

This method is called by the ToolSvc after creating the concrete tool, before passing it to the requesting parent and does not need to be called explicitly.

Definition at line 147 of file AlgTool.cpp.

{
  if( m_svcLocator == 0) {
    return StatusCode::FAILURE;
  }
  SmartIF<IJobOptionsSvc> jos(m_svcLocator->service("JobOptionsSvc"));
  if( !jos.isValid() )  return StatusCode::FAILURE;
  // set first generic Properties
  StatusCode sc = jos->setMyProperties( getGaudiThreadGenericName(name()), this );
  if( sc.isFailure() ) return StatusCode::FAILURE;
  // set specific Properties
  if (isGaudiThreaded(name())) {
    if(jos->setMyProperties( name(), this ).isFailure()) {
      return StatusCode::FAILURE;
    }
  }
  // Change my own outputlevel
  if ( 0 != m_messageSvc )
  {
    if ( MSG::NIL != m_outputLevel )
    { m_messageSvc -> setOutputLevel ( name () , m_outputLevel ) ; }
    m_outputLevel = m_messageSvc -> outputLevel ( name () ) ;
  }
  return StatusCode::SUCCESS;
}

StatusCode AlgTool::setProperty ( const Property & p )

virtual

Default implementations for IProperty interface.

Definition at line 99 of file AlgTool.cpp.

{
  return m_propertyMgr->setProperty(p);
}

StatusCode AlgTool::setProperty ( const std::string & s )

virtual

Definition at line 106 of file AlgTool.cpp.

{
  return m_propertyMgr->setProperty(s);
}

StatusCode AlgTool::setProperty	(	const std::string &	n,
		const std::string &	v
	)

virtual

Definition at line 113 of file AlgTool.cpp.

{
  return m_propertyMgr->setProperty(n,v);
}

template<class TYPE >

StatusCode AlgTool::setProperty	(	const std::string &	name,
		const TYPE &	value
	)

inline

set the property form the value

std::vector<double> data = ... ;
setProperty( "Data" , data ) ;
std::map<std::string,double> cuts = ... ;
setProperty( "Cuts" , cuts ) ;
std::map<std::string,std::string> dict = ... ;
setProperty( "Dictionary" , dict ) ;

Note: the interface IProperty allows setting of the properties either directly from other properties or from strings only

This is very convenient in resetting of the default properties in the derived classes. E.g. without this method one needs to convert everything into strings to use IProperty::setProperty

setProperty ( "OutputLevel" , "1"    ) ;
setProperty ( "Enable"      , "True" ) ;
setProperty ( "ErrorMax"    , "10"   ) ;

For simple cases it is more or less ok, but for complicated properties it is just ugly..

Parameters

name	name of the property
value	value of the property

See Also: Gaudi::Utils::setProperty

Author: Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date: 2007-05-13

Definition at line 134 of file AlgTool.h.

{ return Gaudi::Utils::setProperty ( m_propertyMgr , name , value ) ; }

StatusCode AlgTool::start ( )

virtual

Definition at line 347 of file AlgTool.cpp.

{
  // For the time being there is nothing to be done here.
  return StatusCode::SUCCESS;
}

StatusCode AlgTool::stop ( )

virtual

Definition at line 390 of file AlgTool.cpp.

{
  // For the time being there is nothing to be done here.
  return StatusCode::SUCCESS;
}

ISvcLocator* AlgTool::svcLoc ( ) const

inline

shortcut for the method service locator

Definition at line 152 of file AlgTool.h.

{ return serviceLocator() ; }

StatusCode AlgTool::sysFinalize ( )

virtual

Finalize AlgTool.

Definition at line 398 of file AlgTool.cpp.

                                {
  //-----------------------------------------------------------------------------
  StatusCode sc;
  try {
    m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::FINALIZE,m_state);
    Gaudi::Guards::AuditorGuard guard(this,
                                      // check if we want to audit the initialize
                                      (m_auditorFinalize) ? auditorSvc() : 0,
                                      IAuditor::Finalize);
    sc = finalize();
    if (sc.isSuccess())
      m_state = m_targetState;
    return sc;
  }
  catch( const GaudiException& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysFinalize()" );
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught " << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
  }
  catch( const std::exception& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysFinalize()" );
    log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
  }
  catch( ... ) {
    MsgStream log ( msgSvc() , name() + ".sysFinalize()" );
    log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
  }
  return StatusCode::FAILURE;
}

StatusCode AlgTool::sysInitialize ( )

virtual

Initialize AlgTool.

Definition at line 267 of file AlgTool.cpp.

                                  {
  //-----------------------------------------------------------------------------
  StatusCode sc;
  try {
    m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::INITIALIZE,m_state);
    Gaudi::Guards::AuditorGuard guard(this,
                                      // check if we want to audit the initialize
                                      (m_auditorInitialize) ? auditorSvc() : 0,
                                      IAuditor::Initialize);
    sc = initialize();
    if (sc.isSuccess())
      m_state = m_targetState;
    return sc;
  }
  catch( const GaudiException& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysInitialize()" );
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught " << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
  }
  catch( const std::exception& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysInitialize()" );
    log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
  }
  catch( ... ) {
    MsgStream log ( msgSvc() , name() + ".sysInitialize()" );
    log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
  }
  return StatusCode::FAILURE ;
}

StatusCode AlgTool::sysReinitialize ( )

virtual

Initialize AlgTool.

Definition at line 441 of file AlgTool.cpp.

                                    {
  //-----------------------------------------------------------------------------
  StatusCode sc;
  // Check that the current status is the correct one.
  if ( Gaudi::StateMachine::INITIALIZED != FSMState() ) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR
        << "sysReinitialize(): cannot reinitialize tool not initialized"
        << endmsg;
    return StatusCode::FAILURE;
  }
  try {
    Gaudi::Guards::AuditorGuard guard(this,
                                      // check if we want to audit the initialize
                                      (m_auditorReinitialize) ? auditorSvc() : 0,
                                      IAuditor::ReInitialize);
    sc = reinitialize();
    return sc;
  }
  catch( const GaudiException& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysReinitialize()" );
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught" << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
  }
  catch( const std::exception& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysReinitialize()" );
    log << MSG::FATAL << " Standard std::exception is caught" << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
  }
  catch( ... ) {
    MsgStream log ( msgSvc() , name() + ".sysReinitialize()" );
    log << MSG::FATAL << "UNKNOWN Exception is caught" << endmsg;
  }
  return StatusCode::FAILURE ;
}

StatusCode AlgTool::sysRestart ( )

virtual

Start AlgTool.

Definition at line 507 of file AlgTool.cpp.

                               {
  //-----------------------------------------------------------------------------
  StatusCode sc;
  // Check that the current status is the correct one.
  if ( Gaudi::StateMachine::RUNNING != FSMState() ) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR
        << "sysRestart(): cannot reinitialize tool not started"
        << endmsg;
    return StatusCode::FAILURE;
  }
  try {
    m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::START,m_state);
    Gaudi::Guards::AuditorGuard guard(this,
                                      // check if we want to audit the initialize
                                      (m_auditorRestart) ? auditorSvc() : 0,
                                      IAuditor::ReStart);
    sc = restart();
    return sc;
  }
  catch( const GaudiException& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysRestart()" );
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught" << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
  }
  catch( const std::exception& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysRestart()" );
    log << MSG::FATAL << " Standard std::exception is caught" << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
  }
  catch( ... ) {
    MsgStream log ( msgSvc() , name() + ".sysRestart()" );
    log << MSG::FATAL << "UNKNOWN Exception is caught" << endmsg;
  }
  return StatusCode::FAILURE ;
}

StatusCode AlgTool::sysStart ( )

virtual

Start AlgTool.

Definition at line 312 of file AlgTool.cpp.

                             {
  //-----------------------------------------------------------------------------
  StatusCode sc;
  try {
    m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::START,m_state);
    Gaudi::Guards::AuditorGuard guard(this,
                                      // check if we want to audit the initialize
                                      (m_auditorStart) ? auditorSvc() : 0,
                                      IAuditor::Start);
    sc = start();
    if (sc.isSuccess())
      m_state = m_targetState;
    return sc;
  }
  catch( const GaudiException& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysStart()" );
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught " << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
  }
  catch( const std::exception& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysStart()" );
    log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
  }
  catch( ... ) {
    MsgStream log ( msgSvc() , name() + ".sysStart()" );
    log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
  }
  return StatusCode::FAILURE ;
}

StatusCode AlgTool::sysStop ( )

virtual

Stop AlgTool.

Definition at line 355 of file AlgTool.cpp.

                            {
  //-----------------------------------------------------------------------------
  StatusCode sc;
  try {
    m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::STOP,m_state);
    Gaudi::Guards::AuditorGuard guard(this,
                                      // check if we want to audit the initialize
                                      (m_auditorStop) ? auditorSvc() : 0,
                                      IAuditor::Stop);
    sc = stop();
    if (sc.isSuccess())
      m_state = m_targetState;
    return sc;
  }
  catch( const GaudiException& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysStop()" );
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught " << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
  }
  catch( const std::exception& Exception ) {
    MsgStream log ( msgSvc() , name() + ".sysStop()" );
    log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
  }
  catch( ... ) {
    MsgStream log ( msgSvc() , name() + ".sysStop()" );
    log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
  }
  return StatusCode::FAILURE ;
}

virtual Gaudi::StateMachine::State AlgTool::targetFSMState ( ) const

inlinevirtual

Definition at line 59 of file AlgTool.h.

{ return m_targetState; }

virtual StatusCode AlgTool::terminate ( )

inlinevirtual

Definition at line 55 of file AlgTool.h.

{ return StatusCode::SUCCESS; }

IToolSvc * AlgTool::toolSvc ( ) const

The standard ToolSvc service, Return a pointer to the service if present.

Definition at line 86 of file AlgTool.cpp.

{
  if ( 0 == m_ptoolSvc ) {
    StatusCode sc = service( "ToolSvc", m_ptoolSvc, true );
    if( sc.isFailure() ) {
      throw GaudiException("Service [ToolSvc] not found", name(), sc);
    }
  }
  return m_ptoolSvc;
}

const std::string & AlgTool::type ( ) const

virtual

Retrieve type (concrete class) of the sub-algtool.

Definition at line 58 of file AlgTool.cpp.

{
  return m_type;
}

Friends And Related Function Documentation

friend class ToolSvc

friend

Definition at line 34 of file AlgTool.h.

Member Data Documentation

BooleanProperty AlgTool::m_auditInit

private

Definition at line 340 of file AlgTool.h.

bool AlgTool::m_auditorFinalize

private

flag for auditors in "finalize()"

Definition at line 344 of file AlgTool.h.

bool AlgTool::m_auditorInitialize

private

flag for auditors in "initialize()"

Definition at line 341 of file AlgTool.h.

bool AlgTool::m_auditorReinitialize

private

flag for auditors in "reinitialize()"

Definition at line 345 of file AlgTool.h.

bool AlgTool::m_auditorRestart

private

flag for auditors in "restart()"

Definition at line 346 of file AlgTool.h.

bool AlgTool::m_auditorStart

private

flag for auditors in "start()"

Definition at line 342 of file AlgTool.h.

bool AlgTool::m_auditorStop

private

flag for auditors in "stop()"

Definition at line 343 of file AlgTool.h.

InterfaceList AlgTool::m_interfaceList

private

Interface list.

Definition at line 325 of file AlgTool.h.

IMessageSvc* AlgTool::m_messageSvc

mutableprivate

Message service.

Definition at line 320 of file AlgTool.h.

std::string AlgTool::m_monitorSvcName

private

Name to use for Monitor Service.

Definition at line 323 of file AlgTool.h.

const std::string AlgTool::m_name

private

AlgTool full name.

Definition at line 317 of file AlgTool.h.

IntegerProperty AlgTool::m_outputLevel

private

AlgTool output level.

Definition at line 315 of file AlgTool.h.

const IInterface* AlgTool::m_parent

private

AlgTool parent.

Definition at line 318 of file AlgTool.h.

IAuditorSvc* AlgTool::m_pAuditorSvc

mutableprivate

Auditor Service.

Definition at line 338 of file AlgTool.h.

IMonitorSvc* AlgTool::m_pMonitorSvc

mutableprivate

Online Monitoring Service.

Definition at line 322 of file AlgTool.h.

PropertyMgr* AlgTool::m_propertyMgr

private

Property Manager.

Definition at line 324 of file AlgTool.h.

IToolSvc* AlgTool::m_ptoolSvc

mutableprivate

Tool service.

Definition at line 321 of file AlgTool.h.

Gaudi::StateMachine::State AlgTool::m_state

private

state of the Tool

Definition at line 348 of file AlgTool.h.

ISvcLocator* AlgTool::m_svcLocator

mutableprivate

Pointer to Service Locator service.

Definition at line 319 of file AlgTool.h.

Gaudi::StateMachine::State AlgTool::m_targetState

private

state of the Tool

Definition at line 349 of file AlgTool.h.

std::string AlgTool::m_threadID

private

Thread Id for Alg Tool.

Definition at line 326 of file AlgTool.h.

std::string AlgTool::m_type

private

AlgTool type (concrete class name)

Definition at line 316 of file AlgTool.h.

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/GaudiKernel/GaudiKernel/AlgTool.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/GaudiKernel/src/Lib/AlgTool.cpp

Gaudi Framework, version v23r9

Classes

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
