Base class from which all concrete algorithm classes should be derived. More...

#include <GaudiKernel/Algorithm.h>

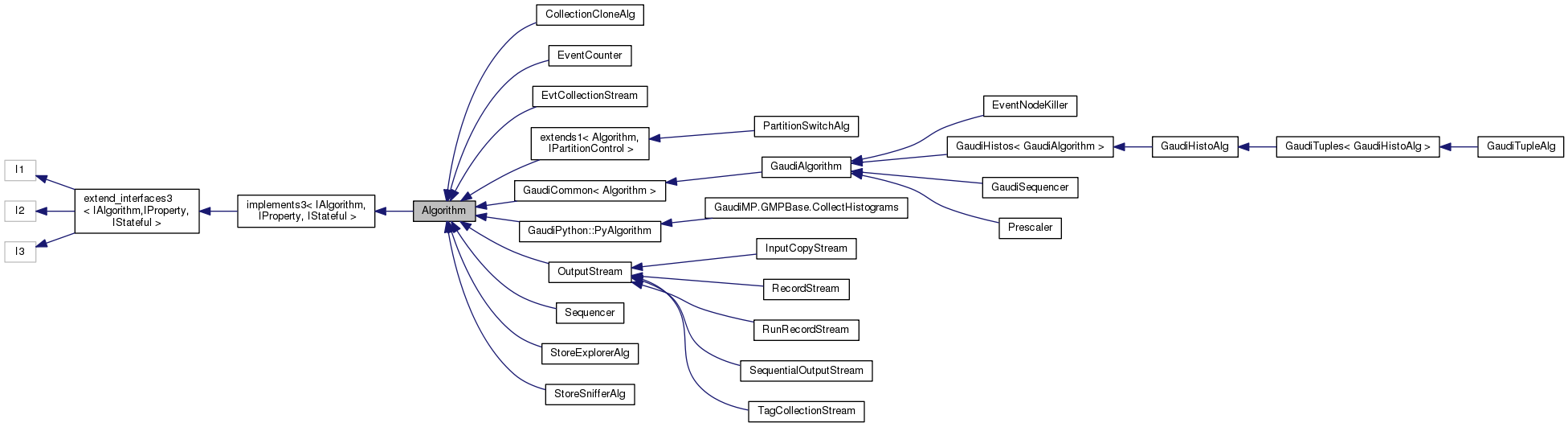

Inheritance diagram for Algorithm:

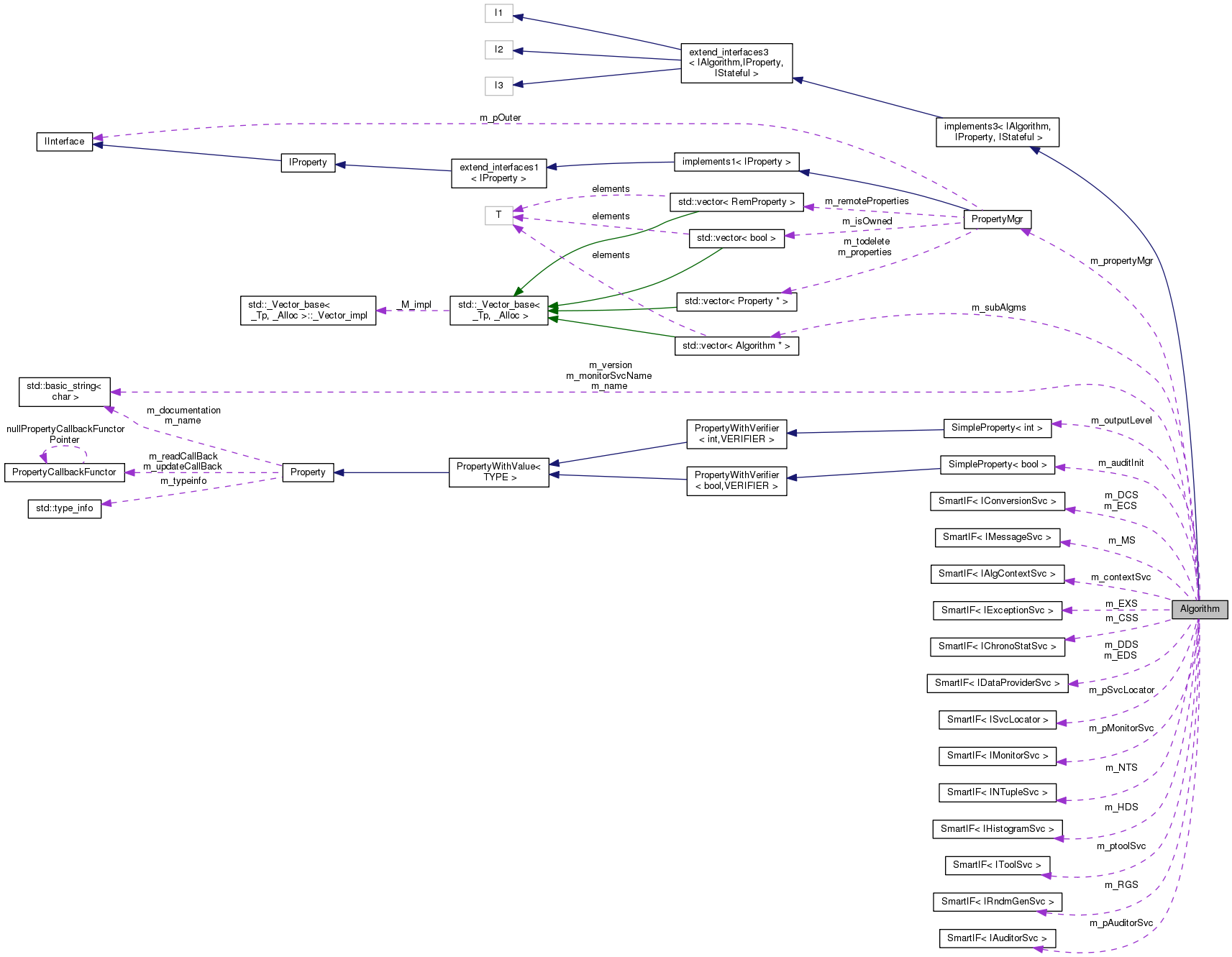

Collaboration diagram for Algorithm:

Public Member Functions
	Algorithm (const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
	Constructor.

virtual	~Algorithm ()
	Destructor.

virtual StatusCode	sysStart ()
	Reinitialization method invoked by the framework.

virtual StatusCode	sysInitialize ()
	Initialization method invoked by the framework.

virtual StatusCode	sysReinitialize ()
	Reinitialization method invoked by the framework.

virtual StatusCode	sysRestart ()
	Restart method invoked by the framework.

virtual StatusCode	sysExecute ()
	The actions to be performed by the algorithm on an event.

virtual StatusCode	sysStop ()
	System stop.

virtual StatusCode	sysFinalize ()
	System finalization.

virtual StatusCode	sysBeginRun ()
	beginRun method invoked by the framework.

virtual StatusCode	sysEndRun ()
	endRun method invoked by the framework.

virtual const std::string &	name () const
	The identifying name of the algorithm object.

virtual const std::string &	version () const

virtual StatusCode	configure ()
	Dummy implementation of IStateful::configure() method.

virtual StatusCode	terminate ()
	Dummy implementation of IStateful::terminate() method.

virtual StatusCode	initialize ()
	the default (empty) implementation of IStateful::initialize() method

virtual StatusCode	start ()
	the default (empty) implementation of IStateful::start() method

virtual StatusCode	stop ()
	the default (empty) implementation of IStateful::stop() method

virtual StatusCode	finalize ()
	the default (empty) implementation of IStateful::finalize() method

virtual StatusCode	reinitialize ()
	the default (empty) implementation of IStateful::reinitialize() method

virtual StatusCode	restart ()
	the default (empty) implementation of IStateful::restart() method

virtual bool	isExecuted () const
	Has this algorithm been executed since the last reset?

virtual void	setExecuted (bool state)
	Set the executed flag to the specified state.

virtual void	resetExecuted ()
	Reset the executed state of the Algorithm for the duration of the current event.

virtual StatusCode	beginRun ()
	Algorithm begin run.

virtual StatusCode	endRun ()
	Algorithm end run. This method is called at the end of the event loop.

virtual Gaudi::StateMachine::State	FSMState () const
	returns the current state of the algorithm

virtual Gaudi::StateMachine::State	targetFSMState () const
	returns the state the algorithm will be in after the ongoing transition

virtual bool	isEnabled () const
	Is this algorithm enabled or disabled?

virtual bool	filterPassed () const
	Did this algorithm pass or fail its filter criterion for the last event?

virtual void	setFilterPassed (bool state)
	Set the filter passed flag to the specified state.

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist.

SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name")

void	setOutputLevel (int level)
	Set the output level for current algorithm.

SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked.

SmartIF< IChronoStatSvc > &	chronoSvc () const
	The standard Chrono & Stat service, Return a pointer to the service if present.

SmartIF< IChronoStatSvc > &	chronoStatService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > &	detSvc () const
	The standard detector data service.

SmartIF< IDataProviderSvc > &	detDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > &	detCnvSvc () const
	The standard detector data persistency conversion service.

SmartIF< IConversionSvc > &	detDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > &	eventSvc () const
	The standard event data service.

SmartIF< IDataProviderSvc > &	evtSvc () const
	shortcut for method eventSvc

SmartIF< IDataProviderSvc > &	eventDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > &	eventCnvSvc () const
	The standard event data persistency conversion service.

SmartIF< IConversionSvc > &	eventDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IHistogramSvc > &	histoSvc () const
	The standard histogram service.

SmartIF< IHistogramSvc > &	histogramDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service.

SmartIF< IMessageSvc > &	messageService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< INTupleSvc > &	ntupleSvc () const
	The standard N tuple service.

SmartIF< INTupleSvc > &	ntupleService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IRndmGenSvc > &	randSvc () const
	AIDA-based NTuple service Returns a pointer to the AIDATuple service if present.

SmartIF< IToolSvc > &	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present.

SmartIF< IExceptionSvc > &	exceptionSvc () const
	Get the exception Service.

SmartIF< IAlgContextSvc > &	contextSvc () const
	get Algorithm Context Service

SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator.

SmartIF< ISvcLocator > &	svcLoc () const
	shortcut for method serviceLocator

bool	registerContext () const
	register for Algorithm Context Service?

StatusCode	createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
	Create a sub algorithm.

std::vector< Algorithm * > *	subAlgorithms () const
	List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

virtual StatusCode	setProperty (const Property &p)
	Implementation of IProperty::setProperty.

virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty.

virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty.

virtual StatusCode	getProperty (Property *p) const
	Implementation of IProperty::getProperty.

virtual const Property &	getProperty (const std::string &name) const
	Implementation of IProperty::getProperty.

virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty.

virtual const std::vector < Property * > &	getProperties () const
	Implementation of IProperty::getProperties.

StatusCode	setProperties ()
	Set the algorithm's properties.

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.

Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.

SmartIF< IMonitorSvc > &	monitorSvc () const
	Access the monitor service.

template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information.

void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case)

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value

Protected Member Functions
bool	isInitialized () const
	Has the Algorithm already been initialized?

bool	isFinalized () const
	Has the Algorithm already been finalized?

int	outputLevel () const
	retrieve the Algorithm output level

IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property.

void	initOutputLevel (Property &prop)
	callback for output level property

Private Member Functions
StatusCode	service_i (const std::string &svcName, bool createIf, const InterfaceID &iid, void **ppSvc) const
	implementation of service method

StatusCode	service_i (const std::string &svcType, const std::string &svcName, const InterfaceID &iid, void **ppSvc) const

	Algorithm (const Algorithm &a)
	Private Copy constructor: NO COPY ALLOWED.

Algorithm &	operator= (const Algorithm &rhs)
	Private assignment operator: NO ASSIGNMENT ALLOWED.

Private Attributes
std::string	m_name
	Algorithm's name for identification.

std::string	m_version
	Algorithm's version.

std::vector< Algorithm * > *	m_subAlgms
	Sub algorithms.

SmartIF< IMessageSvc >	m_MS
	Message service.

SmartIF< IDataProviderSvc >	m_EDS
	Event data service.

SmartIF< IConversionSvc >	m_ECS
	Event conversion service.

SmartIF< IDataProviderSvc >	m_DDS
	Detector data service.

SmartIF< IConversionSvc >	m_DCS
	Detector conversion service.

SmartIF< IHistogramSvc >	m_HDS
	Histogram data service.

SmartIF< INTupleSvc >	m_NTS
	N tuple service.

SmartIF< IChronoStatSvc >	m_CSS
	Chrono & Stat Service.

SmartIF< IRndmGenSvc >	m_RGS
	Random Number Generator Service.

SmartIF< IExceptionSvc >	m_EXS
	Exception Handler Service.

SmartIF< IAuditorSvc >	m_pAuditorSvc
	Auditor Service.

SmartIF< IToolSvc >	m_ptoolSvc
	ToolSvc Service.

SmartIF< IMonitorSvc >	m_pMonitorSvc
	Online Monitoring Service.

SmartIF< IAlgContextSvc >	m_contextSvc
	Algorithm Context Service.

bool	m_registerContext
	flag to register for Algorithm Context Service

std::string	m_monitorSvcName
	Name to use for Monitor Service.

SmartIF< ISvcLocator >	m_pSvcLocator
	Pointer to service locator service.

PropertyMgr *	m_propertyMgr
	For management of properties.

IntegerProperty	m_outputLevel
	Algorithm output level.

int	m_errorMax
	Algorithm Max number of errors.

int	m_errorCount
	Algorithm error counter.

BooleanProperty	m_auditInit
	global flag for auditors

bool	m_auditorInitialize
	flag for auditors in "initialize()"

bool	m_auditorReinitialize
	flag for auditors in "Reinitialize()"

bool	m_auditorRestart
	flag for auditors in "Restart()"

bool	m_auditorExecute
	flag for auditors in "execute()"

bool	m_auditorFinalize
	flag for auditors in "finalize()"

bool	m_auditorBeginRun
	flag for auditors in "beginRun()"

bool	m_auditorEndRun
	flag for auditors in "endRun()"

bool	m_auditorStart
	flag for auditors in "initialize()"

bool	m_auditorStop
	flag for auditors in "Reinitialize()"

bool	m_filterPassed
	Filter passed flag.

bool	m_isEnabled
	Algorithm is enabled flag.

bool	m_isExecuted
	Algorithm is executed flag.

Gaudi::StateMachine::State	m_state
	Algorithm has been initialized flag.

Gaudi::StateMachine::State	m_targetState
	Algorithm has been initialized flag.

bool	m_isFinalized
	Algorithm has been finalized flag.

Additional Inherited Members
Public Types inherited from implements3< IAlgorithm, IProperty, IStateful >
typedef implements3	base_class
	Typedef to this class.

typedef extend_interfaces3 < IAlgorithm, IProperty, IStateful >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Detailed Description

Base class from which all concrete algorithm classes should be derived.

In order for a concrete algorithm class to do anything useful the methods initialize(), execute() and finalize() should be overridden.

The base class provides utility methods for accessing standard services (event data service etc.); for declaring properties which may be configured by the job options service; and for creating sub algorithms. The only base class functionality which may be used in the constructor of a concrete algorithm is the declaration of member variables as properties. All other functionality, i.e. the use of services and the creation of sub-algorithms, may be used only in initialize() and afterwards (see the Gaudi user guide).

Author: Paul Maley; Pere Mato; David Quarrie

Date: 1998

Definition at line 62 of file Algorithm.h.

Constructor & Destructor Documentation

Algorithm::Algorithm	(	const std::string &	name,
		ISvcLocator *	svcloc,
		const std::string &	version = `PACKAGE_VERSION`
	)

Constructor.

Parameters

name	The algorithm object's name
svcloc	A pointer to a service location service

Definition at line 28 of file Algorithm.cpp.

  : m_name(name),
    m_version(version),
    m_registerContext ( false ) ,
    m_pSvcLocator(pSvcLocator),
    m_filterPassed(true),
    m_isEnabled(true),
    m_isExecuted(false),
    m_state(Gaudi::StateMachine::CONFIGURED),
    m_targetState(Gaudi::StateMachine::CONFIGURED)
{
  m_propertyMgr = new PropertyMgr();
  m_subAlgms = new std::vector<Algorithm *>();
  // Declare common Algorithm properties with their defaults
  declareProperty( "OutputLevel",        m_outputLevel = MSG::NIL);
  declareProperty( "Enable",             m_isEnabled = true);
  declareProperty( "ErrorMax",           m_errorMax  = 1);
  declareProperty( "ErrorCount",         m_errorCount = 0);
  // Auditor monitoring properties
  // Get the default setting for service auditing from the AppMgr
  declareProperty( "AuditAlgorithms", m_auditInit );
  bool audit(false);
  SmartIF<IProperty> appMgr(serviceLocator()->service("ApplicationMgr"));
  if (appMgr.isValid()) {
    const Property& prop = appMgr->getProperty("AuditAlgorithms");
    Property &pr = const_cast<Property&>(prop);
    if (m_name != "IncidentSvc") {
      setProperty( pr ).ignore();
    }
    audit = m_auditInit.value();
  }
  declareProperty( "AuditInitialize"  , m_auditorInitialize   = audit ) ;
  declareProperty( "AuditReinitialize", m_auditorReinitialize = audit ) ;
  declareProperty( "AuditRestart"     , m_auditorRestart      = audit ) ;
  declareProperty( "AuditExecute"     , m_auditorExecute      = audit ) ;
  declareProperty( "AuditFinalize"    , m_auditorFinalize     = audit ) ;
  declareProperty( "AuditBeginRun"    , m_auditorBeginRun     = audit ) ;
  declareProperty( "AuditEndRun"      , m_auditorEndRun       = audit ) ;
  declareProperty( "AuditStart"       , m_auditorStart        = audit ) ;
  declareProperty( "AuditStop"        , m_auditorStop         = audit ) ;
  declareProperty( "MonitorService"   , m_monitorSvcName      = "MonitorSvc" );
  declareProperty
    ( "RegisterForContextService" ,
      m_registerContext  ,
      "The flag to enforce the registration for Algorithm Context Service") ;
  // update handlers.
  m_outputLevel.declareUpdateHandler(&Algorithm::initOutputLevel, this);
}

Algorithm::~Algorithm ( )

virtual

Destructor.

Definition at line 87 of file Algorithm.cpp.

                      {
  delete m_subAlgms;
  delete m_propertyMgr;
}

Algorithm::Algorithm ( const Algorithm & a )

private

Private Copy constructor: NO COPY ALLOWED.

Member Function Documentation

SmartIF<IAuditorSvc>& Algorithm::auditorSvc ( ) const

The standard auditor service.May not be invoked before sysInitialize() has been invoked.

StatusCode Algorithm::beginRun ( )

virtual

Algorithm begin run.

This method is called at the beginning of the event loop.

Reimplemented in Sequencer, GaudiPython::PyAlgorithm, and GaudiSequencer.

Definition at line 497 of file Algorithm.cpp.

                               {
  return StatusCode::SUCCESS;
}

m_CSS m_DCS m_ECS m_EXS m_RGS m_contextSvc SmartIF< IChronoStatSvc > & Algorithm::chronoStatService ( ) const

Obsoleted name, kept due to the backwards compatibility.

Definition at line 923 of file Algorithm.cpp.

                                                            {
  return chronoSvc();
}

SmartIF<IChronoStatSvc>& Algorithm::chronoSvc ( ) const

The standard Chrono & Stat service, Return a pointer to the service if present.

virtual StatusCode Algorithm::configure ( )

inlinevirtual

Dummy implementation of IStateful::configure() method.

Definition at line 148 of file Algorithm.h.

{ return StatusCode::SUCCESS ; }

SmartIF<IAlgContextSvc>& Algorithm::contextSvc ( ) const

get Algorithm Context Service

StatusCode Algorithm::createSubAlgorithm	(	const std::string &	type,
		const std::string &	name,
		Algorithm *&	pSubAlg
	)

Create a sub algorithm.

A call to this method creates a child algorithm object. Note that the returned pointer is to Algorithm (as opposed to IAlgorithm), and thus the methods of IProperty are also available for the direct setting of the sub-algorithm's properties. Using this mechanism instead of creating daughter algorithms directly via the new operator is prefered since then the framework may take care of all of the necessary book-keeping.

Parameters

type	The concrete algorithm class of the sub algorithm
name	The name to be given to the sub algorithm
pSubAlg	Set to point to the newly created algorithm object

Definition at line 1116 of file Algorithm.cpp.

                                                                    {
  if( m_pSvcLocator == 0 ) return StatusCode::FAILURE;
  SmartIF<IAlgManager> am(m_pSvcLocator);
  if ( !am.isValid() ) return StatusCode::FAILURE;
  // Maybe modify the AppMgr interface to return Algorithm* ??
  IAlgorithm *tmp;
  StatusCode sc = am->createAlgorithm
    (type, name+getGaudiThreadIDfromName(Algorithm::name()), tmp);
  if( sc.isFailure() ) return StatusCode::FAILURE;
  try{
    pSubAlgorithm = dynamic_cast<Algorithm*>(tmp);
    m_subAlgms->push_back(pSubAlgorithm);
  } catch(...){
    sc = StatusCode::FAILURE;
  }
  return sc;
}

template<class T >

void Algorithm::declareInfo	(	const std::string &	name,
		const T &	var,
		const std::string &	desc
	)		const

inline

Declare monitoring information.

Parameters

name	Monitoring information name known to the external system
var	Monitoring Listener address (the item to monitor...)
desc	Textual description of the information being monitored

Definition at line 433 of file Algorithm.h.

  {
    IMonitorSvc* mS = monitorSvc().get();
    if ( mS ) mS->declareInfo(name, var, desc, this);
  }

void Algorithm::declareInfo	(	const std::string &	name,
		const std::string &	format,
		const void *	var,
		int	size,
		const std::string &	desc
	)		const

inline

Declare monitoring information (special case)

Parameters

name	Monitoring information name known to the external system
format	Format information
var	Monitoring Listener address
size	Monitoring Listener address size
desc	Textual description of the information being monitored

Definition at line 448 of file Algorithm.h.

  {
    IMonitorSvc* mS = monitorSvc().get();
    if ( mS ) mS->declareInfo(name, format, var, size, desc, this);
  }

template<class T >

Property* Algorithm::declareProperty	(	const std::string &	name,
		T &	property,
		const std::string &	doc = `"none"`
	)		const

inline

Declare the named property.

MyAlg ( const std::string& name ,
        ISvcLocator*       pSvc )
   : Algorithm ( name , pSvc )
   , m_property1   ( ... )
   , m_property2   ( ... )
 {
   // declare the property
   declareProperty( "Property1" , m_property1 , "Doc for property #1" ) ;
   // declare the property and attach the handler to it
   declareProperty( "Property2" , m_property2 , "Doc for property #2" )
      -> declareUpdateHandler( &MyAlg::handler_2 ) ;
 }

See Also: PropertyMgr; PropertyMgr::declareProperty

Parameters

name	the property name
property	the property itself,
doc	the documentation string

Returns: the actual property objects

Definition at line 393 of file Algorithm.h.

  {
    return m_propertyMgr->declareProperty(name, property, doc);
  }

Property* Algorithm::declareRemoteProperty	(	const std::string &	name,
		IProperty *	rsvc,
		const std::string &	rname = `""`
	)		const

inline

Declare remote named properties.

Definition at line 402 of file Algorithm.h.

  {
    return m_propertyMgr -> declareRemoteProperty ( name , rsvc , rname );
  }

SmartIF<IConversionSvc>& Algorithm::detCnvSvc ( ) const

The standard detector data persistency conversion service.

May not be invoked before sysInitialize() has been invoked.

SmartIF< IConversionSvc > & Algorithm::detDataCnvService ( ) const

Obsoleted name, kept due to the backwards compatibility.

Definition at line 931 of file Algorithm.cpp.

                                                            {
  return detCnvSvc();
}

SmartIF< IDataProviderSvc > & Algorithm::detDataService ( ) const

Obsoleted name, kept due to the backwards compatibility.

Definition at line 927 of file Algorithm.cpp.

                                                           {
  return detSvc();
}

SmartIF<IDataProviderSvc>& Algorithm::detSvc ( ) const

The standard detector data service.

May not be invoked before sysInitialize() has been invoked.

StatusCode Algorithm::endRun ( )

virtual

Algorithm end run. This method is called at the end of the event loop.

Reimplemented in Sequencer, GaudiPython::PyAlgorithm, and GaudiSequencer.

Definition at line 573 of file Algorithm.cpp.

                             {
  return StatusCode::SUCCESS;
}

SmartIF<IConversionSvc>& Algorithm::eventCnvSvc ( ) const

The standard event data persistency conversion service.

May not be invoked before sysInitialize() has been invoked.

SmartIF< IConversionSvc > & Algorithm::eventDataCnvService ( ) const

Obsoleted name, kept due to the backwards compatibility.

Definition at line 939 of file Algorithm.cpp.

                                                              {
  return eventCnvSvc();
}

SmartIF< IDataProviderSvc > & Algorithm::eventDataService ( ) const

Obsoleted name, kept due to the backwards compatibility.

Definition at line 935 of file Algorithm.cpp.

                                                             {
  return eventSvc();
}

SmartIF<IDataProviderSvc>& Algorithm::eventSvc ( ) const

The standard event data service.

May not be invoked before sysInitialize() has been invoked.

SmartIF<IDataProviderSvc>& Algorithm::evtSvc ( ) const

inline

shortcut for method eventSvc

Definition at line 253 of file Algorithm.h.

{ return eventSvc() ; }

SmartIF<IExceptionSvc>& Algorithm::exceptionSvc ( ) const

Get the exception Service.

bool Algorithm::filterPassed ( ) const

virtual

Did this algorithm pass or fail its filter criterion for the last event?

Definition at line 862 of file Algorithm.cpp.

                                   {
  return m_filterPassed;
}

virtual StatusCode Algorithm::finalize ( )

inlinevirtual

the default (empty) implementation of IStateful::finalize() method

Reimplemented in GaudiHistos< GaudiAlgorithm >, GaudiCommon< Algorithm >, GaudiTuples< GaudiHistoAlg >, StoreExplorerAlg, CollectionCloneAlg, OutputStream, GaudiAlgorithm, TagCollectionStream, StoreSnifferAlg, PartitionSwitchAlg, Sequencer, GaudiTupleAlg, GaudiHistoAlg, EvtCollectionStream, GaudiPython::PyAlgorithm, GaudiSequencer, InputCopyStream, Prescaler, EventCounter, RecordStream, and RunRecordStream.

Definition at line 159 of file Algorithm.h.

{ return StatusCode::SUCCESS ; }

virtual Gaudi::StateMachine::State Algorithm::FSMState ( ) const

inlinevirtual

returns the current state of the algorithm

Definition at line 186 of file Algorithm.h.

{ return m_state; }

const std::vector< Property * > & Algorithm::getProperties ( ) const

virtual

Implementation of IProperty::getProperties.

Definition at line 1159 of file Algorithm.cpp.

                                                            {
  return m_propertyMgr->getProperties();
}

StatusCode Algorithm::getProperty ( Property * p ) const

virtual

Implementation of IProperty::getProperty.

Definition at line 1150 of file Algorithm.cpp.

                                                   {
  return m_propertyMgr->getProperty(p);
}

const Property & Algorithm::getProperty ( const std::string & name ) const

virtual

Implementation of IProperty::getProperty.

Definition at line 1153 of file Algorithm.cpp.

                                                                  {
  return m_propertyMgr->getProperty(name);
}

StatusCode Algorithm::getProperty	(	const std::string &	n,
		std::string &	v
	)		const

virtual

Implementation of IProperty::getProperty.

Definition at line 1156 of file Algorithm.cpp.

                                                                         {
  return m_propertyMgr->getProperty(n,v);
}

SmartIF< IHistogramSvc > & Algorithm::histogramDataService ( ) const

Obsoleted name, kept due to the backwards compatibility.

Definition at line 943 of file Algorithm.cpp.

                                                              {
  return histoSvc();
}

SmartIF<IHistogramSvc>& Algorithm::histoSvc ( ) const

The standard histogram service.

May not be invoked before sysInitialize() has been invoked.

virtual StatusCode Algorithm::initialize ( )

inlinevirtual

the default (empty) implementation of IStateful::initialize() method

Reimplemented in GaudiHistos< GaudiAlgorithm >, GaudiCommon< Algorithm >, GaudiTuples< GaudiHistoAlg >, StoreExplorerAlg, CollectionCloneAlg, OutputStream, GaudiAlgorithm, TagCollectionStream, StoreSnifferAlg, GaudiTupleAlg, GaudiHistoAlg, EvtCollectionStream, PartitionSwitchAlg, Sequencer, GaudiPython::PyAlgorithm, GaudiSequencer, InputCopyStream, Prescaler, and EventCounter.

Definition at line 153 of file Algorithm.h.

{ return StatusCode::SUCCESS ; }

void Algorithm::initOutputLevel ( Property & prop )

protected

callback for output level property

Protected Member Functions.

Definition at line 1167 of file Algorithm.cpp.

{
  // do nothing... yet ?
}

bool Algorithm::isEnabled ( ) const

virtual

Is this algorithm enabled or disabled?

Definition at line 858 of file Algorithm.cpp.

                                {
  return m_isEnabled;
}

bool Algorithm::isExecuted ( ) const

virtual

Has this algorithm been executed since the last reset?

Definition at line 845 of file Algorithm.cpp.

                                 {
  return m_isExecuted;
}

bool Algorithm::isFinalized ( ) const

inlineprotected

Has the Algorithm already been finalized?

Definition at line 514 of file Algorithm.h.

{ return Gaudi::StateMachine::CONFIGURED == m_state; }

bool Algorithm::isInitialized ( ) const

inlineprotected

Has the Algorithm already been initialized?

Definition at line 511 of file Algorithm.h.

{ return Gaudi::StateMachine::INITIALIZED == m_state; }

SmartIF< IMessageSvc > & Algorithm::messageService ( ) const

Obsoleted name, kept due to the backwards compatibility.

Definition at line 947 of file Algorithm.cpp.

                                                      {
  return msgSvc();
}

SmartIF<IMonitorSvc>& Algorithm::monitorSvc ( ) const

inline

Access the monitor service.

Attention: Note that this method will return a NULL pointer if no monitor service is configured to be present. You must take this possibility into account when using the pointer

Returns: Pointer to the Monitor service

Return values

NULL	No monitor service is present
non-NULL	A monitor service is present and available to be used

Definition at line 418 of file Algorithm.h.

  {
    // If not already located try to locate it without forcing a creation
    if ( !m_pMonitorSvc.isValid() ){
      m_pMonitorSvc = service(m_monitorSvcName, false, true); // do not create and be quiet
    }
    return m_pMonitorSvc;
  }

SmartIF< IMessageSvc > & Algorithm::msgSvc ( ) const

The standard message service.

Returns a pointer to the standard message service. May not be invoked before sysInitialize() has been invoked.

Definition at line 896 of file Algorithm.cpp.

                                              {
  if ( !m_MS.isValid() ) {
    //can not use service() method (infinite recursion!)
    m_MS = serviceLocator(); // default message service
    if( !m_MS.isValid() ) {
      throw GaudiException("Service [MessageSvc] not found", name(), StatusCode::FAILURE);
    }
  }
  return m_MS;
}

const std::string & Algorithm::name ( ) const

virtual

The identifying name of the algorithm object.

This is the name of a particular instantiation of an algorithm object as opposed to the name of the algorithm itself, e.g. "LinearTrackFit" may be the name of a concrete algorithm class, whereas "ApproxTrackFit" and "BestTrackFit" may be two instantiations of the class configured to find tracks with different fit criteria.

Definition at line 837 of file Algorithm.cpp.

                                       {
  return m_name;
}

SmartIF< INTupleSvc > & Algorithm::ntupleService ( ) const

Obsoleted name, kept due to the backwards compatibility.

Definition at line 951 of file Algorithm.cpp.

                                                    {
  return ntupleSvc();
}

SmartIF<INTupleSvc>& Algorithm::ntupleSvc ( ) const

The standard N tuple service.

Returns a pointer to the N tuple service if present.

Algorithm& Algorithm::operator= ( const Algorithm & rhs )

private

Private assignment operator: NO ASSIGNMENT ALLOWED.

int Algorithm::outputLevel ( ) const

inlineprotected

retrieve the Algorithm output level

Definition at line 517 of file Algorithm.h.

{ return (int)m_outputLevel ; }

IntegerProperty& Algorithm::outputLevelProperty ( )

inlineprotected

Accessor for the Message level property.

Definition at line 520 of file Algorithm.h.

{ return m_outputLevel; }

SmartIF<IRndmGenSvc>& Algorithm::randSvc ( ) const

AIDA-based NTuple service Returns a pointer to the AIDATuple service if present.

The standard RandomGen service, Return a pointer to the service if present

bool Algorithm::registerContext ( ) const

inline

register for Algorithm Context Service?

Definition at line 318 of file Algorithm.h.

{ return m_registerContext ; }

StatusCode Algorithm::reinitialize ( )

virtual

the default (empty) implementation of IStateful::reinitialize() method

Reimplemented in Sequencer.

Definition at line 798 of file Algorithm.cpp.

                                   {
  /* @TODO
   * MCl 2008-10-23: the implementation of reinitialize as finalize+initialize
   *                 is causing too many problems
   *
  // Default implementation is finalize+initialize
  StatusCode sc = finalize();
  if (sc.isFailure()) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << "reinitialize(): cannot be finalized" << endmsg;
    return sc;
  }
  sc = initialize();
  if (sc.isFailure()) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << "reinitialize(): cannot be initialized" << endmsg;
    return sc;
  }
  */
  return StatusCode::SUCCESS;
}

void Algorithm::resetExecuted ( )

virtual

Reset the executed state of the Algorithm for the duration of the current event.

Reimplemented in Sequencer, and GaudiSequencer.

Definition at line 853 of file Algorithm.cpp.

                              {
  m_isExecuted   = false;
  m_filterPassed = true;
}

StatusCode Algorithm::restart ( )

virtual

the default (empty) implementation of IStateful::restart() method

Definition at line 820 of file Algorithm.cpp.

                              {
  // Default implementation is stop+start
  StatusCode sc = stop();
  if (sc.isFailure()) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << "restart(): cannot be stopped" << endmsg;
    return sc;
  }
  sc = start();
  if (sc.isFailure()) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << "restart(): cannot be started" << endmsg;
    return sc;
  }
  return StatusCode::SUCCESS;
}

template<class T >

StatusCode Algorithm::service	(	const std::string &	name,
		T *&	psvc,
		bool	createIf = `true`
	)		const

inline

Access a service by name, creating it if it doesn't already exist.

Definition at line 203 of file Algorithm.h.

                                                                  {
    return service_i(name, createIf, T::interfaceID(), (void**)&psvc);
  }

template<class T >

StatusCode Algorithm::service	(	const std::string &	svcType,
		const std::string &	svcName,
		T *&	psvc
	)		const

inline

Access a service by name and type, creating it if it doesn't already exist.

Definition at line 209 of file Algorithm.h.

                                      {
    return service_i(svcType, svcName, T::interfaceID(), (void**)&psvc);
  }

SmartIF< IService > Algorithm::service	(	const std::string &	name,
		const bool	createIf = `true`,
		const bool	quiet = `false`
	)		const

Return a pointer to the service identified by name (or "type/name")

Definition at line 1190 of file Algorithm.cpp.

                                                                                                       {
  const ServiceLocatorHelper helper(*serviceLocator(), *this);
  return helper.service(name, quiet, createIf);
}

StatusCode Algorithm::service_i	(	const std::string &	svcName,
		bool	createIf,
		const InterfaceID &	iid,
		void **	ppSvc
	)		const

private

implementation of service method

Definition at line 1173 of file Algorithm.cpp.

                                         {
  const ServiceLocatorHelper helper(*serviceLocator(), *this);
  return helper.getService(svcName, createIf, iid, ppSvc);
}

StatusCode Algorithm::service_i	(	const std::string &	svcType,
		const std::string &	svcName,
		const InterfaceID &	iid,
		void **	ppSvc
	)		const

private

Definition at line 1182 of file Algorithm.cpp.

                                         {
  const ServiceLocatorHelper helper(*serviceLocator(), *this);
  return helper.createService(svcType, svcName, iid, ppSvc);
}

SmartIF< ISvcLocator > & Algorithm::serviceLocator ( ) const

The standard service locator.

Returns a pointer to the service locator service. This service may be used by an algorithm to request any services it requires in addition to those provided by default.

Definition at line 1091 of file Algorithm.cpp.

                                                      {
  return *const_cast<SmartIF<ISvcLocator>*>(&m_pSvcLocator);
}

void Algorithm::setExecuted ( bool state )

virtual

Set the executed flag to the specified state.

Definition at line 849 of file Algorithm.cpp.

                                        {
  m_isExecuted = state;
}

void Algorithm::setFilterPassed ( bool state )

virtual

Set the filter passed flag to the specified state.

Definition at line 866 of file Algorithm.cpp.

                                            {
  m_filterPassed = state;
}

void Algorithm::setOutputLevel ( int level )

Set the output level for current algorithm.

Definition at line 874 of file Algorithm.cpp.

                                          {
  if ( msgSvc() != 0 )
  {
    if ( MSG::NIL != level )
    { msgSvc()->setOutputLevel( name(), level ) ; }
    m_outputLevel = msgSvc()->outputLevel( name() );
  }
}

StatusCode Algorithm::setProperties ( )

Set the algorithm's properties.

This method requests the job options service to set the values of any declared properties. The method is invoked from within sysInitialize() by the framework and does not need to be explicitly called by a concrete algorithm.

Definition at line 1096 of file Algorithm.cpp.

                                    {
  if( m_pSvcLocator != 0 )    {
    SmartIF<IJobOptionsSvc> jos(m_pSvcLocator->service("JobOptionsSvc"));
    if( jos.isValid() ) {
      // set first generic Properties
      StatusCode sc = jos->setMyProperties( getGaudiThreadGenericName(name()), this );
      if( sc.isFailure() ) return StatusCode::FAILURE;
      // set specific Properties
      if (isGaudiThreaded(name())) {
        if(jos->setMyProperties( name(), this ).isFailure()) {
          return StatusCode::FAILURE;
        }
      }
      return sc;
    }
  }
  return StatusCode::FAILURE;
}

StatusCode Algorithm::setProperty ( const Property & p )

virtual

Implementation of IProperty::setProperty.

Definition at line 1141 of file Algorithm.cpp.

                                                   {
  return m_propertyMgr->setProperty(p);
}

StatusCode Algorithm::setProperty ( const std::string & s )

virtual

Implementation of IProperty::setProperty.

Definition at line 1144 of file Algorithm.cpp.

                                                    {
  return m_propertyMgr->setProperty(s);
}

StatusCode Algorithm::setProperty	(	const std::string &	n,
		const std::string &	v
	)

virtual

Implementation of IProperty::setProperty.

Definition at line 1147 of file Algorithm.cpp.

                                                                        {
  return m_propertyMgr->setProperty(n,v);
}

template<class TYPE >

StatusCode Algorithm::setProperty	(	const std::string &	name,
		const TYPE &	value
	)

inline

set the property form the value

std::vector<double> data = ... ;
setProperty( "Data" , data ) ;
std::map<std::string,double> cuts = ... ;
setProperty( "Cuts" , cuts ) ;
std::map<std::string,std::string> dict = ... ;
setProperty( "Dictionary" , dict ) ;

Note: the interface IProperty allows setting of the properties either directly from other properties or from strings only

This is very convenient in resetting of the default properties in the derived classes. E.g. without this method one needs to convert everything into strings to use IProperty::setProperty

setProperty ( "OutputLevel" , "1"    ) ;
setProperty ( "Enable"      , "True" ) ;
setProperty ( "ErrorMax"    , "10"   ) ;

For simple cases it is more or less ok, but for complicated properties it is just ugly..

Parameters

name	name of the property
value	value of the property

See Also: Gaudi::Utils::setProperty

Author: Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date: 2007-05-13

Definition at line 504 of file Algorithm.h.

{ return Gaudi::Utils::setProperty ( m_propertyMgr , name , value ) ; }

virtual StatusCode Algorithm::start ( )

inlinevirtual

the default (empty) implementation of IStateful::start() method

Reimplemented in Sequencer, and GaudiPython::PyAlgorithm.

Definition at line 155 of file Algorithm.h.

{ return StatusCode::SUCCESS ; }

virtual StatusCode Algorithm::stop ( )

inlinevirtual

the default (empty) implementation of IStateful::stop() method

Reimplemented in Sequencer, and GaudiPython::PyAlgorithm.

Definition at line 157 of file Algorithm.h.

{ return StatusCode::SUCCESS ; }

std::vector< Algorithm * > * Algorithm::subAlgorithms ( ) const

List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

Definition at line 870 of file Algorithm.cpp.

                                                       {
  return m_subAlgms;
}

SmartIF<ISvcLocator>& Algorithm::svcLoc ( ) const

inline

shortcut for method serviceLocator

Definition at line 315 of file Algorithm.h.

{ return serviceLocator() ; }

StatusCode Algorithm::sysBeginRun ( )

virtual

beginRun method invoked by the framework.

This method is responsible for any beginRun actions required by the framework itself. It will in turn invoke the beginRun() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 426 of file Algorithm.cpp.

                                  {
  // Bypass the beginRun if the algorithm is disabled.
  if ( !isEnabled( ) ) return StatusCode::SUCCESS;
  // Check current outputLevel to evetually inform the MessagsSvc
  //if( m_outputLevel != MSG::NIL ) {
  setOutputLevel( m_outputLevel );
  //}
  // Reset Error count
  m_errorCount = 0;
  // lock the context service
  Gaudi::Utils::AlgContext cnt
    ( this , registerContext() ? contextSvc().get() : 0 ) ;
  StatusCode sc(StatusCode::FAILURE);
  // Invoke beginRun() method of the derived class inside a try/catch clause
  try {
    { // limit the scope of the guard
      Gaudi::Guards::AuditorGuard guard(this,
                                        // check if we want to audit the initialize
                                        (m_auditorBeginRun) ? auditorSvc().get() : 0,
                                        IAuditor::BeginRun);
      // Invoke the beginRun() method of the derived class
      sc = beginRun();
    }
    if( sc.isSuccess() ) {
      // Now call beginRun for any sub-algorithms
      std::vector<Algorithm *>::iterator it;
      bool fail(false);
      for (it = m_subAlgms->begin(); it != m_subAlgms->end(); it++) {
    if((*it)->sysBeginRun().isFailure()) fail = true;
      }
      if( fail ) {
    sc = StatusCode::FAILURE;
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << " Error executing BeginRun for one or several sub-algorithms"
          << endmsg;
      }
    }
  }
  catch ( const GaudiException& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught " << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
    Stat stat( chronoSvc() , Exception.tag() );
    sc = StatusCode::FAILURE;
  }
  catch( const std::exception& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
    Stat stat( chronoSvc() , "*std::exception*" );
    sc = StatusCode::FAILURE;
  }
  catch(...)
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
    Stat stat( chronoSvc() , "*UNKNOWN Exception*" ) ;
    sc = StatusCode::FAILURE;
  }
  return sc;
}

StatusCode Algorithm::sysEndRun ( )

virtual

endRun method invoked by the framework.

This method is responsible for any endRun actions required by the framework itself. It will in turn invoke the endRun() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 502 of file Algorithm.cpp.

                                {
  // Bypass the endRun if the algorithm is disabled.
  if ( !isEnabled( ) ) return StatusCode::SUCCESS;
  // Check current outputLevel to eventually inform the MessagsSvc
  //if( m_outputLevel != MSG::NIL ) {
  setOutputLevel( m_outputLevel );
  //}
  // Reset Error count
  m_errorCount = 0;
  // lock the context service
  Gaudi::Utils::AlgContext cnt
    ( this , registerContext() ? contextSvc().get() : 0 ) ;
  // Invoke endRun() method of the derived class inside a try/catch clause
  StatusCode sc(StatusCode::FAILURE);
  try {
    { // limit the scope of the guard
      Gaudi::Guards::AuditorGuard guard(this,
                                        // check if we want to audit the initialize
                                        (m_auditorEndRun) ? auditorSvc().get() : 0,
                                        IAuditor::EndRun);
      // Invoke the endRun() method of the derived class
      sc = endRun();
    }
    if( sc.isSuccess() ) {
      // Now call endRun for any sub-algorithms
      std::vector<Algorithm *>::iterator it;
      bool fail(false);
      for (it = m_subAlgms->begin(); it != m_subAlgms->end(); it++) {
    if ((*it)->sysEndRun().isFailure()) fail = true;
      }
      if( fail ) {
    sc = StatusCode::FAILURE;
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << " Error calling endRun for one or several sub-algorithms"
        << endmsg;
      }
    }
  }
  catch ( const GaudiException& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught " << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
    Stat stat( chronoSvc() , Exception.tag() );
    sc = StatusCode::FAILURE;
  }
  catch( const std::exception& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
    Stat stat( chronoSvc() , "*std::exception*" );
    sc = StatusCode::FAILURE;
  }
  catch(...)
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
    Stat stat( chronoSvc() , "*UNKNOWN Exception*" ) ;
    sc = StatusCode::FAILURE;
  }
  return sc;
}

StatusCode Algorithm::sysExecute ( )

virtual

The actions to be performed by the algorithm on an event.

This method is invoked once per event for top level algorithms by the application manager. This method invokes execute() method. For sub-algorithms either the sysExecute() method or execute() method must be EXPLICITLY invoked by the parent algorithm.

Reimplemented in GaudiAlgorithm.

Definition at line 578 of file Algorithm.cpp.

                                 {
  if (!isEnabled()) {
    if (UNLIKELY(m_outputLevel <= MSG::VERBOSE)) {
      MsgStream log ( msgSvc() , name() );
      log << MSG::VERBOSE << ".sysExecute(): is not enabled. Skip execution" << endmsg;
    }
    return StatusCode::SUCCESS;
  }
  StatusCode status;
  // Should performance profile be performed ?
  // invoke execute() method of Algorithm class
  //   and catch all uncaught exceptions
  // lock the context service
  Gaudi::Utils::AlgContext cnt
    ( this , registerContext() ? contextSvc().get() : 0 ) ;
  Gaudi::Guards::AuditorGuard guard(this,
                                    // check if we want to audit the initialize
                                    (m_auditorExecute) ? auditorSvc().get() : 0,
                                    IAuditor::Execute,
                                    status);
  try {
    status = execute();
    setExecuted(true);  // set the executed flag
    if (status.isFailure()) {
      status = exceptionSvc()->handleErr(*this,status);
    }
  }
  catch( const GaudiException& Exception )
  {
    setExecuted(true);  // set the executed flag
    MsgStream log ( msgSvc() , name() );
    if (Exception.code() == StatusCode::FAILURE) {
      log << MSG::FATAL;
    } else {
      log << MSG::ERROR << " Recoverable";
    }
    log << " Exception with tag=" << Exception.tag()
        << " is caught " << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
    Stat stat( chronoSvc() , Exception.tag() ) ;
    status = exceptionSvc()->handle(*this,Exception);
  }
  catch( const std::exception& Exception )
  {
    setExecuted(true);  // set the executed flag
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
    Stat stat( chronoSvc() , "*std::exception*" ) ;
    status = exceptionSvc()->handle(*this,Exception);
  }
  catch(...)
  {
    setExecuted(true);  // set the executed flag
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
    Stat stat( chronoSvc() , "*UNKNOWN Exception*" ) ;
    status = exceptionSvc()->handle(*this);
  }
  if( status.isFailure() ) {
    MsgStream log ( msgSvc() , name() );
    // Increment the error count
    m_errorCount++;
    // Check if maximum is exeeded
    if( m_errorCount < m_errorMax ) {
      log << MSG::WARNING << "Continuing from error (cnt=" << m_errorCount
          << ", max=" << m_errorMax << ")" << endmsg;
      // convert to success
      status = StatusCode::SUCCESS;
    }
  }
  return status;
}

StatusCode Algorithm::sysFinalize ( )

virtual

System finalization.

This method invokes the finalize() method of a concrete algorithm and the finalize() methods of all of that algorithm's sub algorithms.

Definition at line 726 of file Algorithm.cpp.

                                  {
  // Bypass the finalialization if the algorithm hasn't been initilized.
  if ( Gaudi::StateMachine::CONFIGURED == FSMState() ||
       !isEnabled() ) return StatusCode::SUCCESS;
  m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::FINALIZE,m_state);
  // lock the context service
  Gaudi::Utils::AlgContext cnt
    ( this , registerContext() ? contextSvc().get() : 0 ) ;
  StatusCode sc(StatusCode::FAILURE);
  // Invoke finalize() method of the derived class inside a try/catch clause
  try {
    // Order changed (bug #3903 overview: finalize and nested algorithms)
    // Finalize first any sub-algoithms (it can be done more than once)
    std::vector<Algorithm *>::iterator it;
    bool fail(false);
    for (it = m_subAlgms->begin(); it != m_subAlgms->end(); it++) {
      if (!(*it)->sysFinalize().isSuccess()) {
        fail = true;
      }
    }
    { // limit the scope of the guard
      Gaudi::Guards::AuditorGuard guard(this,
                                        // check if we want to audit the initialize
                                        (m_auditorFinalize) ? auditorSvc().get() : 0,
                                        IAuditor::Finalize);
      // Invoke the finalize() method of the derived class
      sc = finalize();
    }
    if (fail) sc = StatusCode::FAILURE;
    if( sc.isSuccess() ) {
      // Release all sub-algorithms
      for (it = m_subAlgms->begin(); it != m_subAlgms->end(); it++) {
    (*it)->release();
      }
      // Indicate that this Algorithm has been finalized to prevent duplicate attempts
      m_state = m_targetState;
    }
  }
  catch( const GaudiException& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught " << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
    Stat stat( chronoSvc() , Exception.tag() ) ;
    sc = StatusCode::FAILURE;
  }
  catch( const std::exception& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
    Stat stat( chronoSvc() , "*std::exception*" ) ;
    sc = StatusCode::FAILURE;
  }
  catch( ... )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
    Stat stat( chronoSvc() , "*UNKNOWN Exception*" ) ;
    sc = StatusCode::FAILURE;
  }
  return sc;
}

StatusCode Algorithm::sysInitialize ( )

virtual

Initialization method invoked by the framework.

This method is responsible for any bookkeeping of initialization required by the framework itself. It will in turn invoke the initialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 93 of file Algorithm.cpp.

                                    {
  // Bypass the initialization if the algorithm
  // has already been initialized.
  if ( Gaudi::StateMachine::INITIALIZED <= FSMState() ) return StatusCode::SUCCESS;
  // Set the Algorithm's properties
  StatusCode sc = setProperties();
  if( sc.isFailure() ) return StatusCode::FAILURE;
  // Bypass the initialization if the algorithm is disabled.
  // Need to do this after setProperties.
  if ( !isEnabled( ) ) return StatusCode::SUCCESS;
  m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::INITIALIZE,m_state);
  // Check current outputLevel to eventually inform the MessagsSvc
  //if( m_outputLevel != MSG::NIL ) {
  setOutputLevel( m_outputLevel );
  //}
  // TODO: (MCl) where shoud we do this? initialize or start?
  // Reset Error count
  //m_errorCount = 0;
  // lock the context service
  Gaudi::Utils::AlgContext cnt
    ( this , registerContext() ? contextSvc().get() : 0 ) ;
  // Invoke initialize() method of the derived class inside a try/catch clause
  try {
    { // limit the scope of the guard
      Gaudi::Guards::AuditorGuard guard
        ( this,
          // check if we want to audit the initialize
          (m_auditorInitialize) ? auditorSvc().get() : 0,
          IAuditor::Initialize);
      // Invoke the initialize() method of the derived class
      sc = initialize();
    }
    if( sc.isSuccess() ) {
      // Now initialize care of any sub-algorithms
      std::vector<Algorithm *>::iterator it;
      bool fail(false);
      for (it = m_subAlgms->begin(); it != m_subAlgms->end(); it++) {
    if ((*it)->sysInitialize().isFailure()) fail = true;
      }
      if( fail ) {
    sc = StatusCode::FAILURE;
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << " Error initializing one or several sub-algorithms"
        << endmsg;
      } else {
    // Update the state.
    m_state = m_targetState;
      }
    }
  }
  catch ( const GaudiException& Exception )
  {
    MsgStream log ( msgSvc() , name() ) ;
    log << MSG::FATAL << " Exception with tag=" << Exception.tag()
        << " is caught " << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
    Stat stat( chronoSvc() , Exception.tag() );
    sc = StatusCode::FAILURE;
  }
  catch( const std::exception& Exception )
  {
    MsgStream log ( msgSvc() , name() ) ;
    log << MSG::FATAL << " Standard std::exception is caught " << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
    Stat stat( chronoSvc() , "*std::exception*" );
    sc = StatusCode::FAILURE;
  }
  catch(...)
  {
    MsgStream log ( msgSvc() , name() ) ;
    log << MSG::FATAL << "UNKNOWN Exception is caught " << endmsg;
    Stat stat( chronoSvc() , "*UNKNOWN Exception*" ) ;
    sc = StatusCode::FAILURE;
  }
  return sc;
}

StatusCode Algorithm::sysReinitialize ( )

virtual

Reinitialization method invoked by the framework.

This method is responsible for any reinitialization required by the framework itself. It will in turn invoke the reinitialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 259 of file Algorithm.cpp.

                                      {
  // Bypass the initialization if the algorithm is disabled.
  if ( !isEnabled( ) ) return StatusCode::SUCCESS;
  // Check that the current status is the correct one.
  if ( Gaudi::StateMachine::INITIALIZED != FSMState() ) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR
        << "sysReinitialize(): cannot reinitialize algorithm not initialized"
        << endmsg;
    return StatusCode::FAILURE;
  }
  // Check current outputLevel to evetually inform the MessagsSvc
  //if( m_outputLevel != MSG::NIL ) {
  setOutputLevel( m_outputLevel );
  //}
  // Reset Error count
  // m_errorCount = 0; // done during start
  // lock the context service
  Gaudi::Utils::AlgContext cnt
    ( this , registerContext() ? contextSvc().get() : 0 ) ;
  StatusCode sc(StatusCode::SUCCESS);
  // Invoke reinitialize() method of the derived class inside a try/catch clause
  try {
    { // limit the scope of the guard
      Gaudi::Guards::AuditorGuard guard(this,
                                        // check if we want to audit the initialize
                                        (m_auditorReinitialize) ? auditorSvc().get() : 0,
                                        IAuditor::ReInitialize);
      // Invoke the reinitialize() method of the derived class
      sc = reinitialize();
    }
    if( sc.isSuccess() ) {
      // Now initialize care of any sub-algorithms
      std::vector<Algorithm *>::iterator it;
      bool fail(false);
      for (it = m_subAlgms->begin(); it != m_subAlgms->end(); it++) {
    if((*it)->sysReinitialize().isFailure()) fail = true;
      }
      if (fail) {
    sc = StatusCode::FAILURE;
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR
        << "sysReinitialize(): Error reinitializing one or several "
        << "sub-algorithms" << endmsg;
      }
    }
  }
  catch ( const GaudiException& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "sysReinitialize(): Exception with tag=" << Exception.tag()
        << " is caught" << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
    Stat stat( chronoSvc() , Exception.tag() );
    sc = StatusCode::FAILURE;
  }
  catch( const std::exception& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "sysReinitialize(): Standard std::exception is caught" << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
    Stat stat( chronoSvc() , "*std::exception*" );
    sc = StatusCode::FAILURE;
  }
  catch(...)
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "sysReinitialize(): UNKNOWN Exception is caught" << endmsg;
    Stat stat( chronoSvc() , "*UNKNOWN Exception*" ) ;
    sc = StatusCode::FAILURE;
  }
  return sc;
}

StatusCode Algorithm::sysRestart ( )

virtual

Restart method invoked by the framework.

It will in turn invoke the restart() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 343 of file Algorithm.cpp.

                                 {
  // Bypass the initialization if the algorithm is disabled.
  if ( !isEnabled( ) ) return StatusCode::SUCCESS;
  // Check that the current status is the correct one.
  if ( Gaudi::StateMachine::RUNNING != FSMState() ) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR
        << "sysRestart(): cannot restart algorithm not started"
        << endmsg;
    return StatusCode::FAILURE;
  }
  // Check current outputLevel to evetually inform the MessagsSvc
  //if( m_outputLevel != MSG::NIL ) {
  setOutputLevel( m_outputLevel );
  //}
  // Reset Error count
  m_errorCount = 0;
  // lock the context service
  Gaudi::Utils::AlgContext cnt
    ( this , registerContext() ? contextSvc().get() : 0 ) ;
  StatusCode sc(StatusCode::FAILURE);
  // Invoke reinitialize() method of the derived class inside a try/catch clause
  try {
    { // limit the scope of the guard
      Gaudi::Guards::AuditorGuard guard(this,
                                        // check if we want to audit the initialize
                                        (m_auditorRestart) ? auditorSvc().get() : 0,
                                        IAuditor::ReStart);
      // Invoke the reinitialize() method of the derived class
      sc = restart();
    }
    if( sc.isSuccess() ) {
      // Now initialize care of any sub-algorithms
      std::vector<Algorithm *>::iterator it;
      bool fail(false);
      for (it = m_subAlgms->begin(); it != m_subAlgms->end(); it++) {
    if ((*it)->sysRestart().isFailure()) fail = true;
      }
      if( fail ) {
    sc = StatusCode::FAILURE;
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR
        << "sysRestart(): Error restarting one or several sub-algorithms"
        << endmsg;
      }
    }
  }
  catch ( const GaudiException& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "sysRestart(): Exception with tag=" << Exception.tag()
        << " is caught" << endmsg;
    log << MSG::ERROR << Exception  << endmsg;
    Stat stat( chronoSvc() , Exception.tag() );
    sc = StatusCode::FAILURE;
  }
  catch( const std::exception& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "sysRestart(): Standard std::exception is caught" << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
    Stat stat( chronoSvc() , "*std::exception*" );
    sc = StatusCode::FAILURE;
  }
  catch(...)
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "sysRestart(): UNKNOWN Exception is caught" << endmsg;
    Stat stat( chronoSvc() , "*UNKNOWN Exception*" ) ;
    sc = StatusCode::FAILURE;
  }
  return sc;
}

StatusCode Algorithm::sysStart ( )

virtual

Reinitialization method invoked by the framework.

This method is responsible for any reinitialization required by the framework itself. It will in turn invoke the reinitialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Definition at line 182 of file Algorithm.cpp.

                               {
  // Bypass the startup if already running or disabled.
  if ( Gaudi::StateMachine::RUNNING == FSMState() ||
       !isEnabled() ) return StatusCode::SUCCESS;
  m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::START,m_state);
  // TODO: (MCl) where shoud we do this? initialize or start?
  // Reset Error count
  m_errorCount = 0;
  // lock the context service
  Gaudi::Utils::AlgContext cnt
    ( this , registerContext() ? contextSvc().get() : 0 ) ;
  StatusCode sc(StatusCode::FAILURE);
  // Invoke start() method of the derived class inside a try/catch clause
  try
  {
    { // limit the scope of the guard
      Gaudi::Guards::AuditorGuard guard
        (this,
         // check if we want to audit the initialize
         (m_auditorStart) ? auditorSvc().get() : 0,
         IAuditor::Start);
      // Invoke the start() method of the derived class
      sc = start();
    }
    if( sc.isSuccess() ) {
      // Now start any sub-algorithms
      std::vector<Algorithm *>::iterator it;
      bool fail(false);
      for (it = m_subAlgms->begin(); it != m_subAlgms->end(); it++) {
    if ((*it)->sysStart().isFailure()) fail = true;
      }
      if( fail ) {
    sc = StatusCode::FAILURE;
    MsgStream log ( msgSvc() , name() );
    log << MSG::ERROR << " Error starting one or several sub-algorithms"
        << endmsg;
      } else {
    // Update the state.
    m_state = m_targetState;
      }
    }
  }
  catch ( const GaudiException& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "in sysStart(): exception with tag=" << Exception.tag()
        << " is caught" << endmsg;
    log << MSG::ERROR << Exception << endmsg;
    Stat stat( chronoSvc() , Exception.tag() );
    sc = StatusCode::FAILURE;
  }
  catch( const std::exception& Exception )
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "in sysStart(): standard std::exception is caught" << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
    Stat stat( chronoSvc() , "*std::exception*" );
    sc = StatusCode::FAILURE;
  }
  catch(...)
  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "in sysStart(): UNKNOWN Exception is caught" << endmsg;
    Stat stat( chronoSvc() , "*UNKNOWN Exception*" ) ;
    sc = StatusCode::FAILURE;
  }
  return sc;
}

StatusCode Algorithm::sysStop ( )

virtual

System stop.

This method invokes the stop() method of a concrete algorithm and the stop() methods of all of that algorithm's sub algorithms.

Definition at line 667 of file Algorithm.cpp.

                              {
  // Bypass the startup if already running or disabled.
  if ( Gaudi::StateMachine::INITIALIZED == FSMState() ||
       !isEnabled() ) return StatusCode::SUCCESS;
  m_targetState = Gaudi::StateMachine::ChangeState(Gaudi::StateMachine::STOP,m_state);
  // lock the context service
  Gaudi::Utils::AlgContext cnt
    ( this , registerContext() ? contextSvc().get() : 0 ) ;
  StatusCode sc(StatusCode::FAILURE);
  // Invoke stop() method of the derived class inside a try/catch clause
  try {
    // Stop first any sub-algorithms (in reverse order)
    std::vector<Algorithm *>::iterator it;
    for (it = m_subAlgms->begin(); it != m_subAlgms->end(); it++) {
      (*it)->sysStop().ignore();
    }
    { // limit the scope of the guard
      Gaudi::Guards::AuditorGuard guard(this,
                                        // check if we want to audit the initialize
                                        (m_auditorStop) ? auditorSvc().get() : 0,
                                        IAuditor::Stop);
      // Invoke the stop() method of the derived class
      sc = stop();
    }
    if( sc.isSuccess() ) {
      // Update the state.
      m_state = m_targetState;
    }
  }
  catch ( const GaudiException& Exception )  {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "in sysStop(): exception with tag=" << Exception.tag()
        << " is caught" << endmsg;
    log << MSG::ERROR << Exception << endmsg;
    Stat stat( chronoSvc() , Exception.tag() );
    sc = StatusCode::FAILURE;
  }
  catch( const std::exception& Exception ) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "in sysStop(): standard std::exception is caught" << endmsg;
    log << MSG::ERROR << Exception.what()  << endmsg;
    Stat stat( chronoSvc() , "*std::exception*" );
    sc = StatusCode::FAILURE;
  }
  catch(...) {
    MsgStream log ( msgSvc() , name() );
    log << MSG::FATAL << "in sysStop(): UNKNOWN Exception is caught" << endmsg;
    Stat stat( chronoSvc() , "*UNKNOWN Exception*" ) ;
    sc = StatusCode::FAILURE;
  }
  return sc;
}

virtual Gaudi::StateMachine::State Algorithm::targetFSMState ( ) const

inlinevirtual

returns the state the algorithm will be in after the ongoing transition

Definition at line 189 of file Algorithm.h.

{ return m_targetState; }

virtual StatusCode Algorithm::terminate ( )

inlinevirtual

Dummy implementation of IStateful::terminate() method.

Definition at line 150 of file Algorithm.h.

{ return StatusCode::SUCCESS ; }

SmartIF<IToolSvc>& Algorithm::toolSvc ( ) const

The standard ToolSvc service, Return a pointer to the service if present.

const std::string & Algorithm::version ( ) const

virtual

Definition at line 841 of file Algorithm.cpp.

                                          {
  return m_version;
}

Member Data Documentation

BooleanProperty Algorithm::m_auditInit

private

global flag for auditors

Definition at line 554 of file Algorithm.h.

bool Algorithm::m_auditorBeginRun

private

flag for auditors in "beginRun()"

Definition at line 560 of file Algorithm.h.

bool Algorithm::m_auditorEndRun

private

flag for auditors in "endRun()"

Definition at line 561 of file Algorithm.h.

bool Algorithm::m_auditorExecute

private

flag for auditors in "execute()"

Definition at line 558 of file Algorithm.h.

bool Algorithm::m_auditorFinalize

private

flag for auditors in "finalize()"

Definition at line 559 of file Algorithm.h.

bool Algorithm::m_auditorInitialize

private

flag for auditors in "initialize()"

Definition at line 555 of file Algorithm.h.

bool Algorithm::m_auditorReinitialize

private

flag for auditors in "Reinitialize()"

Definition at line 556 of file Algorithm.h.

bool Algorithm::m_auditorRestart

private

flag for auditors in "Restart()"

Definition at line 557 of file Algorithm.h.

bool Algorithm::m_auditorStart

private

flag for auditors in "initialize()"

Definition at line 562 of file Algorithm.h.

bool Algorithm::m_auditorStop

private

flag for auditors in "Reinitialize()"

Definition at line 563 of file Algorithm.h.

SmartIF<IAlgContextSvc> Algorithm::m_contextSvc

mutableprivate

Algorithm Context Service.

Definition at line 546 of file Algorithm.h.

SmartIF<IChronoStatSvc> Algorithm::m_CSS

mutableprivate

Chrono & Stat Service.

Definition at line 540 of file Algorithm.h.

SmartIF<IConversionSvc> Algorithm::m_DCS

mutableprivate

Detector conversion service.

Definition at line 536 of file Algorithm.h.

SmartIF<IDataProviderSvc> Algorithm::m_DDS

mutableprivate

Detector data service.

Definition at line 535 of file Algorithm.h.

SmartIF<IConversionSvc> Algorithm::m_ECS

mutableprivate

Event conversion service.

Definition at line 534 of file Algorithm.h.

SmartIF<IDataProviderSvc> Algorithm::m_EDS

mutableprivate

Event data service.

Definition at line 533 of file Algorithm.h.

int Algorithm::m_errorCount

private

Algorithm error counter.

Definition at line 553 of file Algorithm.h.

int Algorithm::m_errorMax

private

Algorithm Max number of errors.

Definition at line 552 of file Algorithm.h.

SmartIF<IExceptionSvc> Algorithm::m_EXS

mutableprivate

Exception Handler Service.

Definition at line 542 of file Algorithm.h.

bool Algorithm::m_filterPassed

private

Filter passed flag.

Definition at line 564 of file Algorithm.h.

SmartIF<IHistogramSvc> Algorithm::m_HDS

mutableprivate

Histogram data service.

Definition at line 537 of file Algorithm.h.

bool Algorithm::m_isEnabled

private

Algorithm is enabled flag.

Definition at line 565 of file Algorithm.h.

bool Algorithm::m_isExecuted

private

Algorithm is executed flag.

Definition at line 566 of file Algorithm.h.

bool Algorithm::m_isFinalized

private

Algorithm has been finalized flag.

Definition at line 569 of file Algorithm.h.

std::string Algorithm::m_monitorSvcName

private

Name to use for Monitor Service.

Definition at line 548 of file Algorithm.h.

SmartIF<IMessageSvc> Algorithm::m_MS

mutableprivate

Message service.

Definition at line 532 of file Algorithm.h.

std::string Algorithm::m_name

private

Algorithm's name for identification.

Definition at line 528 of file Algorithm.h.

SmartIF<INTupleSvc> Algorithm::m_NTS

mutableprivate

N tuple service.

Definition at line 538 of file Algorithm.h.

IntegerProperty Algorithm::m_outputLevel

private

Algorithm output level.

Definition at line 551 of file Algorithm.h.

SmartIF<IAuditorSvc> Algorithm::m_pAuditorSvc

mutableprivate

Auditor Service.

Definition at line 543 of file Algorithm.h.

SmartIF<IMonitorSvc> Algorithm::m_pMonitorSvc

mutableprivate

Online Monitoring Service.

Definition at line 545 of file Algorithm.h.

PropertyMgr* Algorithm::m_propertyMgr

private

For management of properties.

Definition at line 550 of file Algorithm.h.

SmartIF<ISvcLocator> Algorithm::m_pSvcLocator

private

Pointer to service locator service.

Definition at line 549 of file Algorithm.h.

SmartIF<IToolSvc> Algorithm::m_ptoolSvc

mutableprivate

ToolSvc Service.

Definition at line 544 of file Algorithm.h.

bool Algorithm::m_registerContext

private

flag to register for Algorithm Context Service

Definition at line 547 of file Algorithm.h.

SmartIF<IRndmGenSvc> Algorithm::m_RGS

mutableprivate

Random Number Generator Service.

Definition at line 541 of file Algorithm.h.

Gaudi::StateMachine::State Algorithm::m_state

private

Algorithm has been initialized flag.

Definition at line 567 of file Algorithm.h.

std::vector<Algorithm *>* Algorithm::m_subAlgms

private

Sub algorithms.

Definition at line 530 of file Algorithm.h.

Gaudi::StateMachine::State Algorithm::m_targetState

private

Algorithm has been initialized flag.

Definition at line 568 of file Algorithm.h.

std::string Algorithm::m_version

private

Algorithm's version.

Definition at line 529 of file Algorithm.h.

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/GaudiKernel/GaudiKernel/Algorithm.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/GaudiKernel/src/Lib/Algorithm.cpp

Gaudi Framework, version v23r9

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
