#include <Sequencer.h>

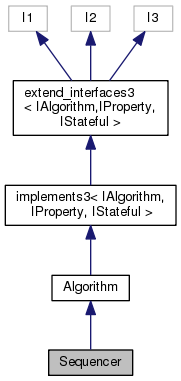

Inheritance diagram for Sequencer:

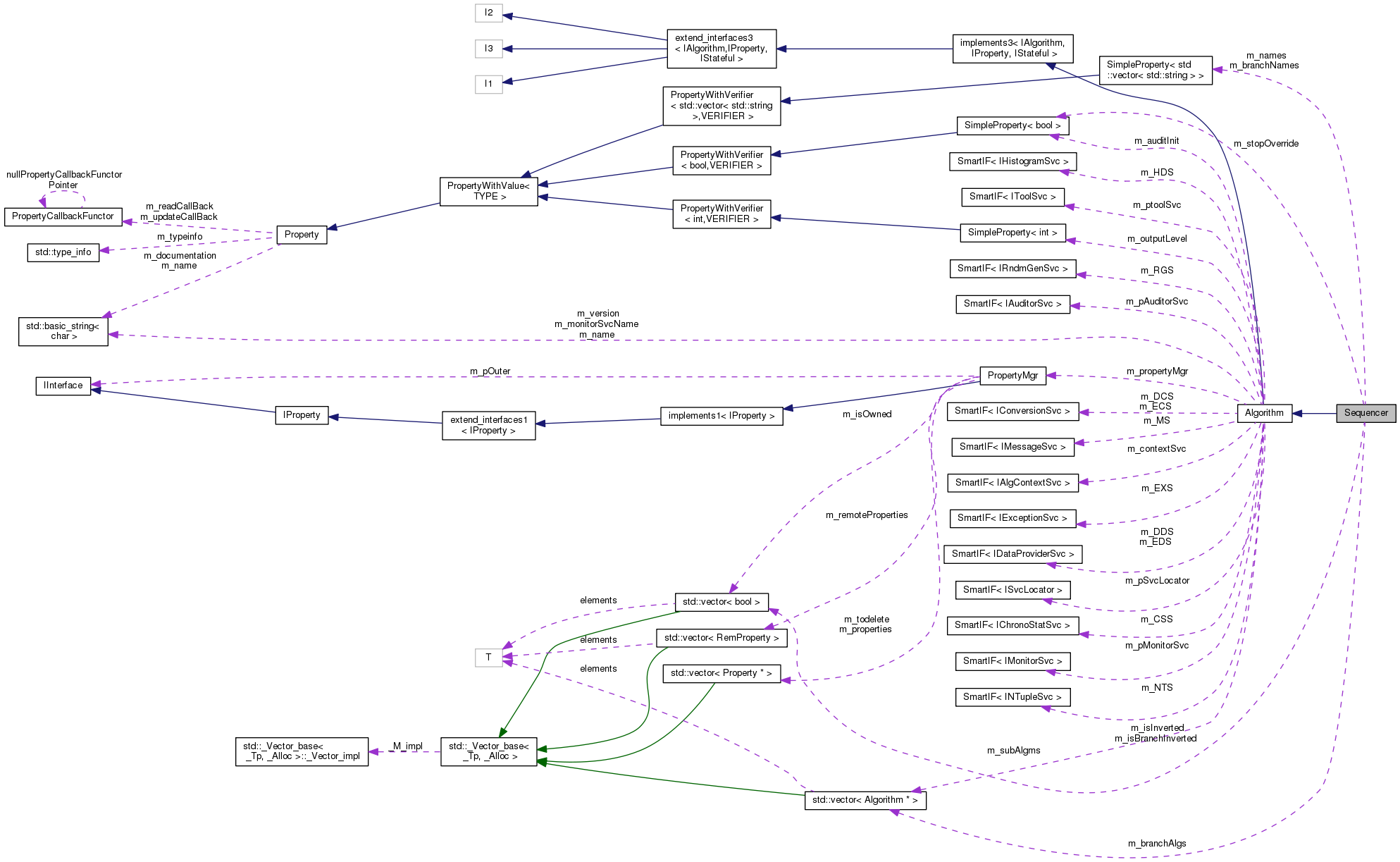

Collaboration diagram for Sequencer:

Public Member Functions
	Sequencer (const std::string &name, ISvcLocator *svcloc)
	Constructor(s)

virtual	~Sequencer ()
	Destructor.

virtual StatusCode	initialize ()
	Initialization of a sequencer.

virtual StatusCode	reinitialize ()
	Sequencer Reinitialization.

virtual StatusCode	start ()
	Sequencer finalization.

virtual StatusCode	execute ()
	The actions to be performed by the sequencer on an event.

virtual StatusCode	stop ()
	Sequencer finalization.

virtual StatusCode	finalize ()
	Sequencer finalization.

virtual StatusCode	beginRun ()
	Sequencer beginRun.

virtual StatusCode	endRun ()
	Sequencer endRun.

void	resetExecuted ()
	Reset the Sequencer executed state for the current event.

virtual bool	branchFilterPassed () const
	Was the branch filter passed for the last event?

virtual StatusCode	setBranchFilterPassed (bool state)
	Set the branch filter passed flag for the last event.

virtual bool	isStopOverride () const
	Has the StopOverride mode been set?

StatusCode	append (Algorithm *pAlgorithm)
	Append an algorithm to the sequencer.

StatusCode	appendToBranch (Algorithm *pAlgorithm)
	Append an algorithm to the sequencer branch.

StatusCode	createAndAppend (const std::string &type, const std::string &name, Algorithm *&pAlgorithm)
	Create a algorithm and append it to the sequencer.

StatusCode	createAndAppendToBranch (const std::string &type, const std::string &name, Algorithm *&pAlgorithm)
	Create a algorithm and append it to the sequencer branch.

StatusCode	remove (Algorithm *pAlgorithm)
	Remove the specified algorithm from the sequencer.

StatusCode	remove (const std::string &name)

StatusCode	removeFromBranch (Algorithm *pAlgorithm)

StatusCode	removeFromBranch (const std::string &name)

std::vector< Algorithm * > *	branchAlgorithms () const
	List of branch algorithms.

StatusCode	decodeMemberNames ()
	Decode Member Name list.

void	membershipHandler (Property &theProp)
	"Members" property handler

StatusCode	decodeBranchMemberNames ()
	Decode branch member name list.

void	branchMembershipHandler (Property &theProp)
	"BranchMembers" property handler

Public Member Functions inherited from Algorithm
	Algorithm (const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
	Constructor.

virtual	~Algorithm ()
	Destructor.

virtual StatusCode	sysStart ()
	Reinitialization method invoked by the framework.

virtual StatusCode	sysInitialize ()
	Initialization method invoked by the framework.

virtual StatusCode	sysReinitialize ()
	Reinitialization method invoked by the framework.

virtual StatusCode	sysRestart ()
	Restart method invoked by the framework.

virtual StatusCode	sysExecute ()
	The actions to be performed by the algorithm on an event.

virtual StatusCode	sysStop ()
	System stop.

virtual StatusCode	sysFinalize ()
	System finalization.

virtual StatusCode	sysBeginRun ()
	beginRun method invoked by the framework.

virtual StatusCode	sysEndRun ()
	endRun method invoked by the framework.

virtual const std::string &	name () const
	The identifying name of the algorithm object.

virtual const std::string &	version () const

virtual StatusCode	configure ()
	Dummy implementation of IStateful::configure() method.

virtual StatusCode	terminate ()
	Dummy implementation of IStateful::terminate() method.

virtual StatusCode	restart ()
	the default (empty) implementation of IStateful::restart() method

virtual bool	isExecuted () const
	Has this algorithm been executed since the last reset?

virtual void	setExecuted (bool state)
	Set the executed flag to the specified state.

virtual Gaudi::StateMachine::State	FSMState () const
	returns the current state of the algorithm

virtual Gaudi::StateMachine::State	targetFSMState () const
	returns the state the algorithm will be in after the ongoing transition

virtual bool	isEnabled () const
	Is this algorithm enabled or disabled?

virtual bool	filterPassed () const
	Did this algorithm pass or fail its filter criterion for the last event?

virtual void	setFilterPassed (bool state)
	Set the filter passed flag to the specified state.

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist.

SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name")

void	setOutputLevel (int level)
	Set the output level for current algorithm.

SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked.

SmartIF< IChronoStatSvc > &	chronoSvc () const
	The standard Chrono & Stat service, Return a pointer to the service if present.

SmartIF< IChronoStatSvc > &	chronoStatService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > &	detSvc () const
	The standard detector data service.

SmartIF< IDataProviderSvc > &	detDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > &	detCnvSvc () const
	The standard detector data persistency conversion service.

SmartIF< IConversionSvc > &	detDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > &	eventSvc () const
	The standard event data service.

SmartIF< IDataProviderSvc > &	evtSvc () const
	shortcut for method eventSvc

SmartIF< IDataProviderSvc > &	eventDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > &	eventCnvSvc () const
	The standard event data persistency conversion service.

SmartIF< IConversionSvc > &	eventDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IHistogramSvc > &	histoSvc () const
	The standard histogram service.

SmartIF< IHistogramSvc > &	histogramDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service.

SmartIF< IMessageSvc > &	messageService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< INTupleSvc > &	ntupleSvc () const
	The standard N tuple service.

SmartIF< INTupleSvc > &	ntupleService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IRndmGenSvc > &	randSvc () const
	AIDA-based NTuple service Returns a pointer to the AIDATuple service if present.

SmartIF< IToolSvc > &	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present.

SmartIF< IExceptionSvc > &	exceptionSvc () const
	Get the exception Service.

SmartIF< IAlgContextSvc > &	contextSvc () const
	get Algorithm Context Service

SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator.

SmartIF< ISvcLocator > &	svcLoc () const
	shortcut for method serviceLocator

bool	registerContext () const
	register for Algorithm Context Service?

StatusCode	createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
	Create a sub algorithm.

std::vector< Algorithm * > *	subAlgorithms () const
	List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

virtual StatusCode	setProperty (const Property &p)
	Implementation of IProperty::setProperty.

virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty.

virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty.

virtual StatusCode	getProperty (Property *p) const
	Implementation of IProperty::getProperty.

virtual const Property &	getProperty (const std::string &name) const
	Implementation of IProperty::getProperty.

virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty.

virtual const std::vector < Property * > &	getProperties () const
	Implementation of IProperty::getProperties.

StatusCode	setProperties ()
	Set the algorithm's properties.

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.

Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.

SmartIF< IMonitorSvc > &	monitorSvc () const
	Access the monitor service.

template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information.

void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case)

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value

Protected Member Functions
StatusCode	append (Algorithm pAlgorithm, std::vector< Algorithm > *theAlgs)
	Append an algorithm to the sequencer.

StatusCode	createAndAppend (const std::string &type, const std::string &name, Algorithm &pAlgorithm, std::vector< Algorithm > *theAlgs)
	Create a algorithm and append it to the sequencer.

StatusCode	decodeNames (StringArrayProperty &theNames, std::vector< Algorithm * > *theAlgs, std::vector< bool > &theLogic)
	Decode algorithm names, creating or appending algorithms as appropriate.

StatusCode	execute (std::vector< Algorithm * > theAlgs, std::vector< bool > &theLogic, Algorithm &lastAlgorithm, unsigned int first=0)
	Execute the members in the specified list.

StatusCode	executeMember (Algorithm *theAlgorithm)
	Execute member algorithm.

StatusCode	remove (const std::string &algname, std::vector< Algorithm * > *theAlgs)
	Remove the specified algorithm from the sequencer.

Protected Member Functions inherited from Algorithm
bool	isInitialized () const
	Has the Algorithm already been initialized?

bool	isFinalized () const
	Has the Algorithm already been finalized?

int	outputLevel () const
	retrieve the Algorithm output level

IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property.

void	initOutputLevel (Property &prop)
	callback for output level property

Private Member Functions
	Sequencer (const Sequencer &a)
	Private Copy constructor: NO COPY ALLOWED.

Sequencer &	operator= (const Sequencer &rhs)
	Private assignment operator: NO ASSIGNMENT ALLOWED.

Private Attributes
StringArrayProperty	m_names

std::vector< bool >	m_isInverted

StringArrayProperty	m_branchNames

std::vector< Algorithm * > *	m_branchAlgs

std::vector< bool >	m_isBranchInverted

BooleanProperty	m_stopOverride

bool	m_branchFilterPassed

Additional Inherited Members
Public Types inherited from implements3< IAlgorithm, IProperty, IStateful >
typedef implements3	base_class
	Typedef to this class.

typedef extend_interfaces3 < IAlgorithm, IProperty, IStateful >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Detailed Description

ClassName: Sequencer.

Description: A Sequencer is essentially a list of Algorithms and is responsible for their management. Note that Sequences may themselves contain other Sequences. The default execute( ) implementation loops over the members of the sequence, calling their execute( ) methods. However, this can be modified if a member is disabled, has already been executed, or a member indicates that it's filter fails. The the former two cases the execution of the member is bypassed. In the latter case, the loop is terminated and the Sequencer assumes the same filtered state as the last member.

Definition at line 24 of file Sequencer.h.

Constructor & Destructor Documentation

Sequencer::Sequencer	(	const std::string &	name,
		ISvcLocator *	svcloc
	)

Constructor(s)

Definition at line 22 of file Sequencer.cpp.

: Algorithm( name, pSvcLocator ),
  m_branchFilterPassed( false )
{
  // Create vector of branch algorithms
  m_branchAlgs = new std::vector<Algorithm*>();
  // Declare Sequencer properties with their defaults
  declareProperty( "Members", m_names );
  declareProperty( "BranchMembers", m_branchNames );
  declareProperty( "StopOverride", m_stopOverride=false );
  // Associate action handlers with the "Members" and "BranchMembers" properties
  m_names.declareUpdateHandler      ( &Sequencer::membershipHandler      , this );
  m_branchNames.declareUpdateHandler( &Sequencer::branchMembershipHandler, this );
}

Sequencer::~Sequencer ( )

virtual

Destructor.

Definition at line 44 of file Sequencer.cpp.

{
  delete m_branchAlgs;
}

Sequencer::Sequencer ( const Sequencer & a )

private

Private Copy constructor: NO COPY ALLOWED.

Member Function Documentation

StatusCode Sequencer::append ( Algorithm * pAlgorithm )

Append an algorithm to the sequencer.

Definition at line 418 of file Sequencer.cpp.

{
  StatusCode result = append( pAlgorithm, subAlgorithms( ) );
  return result;
}

StatusCode Sequencer::append	(	Algorithm *	pAlgorithm,
		std::vector< Algorithm * > *	theAlgs
	)

protected

Append an algorithm to the sequencer.

Protected Member Functions.

Definition at line 527 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::SUCCESS;
  // Check that the specified algorithm doesn't already exist in the membership list
  std::vector<Algorithm*>::iterator it;
  std::vector<Algorithm*>::iterator itend = theAlgs->end( );
  for (it = theAlgs->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    if ( theAlgorithm == pAlgorithm ) {
      result = StatusCode::FAILURE;
      break;
    }
  }
  if ( result.isSuccess( ) ) {
    theAlgs->push_back( pAlgorithm );
    pAlgorithm->addRef();
  }
  return result;
}

StatusCode Sequencer::appendToBranch ( Algorithm * pAlgorithm )

Append an algorithm to the sequencer branch.

Definition at line 425 of file Sequencer.cpp.

{
  StatusCode result = append( pAlgorithm, branchAlgorithms( ) );
  return result;
}

StatusCode Sequencer::beginRun ( )

virtual

Sequencer beginRun.

Reimplemented from Algorithm.

Definition at line 269 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::SUCCESS;
  MsgStream log( msgSvc( ), name( ) );
  // Bypass the loop if this sequencer is disabled
  if ( isEnabled( ) ) {
    // Loop over all members calling their sysInitialize functions
    // if they are not disabled. Note that the Algoriithm::sysInitialize
    // function protects this from affecting Algorithms that have already
    // been initialized.
    std::vector<Algorithm*>* theAlgs = subAlgorithms( );
    std::vector<Algorithm*>::iterator it;
    std::vector<Algorithm*>::iterator itend = theAlgs->end( );
    for (it = theAlgs->begin(); it != itend; it++) {
      Algorithm* theAlgorithm = (*it);
      result = theAlgorithm->sysInitialize( );
      if( result.isFailure() ) {
        log << MSG::ERROR << "Unable to initialize Algorithm " << theAlgorithm->name() << endmsg;
        break;
      }
      result = theAlgorithm->sysStart( );
      if( result.isFailure() ) {
        log << MSG::ERROR << "Unable to start Algorithm " << theAlgorithm->name() << endmsg;
        break;
      }
    }
    // Loop over all members calling their beginRun functions
    // if they are not disabled.
    for (it = theAlgs->begin(); it != itend; it++) {
      Algorithm* theAlgorithm = (*it);
      if ( ! theAlgorithm->isEnabled( ) ) {
        theAlgorithm->beginRun( ).ignore();
      }
    }
    // Loop over all branch members calling their sysInitialize functions
    // if they are not disabled. Note that the Algoriithm::sysInitialize
    // function protects this from affecting Algorithms that have already
    // been initialized.
    theAlgs = branchAlgorithms( );
    itend   = theAlgs->end( );
    for (it = theAlgs->begin(); it != itend; it++) {
      Algorithm* theAlgorithm = (*it);
      result = theAlgorithm->sysInitialize( );
      if( result.isFailure() ) {
        log << MSG::ERROR << "Unable to initialize Algorithm " << theAlgorithm->name() << endmsg;
        break;
      }
      result = theAlgorithm->sysStart( );
      if( result.isFailure() ) {
        log << MSG::ERROR << "Unable to start Algorithm " << theAlgorithm->name() << endmsg;
        break;
      }
    }
    // Loop over all branch members calling their beginRun functions
    // if they are not disabled.
    for (it = theAlgs->begin(); it != itend; it++) {
      Algorithm* theAlgorithm = (*it);
      if ( ! theAlgorithm->isEnabled( ) ) {
        theAlgorithm->beginRun( ).ignore();
      }
    }
  }
  return StatusCode::SUCCESS;
}

std::vector< Algorithm * > * Sequencer::branchAlgorithms ( ) const

List of branch algorithms.

These are the algorithms that would get executed if a filter algorithm indicated a failure. The branch is located within the main sequence by the first element, which is the filter algorithm.

Definition at line 480 of file Sequencer.cpp.

                                   {
  return m_branchAlgs;
}

bool Sequencer::branchFilterPassed ( ) const

virtual

Was the branch filter passed for the last event?

Definition at line 399 of file Sequencer.cpp.

{
  return m_branchFilterPassed;
}

void Sequencer::branchMembershipHandler ( Property & theProp )

"BranchMembers" property handler

Definition at line 517 of file Sequencer.cpp.

{
  if ( isInitialized() ) decodeBranchMemberNames();
}

StatusCode Sequencer::createAndAppend	(	const std::string &	type,
		const std::string &	name,
		Algorithm *&	pAlgorithm
	)

Create a algorithm and append it to the sequencer.

A call to this method creates a child algorithm object. Note that the returned pointer is to Algorithm (as opposed to IAlgorithm), and thus the methods of IProperty are also available for the direct setting of the algorithm's properties. Using this mechanism instead of creating algorithms directly via the new operator is preferred since then the framework may take care of all of the necessary book-keeping.

Definition at line 432 of file Sequencer.cpp.

{
  StatusCode result = createAndAppend( type, name, pAlgorithm, subAlgorithms( ) );
  return result;
}

StatusCode Sequencer::createAndAppend	(	const std::string &	type,
		const std::string &	name,
		Algorithm *&	pAlgorithm,
		std::vector< Algorithm * > *	theAlgs
	)

protected

Create a algorithm and append it to the sequencer.

A call to this method creates a child algorithm object. Note that the returned pointer is to Algorithm (as opposed to IAlgorithm), and thus the methods of IProperty are also available for the direct setting of the algorithm's properties. Using this mechanism instead of creating algorithms directly via the new operator is preferred since then the framework may take care of all of the necessary book-keeping.

Definition at line 549 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::FAILURE;
  MsgStream log( msgSvc( ), name( ) );
  SmartIF<IAlgManager> theAlgMgr(serviceLocator()->service("ApplicationMgr"));
  if ( theAlgMgr.isValid() ) {
    IAlgorithm* tmp;
    result = theAlgMgr->createAlgorithm( type, algName, tmp );
    if ( result.isSuccess( ) ) {
      try{
        pAlgorithm = dynamic_cast<Algorithm*>(tmp);
        theAlgs->push_back( pAlgorithm );
      } catch(...){
        log << MSG::ERROR << "Unable to create Algorithm " << algName << endmsg;
        result = StatusCode::FAILURE;
      }
    }
  }
  return result;
}

StatusCode Sequencer::createAndAppendToBranch	(	const std::string &	type,
		const std::string &	name,
		Algorithm *&	pAlgorithm
	)

Create a algorithm and append it to the sequencer branch.

A call to this method creates a child algorithm object. Note that the returned pointer is to Algorithm (as opposed to IAlgorithm), and thus the methods of IProperty are also available for the direct setting of the algorithm's properties. Using this mechanism instead of creating algorithms directly via the new operator is preferred since then the framework may take care of all of the necessary book-keeping.

Definition at line 441 of file Sequencer.cpp.

{
  StatusCode result = createAndAppend( type, name, pAlgorithm, branchAlgorithms( ) );
  return result;
}

StatusCode Sequencer::decodeBranchMemberNames ( )

Decode branch member name list.

Definition at line 504 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::SUCCESS;
  // Decode the branch membership list
  result = decodeNames( m_branchNames,
                        branchAlgorithms( ),
                        m_isBranchInverted );
  return result;
}

StatusCode Sequencer::decodeMemberNames ( )

Decode Member Name list.

Definition at line 485 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::SUCCESS;
  // Decode the membership list
  result = decodeNames( m_names,
                        subAlgorithms( ),
                        m_isInverted );
  return result;
}

StatusCode Sequencer::decodeNames	(	StringArrayProperty &	theNames,
		std::vector< Algorithm * > *	theAlgs,
		std::vector< bool > &	theLogic
	)

protected

Decode algorithm names, creating or appending algorithms as appropriate.

Definition at line 574 of file Sequencer.cpp.

{
  StatusCode result;
  MsgStream log( msgSvc( ), name( ) );
  SmartIF<IAlgManager> theAlgMgr(serviceLocator()->service("ApplicationMgr"));
  if ( theAlgMgr.isValid() ) {
    // Clear the existing list of algorithms
    theAlgs->clear( );
    // Build the list of member algorithms from the contents of the
    // theNames list.
    const std::vector<std::string>& theNameVector = theNames.value( );
    std::vector<std::string>::const_iterator it;
    std::vector<std::string>::const_iterator itend = theNameVector.end( );
    for (it = theNameVector.begin(); it != itend; it++) {
      // Parse the name for a syntax of the form:
      //
      // <type>/<name>
      //
      // Where <name> is the algorithm instance name, and <type> is the
      // algorithm class type (being a subclass of Algorithm).
      const Gaudi::Utils::TypeNameString typeName(*it);
      std::string theName = typeName.name();
      std::string theType = typeName.type();
      // Parse the name for a syntax of the form:
      //
      // <name>:invert
      //
      // Where <name> is the algorithm instance name and ":invert"
      // indicates that the filter passed logic is inverted.
      bool isInverted = false;
      std::string::size_type invert = theName.find_first_of( ":" );
      // Skip all occurrences of "::" (allow namespaces)
      while ( std::string::npos != invert
              && invert < (theName.size() - 1) && theName[invert+1] == ':' )
        invert = theName.find_first_of( ":", invert+2 );
      if ( std::string::npos != invert ) {
        if ( theName == theType ) {
          // This means that we got something like "Type:invert",
          // so we have to strip the ":invert" from the type too.
          theType = theType.substr( 0, invert );
        }
        theName = theName.substr( 0, invert );
        isInverted = true;
      }
      // Check whether the supplied name corresponds to an existing
      // Algorithm object.
      SmartIF<IAlgorithm>& theIAlg = theAlgMgr->algorithm(theName, false);
      Algorithm*  theAlgorithm = 0;
      StatusCode status = StatusCode::SUCCESS;
      if ( theIAlg.isValid() ) {
        try{
          theAlgorithm = dynamic_cast<Algorithm*>(theIAlg.get());
        } catch(...){
          log << MSG::WARNING << theName << " is not an Algorithm - Failed dynamic cast" << endmsg;
          theAlgorithm = 0; // release
        }
      }
      if ( theAlgorithm ) {
        // The specified Algorithm already exists - just append it to the membership list.
        status = append( theAlgorithm, theAlgs );
        if ( status.isSuccess( ) ) {
          ON_DEBUG log << MSG::DEBUG << theName << " already exists - appended to member list" << endmsg;
        } else {
          log << MSG::WARNING << theName << " already exists - append failed!!!" << endmsg;
          result = StatusCode::FAILURE;
        }
      } else {
        // The specified name doesn't exist - create a new object of the specified type
        // and append it to the membership list.
        status = createAndAppend( theType, theName, theAlgorithm, theAlgs );
        if ( status.isSuccess( ) ) {
          ON_DEBUG log << MSG::DEBUG << theName << " doesn't exist - created and appended to member list" << endmsg;
        } else {
          log << MSG::WARNING << theName << " doesn't exist - creation failed!!!" << endmsg;
          result = StatusCode::FAILURE;
        }
      }
      if ( status.isSuccess( ) ) {
        theLogic.push_back( isInverted );
      }
    }
  }
  // Print membership list
  if ( result.isSuccess() && theAlgs->size() != 0 ) {
    log << MSG::INFO << "Member list: ";
    std::vector<Algorithm*>::iterator ai = theAlgs->begin();
    std::vector<bool>::iterator li = theLogic.begin();
    for ( ; ai != theAlgs->end(); ++ai, ++li ) {
      if ( ai != theAlgs->begin() ) log << ", ";
      if ( (*ai)->name() == System::typeinfoName(typeid(**ai)) )
        log << (*ai)->name();
      else
        log << System::typeinfoName(typeid(**ai)) << "/" << (*ai)->name();
      if (*li) log << ":invert";
    }
    log << endmsg;
  }
  return result;
}

StatusCode Sequencer::endRun ( )

virtual

Sequencer endRun.

Reimplemented from Algorithm.

Definition at line 340 of file Sequencer.cpp.

{
  // Bypass the loop if this sequencer is disabled
  if ( isEnabled( ) ) {
    // Loop over all members calling their endRun functions
    // if they are not disabled.
    std::vector<Algorithm*>* theAlgms = subAlgorithms( );
    std::vector<Algorithm*>::iterator it;
    std::vector<Algorithm*>::iterator itend = theAlgms->end( );
    for (it = theAlgms->begin(); it != itend; it++) {
      Algorithm* theAlgorithm = (*it);
      if ( ! theAlgorithm->isEnabled( ) ) {
        theAlgorithm->endRun( ).ignore();
      }
    }
    // Loop over all branch members calling their endRun functions
    // if they are not disabled.
    theAlgms = branchAlgorithms( );
    itend    = theAlgms->end( );
    for (it = theAlgms->begin(); it != itend; it++) {
      Algorithm* theAlgorithm = (*it);
      if ( ! theAlgorithm->isEnabled( ) ) {
        theAlgorithm->endRun( ).ignore();
      }
    }
  }
  return StatusCode::SUCCESS;
}

StatusCode Sequencer::execute ( )

virtual

The actions to be performed by the sequencer on an event.

This method is invoked once per event.

Definition at line 130 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::SUCCESS;
  MsgStream log( msgSvc( ), name( ) );
  ON_DEBUG log << MSG::DEBUG << name( ) << " Sequencer::execute( )" << endmsg;
  // Bypass the loop if this sequencer is disabled or has already been executed
  if ( isEnabled( ) && ! isExecuted( ) ) {
    Algorithm* lastAlgorithm;
    result = execute( subAlgorithms( ), m_isInverted, lastAlgorithm );
    if ( result.isSuccess( ) ) {
      bool passed = filterPassed( );
      if ( ! passed && ! isStopOverride( ) ) {
        // Filter failed and stop override not set. Execute the
        // branch if there is one associated with the filter
        // algorithm that failed. Note that the first member on
        // the branch is the failing algorithm and so should
        // be skipped.
        std::vector<Algorithm*>* theAlgs = branchAlgorithms( );
        if ( theAlgs->size( ) > 0 ) {
          Algorithm* branchAlgorithm = (*theAlgs)[0];
          if ( lastAlgorithm == branchAlgorithm ) {
            // Branch specified - Loop over branch members
            result = execute( branchAlgorithms( ),
                              m_isBranchInverted,
                              lastAlgorithm, 1 );
            if ( result.isSuccess( ) ) {
              // The final filter passed state will be set true if either
              // of the main or branches passed, otherwise false.
              // Save the branch  filter passed state.
              setBranchFilterPassed( filterPassed( ) ).ignore();
            }
          }
        }
      }
    }
    // Prevent multiple executions of this sequencer for the current event
    setExecuted( true );
  }
  return result;
}

StatusCode Sequencer::execute	(	std::vector< Algorithm * > *	theAlgs,
		std::vector< bool > &	theLogic,
		Algorithm *&	lastAlgorithm,
		unsigned int	first = `0`
	)

protected

Execute the members in the specified list.

Definition at line 686 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::SUCCESS;
  // Loop over all algorithms calling their execute functions if they
  // are (a) not disabled, and (b) aren't already executed. Note that
  // in the latter case the filter state is still examined. Terminate
  // the loop if an algorithm indicates that it's filter didn't pass.
  unsigned int size = theAlgs->size( );
  for (unsigned int i = first; i < size; i++) {
    lastAlgorithm = (*theAlgs)[i];
    result = executeMember( lastAlgorithm );
    if ( result.isSuccess( ) ) {
      // Take the filter passed status of this algorithm as my own status.
      // Note that we take into account inverted logic.
      bool passed = lastAlgorithm->filterPassed( );
      bool isInverted = theLogic[i];
      if ( isInverted ) {
        passed = ! passed;
      }
      setFilterPassed( passed );
      // The behaviour when the filter fails depends on the StopOverride property.
      // The default action is to stop processing, but this default can be
      // overridden by setting the "StopOverride" property to true.
      if ( ! isStopOverride( ) ) {
        if ( ! passed ) break;
      }
    } else {
      break;
    }
  }
  return result;
}

StatusCode Sequencer::executeMember ( Algorithm * theAlgorithm )

protected

Execute member algorithm.

Definition at line 726 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::SUCCESS;
  if ( theAlgorithm->isEnabled( ) ) {
    if ( ! theAlgorithm->isExecuted( ) ) {
      result = theAlgorithm->sysExecute( );
      // Set the executed state of the algorithm.
      // I think this should be done by the algorithm itself, but just in case...
      theAlgorithm->setExecuted( true );
    }
  }
  return result;
}

StatusCode Sequencer::finalize ( )

virtual

Sequencer finalization.

Reimplemented from Algorithm.

Definition at line 179 of file Sequencer.cpp.

{
  // Loop over all branch members calling their finalize functions
  // if they are not disabled. Note that the Algorithm::sysFinalize
  // function already does this for the main members.
  std::vector<Algorithm*>* theAlgs = branchAlgorithms( );
  std::vector<Algorithm*>::iterator it;
  std::vector<Algorithm*>::iterator itend = theAlgs->end( );
  for (it = theAlgs->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    if (theAlgorithm->sysFinalize( ).isFailure()) {
      MsgStream log( msgSvc( ), name( ) );
      log << MSG::ERROR << "Unable to finalize Algorithm "
          << theAlgorithm->name() << endmsg;
    }
  }
  return StatusCode::SUCCESS;
}

StatusCode Sequencer::initialize ( )

virtual

Initialization of a sequencer.

Typically things like histogram creation, setting up of data structures etc, should be done here. If a sequence has properties specified in the job options file, they will be set to the requested values BEFORE the initialize() method is invoked.

Reimplemented from Algorithm.

Definition at line 50 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::SUCCESS;
  MsgStream log( msgSvc( ), name( ) );
  std::vector<Algorithm*>* theAlgs;
  std::vector<Algorithm*>::iterator it;
  std::vector<Algorithm*>::iterator itend;
  result = decodeMemberNames();
  if( result.isFailure() ) {
    log << MSG::ERROR << "Unable to configure one or more sequencer members " << endmsg;
    return result;
  }
  result = decodeBranchMemberNames();
  if( result.isFailure() ) {
    log << MSG::ERROR << "Unable to configure one or more branch members " << endmsg;
    return result;
  }
  // Loop over all sub-algorithms
  theAlgs = subAlgorithms( );
  itend   = theAlgs->end( );
  for (it = theAlgs->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    result = theAlgorithm->sysInitialize( );
    if( result.isFailure() ) {
      log << MSG::ERROR << "Unable to initialize Algorithm " << theAlgorithm->name() << endmsg;
      return result;
    }
  }
  // Loop over all branches
  theAlgs = branchAlgorithms( );
  itend   = theAlgs->end( );
  for (it = theAlgs->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    result = theAlgorithm->sysInitialize( );
    if( result.isFailure() ) {
      log << MSG::ERROR << "Unable to initialize Algorithm " << theAlgorithm->name() << endmsg;
      return result;
    }
  }
  return result;
}

bool Sequencer::isStopOverride ( ) const

virtual

Has the StopOverride mode been set?

Definition at line 412 of file Sequencer.cpp.

{
  return m_stopOverride.value( );
}

void Sequencer::membershipHandler ( Property & theProp )

"Members" property handler

Definition at line 498 of file Sequencer.cpp.

{
  if ( isInitialized() ) decodeMemberNames();
}

Sequencer& Sequencer::operator= ( const Sequencer & rhs )

private

Private assignment operator: NO ASSIGNMENT ALLOWED.

StatusCode Sequencer::reinitialize ( )

virtual

Sequencer Reinitialization.

Reimplemented from Algorithm.

Definition at line 98 of file Sequencer.cpp.

{
  // Bypass the loop if this sequencer is disabled
  if ( isEnabled( ) ) {
    // Loop over all members calling their reinitialize functions
    // if they are not disabled.
    std::vector<Algorithm*>* theAlgms = subAlgorithms( );
    std::vector<Algorithm*>::iterator it;
    std::vector<Algorithm*>::iterator itend = theAlgms->end( );
    for (it = theAlgms->begin(); it != itend; it++) {
      Algorithm* theAlgorithm = (*it);
      if ( ! theAlgorithm->isEnabled( ) ) {
        theAlgorithm->reinitialize( ).ignore();
      }
    }
    // Loop over all branch members calling their reinitialize functions
    // if they are not disabled.
    theAlgms = branchAlgorithms( );
    itend    = theAlgms->end( );
    for (it = theAlgms->begin(); it != itend; it++) {
      Algorithm* theAlgorithm = (*it);
      if ( ! theAlgorithm->isEnabled( ) ) {
        theAlgorithm->reinitialize( ).ignore();
      }
    }
  }
  return StatusCode::SUCCESS;
}

StatusCode Sequencer::remove ( Algorithm * pAlgorithm )

Remove the specified algorithm from the sequencer.

Definition at line 450 of file Sequencer.cpp.

{
  std::string theName = pAlgorithm->name( );
  StatusCode result = remove( theName );
  return result;
}

StatusCode Sequencer::remove ( const std::string & name )

Definition at line 458 of file Sequencer.cpp.

{
  StatusCode result = remove( algname, subAlgorithms( ) );
  return result;
}

StatusCode Sequencer::remove	(	const std::string &	algname,
		std::vector< Algorithm * > *	theAlgs
	)

protected

Remove the specified algorithm from the sequencer.

Definition at line 742 of file Sequencer.cpp.

{
  MsgStream log( msgSvc( ), name( ) );
  StatusCode result = StatusCode::FAILURE;
  // Test that the algorithm exists in the member list
  std::vector<Algorithm*>::iterator it;
  std::vector<Algorithm*>::iterator itend = theAlgs->end( );
  for (it = theAlgs->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    if ( theAlgorithm->name( ) == algname ) {
      // Algorithm with specified name exists in the algorithm list - remove it
      // THIS ISN'T IMPLEMENTED YET!!!!
      log << MSG::INFO <<"Sequencer::remove( ) isn't implemented yet!!!!!" << endmsg;
      result = StatusCode::SUCCESS;
      break;
    }
  }
  return result;
}

StatusCode Sequencer::removeFromBranch ( Algorithm * pAlgorithm )

Definition at line 465 of file Sequencer.cpp.

{
  std::string theName = pAlgorithm->name( );
  StatusCode result = removeFromBranch( theName );
  return result;
}

StatusCode Sequencer::removeFromBranch ( const std::string & name )

Definition at line 473 of file Sequencer.cpp.

{
  StatusCode result = remove( algname, branchAlgorithms( ) );
  return result;
}

void Sequencer::resetExecuted ( )

virtual

Reset the Sequencer executed state for the current event.

Reimplemented from Algorithm.

Definition at line 371 of file Sequencer.cpp.

{
  Algorithm::resetExecuted( );
  // Loop over all members calling their resetExecuted functions
  // if they are not disabled.
  std::vector<Algorithm*>* subAlgms = subAlgorithms( );
  std::vector<Algorithm*>::iterator it;
  std::vector<Algorithm*>::iterator itend = subAlgms->end( );
  for (it = subAlgms->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    theAlgorithm->resetExecuted( );
  }
  // Loop over all branch members calling their resetExecuted functions
  // if they are not disabled.
  subAlgms = branchAlgorithms( );
  itend    = subAlgms->end( );
  for (it = subAlgms->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    theAlgorithm->resetExecuted( );
  }
  // Reset the branch filter passed flag
  m_branchFilterPassed = false;
}

StatusCode Sequencer::setBranchFilterPassed ( bool state )

virtual

Set the branch filter passed flag for the last event.

Definition at line 405 of file Sequencer.cpp.

{
  m_branchFilterPassed = state;
  return StatusCode::SUCCESS;
}

StatusCode Sequencer::start ( )

virtual

Sequencer finalization.

Reimplemented from Algorithm.

Definition at line 199 of file Sequencer.cpp.

{
  StatusCode result = StatusCode::SUCCESS;
  MsgStream log( msgSvc( ), name( ) );
  std::vector<Algorithm*>* theAlgs;
  std::vector<Algorithm*>::iterator it;
  std::vector<Algorithm*>::iterator itend;
  // Loop over all sub-algorithms
  theAlgs = subAlgorithms( );
  itend   = theAlgs->end( );
  for (it = theAlgs->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    result = theAlgorithm->sysStart( );
    if( result.isFailure() ) {
      log << MSG::ERROR << "Unable to start Algorithm " << theAlgorithm->name() << endmsg;
      return result;
    }
  }
  // Loop over all branches
  theAlgs = branchAlgorithms( );
  itend   = theAlgs->end( );
  for (it = theAlgs->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    result = theAlgorithm->sysStart( );
    if( result.isFailure() ) {
      log << MSG::ERROR << "Unable to start Algorithm " << theAlgorithm->name() << endmsg;
      return result;
    }
  }
  return result;
}

StatusCode Sequencer::stop ( )

virtual

Sequencer finalization.

Reimplemented from Algorithm.

Definition at line 236 of file Sequencer.cpp.

{
  // Loop over all branch members calling their finalize functions
  // if they are not disabled.
  std::vector<Algorithm*>* theAlgs;
  std::vector<Algorithm*>::iterator it;
  std::vector<Algorithm*>::iterator itend;
  theAlgs = subAlgorithms( );
  itend   = theAlgs->end( );
  for (it = theAlgs->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    if (theAlgorithm->sysStop( ).isFailure()) {
      MsgStream log( msgSvc( ), name( ) );
      log << MSG::ERROR << "Unable to stop Algorithm "
          << theAlgorithm->name() << endmsg;
    }
  }
  theAlgs = branchAlgorithms( );
  itend   = theAlgs->end( );
  for (it = theAlgs->begin(); it != itend; it++) {
    Algorithm* theAlgorithm = (*it);
    if (theAlgorithm->sysStop( ).isFailure()) {
      MsgStream log( msgSvc( ), name( ) );
      log << MSG::ERROR << "Unable to stop Algorithm "
          << theAlgorithm->name() << endmsg;
    }
  }
  return StatusCode::SUCCESS;
}

Member Data Documentation

std::vector<Algorithm*>* Sequencer::m_branchAlgs

private

Definition at line 247 of file Sequencer.h.

bool Sequencer::m_branchFilterPassed

private

Definition at line 250 of file Sequencer.h.

StringArrayProperty Sequencer::m_branchNames

private

Definition at line 246 of file Sequencer.h.

std::vector<bool> Sequencer::m_isBranchInverted

private

Definition at line 248 of file Sequencer.h.

std::vector<bool> Sequencer::m_isInverted

private

Definition at line 245 of file Sequencer.h.

StringArrayProperty Sequencer::m_names

private

Definition at line 244 of file Sequencer.h.

BooleanProperty Sequencer::m_stopOverride

private

Definition at line 249 of file Sequencer.h.

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/GaudiAlg/GaudiAlg/Sequencer.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r9/GaudiAlg/src/lib/Sequencer.cpp

Gaudi Framework, version v23r9

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
