GaudiHistoTool Class Reference

Simple class to extend the functionality of class GaudiTool. More...

#include <GaudiTools/GaudiHistoTool.h>

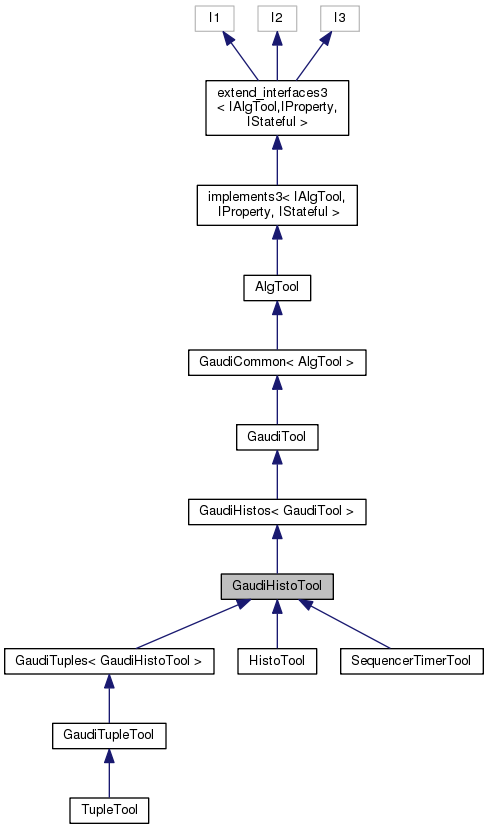

Inheritance diagram for GaudiHistoTool:
Inheritance graph
[legend]

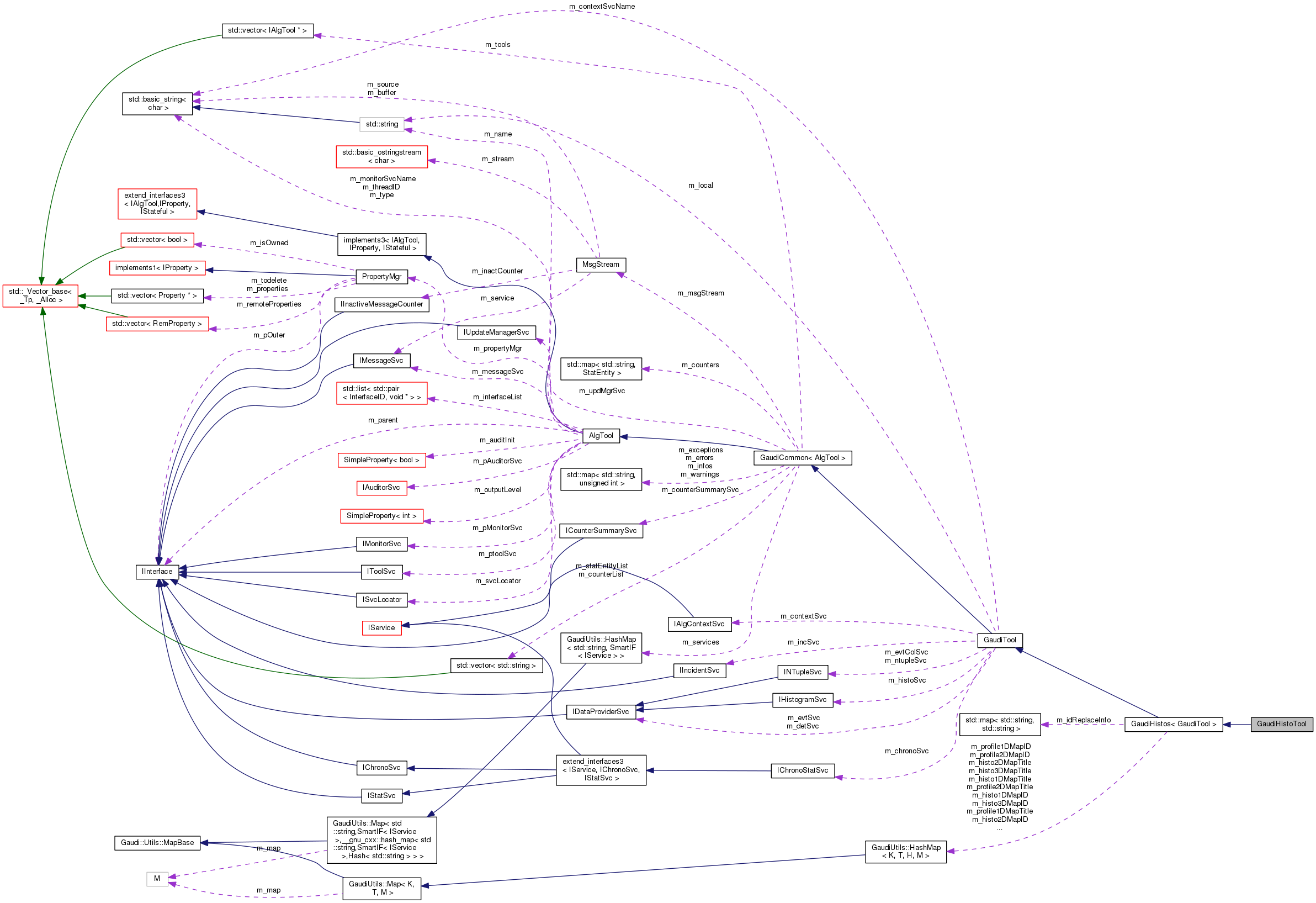

Collaboration diagram for GaudiHistoTool:
Collaboration graph
[legend]

Protected Member Functions

 GaudiHistoTool (const std::string &type, const std::string &name, const IInterface *parent)
 Standard constructor (protected)

virtual ~GaudiHistoTool ()
 destructor, virtual and protected

virtual StatusCode initialize ()
 standard initialization method

virtual StatusCode finalize ()
 standard finalization method

- Protected Member Functions inherited from GaudiHistos< GaudiTool >
std::string convertTitleToID (const std::string &title) const
 Create an ID string from a title string.

- Protected Member Functions inherited from GaudiTool
 GaudiTool (const std::string &type, const std::string &name, const IInterface *parent)
 Standard constructor.

virtual ~GaudiTool ()
 destructor, virtual and protected

- Protected Member Functions inherited from GaudiCommon< AlgTool >
virtual ~GaudiCommon ()
 Destructor.

StatusCode releaseTool (const IAlgTool *tool) const
 manual forced (and 'safe') release of the tool

StatusCode releaseSvc (const IInterface *svc) const
 manual forced (and 'safe') release of the service

- Protected Member Functions inherited from AlgTool
int outputLevel () const
 get tool's output level

IntegerProperty & outputLevelProperty ()
 Accessor for the Message level property.

void initOutputLevel (Property &prop)
 callback for output level property

virtual ~AlgTool ()


Private Member Functions

 GaudiHistoTool ()

 GaudiHistoTool (const GaudiHistoTool &)

GaudiHistoTool & operator= (const GaudiHistoTool &)


Additional Inherited Members

- Public Types inherited from GaudiHistos< GaudiTool >
typedef GaudiAlg::HistoID HistoID
 the actual type for histogram identifier

typedef GaudiAlg::Histo1DMapID Histo1DMapID
 the actual type for (ID)->(1D histogram) mapping

typedef GaudiAlg::Histo1DMapTitle Histo1DMapTitle
 the actual type for title->(1D histogram) mapping

typedef GaudiAlg::Histo2DMapID Histo2DMapID
 the actual type for (ID)->(2D histogram) mapping

typedef GaudiAlg::Histo2DMapTitle Histo2DMapTitle
 the actual type for title->(2D histogram) mapping

typedef GaudiAlg::Histo3DMapID Histo3DMapID
 the actual type for (ID)->(3D histogram) mapping

typedef GaudiAlg::Histo3DMapTitle Histo3DMapTitle
 the actual type for title->(3D histogram) mapping

typedef GaudiAlg::Profile1DMapID Profile1DMapID
 the actual type for (ID)->(1D profile histogram) mapping

typedef GaudiAlg::Profile1DMapTitle Profile1DMapTitle
 the actual type for title->(1D profile histogram) mapping

typedef GaudiAlg::Profile2DMapID Profile2DMapID
 the actual type for (ID)->(2D profile histogram) mapping

typedef GaudiAlg::Profile2DMapTitle Profile2DMapTitle
 the actual type for title->(2D profile histogram) mapping

typedef GaudiAlg::HistoBinEdges HistoBinEdges
 Edges for variable binning.

- Public Member Functions inherited from GaudiHistos< GaudiTool >
AIDA::IHistogram1D * plot1D (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
 fill the 1D histogram (book on demand)

AIDA::IHistogram1D * plot1D (const double value, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
 fill the 1D histogram (book on demand)

AIDA::IHistogram1D * plot1D (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
 fill the 1D histogram with forced ID assignment (book on demand)

AIDA::IHistogram1D * plot1D (const double value, const HistoID &ID, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
 fill the 1D histogram with forced ID assignment (book on demand)

AIDA::IHistogram1D * plot1D (const double value, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
 Fill the 1D variable binning histogram (book on demand)

AIDA::IHistogram1D * plot1D (const double value, const HistoID &ID, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
 fill the 1D variable binning histogram with forced ID assignment (book on demand)

AIDA::IHistogram1D * plot (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
 fill the 1D histogram (book on demand)

AIDA::IHistogram1D * plot (const double value, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
 fill the 1D histogram (book on demand)

AIDA::IHistogram1D * plot (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
 fill the 1D histogram with forced ID assignment (book on demand)

AIDA::IHistogram1D * plot (const double value, const HistoID &ID, const Gaudi::Histo1DDef &hdef, const double weight=1.0) const
 fill the 1D histogram (book on demand)

AIDA::IHistogram1D * plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins=100) const
 fill the 1D histogram with information from [first,last) sequence

AIDA::IHistogram1D * plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100) const
 fill the 1D histogram with forced ID and information from [first,last) sequence

AIDA::IHistogram1D * plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
 book and fill the 1D histogram with information from [first,last) sequence with given weight

AIDA::IHistogram1D * plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
 book and fill the 1D histogram with forced ID and information from [first,last) sequence with given weight

AIDA::IHistogram2D * plot2D (const double valueX, const double valueY, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
 fill the 2D histogram (book on demand)

AIDA::IHistogram2D * plot2D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
 fill the 2D histogram with forced ID assignment (book on demand)

AIDA::IHistogram2D * plot2D (const double valueX, const double valueY, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
 Fill the 2D variable binning histogram (book on demand)

AIDA::IHistogram2D * plot2D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
 fill the 2D variable histogram with forced ID assignment (book on demand)

AIDA::IHistogram3D * plot3D (const double valueX, const double valueY, const double valueZ, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
 fill the 3D histogram (book on demand)

AIDA::IHistogram3D * plot3D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const
 fill the 3D histogram with forced ID assignment (book on demand)

AIDA::IHistogram3D * plot3D (const double valueX, const double valueY, const double valueZ, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ, const double weight=1.0) const
 Fill the 3D variable binning histogram (book on demand)

AIDA::IHistogram3D * plot3D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ, const double weight=1.0) const
 fill the 3D histogram with forced ID assignment (book on demand)

AIDA::IProfile1D * profile1D (const double valueX, const double valueY, const std::string &title, const double lowX, const double highX, const unsigned long binsX=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max(), const double weight=1.0) const
 fill the 1D profile histogram (book on demand)

AIDA::IProfile1D * profile1D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const double lowX, const double highX, const unsigned long binsX=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max(), const double weight=1.0) const
 fill the 1D profile histogram with forced ID assignment (book on demand)

AIDA::IProfile1D * profile1D (const double valueX, const double valueY, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
 fill the 1D variable binning profile histogram (book on demand)

AIDA::IProfile1D * profile1D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const HistoBinEdges &edges, const double weight=1.0) const
 fill the 1D variable binning profile histogram with forced ID assignment (book on demand)

AIDA::IProfile1D * profile1D (const std::string &title) const
 access the EXISTING 1D profile histogram by title return the pointer to existing 1D profile histogram or NULL

AIDA::IProfile1D * profile1D (const HistoID &ID) const
 access the EXISTING 1D profile histogram by ID return the pointer to existing 1D profile histogram or NULL

AIDA::IProfile2D * profile2D (const double valueX, const double valueY, const double valueZ, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
 fill the 2D profile histogram (book on demand)

AIDA::IProfile2D * profile2D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const
 fill the 2D profile histogram with forced ID assignment (book on demand)

AIDA::IProfile2D * profile2D (const double valueX, const double valueY, const double valueZ, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
 fill the 2D variable binning profile histogram (book on demand)

AIDA::IProfile2D * profile2D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const double weight=1.0) const
 fill the 2D variable binning profile histogram with forced ID assignment (book on demand)

AIDA::IProfile2D * profile2D (const std::string &title) const
 access the EXISTING 2D profile histogram by title return the pointer to existing 2D profile histogram or NULL

AIDA::IProfile2D * profile2D (const HistoID &ID) const
 access the EXISTING 2D profile histogram by ID return the pointer to existing 2D profile histogram or NULL

AIDA::IHistogram1D * book1D (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
 book the 1D histogram

AIDA::IHistogram1D * book1D (const HistoID &ID, const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
 book the 1D histogram with forced ID

AIDA::IHistogram1D * book1D (const std::string &title, const HistoBinEdges &edges) const
 book the 1D variable binning histogram

AIDA::IHistogram1D * book1D (const HistoID &ID, const std::string &title, const HistoBinEdges &edges) const
 book the 1D variable binning histogram with given ID

AIDA::IHistogram1D * book (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
 book the 1D histogram

AIDA::IHistogram1D * book (const Gaudi::Histo1DDef &hdef) const
 book the 1D histogram

AIDA::IHistogram1D * book (const HistoID &ID, const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
 book the 1D histogram with forced ID

AIDA::IHistogram1D * book (const HistoID &ID, const Gaudi::Histo1DDef &hdef) const
 book the 1D histogram with forced ID

AIDA::IHistogram2D * book2D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
 book the 2D histogram

AIDA::IHistogram2D * book2D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
 book the 2D histogram with forced ID

AIDA::IHistogram2D * book2D (const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
 book the 2D variable binning histogram

AIDA::IHistogram2D * book2D (const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
 book the 2D variable binning histogram with given ID

AIDA::IHistogram3D * book3D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
 book the 3D histogram

AIDA::IHistogram3D * book3D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const
 book the 3D histogram with forced ID

AIDA::IHistogram3D * book3D (const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ) const
 book the 3D variable binning histogram

AIDA::IHistogram3D * book3D (const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY, const HistoBinEdges &edgesZ) const
 book the 3D variable binning histogram with given ID

AIDA::IProfile1D * bookProfile1D (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max()) const
 book the 1D profile histogram

AIDA::IProfile1D * bookProfile1D (const HistoID &ID, const std::string &title, const double low=0, const double high=100, const unsigned long bins=100, const std::string &opt="", const double lowY=-std::numeric_limits< double >::max(), const double highY=std::numeric_limits< double >::max()) const
 book the 1D profile histogram

AIDA::IProfile1D * bookProfile1D (const std::string &title, const HistoBinEdges &edges) const
 book the 1D profile histogram

AIDA::IProfile1D * bookProfile1D (const HistoID &ID, const std::string &title, const HistoBinEdges &edges) const
 book the 1D profile histogram

AIDA::IProfile2D * bookProfile2D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
 book the 2D profile histogram

AIDA::IProfile2D * bookProfile2D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const
 book the 2D profile histogram with forced ID

AIDA::IProfile2D * bookProfile2D (const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
 book the 2D profile histogram

AIDA::IProfile2D * bookProfile2D (const HistoID &ID, const std::string &title, const HistoBinEdges &edgesX, const HistoBinEdges &edgesY) const
 book the 2D profile histogram with forced ID

AIDA::IHistogram1D * fill (AIDA::IHistogram1D *histo, const double value, const double weight, const std::string &title="") const
 fill the 1D histogram with the value and weight

AIDA::IHistogram2D * fill (AIDA::IHistogram2D *histo, const double valueX, const double valueY, const double weight, const std::string &title="") const
 fill the 2D histogram with the value and weight

AIDA::IHistogram3D * fill (AIDA::IHistogram3D *histo, const double valueX, const double valueY, const double valueZ, const double weight, const std::string &title="") const
 fill the 3D histogram with the value and weight

AIDA::IProfile1D * fill (AIDA::IProfile1D *histo, const double valueX, const double valueY, const double weight, const std::string &title="") const
 fill the 1D profile histogram with the values and weight

AIDA::IProfile2D * fill (AIDA::IProfile2D *histo, const double valueX, const double valueY, const double valueZ, const double weight, const std::string &title="") const
 fill the 2D profile histogram with the values and weight

AIDA::IHistogram1D * histo1D (const std::string &title) const
 access the EXISTING 1D histogram by title return the pointer to existing 1D histogram or NULL

AIDA::IHistogram1D * histo1D (const HistoID &ID) const
 access the EXISTING 1D histogram by ID return the pointer to existing 1D histogram or NULL

AIDA::IHistogram1D * histo (const std::string &title) const
 access the EXISTING 1D histogram by title

AIDA::IHistogram1D * histo (const HistoID &ID) const
 access the EXISTING 1D histogram by ID

AIDA::IHistogram2D * histo2D (const std::string &title) const
 access the EXISTING 2D histogram by title return the pointer to existing 2D histogram or NULL

AIDA::IHistogram2D * histo2D (const HistoID &ID) const
 access the EXISTING 2D histogram by ID return the pointer to existing 2D histogram or NULL

AIDA::IHistogram3D * histo3D (const std::string &title) const
 access the EXISTING 3D histogram by title return the pointer to existing 3D histogram or NULL

AIDA::IHistogram3D * histo3D (const HistoID &ID) const
 access the EXISTING 3D histogram by ID return the pointer to existing 3D histogram or NULL

bool histoExists (const std::string &title) const
 check the existence AND validity of the histogram with given title

bool histoExists (const HistoID &ID) const
 check the existence AND validity of the histogram with given title

unsigned int totalNumberOfHistos () const
 Returns the total number of histograms (of all types) currently booked.

bool produceHistos () const
 get the flag for histogram production (property "HistoProduce")

bool fullDetail () const
 get flag to control output level of histograms

bool checkForNaN () const
 get the flag for NaN checks (property "HistoCheckForNan")

bool splitHistoDir () const
 get the flag for histogram path split (property "HistoSplitDir")

HistoID::NumericID histoOffSet () const
 get the value for histogram offset (property "HistoOffSet")

const std::string & histoTopDir () const
 get top-level histogram directory (property "HistoTopDir")

const std::string & histoDir () const
 get histogram directory (property "HistoDir")

std::string histoPath () const
 get the constructed histogram path

bool histosPrint () const
 print histograms at finalization ?

bool histoCountersPrint () const
 print histogram counters at finalization ?

bool useNumericAutoIDs () const
 Use old style sequencial numerical automatically assigned IDs ?

int printHistos (const MSG::Level level=MSG::ALWAYS) const
 perform the actual printout of histograms

const Histo1DMapTitle & histo1DMapTitle () const
 get access to the map of all 1D histograms indexed via their title

const Histo1DMapID & histo1DMapID () const
 get access to the map of all 1D histograms index via ID

const Histo2DMapTitle & histo2DMapTitle () const
 get access to the map of all 2D histograms indexed via their title

const Histo2DMapID & histo2DMapID () const
 get access to the map of 2D histograms index via ID

const Histo3DMapTitle & histo3DMapTitle () const
 get access to the map of all 3D histograms indexed via their title

const Histo3DMapID & histo3DMapID () const
 get access to the map of all 3D histograms index via a ID

const Profile1DMapTitle & profile1DMapTitle () const
 get access to the map of all 1D profile histograms indexed via their title

const Profile1DMapID & profile1DMapID () const
 get access to the map of 1D profile histograms index via a ID

const Profile2DMapTitle & profile2DMapTitle () const
 get access to the map of all 2D profile histograms indexed via their title

const Profile2DMapID & profile2DMapID () const
 get access to the map of 2D profile histograms index via a ID

void setProduceHistos (const bool val)
 set the flag for histogram production (property "HistoProduce")

void setFullDetail (const bool val)
 set flag to control output level of histograms

void setCheckForNaN (const bool val)
 set the flag for NaN checks (property "HistoCheckForNan")

void setSplitHistoDir (const bool val)
 set the flag for histogram path split (property "HistoSplitDir")

void setHistoOffSet (const HistoID::NumericID val)
 set a value for histogram offset (property "HistoOffSet"

void setHistoTopDir (const std::string &val)
 set top-level histogram directory (property "HistoTopDir")

void setHistoDir (const std::string &val)
 set histogram directory (property "HistoDir")

 GaudiHistos (const std::string &name, ISvcLocator *pSvcLocator)
 Algorithm constructor.

 GaudiHistos (const std::string &type, const std::string &name, const IInterface *parent)
 Tool constructor.

virtual ~GaudiHistos ()
 Destructor.

- Static Public Member Functions inherited from GaudiTool
static bool enableSummary (bool)
 enable/disable summary

static bool summaryEnabled ()
 is summary enabled?

- Protected Types inherited from GaudiCommon< AlgTool >
typedef std::map< std::string,
StatEntity > 		Statistics
 the actual type of general counters

typedef std::map< std::string,
unsigned int > 		Counter
 the actual type error/warning counter

typedef std::vector< IAlgTool * > AlgTools
 storage for active tools

typedef GaudiUtils::HashMap
< std::string, SmartIF
< IService > > 		Services
 storage for active services

- Protected Attributes inherited from GaudiCommon< AlgTool >
ICounterSummarySvc * m_counterSummarySvc
 a pointer to the CounterSummarySvc

std::vector< std::string > m_counterList
 list of counters to declare. Set by property CounterList. This can be a regular expression.

std::vector< std::string > m_statEntityList

- Static Protected Attributes inherited from GaudiCommon< AlgTool >
static const bool IgnoreRootInTES
 Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.

static const bool UseRootInTES
 Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.


Detailed Description

Simple class to extend the functionality of class GaudiTool.

Class is instrumented with a selection of plotting functions for easy creation of histograms.

Attention
See the class GaudiHistos, which implements the common functionality between GaudiHistoTool and GaudiHistoAlg
Author
Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru
Chris Jones Chris.nosp@m.toph.nosp@m.er.Ro.nosp@m.b.Jo.nosp@m.nes@c.nosp@m.ern..nosp@m.ch
Date
2004-06-28

Definition at line 44 of file GaudiHistoTool.h.

Constructor & Destructor Documentation

GaudiHistoTool::GaudiHistoTool ( const std::string &  type,
const std::string &  name,
const IInterface *  parent
)
protected

Standard constructor (protected)

See Also
GaudiTool
AlgTool
Parameters
typetool type (useless)
nametool name
parentpointer to parent object (service, algorithm or tool)

Definition at line 45 of file GaudiHistoTool.cpp.

: GaudiHistos<GaudiTool> ( type , name , parent ) { }
GaudiHistoTool::~GaudiHistoTool ( )
protectedvirtual

destructor, virtual and protected

Definition at line 54 of file GaudiHistoTool.cpp.

{ }
GaudiHistoTool::GaudiHistoTool ( )
private
GaudiHistoTool::GaudiHistoTool ( const GaudiHistoTool &  )
private

Member Function Documentation

StatusCode GaudiHistoTool::finalize ( )
protectedvirtual

standard finalization method

See Also
Algorithm
IAlgorithm
Returns
status code

Reimplemented from GaudiHistos< GaudiTool >.

Reimplemented in GaudiTuples< GaudiHistoTool >, GaudiTupleTool, and SequencerTimerTool.

Definition at line 70 of file GaudiHistoTool.cpp.

{
// finalize the base class and return
return GaudiHistos<GaudiTool>::finalize();
}
StatusCode GaudiHistoTool::initialize ( )
protectedvirtual

standard initialization method

See Also
Algorithm
IAlgorithm
Returns
status code

Reimplemented from GaudiHistos< GaudiTool >.

Reimplemented in GaudiTuples< GaudiHistoTool >, GaudiTupleTool, and SequencerTimerTool.

Definition at line 60 of file GaudiHistoTool.cpp.

{
// initialize the base class and return
return GaudiHistos<GaudiTool>::initialize();
}
GaudiHistoTool& GaudiHistoTool::operator= ( const GaudiHistoTool &  )
private
The documentation for this class was generated from the following files:
Generated at Wed Dec 4 2013 14:33:16 for Gaudi Framework, version v24r2 by Doxygen version 1.8.2 written by Dimitri van Heesch, © 1997-2004
