The useful base class for tools. More...

#include <GaudiTools/GaudiTool.h>

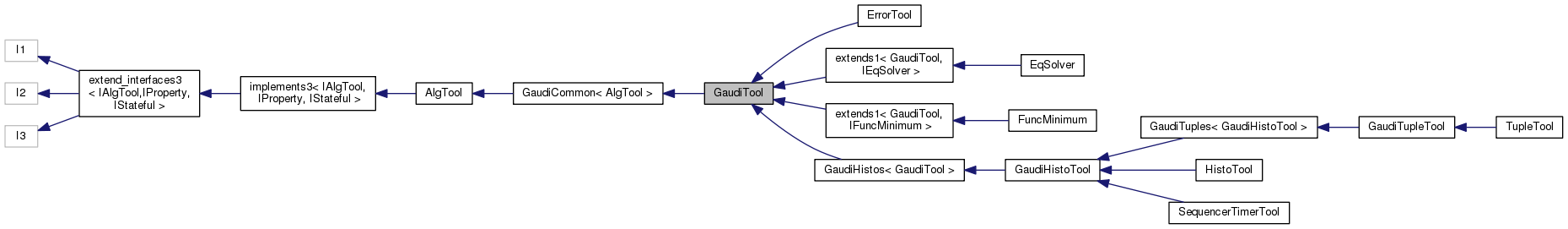

Inheritance diagram for GaudiTool:

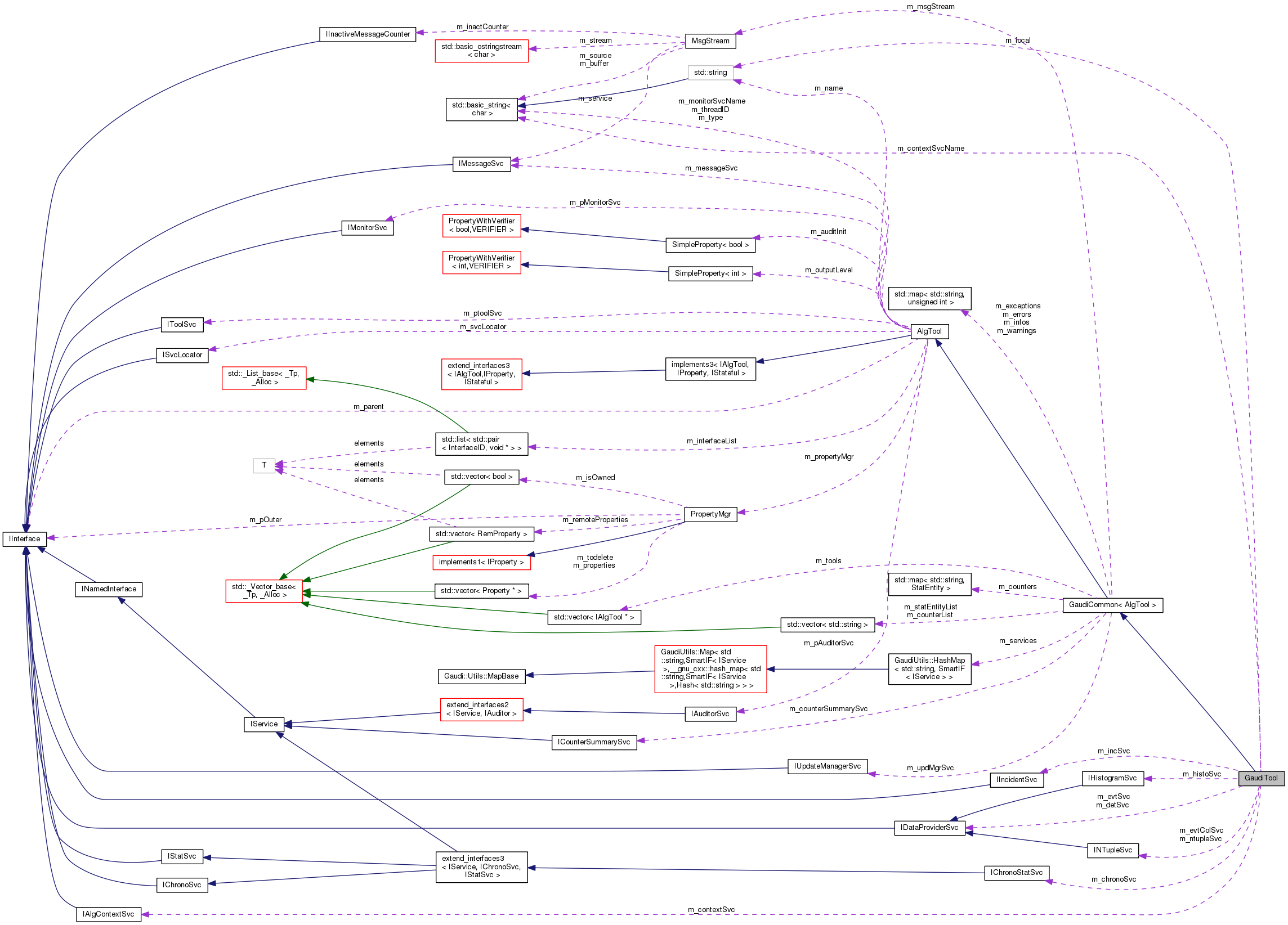

Collaboration diagram for GaudiTool:

Public Member Functions
virtual StatusCode	initialize ()
	standard initialization method

virtual StatusCode	finalize ()
	standard finalization method

INTupleSvc *	ntupleSvc () const
	Access the standard N-Tuple.

INTupleSvc *	evtColSvc () const
	Access the standard event collection service.

IDataProviderSvc *	detSvc () const
	accessor to detector service

IDataProviderSvc *	evtSvc () const
	accessor to event service service

IIncidentSvc *	incSvc () const
	accessor to Incident Service

IChronoStatSvc *	chronoSvc () const
	accessor to Chrono & Stat Service

IHistogramSvc *	histoSvc () const
	acessor to the histogram service

IAlgContextSvc *	contextSvc () const
	acessor to the Algorithm Context Service

DataObject *	put (IDataProviderSvc svc, DataObject object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store.

DataObject *	put (DataObject *object, const std::string &address, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store.

template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store.

template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store.

template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	get (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data from Gaudi Event Transient Store.

template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getIfExists (const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store.

template<class TYPE >
TYPE *	getDet (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store.

template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getDetIfExists (IDataProviderSvc *svc, const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store.

template<class TYPE >
TYPE *	getDet (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store.

template<class TYPE >
Gaudi::Utils::GetData< TYPE > ::return_type	getDetIfExists (const std::string &location) const
	Templated access to the detector data from the Gaudi Detector Transient Store.

template<class TYPE >
bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store.

template<class TYPE >
bool	exist (const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store.

template<class TYPE >
bool	existDet (IDataProviderSvc *svc, const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store.

template<class TYPE >
bool	existDet (const std::string &location) const
	Check the existence of detector objects in the Gaudi Transient Detector Store.

template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store.

template<class TYPE , class TYPE2 >
Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store.

Public Member Functions inherited from GaudiCommon< AlgTool >
Gaudi::Utils::GetData< TYPE > ::return_type	get (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Templated access to the data in Gaudi Transient Store.

Gaudi::Utils::GetData< TYPE > ::return_type	getIfExists (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Quicker version of the get function which bypasses the check on the retrieved data.

bool	exist (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Check the existence of a data object or container in the Gaudi Transient Event Store.

Gaudi::Utils::GetData< TYPE > ::return_type	getOrCreate (IDataProviderSvc *svc, const std::string &location, const bool useRootInTES=true) const
	Get the existing data object from Gaudi Event Transient store.

DataObject *	put (IDataProviderSvc svc, DataObject object, const std::string &location, const bool useRootInTES=true) const
	Register a data object or container into Gaudi Event Transient Store.

TOOL *	tool (const std::string &type, const std::string &name, const IInterface *parent=0, bool create=true) const
	Useful method for the easy location of tools.

TOOL *	tool (const std::string &type, const IInterface *parent=0, bool create=true) const
	A useful method for the easy location of tools.

SmartIF< SERVICE >	svc (const std::string &name, const bool create=true) const
	A useful method for the easy location of services.

IUpdateManagerSvc *	updMgrSvc () const
	Short-cut to locate the Update Manager Service.

StatusCode	Error (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the error message and return with the given StatusCode.

StatusCode	Warning (const std::string &msg, const StatusCode st=StatusCode::FAILURE, const size_t mx=10) const
	Print the warning message and return with the given StatusCode.

StatusCode	Info (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const size_t mx=10) const
	Print the info message and return with the given StatusCode.

StatusCode	Print (const std::string &msg, const StatusCode st=StatusCode::SUCCESS, const MSG::Level lev=MSG::INFO) const
	Print the message and return with the given StatusCode.

void	Assert (const bool ok, const std::string &message="", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled.

void	Assert (const bool ok, const char *message, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Assertion - throw exception if the given condition is not fulfilled.

void	Exception (const std::string &msg, const GaudiException &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given GaudiException.

void	Exception (const std::string &msg, const std::exception &exc, const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and (re)-throw a given exception.

void	Exception (const std::string &msg="no message", const StatusCode sc=StatusCode(StatusCode::FAILURE, true)) const
	Create and throw an exception with the given message.

MsgStream &	msgStream (const MSG::Level level) const
	Predefined configurable message stream for the efficient printouts.

MsgStream &	always () const
	shortcut for the method msgStream ( MSG::ALWAYS )

MsgStream &	fatal () const
	shortcut for the method msgStream ( MSG::FATAL )

MsgStream &	err () const
	shortcut for the method msgStream ( MSG::ERROR )

MsgStream &	error () const
	shortcut for the method msgStream ( MSG::ERROR )

MsgStream &	warning () const
	shortcut for the method msgStream ( MSG::WARNING )

MsgStream &	info () const
	shortcut for the method msgStream ( MSG::INFO )

MsgStream &	debug () const
	shortcut for the method msgStream ( MSG::DEBUG )

MsgStream &	verbose () const
	shortcut for the method msgStream ( MSG::VERBOSE )

MsgStream &	msg () const
	shortcut for the method msgStream ( MSG::INFO )

const Statistics &	counters () const
	accessor to all counters

StatEntity &	counter (const std::string &tag) const
	accessor to certain counter by name

MSG::Level	msgLevel () const
	The current message service output level.

bool	msgLevel (const MSG::Level level) const
	Test the output level.

void	resetMsgStream () const
	Reset (delete) the current message stream object.

bool	typePrint () const
	Insert the actual C++ type of the algorithm/tool in the messages ?

bool	propsPrint () const
	Print properties at initialization ?

bool	statPrint () const
	Print statistical counters at finalization ?

bool	errorsPrint () const
	Print error counters at finalization ?

long	printStat (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of statistical counters

long	printErrors (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of error counters

long	printProps (const MSG::Level level=MSG::ALWAYS) const
	perform the actual printout of properties

void	registerCondition (const std::string &condition, StatusCode(CallerClass::*mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition.

void	registerCondition (const std::string &condition, CondType &condPtrDest, StatusCode(CallerClass::mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition.

void	registerCondition (char condition, StatusCode(CallerClass::mf)()=NULL)
	just to avoid conflicts with the version using a pointer to a template class.

void	registerCondition (TargetClass condition, StatusCode(CallerClass::mf)()=NULL)
	register the current instance to the UpdateManagerSvc as a consumer for a condition.

StatusCode	runUpdate ()
	asks the UpdateManagerSvc to perform an update of the instance (if needed) without waiting the next BeginEvent incident.

	GaudiCommon (const std::string &name, ISvcLocator *pSvcLocator)
	Algorithm constructor.

	GaudiCommon (const std::string &type, const std::string &name, const IInterface *parent)
	Tool constructor.

StatusCode	release (const IInterface *interface) const
	Manual forced (and 'safe') release of the active tool or service.

virtual unsigned long	release ()
	Un-hide IInterface::release (ICC warning #1125)

const AlgTools &	tools () const
	get the list of aquired tools

const Services &	services () const
	get the list of aquired services

const std::string &	context () const
	Returns the "context" string. Used to identify different processing states.

const std::string &	rootInTES () const
	Returns the "rootInTES" string.

double	globalTimeOffset () const
	Returns the "globalTimeOffset" double.

const std::string	fullTESLocation (const std::string &location, const bool useRootInTES) const
	Returns the full correct event location given the rootInTes settings.

Public Member Functions inherited from AlgTool
virtual StatusCode	queryInterface (const InterfaceID &riid, void **ppvUnknown)
	Query for a given interface.

virtual const std::string &	name () const
	Retrieve full identifying name of the concrete tool object.

virtual const std::string &	type () const
	Retrieve type (concrete class) of the sub-algtool.

virtual const IInterface *	parent () const
	Retrieve parent of the sub-algtool.

virtual StatusCode	configure ()

virtual StatusCode	start ()

virtual StatusCode	stop ()

virtual StatusCode	terminate ()

virtual StatusCode	reinitialize ()

virtual StatusCode	restart ()

virtual Gaudi::StateMachine::State	FSMState () const

virtual Gaudi::StateMachine::State	targetFSMState () const

virtual StatusCode	sysInitialize ()
	Initialize AlgTool.

virtual StatusCode	sysStart ()
	Start AlgTool.

virtual StatusCode	sysStop ()
	Stop AlgTool.

virtual StatusCode	sysFinalize ()
	Finalize AlgTool.

virtual StatusCode	sysReinitialize ()
	Initialize AlgTool.

virtual StatusCode	sysRestart ()
	Start AlgTool.

virtual StatusCode	setProperty (const Property &p)
	Default implementations for IProperty interface.

virtual StatusCode	setProperty (const std::string &s)

virtual StatusCode	setProperty (const std::string &n, const std::string &v)

virtual StatusCode	getProperty (Property *p) const

virtual const Property &	getProperty (const std::string &name) const

virtual StatusCode	getProperty (const std::string &n, std::string &v) const

virtual const std::vector < Property * > &	getProperties () const

PropertyMgr *	getPropertyMgr ()

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value

	AlgTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard Constructor.

ISvcLocator *	serviceLocator () const
	Retrieve pointer to service locator.

ISvcLocator *	svcLoc () const
	shortcut for the method service locator

IMessageSvc *	msgSvc () const
	Retrieve pointer to message service.

IToolSvc *	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present.

StatusCode	setProperties ()
	Method for setting declared properties to the values specified in the jobOptions via the job option service.

template<class T >
StatusCode	service (const std::string &name, T *&svc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&svc) const
	Access a service by name, type creating it if it doesn't already exist.

SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name")

void	declInterface (const InterfaceID &, void *)
	declare interface

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.

Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.

IAuditorSvc *	auditorSvc () const
	Access the auditor service.

IMonitorSvc *	monitorSvc () const
	Access the monitor service.

template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information.

void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case)

Static Public Member Functions
static bool	enableSummary (bool)
	enable/disable summary

static bool	summaryEnabled ()
	is summary enabled?

Protected Member Functions
	GaudiTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.

virtual	~GaudiTool ()
	destructor, virtual and protected

Protected Member Functions inherited from GaudiCommon< AlgTool >
virtual	~GaudiCommon ()
	Destructor.

StatusCode	releaseTool (const IAlgTool *tool) const
	manual forced (and 'safe') release of the tool

StatusCode	releaseSvc (const IInterface *svc) const
	manual forced (and 'safe') release of the service

Protected Member Functions inherited from AlgTool
int	outputLevel () const
	get tool's output level

IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property.

void	initOutputLevel (Property &prop)
	callback for output level property

virtual	~AlgTool ()

Private Member Functions
	GaudiTool ()
	no public default constructor

	GaudiTool (const GaudiTool &)
	no public copy constructor

GaudiTool &	operator= (const GaudiTool &)
	no public assignment operator

Private Attributes
INTupleSvc *	m_ntupleSvc
	pointer to the N-Tuple service

INTupleSvc *	m_evtColSvc
	pointer to the event tag collection service

IDataProviderSvc *	m_evtSvc
	pointer to Event Data Service

IDataProviderSvc *	m_detSvc
	pointer to Detector Data Service

IChronoStatSvc *	m_chronoSvc
	pointer to Chrono & Stat Service

IIncidentSvc *	m_incSvc
	pointer to Incident Service

IHistogramSvc *	m_histoSvc
	pointer for histogram service

IAlgContextSvc *	m_contextSvc
	Algorithm Context Service.

std::string	m_contextSvcName
	Algorithm Context Service.

const std::string	m_local
	full tool name "type/name"

Static Private Attributes
static bool	s_enableSummary = true
	enable printout of summary?

Additional Inherited Members
Public Types inherited from implements3< IAlgTool, IProperty, IStateful >
typedef implements3	base_class
	Typedef to this class.

typedef extend_interfaces3 < IAlgTool, IProperty, IStateful >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Protected Types inherited from GaudiCommon< AlgTool >
typedef std::map< std::string, StatEntity >	Statistics
	the actual type of general counters

typedef std::map< std::string, unsigned int >	Counter
	the actual type error/warning counter

typedef std::vector< IAlgTool * >	AlgTools
	storage for active tools

typedef GaudiUtils::HashMap < std::string, SmartIF < IService > >	Services
	storage for active services

Protected Attributes inherited from GaudiCommon< AlgTool >
ICounterSummarySvc *	m_counterSummarySvc
	a pointer to the CounterSummarySvc

std::vector< std::string >	m_counterList
	list of counters to declare. Set by property CounterList. This can be a regular expression.

std::vector< std::string >	m_statEntityList

Static Protected Attributes inherited from GaudiCommon< AlgTool >
static const bool	IgnoreRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.

static const bool	UseRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.

Detailed Description

The useful base class for tools.

Small extension of ordinary the AlgTool base class.

This base class allows "easy"(=="1 line") access to tools and services. This access is safe in the sense that there is no need to worry about the reference counts for tools and services.

The base class allows "easy" (=="1 line") access to data in Gaudi Transient Stores. The functionality includes the checking of the presence of the data at the given location, checking the validity of the data, retrieval of valid data and "forced" retrieve of valid data (create if there is no data).

The base class allows to perform an easy error, warning and exception treatments, including the accumulated statistics of exceptions, errors and warnings.

The base class also includes utilities for general statistical counters.

It has been reported that usage of this base class results in significant reduction of existing code lines.

Attention: See the class GaudiCommon, which implements some of the common functionality between GaudiTool and GaudiAlgorithm

Author: Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru; Chris Jones Chris.nosp@m.toph.nosp@m.er.Ro.nosp@m.b.Jo.nosp@m.nes@c.nosp@m.ern..nosp@m.ch

Date: 2003-07-07

Definition at line 99 of file GaudiTool.h.

Constructor & Destructor Documentation

GaudiTool::GaudiTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

protected

Standard constructor.

See Also: AlgTool

Parameters

type	tool type (useless)
name	tool name
parent	pointer to parent object (service, algorithm or tool)

Definition at line 140 of file GaudiTool.cpp.

  : GaudiCommon<AlgTool> ( this_type , this_name , parent )
  //  services
  , m_ntupleSvc   ( 0 )
  , m_evtColSvc   ( 0 )
  , m_evtSvc      ( 0 )
  , m_detSvc      ( 0 )
  , m_chronoSvc   ( 0 )
  , m_incSvc      ( 0 )
  , m_histoSvc    ( 0 )
  , m_contextSvc  ( 0 ) // pointer to Algorithm Context Service
  , m_contextSvcName ( "AlgContextSvc" ) // Algorithm Context Service name
  //
  , m_local       ( this_type + "/" + this_name )
{
  declareProperty
    ( "ContextService" ,
      m_contextSvcName ,
      "The name of Algorithm Context Service" ) ;
  // make instance counts
  GaudiToolLocal::s_InstanceCounter.increment ( m_local ) ;
}

GaudiTool::~GaudiTool ( )

protectedvirtual

destructor, virtual and protected

Definition at line 167 of file GaudiTool.cpp.

{
  GaudiToolLocal::s_InstanceCounter.decrement ( m_local ) ;
}

GaudiTool::GaudiTool ( )

private

no public default constructor

GaudiTool::GaudiTool ( const GaudiTool & )

private

no public copy constructor

Member Function Documentation

IChronoStatSvc * GaudiTool::chronoSvc ( ) const

accessor to Chrono & Stat Service

Returns: pointer to the Chrono & Stat Service

Definition at line 272 of file GaudiTool.cpp.

{
  if ( 0 == m_chronoSvc )
  {
    m_chronoSvc =
      svc<IChronoStatSvc> ( GaudiToolServices::s_ChronoStatSvc , true ) ;
  }
  return m_chronoSvc ;
}

IAlgContextSvc * GaudiTool::contextSvc ( ) const

acessor to the Algorithm Context Service

Returns: pointer to the Algorithm Context Service

Definition at line 295 of file GaudiTool.cpp.

{
  if ( 0 == m_contextSvc )
  {
    m_contextSvc = svc<IAlgContextSvc> ( m_contextSvcName , true ) ;
  }
  return m_contextSvc;
}

IDataProviderSvc * GaudiTool::detSvc ( ) const

accessor to detector service

Returns: pointer to detector service

Definition at line 214 of file GaudiTool.cpp.

{
  if ( 0 == m_detSvc )
  {
    m_detSvc =
      svc<IDataProviderSvc>( GaudiToolServices::s_DetectorDataSvc , true ) ;
  }
  return m_detSvc ;
}

bool GaudiTool::enableSummary ( bool value )

static

enable/disable summary

Definition at line 127 of file GaudiTool.cpp.

{
  s_enableSummary = value ;
  return summaryEnabled () ;
}

INTupleSvc * GaudiTool::evtColSvc ( ) const

Access the standard event collection service.

Returns: pointer to the event collection service

Definition at line 237 of file GaudiTool.cpp.

{
  if ( 0 == m_evtColSvc )
  {
    m_evtColSvc = svc< INTupleSvc > ( "EvtTupleSvc" , true ) ;
  }
  return m_evtColSvc ;
}

IDataProviderSvc * GaudiTool::evtSvc ( ) const

accessor to event service service

Returns: pointer to detector service

Definition at line 248 of file GaudiTool.cpp.

{
  if ( 0 == m_evtSvc )
  {
    m_evtSvc =
      svc<IDataProviderSvc>( GaudiToolServices::s_EventDataSvc , true ) ;
  }
  return m_evtSvc ;
}

template<class TYPE >

bool GaudiTool::exist	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Check the existence of a data object or container in the Gaudi Transient Event Store.

bool a1 = exist<DataObject>( evtSvc(), "/Event/MyObject" ) ;

bool a2 = exist<MyHits> ( evtSvc(), "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

svc	Pointer to data service (data provider)
location	Address in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: Boolean indicating status of the request

Return values

true	Data object or container exists and implements a proper interface
true	Failed to locate the data object or container

Definition at line 519 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::exist<TYPE> ( svc , location , useRootInTES ) ;
  }

template<class TYPE >

bool GaudiTool::exist	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Check the existence of a data object or container in the Gaudi Transient Event Store.

bool a1 = exist<DataObject>( "/Event/MyObject" ) ;

bool a2 = exist<MyHits> ( "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

location Address in Gaudi Transient Event Store

Returns: Boolean indicating status of the request

Return values

true	Data object or container exists and implements a proper interface
true	Failed to locate the data object or container

Definition at line 549 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::exist<TYPE> ( evtSvc() , location , useRootInTES ) ;
  }

template<class TYPE >

bool GaudiTool::existDet	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const

inline

Check the existence of detector objects in the Gaudi Transient Detector Store.

bool a1 = existDet<DataObject> ( detSvc(), "/dd/Structure/MyObject" ) ;

bool a2 = existDet<Material> ( detSvc(), "/dd/Structure/Material/Air" ) ;

Parameters

svc	Pointer to data service (data provider)
location	Address in Gaudi Transient Detector Store

Returns: Boolean indicating status of the request

Return values

true	Detector object exists and implements a proper interface
false	Failed to locate the data object

Definition at line 572 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::exist<TYPE> ( svc , location , false ) ;
  }

template<class TYPE >

bool GaudiTool::existDet ( const std::string & location ) const

inline

Check the existence of detector objects in the Gaudi Transient Detector Store.

bool a1 = existDet<DataObject> ( "/dd/Structure/MyObject" ) ;

bool a2 = existDet<Material> ( "/dd/Structure/Material/Air" ) ;

Parameters

location Address in Gaudi Transient Detector Store

Returns: Boolean indicating status of the request

Return values

true	Detector object exists and implements a proper interface
false	Failed to locate the data object

Definition at line 594 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::exist<TYPE> ( detSvc() , location , false ) ;
  }

StatusCode GaudiTool::finalize ( )

virtual

standard finalization method

See Also: AlgTool; IAlgTool

Returns: status code

Reimplemented from GaudiCommon< AlgTool >.

Reimplemented in GaudiHistos< GaudiTool >, GaudiTuples< GaudiHistoTool >, GaudiHistoTool, GaudiTupleTool, FuncMinimum, SequencerTimerTool, and EqSolver.

Definition at line 189 of file GaudiTool.cpp.

{
  if ( msgLevel(MSG::DEBUG) )
    debug() << " ==> Finalize the base class GaudiTool " << endmsg;
  // clear "explicit services"
    m_evtSvc    = 0 ;
    m_detSvc    = 0 ;
    m_chronoSvc = 0 ;
    m_incSvc    = 0 ;
    m_histoSvc  = 0 ;
  // finalize the base class
  const StatusCode sc = GaudiCommon<AlgTool>::finalize() ;
  if ( sc.isFailure() ) { return sc; }
  // Decrement the counter
  GaudiToolLocal::s_FinalizeCounter.decrement( m_local ) ;
  // return
  return sc;
}

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::get	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data

MCHits* hits = get<MCHits>( evtSvc() , "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See Also: IDataProviderSvc; SmartDataPtr

Exceptions

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters

svc	Pointer to data service (data provider)
location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: pointer to the data object

Definition at line 265 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::get<TYPE> ( svc , location , useRootInTES ) ;
  }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::get	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data from Gaudi Event Transient Store.

Quick and safe access to the data in Gaudi transient store.

The method located the data at the given address and perform the debug printout about located data.

MCParticles* mcps = get<MCParticles>( MCParticleLocation::Default );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

location	Data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: Pointer to the data object

Definition at line 341 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::get<TYPE> ( evtSvc() , location , useRootInTES ) ;
  }

template<class TYPE >

TYPE* GaudiTool::getDet	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

MyDet* mdet = getDet<MyDet>( detSvc() , "/dd/Structure/LHCb/MyDet" );

Parameters

svc	Pointer to data service (data provider)
location	Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Definition at line 406 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::get<TYPE> ( svc , location , false ) ;
  }

template<class TYPE >

TYPE* GaudiTool::getDet ( const std::string & location ) const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

MyDet* mdet = getDet<MyDet>( "/dd/Structure/LHCb/MyDet" );

Parameters

location Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Definition at line 460 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::get<TYPE> ( detSvc() , location , false ) ;
  }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::getDetIfExists	(	IDataProviderSvc *	svc,
		const std::string &	location
	)		const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MyDet* mdet = getDetIfExists<MyDet>( detSvc() , "/dd/Structure/LHCb/MyDet" );

Parameters

svc	Pointer to data service (data provider)
location	Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Return values

NULL	If the detector object does not exist.

Definition at line 436 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::getIfExists<TYPE> ( svc , location , false ) ;
  }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::getDetIfExists ( const std::string & location ) const

inline

Templated access to the detector data from the Gaudi Detector Transient Store.

Quick and safe access to the detector data in Gaudi transient store.

The method located the detector at the given address and perform the debug printout about located detector.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MyDet* mdet = getDetIfExists<MyDet>( "/dd/Structure/LHCb/MyDet" );

Parameters

location Detector location/address in Gaudi Transient Store

Returns: Pointer to the detector object

Return values

NULL	If the detector object does not exist.

Definition at line 488 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::getIfExists<TYPE> ( detSvc() , location , false ) ;
  }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::getIfExists	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MCHits* hits = getIfExists<MCHits>( evtSvc() , "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See Also: IDataProviderSvc; SmartDataPtr

Parameters

svc	Pointer to data service (data provider)
location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: pointer to the data object.

Return values

NULL	If data does not exist.

Definition at line 307 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::getIfExists<TYPE> ( svc , location , useRootInTES ) ;
  }

template<class TYPE >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::getIfExists	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Templated access to the data in Gaudi Transient Store.

Quick and safe access to the data in Gaudi transient store. The method located the data at given address and perform the debug printout about located data.

Skips the check on the data as performed by 'get'. No exception is thrown if the data is missing.

MCHits* hits = getIfExists<MCHits>( "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See Also: IDataProviderSvc; SmartDataPtr

Parameters

location	data location/address in Gaudi Transient Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: pointer to the data object.

Return values

NULL	If data does not exist.

Definition at line 381 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::getIfExists<TYPE> ( evtSvc() , location , useRootInTES ) ;
  }

template<class TYPE , class TYPE2 >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::getOrCreate	(	IDataProviderSvc *	svc,
		const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Get the existing data object from Gaudi Event Transient store.

   Alternatively, create new object and register it in TES
   and return if object does not exist.

MyHits* hits = getOrCreate<MyHits,MyHits>( evtSvc() , "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Exceptions

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters

svc	Pointer to data service (data provider)
location	Location in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: A valid pointer to the object

Definition at line 627 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::getOrCreate<TYPE,TYPE2> ( svc , location , useRootInTES ) ;
  }

template<class TYPE , class TYPE2 >

Gaudi::Utils::GetData<TYPE>::return_type GaudiTool::getOrCreate	(	const std::string &	location,
		const bool	useRootInTES = `true`
	)		const

inline

Get the existing data object from Gaudi Event Transient store.

   Alternatively, create new object and register it in TES
   and return if object does not exist.

MyHits* hits = getOrCreate<MyHits,MyHits>( "/Event/MyHits" ) ;

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Exceptions

GaudiException	for Invalid Data Provider Service
GaudiException	for invalid/unavailable data

Parameters

location	Location in Gaudi Transient Event Store
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Returns: A valid pointer to the object

Definition at line 661 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::getOrCreate<TYPE,TYPE2> ( evtSvc() , location , useRootInTES ) ;
  }

IHistogramSvc * GaudiTool::histoSvc ( ) const

acessor to the histogram service

Returns: pointer to the histogram service

Definition at line 284 of file GaudiTool.cpp.

{
  if ( 0 == m_histoSvc )
  {
    m_histoSvc = svc<IHistogramSvc> ( GaudiToolServices::s_HistoSvc, true ) ;
  }
  return m_histoSvc;
}

IIncidentSvc * GaudiTool::incSvc ( ) const

accessor to Incident Service

Returns: pointer to the Incident Service

Definition at line 260 of file GaudiTool.cpp.

{
  if ( 0 == m_incSvc )
  {
    m_incSvc =
      svc<IIncidentSvc> ( GaudiToolServices::s_IncidentSvc , true ) ;
  }
  return m_incSvc ;
}

StatusCode GaudiTool::initialize ( )

virtual

standard initialization method

See Also: AlgTool; IAlgTool

Returns: status code

Reimplemented from GaudiCommon< AlgTool >.

Reimplemented in GaudiHistos< GaudiTool >, GaudiTuples< GaudiHistoTool >, GaudiHistoTool, GaudiTupleTool, FuncMinimum, SequencerTimerTool, and EqSolver.

Definition at line 174 of file GaudiTool.cpp.

{
  // initialize the base class
  const StatusCode sc = GaudiCommon<AlgTool>::initialize() ;
  if ( sc.isFailure() ) { return sc; }
  // increment the counter
  GaudiToolLocal::s_FinalizeCounter.increment( m_local ) ;
  // return
  return sc;
}

INTupleSvc * GaudiTool::ntupleSvc ( ) const

Access the standard N-Tuple.

Returns: pointer to N-Tuple service .

Definition at line 226 of file GaudiTool.cpp.

{
  if ( 0 == m_ntupleSvc )
  {
    m_ntupleSvc = svc<INTupleSvc>( "NTupleSvc" , true ) ;
  }
  return m_ntupleSvc ;
}

GaudiTool& GaudiTool::operator= ( const GaudiTool & )

private

no public assignment operator

DataObject* GaudiTool::put	(	IDataProviderSvc *	svc,
		DataObject *	object,
		const std::string &	address,
		const bool	useRootInTES = `true`
	)		const

inline

Register a data object or container into Gaudi Event Transient Store.

MCHits * hits = new MCHits();

put( evtSvc(), hits, "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

See Also: IDataProviderSvc

Parameters

svc	Pointer to data provider service
object	Data object or container to be registered
address	Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Exceptions

GaudiException	for invalid event data service
GaudiException	for invalid object
GaudiException	for error result from event data service

Returns: StatusCode

Return values

StatusCode::SUCCESS	Data was successfully placed in the TES.
StatusCode::FAILURE	Failed to store data in the TES.

Definition at line 189 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::put ( svc , object , address , useRootInTES ) ;
  }

DataObject* GaudiTool::put	(	DataObject *	object,
		const std::string &	address,
		const bool	useRootInTES = `true`
	)		const

inline

Register a data object or container into Gaudi Event Transient Store.

See Also: IDataProviderSvc

MCHits * hits = put( new MCHits(), "/Event/MC/Hits" );

Attention: The method respects the setting of the job option RootInTES by prepending the value of this to the data location that is passed. The default setting for RootInTES is "" so has no effect. This behavior can be suppressed by passing the argument useRootInTES = false

Parameters

object	Data object or container to be registered
address	Address in Gaudi Event Transient Store ("/Event" could be omitted )
useRootInTES	Flag to turn on(TRUE) off(FALSE) the use of the RootInTES location property

Exceptions

GaudiException	for invalid event data service
GaudiException	for invalid object
GaudiException	for error result from event data service

Returns: StatusCode

Return values

StatusCode::SUCCESS	Data was successfully placed in the TES.
StatusCode::FAILURE	Failed to store data in the TES.

Definition at line 225 of file GaudiTool.h.

  {
    return GaudiCommon<AlgTool>::put ( evtSvc() , object , address , useRootInTES ) ;
  }

bool GaudiTool::summaryEnabled ( )

static

is summary enabled?

Definition at line 135 of file GaudiTool.cpp.

{ return s_enableSummary ; }

Member Data Documentation

IChronoStatSvc* GaudiTool::m_chronoSvc

mutableprivate

pointer to Chrono & Stat Service

Definition at line 710 of file GaudiTool.h.

IAlgContextSvc* GaudiTool::m_contextSvc

mutableprivate

Algorithm Context Service.

Definition at line 716 of file GaudiTool.h.

std::string GaudiTool::m_contextSvcName

private

Algorithm Context Service.

Definition at line 718 of file GaudiTool.h.

IDataProviderSvc* GaudiTool::m_detSvc

mutableprivate

pointer to Detector Data Service

Definition at line 708 of file GaudiTool.h.

INTupleSvc* GaudiTool::m_evtColSvc

mutableprivate

pointer to the event tag collection service

Definition at line 704 of file GaudiTool.h.

IDataProviderSvc* GaudiTool::m_evtSvc

mutableprivate

pointer to Event Data Service

Definition at line 706 of file GaudiTool.h.

IHistogramSvc* GaudiTool::m_histoSvc

mutableprivate

pointer for histogram service

Definition at line 714 of file GaudiTool.h.

IIncidentSvc* GaudiTool::m_incSvc

mutableprivate

pointer to Incident Service

Definition at line 712 of file GaudiTool.h.

const std::string GaudiTool::m_local

private

full tool name "type/name"

Definition at line 723 of file GaudiTool.h.

INTupleSvc* GaudiTool::m_ntupleSvc

mutableprivate

pointer to the N-Tuple service

Definition at line 702 of file GaudiTool.h.

bool GaudiTool::s_enableSummary = true

staticprivate

enable printout of summary?

summary is enabled

Definition at line 728 of file GaudiTool.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiAlg/GaudiAlg/GaudiTool.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiAlg/src/lib/GaudiTool.cpp

Gaudi Framework, version v24r2

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
