IAddressCreator interface definition. More...

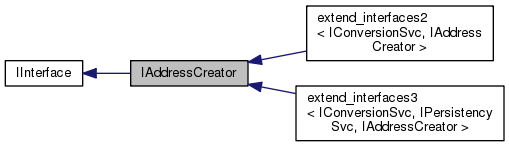

Inheritance diagram for IAddressCreator:

Collaboration diagram for IAddressCreator:

Public Member Functions
	DeclareInterfaceID (IAddressCreator, 3, 0)
	InterfaceID.

virtual StatusCode	createAddress (long svc_type, const CLID &clid, const std::string par, const unsigned long ipar, IOpaqueAddress *&refpAddress)=0
	Create a Generic address using explicit arguments to identify a single object.

virtual StatusCode	convertAddress (const IOpaqueAddress *pAddress, std::string &refAddress)=0
	Convert an address to string form.

virtual StatusCode	createAddress (long svc_type, const CLID &clid, const std::string &refAddress, IOpaqueAddress *&refpAddress)=0
	Creates an address in string form to object form.

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces.

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.

virtual unsigned long	release ()=0
	Release Interface instance.

virtual unsigned long	refCount () const =0
	Current reference count.

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance.

virtual	~IInterface ()
	Virtual destructor.

Additional Inherited Members
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...

typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID.

typedef mpl::set1< iid >	ext_iids
	Extra interfaces.

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Detailed Description

IAddressCreator interface definition.

The address creator allows to:

Create persistent address representations for a given conversion service using this service itself. The aim is to allow address creation without coupling directly to the service.

Definition at line 29 of file IAddressCreator.h.

Member Function Documentation

virtual StatusCode IAddressCreator::convertAddress	(	const IOpaqueAddress *	pAddress,
		std::string &	refAddress
	)

pure virtual

Convert an address to string form.

Parameters

pAddress	Input address.
refAddress	Output address in string form.

virtual StatusCode IAddressCreator::createAddress	(	long	svc_type,
		const CLID &	clid,
		const std::string *	par,
		const unsigned long *	ipar,
		IOpaqueAddress *&	refpAddress
	)

pure virtual

Create a Generic address using explicit arguments to identify a single object.

Parameters

svc_type	Technology identifier encapsulated in this address.
clid	Class identifier of the DataObject represented by the opaque address
par	Array of strings needed to construct the opaque address.
ipar	Array of integers needed to construct the opaque address.
refpAddress	Reference to pointer to the address where the created Address should be stored.

virtual StatusCode IAddressCreator::createAddress	(	long	svc_type,
		const CLID &	clid,
		const std::string &	refAddress,
		IOpaqueAddress *&	refpAddress
	)

pure virtual

Creates an address in string form to object form.

Parameters

svc_type	Technology identifier encapsulated in this address.
clid	Class identifier of the DataObject represented by the opaque address
address	Input address.
refpAddress	Output address in string form.

IAddressCreator::DeclareInterfaceID	(	IAddressCreator	,
		3	,
		0
	)

The documentation for this class was generated from the following file:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r2/GaudiKernel/GaudiKernel/IAddressCreator.h
