This class is an interface to the ParticlePropertySvc. More...

#include <GaudiKernel/IParticlePropertySvc.h>

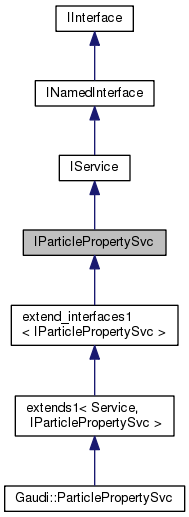

Inheritance diagram for IParticlePropertySvc:

Collaboration diagram for IParticlePropertySvc:

Public Types
typedef std::vector < ParticleProperty * >	VectPP

typedef VectPP::const_iterator	const_iterator

typedef VectPP::iterator	iterator

Public Member Functions
	DeclareInterfaceID (IParticlePropertySvc, 3, 0)
	InterfaceID.

virtual StatusCode	push_back (const std::string &particle, int geantId, int jetsetId, double charge, double mass, double tlife, const std::string &evtName, int pythiaId, double maxWidth)=0
	Create a new particle property.

virtual StatusCode	push_back (ParticleProperty *pp)=0
	Create a new particle property.

virtual const_iterator	begin () const =0
	Get a const reference to the begining of the container.

virtual const_iterator	end () const =0
	Get a const reference to the end of the container.

virtual int	size () const =0
	Get the container size.

virtual ParticleProperty *	find (int geantId)=0
	Retrieve an object by geant3 id.

virtual ParticleProperty *	findByStdHepID (int stdHepID)=0
	Retrieve an object by StdHep id.

virtual ParticleProperty *	find (const std::string &name)=0
	Retrieve an object by name.

virtual ParticleProperty *	findByPythiaID (int pythiaID)=0
	Retrieve an object by PythiaID.

virtual StatusCode	erase (int geantId)=0
	Erase a property by geant3 id.

virtual StatusCode	erase (const std::string &name)=0
	Erase a property by particle name.

virtual StatusCode	eraseByStdHepID (int stdHepID)=0
	Erase a property by StdHep id.

virtual	~IParticlePropertySvc ()
	virtual destructor

Public Member Functions inherited from IService
	DeclareInterfaceID (IService, 3, 0)
	InterfaceID.

virtual StatusCode	sysInitialize ()=0
	Initialize Service.

virtual StatusCode	sysStart ()=0
	Start Service.

virtual StatusCode	sysStop ()=0
	Stop Service.

virtual StatusCode	sysFinalize ()=0
	Finalize Service.

virtual StatusCode	sysReinitialize ()=0
	Re-initialize the Service.

virtual StatusCode	sysRestart ()=0
	Re-start the Service.

virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED).

virtual StatusCode	initialize ()=0
	Initialization (from CONFIGURED to INITIALIZED).

virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING).

virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED).

virtual StatusCode	finalize ()=0
	Finalize (from INITIALIZED to CONFIGURED).

virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE).

virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED).

virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state.

virtual Gaudi::StateMachine::State	targetFSMState () const =0
	When we are in the middle of a transition, get the state where the transition is leading us.

virtual	~IService ()
	virtual destructor

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID.

virtual const std::string &	name () const =0
	Retrieve the name of the instance.

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes).

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces.

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.

virtual unsigned long	release ()=0
	Release Interface instance.

virtual unsigned long	refCount () const =0
	Current reference count.

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance.

virtual	~IInterface ()
	Virtual destructor.

Additional Inherited Members
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Protected Member Functions inherited from IService
virtual void	setServiceManager (ISvcManager *)=0

Detailed Description

This class is an interface to the ParticlePropertySvc.

Author: Iain Last; G.Corti

Definition at line 19 of file IParticlePropertySvc.h.

Member Typedef Documentation

typedef VectPP::const_iterator IParticlePropertySvc::const_iterator

Definition at line 27 of file IParticlePropertySvc.h.

typedef VectPP::iterator IParticlePropertySvc::iterator

Definition at line 28 of file IParticlePropertySvc.h.

typedef std::vector<ParticleProperty*> IParticlePropertySvc::VectPP

Definition at line 26 of file IParticlePropertySvc.h.

Constructor & Destructor Documentation

virtual IParticlePropertySvc::~IParticlePropertySvc ( )

inlinevirtual

virtual destructor

Definition at line 84 of file IParticlePropertySvc.h.

{}

Member Function Documentation

virtual const_iterator IParticlePropertySvc::begin ( ) const

pure virtual

Get a const reference to the begining of the container.

Implemented in Gaudi::ParticlePropertySvc.

IParticlePropertySvc::DeclareInterfaceID	(	IParticlePropertySvc	,
		3	,
		0
	)

InterfaceID.

virtual const_iterator IParticlePropertySvc::end ( ) const

pure virtual

Get a const reference to the end of the container.

Implemented in Gaudi::ParticlePropertySvc.

virtual StatusCode IParticlePropertySvc::erase ( int geantId )

pure virtual

Erase a property by geant3 id.

Implemented in Gaudi::ParticlePropertySvc.

virtual StatusCode IParticlePropertySvc::erase ( const std::string & name )

pure virtual

Erase a property by particle name.

Implemented in Gaudi::ParticlePropertySvc.

virtual StatusCode IParticlePropertySvc::eraseByStdHepID ( int stdHepID )

pure virtual

Erase a property by StdHep id.

Implemented in Gaudi::ParticlePropertySvc.

virtual ParticleProperty* IParticlePropertySvc::find ( int geantId )

pure virtual

Retrieve an object by geant3 id.

Implemented in Gaudi::ParticlePropertySvc.

virtual ParticleProperty* IParticlePropertySvc::find ( const std::string & name )

pure virtual

Retrieve an object by name.

Implemented in Gaudi::ParticlePropertySvc.

virtual ParticleProperty* IParticlePropertySvc::findByPythiaID ( int pythiaID )

pure virtual

Retrieve an object by PythiaID.

Implemented in Gaudi::ParticlePropertySvc.

virtual ParticleProperty* IParticlePropertySvc::findByStdHepID ( int stdHepID )

pure virtual

Retrieve an object by StdHep id.

Implemented in Gaudi::ParticlePropertySvc.

virtual StatusCode IParticlePropertySvc::push_back	(	const std::string &	particle,
		int	geantId,
		int	jetsetId,
		double	charge,
		double	mass,
		double	tlife,
		const std::string &	evtName,
		int	pythiaId,
		double	maxWidth
	)

pure virtual

Create a new particle property.

Parameters

particle	String name of the particle
geantId	Geant3 ID of the particle
jetsetId	Jetset ID of the particle
charge	Particle charge (/e)
mass	Particle mass (MeV)
tlife	Particle lifetime (s)
evtName	String name of the particle in EvtGen
pythiaId	ID of particle in Pythia

Returns: StatusCode - SUCCESS if the particle property was added

Implemented in Gaudi::ParticlePropertySvc.

virtual StatusCode IParticlePropertySvc::push_back ( ParticleProperty * pp )

pure virtual

Create a new particle property.

Parameters

pp	a particle property class

Returns: StatusCode - SUCCESS if the particle property was added

Implemented in Gaudi::ParticlePropertySvc.

virtual int IParticlePropertySvc::size ( ) const

pure virtual

Get the container size.

Implemented in Gaudi::ParticlePropertySvc.

The documentation for this class was generated from the following file:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v25r2/GaudiKernel/GaudiKernel/IParticlePropertySvc.h

Gaudi Framework, version v25r2
