IStateful Class Reference

Interface for classes that implement the Gaudi State Machine. More...

#include <GaudiKernel/IStateful.h>

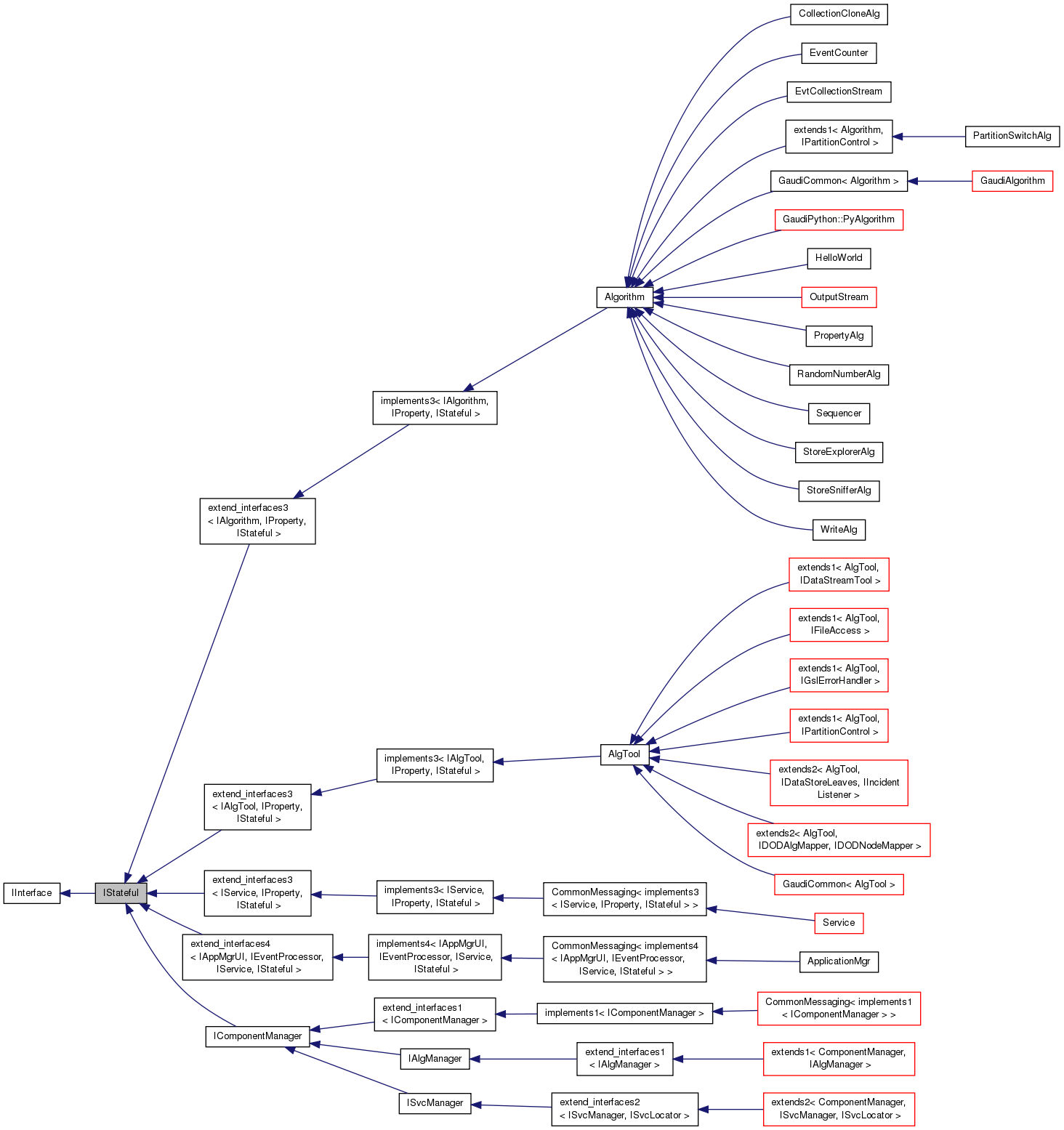

Inheritance diagram for IStateful:

Collaboration diagram for IStateful:

Public Member Functions
	DeclareInterfaceID (IStateful, 1, 0)
	InterfaceID. More...
virtual	~IStateful ()
virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED). More...
virtual StatusCode	initialize ()=0
	Initialization (from CONFIGURED to INITIALIZED). More...
virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING). More...
virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED). More...
virtual StatusCode	finalize ()=0
	Finalize (from INITIALIZED to CONFIGURED). More...
virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE). More...
virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED). More...
virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED). More...
virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state. More...
virtual Gaudi::StateMachine::State	targetFSMState () const =0
	When we are in the middle of a transition, get the state where the transition is leading us. More...
Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function More...
virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces. More...
virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance. More...
virtual unsigned long	release ()=0
	Release Interface instance. More...
virtual unsigned long	refCount () const =0
	Current reference count. More...
virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance. More...
virtual	~IInterface ()
	Virtual destructor. More...

Additional Inherited Members
Public Types inherited from IInterface
enum	Status { SUCCESS = 1, NO_INTERFACE, VERSMISMATCH, LAST_ERROR }
	Return status. More...
typedef Gaudi::InterfaceId < IInterface, 0, 0 >	iid
	Interface ID. More...
typedef mpl::set1< iid >	ext_iids
	Extra interfaces. More...
Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface. More...

Detailed Description

Interface for classes that implement the Gaudi State Machine.

Author

Marco Clemencic

Date

2008-05-15

Definition at line 17 of file IStateful.h.

Constructor & Destructor Documentation

virtual IStateful::~IStateful ( )

inlinevirtual

Definition at line 22 of file IStateful.h.

{} //< Virtual destructor.

Member Function Documentation

virtual StatusCode IStateful::configure ( )

pure virtual

Configuration (from OFFLINE to CONFIGURED).

Implemented in Algorithm, ApplicationMgr, AlgTool, Service, and ComponentManager.

IStateful::DeclareInterfaceID	(	IStateful	,
		1	,
		0
	)

InterfaceID.

virtual StatusCode IStateful::finalize ( )

pure virtual

Finalize (from INITIALIZED to CONFIGURED).

Implemented in GaudiHistos< GaudiAlgorithm >, GaudiHistos< GaudiTool >, GaudiCommon< Algorithm >, GaudiCommon< AlgTool >, MultiStoreSvc, Gaudi::Utils::StopSignalHandler, DataSvc, GaudiTuples< GaudiHistoTool >, GaudiTuples< GaudiHistoAlg >, PersistencySvc, StoreExplorerAlg, CollectionCloneAlg, HistogramSvc, DataOnDemandSvc, Algorithm, Gaudi::RootCnvSvc, OutputStream, GslSvc, GaudiAlgorithm, GaudiTool, TagCollectionStream, EventCollectionSelector, ServiceManager, EventSelector, ConversionSvc, Gaudi::RootPerfMonSvc, StoreSnifferAlg, Gaudi::ParticlePropertySvc, MinimalEventLoopMgr, Gaudi::IODataManager, ApplicationMgr, EventLoopMgr, AlgorithmManager, GaudiHistoTool, Sequencer, GaudiTupleTool, PartitionSwitchAlg, GaudiTupleAlg, GaudiHistoAlg, RndmGenSvc, Gaudi::MultiFileCatalog, CounterSvc, PartitionSwitchTool, RndmEngine, IncidentSvc, AlgTool, HistogramPersistencySvc, Gaudi::RootEvtSelector, EvtCollectionStream, Service, GaudiPython::PyAlgorithm, StalledEventMonitor, SequencerTimerTool, ComponentManager, DataStreamTool, AppMgrRunable, IoComponentMgr, MessageSvc, FuncMinimum, HistorySvc, AlgContextSvc, ChronoStatSvc, NTupleSvc, EvtPersistencySvc, GslErrorCount, RandomNumberAlg, DetDataSvc, DataSvcFileEntriesTool, EqSolver, ExceptionSvc, HepRndm::Engine< TYPE >, FileMgr, GaudiSequencer, InputCopyStream, ToolSvc, JobOptionsSvc, TagCollectionSvc, AuditorSvc, THistSvc, RecordDataSvc, VFSSvc, PartPropSvc, RecordOutputStream, ReplayOutputStream, Prescaler, PythonScriptingSvc, RootHistCnv::PersSvc, WriteAlg, EventCounter, HelloWorld, PropertyAlg, RecordStream, RunRecordStream, IssueLogger, EvtDataSvc, StatusCodeSvc, and DetPersistencySvc.

virtual Gaudi::StateMachine::State IStateful::FSMState ( ) const

pure virtual

Get the current state.

Implemented in Algorithm, ApplicationMgr, AlgTool, ComponentManager, and Service.

virtual StatusCode IStateful::initialize ( )

pure virtual

Initialization (from CONFIGURED to INITIALIZED).

Implemented in GaudiHistos< GaudiAlgorithm >, GaudiHistos< GaudiTool >, GaudiCommon< Algorithm >, GaudiCommon< AlgTool >, MultiStoreSvc, DataSvc, Gaudi::Utils::StopSignalHandler, GaudiTuples< GaudiHistoTool >, GaudiTuples< GaudiHistoAlg >, PersistencySvc, StoreExplorerAlg, HistogramSvc, DataOnDemandSvc, CollectionCloneAlg, Algorithm, Gaudi::RootCnvSvc, OutputStream, GslSvc, GaudiTool, TagCollectionStream, GaudiAlgorithm, EventCollectionSelector, EventSelector, ServiceManager, ConversionSvc, Gaudi::RootPerfMonSvc, Gaudi::ParticlePropertySvc, StoreSnifferAlg, Gaudi::IODataManager, MinimalEventLoopMgr, ApplicationMgr, EventLoopMgr, AlgorithmManager, GaudiHistoTool, GaudiTupleTool, GaudiTupleAlg, RndmGenSvc, Gaudi::MultiFileCatalog, GaudiHistoAlg, IncidentSvc, RndmEngine, AlgTool, HistogramPersistencySvc, Gaudi::RootEvtSelector, PartitionSwitchAlg, EvtCollectionStream, Sequencer, Service, IoComponentMgr, SequencerTimerTool, FuncMinimum, MessageSvc, HistorySvc, GaudiPython::PyAlgorithm, AlgContextSvc, ChronoStatSvc, AppMgrRunable, PartitionSwitchTool, EvtPersistencySvc, DataStreamTool, ComponentManager, NTupleSvc, EqSolver, RandomNumberAlg, StalledEventMonitor, ExceptionSvc, FileMgr, HepRndm::Engine< TYPE >, DataSvcFileEntriesTool, DetDataSvc, GaudiSequencer, InputCopyStream, JobOptionsSvc, TagCollectionSvc, ToolSvc, THistSvc, AuditorSvc, RecordDataSvc, VFSSvc, PartPropSvc, RecordOutputStream, Prescaler, ReplayOutputStream, PythonScriptingSvc, WriteAlg, RootHistCnv::PersSvc, EventCounter, HelloWorld, PropertyAlg, IssueLogger, EvtDataSvc, StatusCodeSvc, and DetPersistencySvc.

virtual StatusCode IStateful::reinitialize ( )

pure virtual

Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

Implemented in MultiStoreSvc, DataSvc, HistogramSvc, DataOnDemandSvc, Algorithm, ServiceManager, EventSelector, ApplicationMgr, MinimalEventLoopMgr, AlgorithmManager, EventLoopMgr, AlgTool, ComponentManager, HistogramPersistencySvc, Service, Sequencer, HistorySvc, MessageSvc, NTupleSvc, DetDataSvc, THistSvc, RecordDataSvc, PartPropSvc, IssueLogger, EvtDataSvc, and StatusCodeSvc.

virtual StatusCode IStateful::restart ( )

pure virtual

Initialization (from RUNNING to RUNNING, via INITIALIZED).

Implemented in Algorithm, ServiceManager, ApplicationMgr, MinimalEventLoopMgr, AlgorithmManager, AlgTool, ComponentManager, and Service.

virtual StatusCode IStateful::start ( )

pure virtual

Start (from INITIALIZED to RUNNING).

Implemented in Algorithm, ServiceManager, MinimalEventLoopMgr, ApplicationMgr, AlgorithmManager, Sequencer, AlgTool, Service, GaudiPython::PyAlgorithm, AppMgrRunable, ComponentManager, StalledEventMonitor, ToolSvc, and ReplayOutputStream.

virtual StatusCode IStateful::stop ( )

pure virtual

Stop (from RUNNING to INITIALIZED).

Implemented in Algorithm, Gaudi::RootPerfMonSvc, ServiceManager, MinimalEventLoopMgr, ApplicationMgr, EventLoopMgr, AlgorithmManager, Sequencer, AlgTool, Service, GaudiPython::PyAlgorithm, HistorySvc, StalledEventMonitor, AppMgrRunable, ComponentManager, ToolSvc, and ReplayOutputStream.

virtual Gaudi::StateMachine::State IStateful::targetFSMState ( ) const

pure virtual

When we are in the middle of a transition, get the state where the transition is leading us.

Otherwise it returns the same state as state().

Implemented in Algorithm, ApplicationMgr, ComponentManager, AlgTool, and Service.

virtual StatusCode IStateful::terminate ( )

pure virtual

Initialization (from CONFIGURED to OFFLINE).

Implemented in Algorithm, ApplicationMgr, AlgTool, ComponentManager, and Service.

---

The documentation for this class was generated from the following file:

• GaudiKernel/GaudiKernel/IStateful.h
