TimingAuditor Class Reference

Simple auditor which uses SequencerTimerTool for *ALL* algorithms, including the algorithm from main Gaudi "TopAlg" list and algorithms managed by Data-On-Demand Service. More...

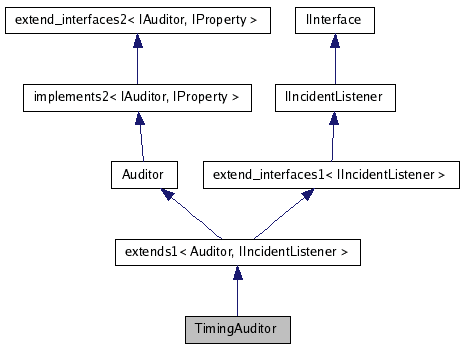

Inheritance diagram for TimingAuditor:

Inheritance graph
[legend]

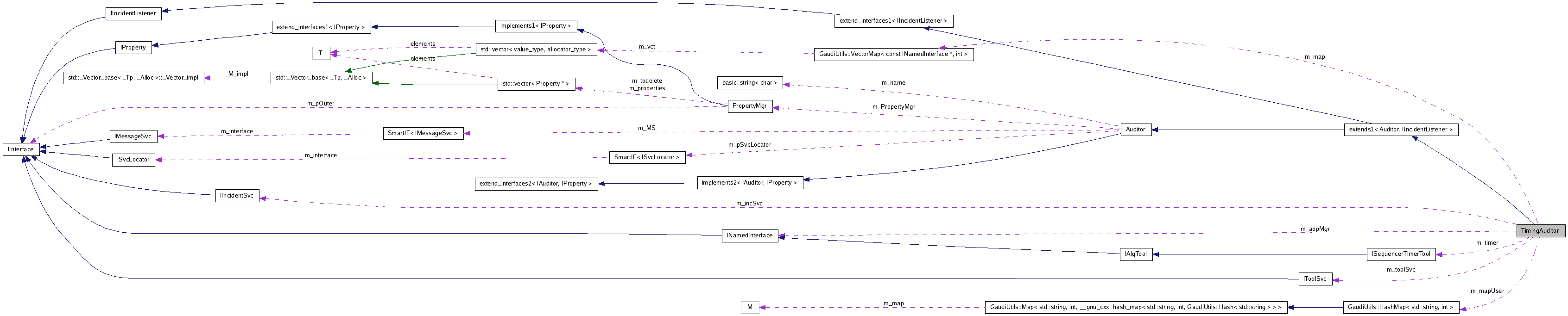

Collaboration diagram for TimingAuditor:

Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual void before (StandardEventType evt, INamedInterface *alg)
 The following methods are meant to be implemented by the child class...
virtual void after (StandardEventType evt, INamedInterface *alg, const StatusCode &sc)
virtual void before (CustomEventTypeRef evt, const std::string &name)
virtual void after (CustomEventTypeRef evt, const std::string &name, const StatusCode &sc)
virtual void handle (const Incident &)
 Inform that a new incident has occurred.
virtual StatusCode initialize ()
 factory:
virtual StatusCode finalize ()
 TimingAuditor (const std::string &name, ISvcLocator *pSvc)
 standard constructor
virtual ~TimingAuditor ()
 virtual destructor

Private Types

typedef GaudiUtils::VectorMap
< const INamedInterface *, int > 		Map
typedef GaudiUtils::HashMap
< std::string, int > 		MapUser

Private Member Functions

void i_beforeInitialize (INamedInterface *alg)
void i_afterInitialize (INamedInterface *alg)
void i_beforeExecute (INamedInterface *alg)
void i_afterExecute (INamedInterface *alg)
 TimingAuditor ()
 TimingAuditor (const TimingAuditor &)
TimingAuditor & operator= (const TimingAuditor &)

Private Attributes

IToolSvc * m_toolSvc
 tool service
IIncidentSvc * m_incSvc
 incident service
ISequencerTimerTool * m_timer
 the timer tool
INamedInterface * m_appMgr
 ApplicationManager.
Map m_map
int m_indent
 indentation level
bool m_inEvent
 "In event" flag
bool m_goodForDOD
 "optimized for DOD"
MapUser m_mapUser
 map used to record user timing events

Detailed Description

Simple auditor which uses SequencerTimerTool for *ALL* algorithms, including the algorithm from main Gaudi "TopAlg" list and algorithms managed by Data-On-Demand Service.

Author:
Vanya BELYAEV ibelyaev@physics.syr.edu
Date:
2007-01-31

Definition at line 28 of file TimingAuditor.cpp.

Member Typedef Documentation

typedef GaudiUtils::VectorMap<const INamedInterface*,int> TimingAuditor::Map [private]

Definition at line 92 of file TimingAuditor.cpp.

typedef GaudiUtils::HashMap<std::string,int> TimingAuditor::MapUser [private]

Definition at line 101 of file TimingAuditor.cpp.

Constructor & Destructor Documentation

TimingAuditor::TimingAuditor ( const std::string &  name,
ISvcLocator *  pSvc
) [inline]

standard constructor

Definition at line 54 of file TimingAuditor.cpp.

00056     : base_class ( name , pSvc )
00057     //
00058     , m_toolSvc    ( 0 )
00059     , m_incSvc     ( 0 )
00060     //
00061     , m_timer      ( 0 )
00062     //
00063     , m_appMgr     ( 0 )
00064     //
00065     , m_map        (       )
00066     , m_indent     ( 0     )
00067     , m_inEvent    ( false )
00068     , m_goodForDOD ( false )
00069     , m_mapUser    (       )
00070   {
00071     declareProperty ( "OptimizedForDOD" , m_goodForDOD ) ;
00072   } ;

virtual TimingAuditor::~TimingAuditor (  )  [inline, virtual]

virtual destructor

Definition at line 74 of file TimingAuditor.cpp.

00074 {}

TimingAuditor::TimingAuditor (  )  [private]

TimingAuditor::TimingAuditor ( const TimingAuditor &   )  [private]

Member Function Documentation

void TimingAuditor::before ( StandardEventType  evt,
INamedInterface *  obj
) [virtual]

The following methods are meant to be implemented by the child class...

Reimplemented from Auditor.

Definition at line 197 of file TimingAuditor.cpp.

00198 {
00199   switch (evt) {
00200   case IAuditor::Initialize : i_beforeInitialize( alg ); break;
00201   case IAuditor::Execute    : i_beforeExecute( alg );    break;
00202   default: break;
00203   }
00204 }

void TimingAuditor::after ( StandardEventType  evt,
INamedInterface *  alg,
const StatusCode &  sc
) [virtual]

Reimplemented from Auditor.

Definition at line 206 of file TimingAuditor.cpp.

00207 {
00208   switch (evt) {
00209   case IAuditor::Initialize : i_afterInitialize( alg ); break;
00210   case IAuditor::Execute    : i_afterExecute( alg ); break;
00211   default: break;
00212   }
00213 }

void TimingAuditor::before ( CustomEventTypeRef  evt,
const std::string &  name
) [virtual]

Reimplemented from Auditor.

Definition at line 280 of file TimingAuditor.cpp.

00281 {
00282   // Ignore obvious mistakes
00283   if ( name.empty() && evt.empty() ) { return; }
00284
00285   // look for the user timer in the map
00286   int timer = 0;
00287   std::string nick = name + ":" + evt;
00288   MapUser::iterator found = m_mapUser.find( nick );
00289
00290   if ( m_mapUser.end() == found ) {
00291     // add a new timer if not yet available
00292     timer = m_timer->addTimer( nick ) ;
00293     m_mapUser[nick] = timer;
00294   }
00295   else {
00296     timer = found->second;
00297   }
00298
00299   m_timer->start( timer );
00300 }

void TimingAuditor::after ( CustomEventTypeRef  evt,
const std::string &  name,
const StatusCode &  sc
) [virtual]

Reimplemented from Auditor.

Definition at line 302 of file TimingAuditor.cpp.

00303 {
00304   // Ignore obvious mistakes
00305   if ( name.empty() && evt.empty() ) { return; }
00306
00307   // look for the user timer in the map
00308   std::string nick = name + ":" + evt;
00309   MapUser::iterator found = m_mapUser.find( nick );
00310
00311   // We cannot do much if the timer is not available
00312   if ( m_mapUser.end() == found ) {
00313     MsgStream log(msgSvc(), this->name());
00314     log << MSG::WARNING << "Trying to stop the measure  of the timing for '"
00315                         << nick << "' but it was never started. Check the code"
00316                         << endmsg;
00317     return;
00318   }
00319   m_timer->stop( found->second );
00320 }

void TimingAuditor::i_beforeInitialize ( INamedInterface *  alg  )  [private]

Definition at line 215 of file TimingAuditor.cpp.

00216 {
00217   if ( m_goodForDOD ) { return ; }
00218   //
00219   if ( 0 == alg ) { return ; }
00220   Map::iterator found = m_map.find( alg ) ;
00221   if ( m_map.end() != found ) { return ; }
00222   ++m_indent ;
00223   std::string nick = alg->name() ;
00224   if ( 0 < m_indent ) { nick = std::string ( m_indent , ' ') + nick ; }
00225   if ( m_inEvent )
00226   {
00227     nick[0] = '*' ;
00228     MsgStream log( msgSvc() , name() ) ;
00229     log << MSG::DEBUG
00230         << "Insert non-structural component '"
00231         << alg->name() << "' of type '"
00232         << System::typeinfoName(typeid(*alg)) << "' at level "
00233         << m_indent << endmsg ;
00234   }
00235   int timer = m_timer->addTimer( nick ) ;
00236   m_map.insert ( alg , timer ) ;
00237   m_timer->start( timer ) ;
00238 }

void TimingAuditor::i_afterInitialize ( INamedInterface *  alg  )  [private]

Definition at line 240 of file TimingAuditor.cpp.

00241 {
00242   if ( m_goodForDOD ) { return ; }
00243   if ( 0 == alg     ) { return ; }
00244   --m_indent ;
00245 }

void TimingAuditor::i_beforeExecute ( INamedInterface *  alg  )  [private]

Definition at line 247 of file TimingAuditor.cpp.

00248 {
00249   if ( 0 == alg ) { return ; }
00250   ++m_indent ;
00251   Map::iterator found = m_map.find( alg ) ;
00252   if ( m_map.end() == found )
00253   {
00254     MsgStream log( msgSvc() , name() ) ;
00255     log << MSG::DEBUG
00256         << "Insert non-structural component '"
00257         << alg->name() << "' of type '"
00258         << System::typeinfoName(typeid(*alg)) << "' at level "
00259         << m_indent << endmsg ;
00260     std::string nick = alg->name() ;
00261     if ( 0 < m_indent  ) { nick = std::string ( m_indent , ' ') + nick ; }
00262     if ( !m_goodForDOD ) { nick[0]='*' ;}
00263     int timer = m_timer->addTimer( nick ) ;
00264     m_map.insert ( alg , timer ) ;
00265     m_timer->start( timer ) ;
00266     return ;
00267   }
00268   m_timer->start( found->second ) ;
00269 }

void TimingAuditor::i_afterExecute ( INamedInterface *  alg  )  [private]

Definition at line 271 of file TimingAuditor.cpp.

00272 {
00273   if ( 0 == alg ) { return ; }
00274   Map::iterator found = m_map.find( alg ) ;
00275   if ( m_map.end() == found ) { return ; }
00276   m_timer->stop( found->second ) ;
00277   --m_indent ;
00278 }

void TimingAuditor::handle ( const Incident &  i  )  [virtual]

Inform that a new incident has occurred.

Implements IIncidentListener.

Definition at line 322 of file TimingAuditor.cpp.

00323 {
00324   if      ( IncidentType::BeginEvent == i.type () )
00325   {
00326     m_timer -> start ( m_map[ m_appMgr ] ) ;
00327     ++m_indent ;
00328     m_inEvent = true ;
00329   }
00330   else if ( IncidentType::EndEvent   == i.type () )
00331   {
00332     m_timer -> stop  ( m_map[ m_appMgr ] ) ;
00333     --m_indent ;
00334     m_inEvent = false ;
00335   }
00336 }

StatusCode TimingAuditor::initialize (  )  [virtual]

factory:

Reimplemented from Auditor.

Definition at line 110 of file TimingAuditor.cpp.

00111 {
00112   StatusCode sc = Auditor::initialize() ;
00113   if ( sc.isFailure() ) { return sc ; }                  // RETURN
00114
00115   MsgStream log ( msgSvc() , name() ) ;
00116
00117   // get tool service
00118   if ( 0 == m_toolSvc )
00119   {
00120     sc = Auditor::service ( "ToolSvc" , m_toolSvc ) ;
00121     if ( sc.isFailure() )
00122     {
00123       log << "Could not retrieve 'ToolSvc' " << sc << endmsg ;
00124       return sc ;                                        // RETURN
00125     }
00126     if ( 0 == m_timer )
00127     {
00128       sc = m_toolSvc->retrieveTool
00129         ( "SequencerTimerTool/TIMER" , m_timer , this  , true ) ;
00130       if ( sc.isFailure() )
00131       {
00132         log << MSG::ERROR
00133             << "Could not retrieve ISequencerTimerTool" << endmsg ;
00134         return sc ;
00135       }
00136     }
00137   }
00138   // get incident service
00139   if ( 0 == m_incSvc )
00140   {
00141     sc = Auditor::service ( "IncidentSvc" , m_incSvc ) ;
00142     if ( sc.isFailure() )
00143     {
00144       log << MSG::ERROR
00145           << "Could not retrieve 'IncidentSvc'" << sc << endmsg ;
00146       return sc ;
00147     }
00148     m_incSvc -> addListener ( this , IncidentType::BeginEvent ) ;
00149     m_incSvc -> addListener ( this , IncidentType::EndEvent   ) ;
00150   }
00151   // get the application manager
00152   if ( 0 == m_appMgr )
00153   {
00154     sc = Auditor::service ( "ApplicationMgr" , m_appMgr ) ;
00155     if ( sc.isFailure() )
00156     {
00157       log << MSG::ERROR
00158           << "Could not retrieve 'ApplicationMgr'" << sc << endmsg ;
00159       return sc ;
00160     }
00161     if ( m_map.end() == m_map.find( m_appMgr ) )
00162     {
00163       int timer = m_timer->addTimer( "EVENT LOOP" ) ;
00164       m_map.insert ( m_appMgr , timer ) ;
00165     }
00166   }
00167   //
00168   return StatusCode::SUCCESS ;
00169 }

StatusCode TimingAuditor::finalize ( void   )  [virtual]

Reimplemented from Auditor.

Definition at line 171 of file TimingAuditor.cpp.

00172 {
00173   if ( 0 != m_incSvc )
00174   {
00175     m_incSvc -> removeListener ( this , IncidentType::BeginEvent ) ;
00176     m_incSvc -> removeListener ( this , IncidentType::EndEvent   ) ;
00177     m_incSvc -> release () ;
00178     m_incSvc = 0 ;
00179   }
00180   if ( 0 != m_toolSvc )
00181   {
00182     // the 2 following line are commented out: it is
00183     // is a temporary hack which prevent a crash due to a problem in
00184     // the reference counting
00185     //     if ( 0 != m_timer )
00186     //     { m_toolSvc -> releaseTool ( m_timer ) . ignore() ; m_timer = 0 ; }
00187     m_toolSvc -> release () ;
00188     m_toolSvc = 0 ;
00189   }
00190   if ( 0 != m_appMgr ) { m_appMgr -> release () ;  m_appMgr = 0 ; }
00191   // clear the map
00192   m_map.clear() ;
00193   // finalize the base class
00194   return Auditor::finalize () ;
00195 }

TimingAuditor& TimingAuditor::operator= ( const TimingAuditor &   )  [private]

Member Data Documentation

IToolSvc* TimingAuditor::m_toolSvc [private]

tool service

Definition at line 84 of file TimingAuditor.cpp.

IIncidentSvc* TimingAuditor::m_incSvc [private]

incident service

Definition at line 86 of file TimingAuditor.cpp.

ISequencerTimerTool* TimingAuditor::m_timer [private]

the timer tool

Definition at line 88 of file TimingAuditor.cpp.

INamedInterface* TimingAuditor::m_appMgr [private]

ApplicationManager.

Definition at line 90 of file TimingAuditor.cpp.

Map TimingAuditor::m_map [private]

Definition at line 93 of file TimingAuditor.cpp.

int TimingAuditor::m_indent [private]

indentation level

Definition at line 95 of file TimingAuditor.cpp.

bool TimingAuditor::m_inEvent [private]

"In event" flag

Definition at line 97 of file TimingAuditor.cpp.

bool TimingAuditor::m_goodForDOD [private]

"optimized for DOD"

Definition at line 99 of file TimingAuditor.cpp.

MapUser TimingAuditor::m_mapUser [private]

map used to record user timing events

Definition at line 102 of file TimingAuditor.cpp.

The documentation for this class was generated from the following file:
Generated at Wed Mar 17 18:19:36 2010 for Gaudi Framework, version v21r8 by Doxygen version 1.5.6 written by Dimitri van Heesch, © 1997-2004
