DataOnDemandSvc Class Reference

The DataOnDemandSvc listens to incidents typically triggered by the data service of the configurable name "IncidentName". More...

#include <DataOnDemandSvc.h>

Inheritance diagram for DataOnDemandSvc:

[legend]

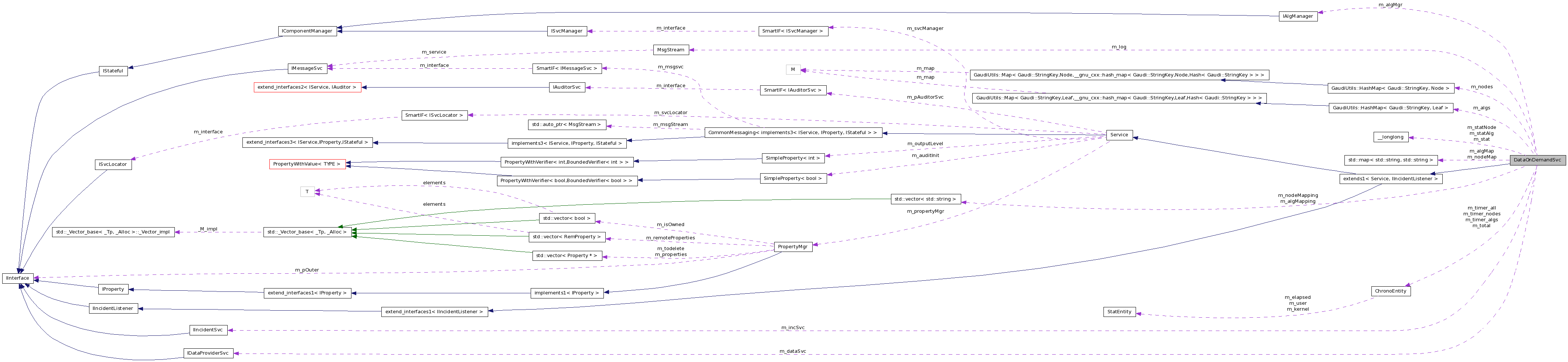

Collaboration diagram for DataOnDemandSvc:

[legend]

List of all members.

Classes
struct	Leaf
struct	Node
	Helper class of the DataOnDemandSvc. More...
struct	Protection
	Helper class of the DataOnDemandSvc. More...
Public Types
typedef std::vector< std::string >	Setup
typedef ROOT::Reflex::Type	ClassH
typedef GaudiUtils::HashMap < Gaudi::StringKey, Node >	NodeMap
typedef GaudiUtils::HashMap < Gaudi::StringKey, Leaf >	AlgMap
Public Member Functions
virtual StatusCode	initialize ()
	Inherited Service overrides: Service initialization.
virtual StatusCode	finalize ()
	Inherited Service overrides: Service finalization.
virtual StatusCode	reinitialize ()
	Inherited Service overrides: Service reinitialization.
virtual void	handle (const Incident &incident)
	IIncidentListener interfaces overrides: incident handling.
	DataOnDemandSvc (const std::string &name, ISvcLocator *svc)
	Standard initializing service constructor.
virtual	~DataOnDemandSvc ()
	Standard destructor.
void	update_1 (Property &p)
void	update_2 (Property &p)
void	update_3 (Property &p)
void	update_dump (Property &)
	update handler for 'Dump' property
Protected Member Functions
StatusCode	configureHandler (Leaf &leaf)
	Configure handler for leaf.
StatusCode	execHandler (const std::string &tag, Leaf &leaf)
	Execute leaf handler (algorithm).
StatusCode	execHandler (const std::string &tag, Node &node)
	Execute node handler (simple object creation using seal reflection).
StatusCode	setupNodeHandlers ()
	Initialize node handlers.
StatusCode	setupAlgHandlers ()
	Initialize leaf handlers.
StatusCode	setup ()
	Setup routine (called by (re-) initialize.
StatusCode	update ()
	update the handlers
MsgStream &	stream () const
	get the message stream
void	dump (const MSG::Level level, const bool mode=true) const
	dump the content of DataOnDemand service
Private Types
typedef std::map< std::string, std::string >	Map
Private Attributes
IIncidentSvc *	m_incSvc
	Incident service.
IAlgManager *	m_algMgr
	Algorithm manager.
IDataProviderSvc *	m_dataSvc
	Data provider reference.
std::string	m_trapType
	Trap name.
std::string	m_dataSvcName
	Data service name.
bool	m_partialPath
	Flag to allow for the creation of partial leaves.
bool	m_dump
	flag to force the printout
bool	m_init
	flag to warm up the configuration
bool	m_allowInitFailure
	flag to allow DataOnDemand initialization to succeed even if the (pre)initialization of the algorithms fails (m_init).
Setup	m_algMapping
	Mapping to algorithms.
Setup	m_nodeMapping
	Mapping to nodes.
AlgMap	m_algs
	Map of algorithms to handle incidents.
NodeMap	m_nodes
	Map of "empty" objects to be placed as intermediate nodes.
Map	m_algMap
	the major configuration property { 'data' : 'algorithm' }
Map	m_nodeMap
	the major configuration property { 'data' : 'type' }
bool	m_updateRequired
std::string	m_prefix
MsgStream *	m_log
ChronoEntity	m_total
ulonglong	m_statAlg
ulonglong	m_statNode
ulonglong	m_stat
ChronoEntity	m_timer_nodes
ChronoEntity	m_timer_algs
ChronoEntity	m_timer_all
bool	m_locked_nodes
bool	m_locked_algs
bool	m_locked_all

Detailed Description

The DataOnDemandSvc listens to incidents typically triggered by the data service of the configurable name "IncidentName".

In the job options handlers can be declared, which allow to configure this service. Such handlers are either:

Node handlers, if objects other than the default object type have to be instantiated. DataOnDemandSvc.Nodes = { "DATA='/Event/Rec' TYPE='DataObject'", "DATA='/Event/Rec/Muon' TYPE='DataObject'" };

Leaf handlers (Algorithms), which get instantiated and executed on demand. DataOnDemandSvc.Algorithms = { "DATA='/Event/Rec/Muon/Digits' TYPE='MuonDigitAlg/MyMuonDigits'" }; If the algorithm name is omitted the class name will be the instance name.

The handlers only get called if the exact path mathes. In the event already the partial path to any handler is missing a leaf handler may be triggered, which includes the partal pathes ( DataOnDemandSvc.UsePreceedingPath = true )

2006-10-15: New options (using map-like semantics:)

    DataOnDemandSvc.AlgMap  +=
   { "Phys/StdLoosePions/Particles" : "PreLoadParticles/StdLoosePions" ,
     "Phys/StdLoosePions/Vertioces" : "PreLoadParticles/StdLoosePions" } ;

    DataOnDemandSvc.NodeMap +=
   { "Phys" : "DataObject" ,
     "MC"   : "DataObject" } ;

New treatment of preceeding paths. for each registered leaf or node the all parent nodes are added into the node-map with default directory type 'DataObject'

The major properties are equipped with handlers (more or less mandatory for interactive work in python)

From now the default prefix ( "/Event/" ) coudl be omitted from any data-item. It will be added automatically.

Author:: M.Frank

Version:: 1.0

Definition at line 90 of file DataOnDemandSvc.h.

Member Typedef Documentation

typedef GaudiUtils::HashMap<Gaudi::StringKey, Leaf> DataOnDemandSvc::AlgMap

Definition at line 172 of file DataOnDemandSvc.h.

typedef ROOT::Reflex::Type DataOnDemandSvc::ClassH

Definition at line 96 of file DataOnDemandSvc.h.

typedef std::map<std::string,std::string> DataOnDemandSvc::Map [private]

Definition at line 277 of file DataOnDemandSvc.h.

typedef GaudiUtils::HashMap<Gaudi::StringKey, Node> DataOnDemandSvc::NodeMap

Definition at line 171 of file DataOnDemandSvc.h.

typedef std::vector<std::string> DataOnDemandSvc::Setup

Definition at line 95 of file DataOnDemandSvc.h.

Constructor & Destructor Documentation

DataOnDemandSvc::DataOnDemandSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard initializing service constructor.

Parameters:

	name	[IN] Service instance name
	svc	[IN] Pointer to service locator

Returns:: Reference to DataOnDemandSvc object.

Definition at line 47 of file DataOnDemandSvc.cpp.

00048   : base_class(name, svc)
00049   , m_incSvc   ( 0 )
00050   , m_algMgr   ( 0 )
00051   , m_dataSvc  ( 0 )
00052   //
00053   , m_trapType    ( "DataFault")
00054   , m_dataSvcName ( "EventDataSvc" )
00055   , m_partialPath ( true  )
00056   , m_dump        ( false )
00057   , m_init        ( false )
00058   , m_allowInitFailure(false)
00059   //
00060   , m_algMapping  ()
00061   , m_nodeMapping ()
00062   //
00063   , m_algMap   (   )
00064   , m_nodeMap  (   )
00065   //
00066   , m_updateRequired ( true )
00067   , m_prefix         ( "/Event/" )
00068   , m_log      ( 0 )
00069   , m_total    (   )
00070   , m_statAlg  ( 0 )
00071   , m_statNode ( 0 )
00072   , m_stat     ( 0 )
00073   //
00074   , m_timer_nodes  ()
00075   , m_timer_algs   ()
00076   , m_timer_all    ()
00077   , m_locked_nodes ( false )
00078   , m_locked_algs  ( false )
00079   , m_locked_all   ( false )
00080   //
00081 {
00082   // ==========================================================================
00083   declareProperty
00084     ( "IncidentName"       ,
00085       m_trapType           ,
00086       "The type of handled Incident" ) ;
00087   //
00088   declareProperty ( "DataSvc"            , m_dataSvcName ) ;
00089   //
00090   declareProperty ( "UsePreceedingPath"  , m_partialPath ) ;
00091   declareProperty
00092     ( "Dump"        ,
00093       m_dump        ,
00094       "Dump the configuration and stastics" )  ->
00095     declareUpdateHandler ( &DataOnDemandSvc::update_dump , this ) ;
00096   //
00097   declareProperty
00098     ( "PreInitialize" ,
00099       m_init          ,
00100       "Flag to (pre)initialize all algorithms" ) ;
00101   declareProperty
00102     ( "AllowPreInitializeFailure" ,
00103       m_allowInitFailure          ,
00104       "Allow (pre)initialization of algorithms to fail without stopping the application" ) ;
00105   //
00106   declareProperty ( "Algorithms"         , m_algMapping  )  ->
00107     declareUpdateHandler ( &DataOnDemandSvc::update_2 , this ) ;
00108   declareProperty ( "Nodes"              , m_nodeMapping ) ->
00109     declareUpdateHandler ( &DataOnDemandSvc::update_3 , this ) ;
00110   //
00111   declareProperty ( "AlgMap"  , m_algMap  ) ->
00112     declareUpdateHandler ( &DataOnDemandSvc::update_1 , this ) ;
00113   declareProperty ( "NodeMap" , m_nodeMap ) ->
00114     declareUpdateHandler ( &DataOnDemandSvc::update_1 , this ) ;
00115   //
00116   declareProperty ( "Prefix"             , m_prefix      ) ;
00117   // ==========================================================================
00118 }

DataOnDemandSvc::~DataOnDemandSvc ( ) [virtual]

Standard destructor.

Definition at line 328 of file DataOnDemandSvc.cpp.

00329 { if ( 0 != m_log      ) { delete m_log      ; m_log      = 0 ; } }

Member Function Documentation

StatusCode DataOnDemandSvc::configureHandler ( Leaf & leaf ) [protected]

Configure handler for leaf.

Parameters:

leaf

[IN] Reference to leaf handler

Returns:: StatusCode indicating success or failure

Definition at line 542 of file DataOnDemandSvc.cpp.

00543 {
00544   if ( 0 != l.algorithm ) { return StatusCode::SUCCESS ; }
00545   if ( 0 == m_algMgr  ) { return StatusCode::FAILURE ; }
00546   l.algorithm = m_algMgr->algorithm(l.name, false);
00547   if ( 0 != l.algorithm ) { return StatusCode::SUCCESS ; }
00548   // create it!
00549   StatusCode sc = m_algMgr->createAlgorithm ( l.type , l.name , l.algorithm , true ) ;
00550   if ( sc.isFailure() )
00551   {
00552     stream()
00553       << MSG::ERROR
00554       << "Failed to create algorithm "
00555       << l.type << "('" << l.name<< "')" << endmsg;
00556     l.algorithm = 0 ;
00557     return sc ;                                                    // RETURN
00558   }
00559   if ( l.algorithm->isInitialized() ) { return StatusCode:: SUCCESS ;}
00560   // initialize it!
00561   sc = l.algorithm -> sysInitialize () ;
00562   if ( sc.isFailure() )
00563   {
00564     stream()
00565       << MSG::ERROR
00566       << "Failed to initialize algorithm "
00567       << l.type << "('" << l.name<< "')" << endmsg;
00568     l.algorithm = 0 ;
00569     return sc ;                                                    // RETURN
00570   }
00571   if ( Gaudi::StateMachine::RUNNING == l.algorithm->FSMState() )
00572   { return StatusCode::SUCCESS ; }
00573   // run it!
00574   sc = l.algorithm->sysStart() ;
00575   if ( sc.isFailure() )
00576   {
00577     stream()
00578       << MSG::ERROR
00579       << "Failed to 'run'      algorithm "
00580       << l.type << "('" << l.name<< "')" << endmsg;
00581     l.algorithm = 0 ;
00582     return sc ;                                                    // RETURN
00583   }
00584   return StatusCode::SUCCESS  ;
00585 }

void DataOnDemandSvc::dump	(	const MSG::Level	level,
		const bool	mode = `true`
	)			const `[protected]`

dump the content of DataOnDemand service

Parameters:

	level	the printout level
	mode	the printout mode

Definition at line 733 of file DataOnDemandSvc.cpp.

00735 {
00736   if ( m_algs.empty()  &&  m_nodes.empty() ) { return ; }
00737
00738   typedef std::pair<std::string,std::string> Pair ;
00739   typedef std::map<std::string,Pair>         PMap ;
00740
00741   PMap _m ;
00742   for ( AlgMap::const_iterator alg = m_algs.begin() ;
00743         m_algs.end() != alg ; ++alg )
00744   {
00745     PMap::const_iterator check = _m.find(alg->first) ;
00746     if ( _m.end() != check )
00747     {
00748       stream()
00749         << MSG::WARNING
00750         << " The data item is activated for '"
00751         << check->first << "' as '" << check->second.first << "'" << endmsg ;
00752     }
00753     const Leaf& l = alg->second ;
00754     std::string nam = ( l.name == l.type ? l.type  : (l.type+"/"+l.name) ) ;
00755     //
00756     if ( !mode && 0 == l.num ) { continue ; }
00757     //
00758     std::string val ;
00759     if ( mode ) { val = ( 0 == l.algorithm ) ? "F" : "T" ; }
00760     else { val = boost::lexical_cast<std::string>( l.num ) ; }
00761     //
00762     _m[ no_prefix ( alg->first , m_prefix ) ] = std::make_pair ( nam , val ) ;
00763   }
00764   // nodes:
00765   for ( NodeMap::const_iterator node = m_nodes.begin() ;
00766         m_nodes.end() != node ; ++node )
00767   {
00768     PMap::const_iterator check = _m.find(node->first) ;
00769     if ( _m.end() != check )
00770     {
00771       stream()
00772         << MSG::WARNING
00773         << " The data item is already activated for '"
00774         << check->first << "' as '" << check->second.first << "'" << endmsg ;
00775     }
00776     const Node& n = node->second ;
00777     std::string nam = "'" + n.name + "'"  ;
00778     //
00779     std::string val ;
00780
00781     if ( !mode && 0 == n.num ) { continue ; }
00782
00783     if ( mode ) { val = ( 0 == n.clazz ) ? "F" : "T" ; }
00784     else { val = boost::lexical_cast<std::string>( n.num ) ; }
00785     //
00786     _m[ no_prefix ( node->first , m_prefix ) ] = std::make_pair ( nam , val ) ;
00787   }
00788   //
00789   if ( _m.empty() ) { return ; }
00790
00791   // find the correct formats
00792   size_t n1 = 0 ;
00793   size_t n2 = 0 ;
00794   size_t n3 = 0 ;
00795   for  ( PMap::const_iterator it = _m.begin() ; _m.end() != it ; ++it )
00796   {
00797     n1 = std::max ( n1 , it->first.size()         ) ;
00798     n2 = std::max ( n2 , it->second.first.size()  ) ;
00799     n3 = std::max ( n3 , it->second.second.size() ) ;
00800   }
00801   if ( 10 > n1 ) { n1 = 10 ; }
00802   if ( 10 > n2 ) { n2 = 10 ; }
00803   if ( 60 < n1 ) { n1 = 60 ; }
00804   if ( 60 < n2 ) { n2 = 60 ; }
00805   //
00806
00807   const std::string _f = " | %%1$-%1%.%1%s | %%2$-%2%.%2%s | %%3$%3%.%3%s |" ;
00808   boost::format _ff ( _f ) ;
00809   _ff % n1 % n2 % n3 ;
00810
00811   const std::string _format  = _ff.str() ;
00812
00813   MsgStream& msg = stream() << level ;
00814
00815   if ( mode ) { msg << "Data-On-Demand Actions enabled for:"       ; }
00816   else        { msg << "Data-On-Demand Actions has been used for:" ; }
00817
00818   boost::format fmt1( _format)  ;
00819   fmt1 % "Address" % "Creator" % ( mode ? "S" : "#" ) ;
00820   //
00821   const std::string header = fmt1.str() ;
00822   std::string line = std::string( header.size() , '-' ) ;
00823   line[0] = ' ' ;
00824
00825   msg << std::endl << line
00826       << std::endl << header
00827       << std::endl << line ;
00828
00829   // make the actual printout:
00830   for ( PMap::const_iterator item = _m.begin() ;
00831         _m.end() != item ; ++item )
00832   {
00833     boost::format fmt( _format)  ;
00834     msg << std::endl <<
00835       ( fmt % item->first % item->second.first % item->second.second ) ;
00836   }
00837
00838   msg << std::endl << line << endmsg ;
00839
00840 }

StatusCode DataOnDemandSvc::execHandler	(	const std::string &	tag,
		Node &	node
	)			`[protected]`

Execute node handler (simple object creation using seal reflection).

Parameters:

	tag	[IN] Path to requested leaf
	node	[IN] Reference to node handler

Returns:: StatusCode indicating success or failure

Definition at line 634 of file DataOnDemandSvc.cpp.

00635 {
00636
00637   Gaudi::Utils::LockedChrono timer ( m_timer_nodes ,  m_locked_nodes ) ;
00638
00639   if ( n.executing ) { return StatusCode::FAILURE ; }            // RETURN
00640
00641   Protection p(n.executing);
00642
00643   DataObject* object= 0 ;
00644
00645   if ( n.dataObject )  { object = new DataObject() ; }
00646   else
00647   {
00648     // try to recover the handler
00649     if ( !n.clazz  ) { n.clazz = ROOT::Reflex::Type::ByName(n.name) ; }
00650     if ( !n.clazz  )
00651     {
00652       stream()
00653         << MSG::ERROR
00654         << "Failed to get dictionary for class '"
00655         << n.name
00656         << "' for location:" << tag << endmsg;
00657       return StatusCode::FAILURE ;                               // RETURN
00658     }
00659     //
00660     ROOT::Reflex::Object obj = n.clazz.Construct();
00661
00662     object = (DataObject*) obj.Address();
00663
00664     if ( !object )
00665     {
00666       stream()
00667         << MSG::ERROR
00668         << "Failed to create an object of type:"
00669         << n.clazz.Name(ROOT::Reflex::SCOPED) << " for location:" << tag
00670         << endmsg;
00671       return StatusCode::FAILURE  ;                               // RETURN
00672     }
00673   }
00674   //
00675   StatusCode sc = m_dataSvc->registerObject(tag, object );
00676   if ( sc.isFailure() )
00677   {
00678     stream()
00679       << MSG::ERROR << "Failed to register an object of type:"
00680       << n.name << " at location:" << tag
00681       << endmsg;
00682     return sc ;                                                  // RETURN
00683   }
00684   ++n.num ;
00685   //
00686   return StatusCode::SUCCESS ;
00687 }

StatusCode DataOnDemandSvc::execHandler	(	const std::string &	tag,
		Leaf &	leaf
	)			`[protected]`

Execute leaf handler (algorithm).

Parameters:

	tag	[IN] Path to requested leaf
	leaf	[IN] Reference to leaf handler

Returns:: StatusCode indicating success or failure

Definition at line 692 of file DataOnDemandSvc.cpp.

00693 {
00694   Gaudi::Utils::LockedChrono timer ( m_timer_algs ,  m_locked_algs ) ;
00695   //
00696   if ( l.executing ) { return StatusCode::FAILURE ; }             // RETURN
00697   //
00698   if ( 0 == l.algorithm )
00699   {
00700     StatusCode sc = configureHandler ( l ) ;
00701     if ( sc.isFailure() )
00702     {
00703       stream()
00704         << MSG::ERROR
00705         << "Failed to configure handler for: "
00706         << l.name << "[" << l.type << "] " << tag << endmsg;
00707       return sc ;                                                 // RETURN
00708     }
00709   }
00710   //
00711   Chrono atimer ( m_total ) ;
00712   //
00713   Protection p(l.executing);
00714   StatusCode sc = l.algorithm->sysExecute();
00715   if ( sc.isFailure() )
00716   {
00717     stream() << MSG::ERROR
00718              << "Failed to execute the algorithm:"
00719              << l.algorithm->name() << " for location:" << tag << endmsg;
00720     return sc ;                                                       // RETURN
00721   }
00722   ++l.num ;
00723   //
00724   return StatusCode::SUCCESS ;
00725 }

StatusCode DataOnDemandSvc::finalize ( ) [virtual]

Inherited Service overrides: Service finalization.

Reimplemented from Service.

Definition at line 351 of file DataOnDemandSvc.cpp.

00353 00354 00355 00356 00357 00358 00359 00360   { 00361 00362 00363 00364 00365 00366 00367 00368 00369 00370 00371 00372 00373 00374 00375 00376 00377 00378 00379 00380 00381   } 00382 00383 00384 00385 00386 00387   { 00388 00389 00390 00391   } 00392 00393 00394 00395 00396 }

class="fragment">00352 { // stream () << MSG::INFO << "Handled \"" << m_trapType << "\" incidents: " << m_statAlg << "/" << m_statNode << "/" << m_stat << "(Alg/Node/Total)." << endmsg ; if ( m_dump || MSG::DEBUG >= outputLevel() ) stream () << MSG::INFO << m_total.outputUserTime ( "Algorithm timing: Mean(+-rms)/Min/Max:%3%(+-%4%)/%6%/%7%[ms] " , System::milliSec ) << m_total.outputUserTime ( "Total:%2%[s]" , System::Sec ) << endmsg ; stream () << MSG::INFO << m_timer_nodes.outputUserTime ( "Nodes timing: Mean(+-rms)/Min/Max:%3%(+-%4%)/%6%/%7%[ms] " , System::milliSec ) << m_timer_nodes.outputUserTime ( "Total:%2%[s]" , System::Sec ) << endmsg ; stream () << MSG::INFO << m_timer_algs .outputUserTime ( "Algs timing: Mean(+-rms)/Min/Max:%3%(+-%4%)/%6%/%7%[ms] " , System::milliSec ) << m_timer_algs .outputUserTime ( "Total:%2%[s]" , System::Sec ) << endmsg ; stream () << MSG::INFO << m_timer_all .outputUserTime ( "All timing: Mean(+-rms)/Min/Max:%3%(+-%4%)/%6%/%7%[ms] " , System::milliSec ) << m_timer_all .outputUserTime ( "Total:%2%[s]" , System::Sec ) << endmsg ; // dump it! if ( m_dump ) { dump ( MSG::INFO , false ) ; } else if ( MSG::DEBUG >= outputLevel() ) { dump ( MSG::DEBUG , false ) ; } // if ( m_incSvc ) m_incSvc->removeListener(this, m_trapType); m_incSvc->release(); m_incSvc = 0; if ( 0 != m_algMgr ) { m_algMgr -> release () ; m_algMgr = 0 ; } if ( 0 != m_dataSvc ) { m_dataSvc -> release () ; m_dataSvc = 0 ; } // return Service::finalize();

void DataOnDemandSvc::handle ( const Incident & incident ) [virtual]

IIncidentListener interfaces overrides: incident handling.

Implements IIncidentListener.

Definition at line 589 of file DataOnDemandSvc.cpp.

00590 {
00591
00592   Gaudi::Utils::LockedChrono timer ( m_timer_all , m_locked_all ) ;
00593
00594   ++m_stat ;
00595   // proper incident type?
00596   if ( incident.type() != m_trapType ) { return ; }             // RETURN
00597   const DataIncident* inc = dynamic_cast<const DataIncident*>(&incident);
00598   if ( 0 == inc                      ) { return ; }             // RETURN
00599   // update if needed!
00600   if ( m_updateRequired ) { update() ; }
00601
00602   if ( MSG::VERBOSE >= outputLevel() )
00603   {
00604     stream()
00605       << MSG::VERBOSE
00606       << "Incident: [" << incident.type   () << "] "
00607       << " = "         << incident.source ()
00608       << " Location:"  << inc->tag()         << endmsg;
00609   }
00610   // ==========================================================================
00611   // const std::string& tag = inc->tag();
00612   Gaudi::StringKey tag ( inc->tag() ) ;
00613   // ==========================================================================
00614   NodeMap::iterator icl = m_nodes.find ( tag ) ;
00615   if ( icl != m_nodes.end() )
00616   {
00617     StatusCode sc = execHandler ( tag , icl->second ) ;
00618     if ( sc.isSuccess() ) { ++m_statNode ; }
00619     return ;                                                        // RETURN
00620   }
00621   // ==========================================================================
00622   AlgMap::iterator ialg = m_algs.find ( tag ) ;
00623   if ( ialg != m_algs.end() )
00624   {
00625     StatusCode sc = execHandler ( tag , ialg->second ) ;
00626     if ( sc.isSuccess() ) { ++m_statAlg ; }
00627     return ;                                                        // RETURN
00628   }
00629 }

StatusCode DataOnDemandSvc::initialize ( ) [virtual]

Inherited Service overrides: Service initialization.

Reimplemented from Service.

Definition at line 333 of file DataOnDemandSvc.cpp.

00334 {
00335   // initialize the Service Base class
00336   StatusCode sc = Service::initialize();
00337   if ( sc.isFailure() )  { return sc; }
00338   sc = setup();
00339   if ( sc.isFailure() )  { return sc; }
00340   //
00341   if      ( m_dump )                      { dump ( MSG::INFO  ) ; }
00342   else if ( MSG::DEBUG >= outputLevel() ) { dump ( MSG::DEBUG ) ; }
00343   //
00344   if ( m_init ) { return update () ; }
00345   //
00346   return StatusCode::SUCCESS ;
00347 }

StatusCode DataOnDemandSvc::reinitialize ( ) [virtual]

Inherited Service overrides: Service reinitialization.

re-initialization of the service

Reimplemented from Service.

Definition at line 400 of file DataOnDemandSvc.cpp.

00401 {
00402   // reinitialize the Service Base class
00403   if ( 0 != m_incSvc )
00404   {
00405     m_incSvc -> removeListener ( this , m_trapType );
00406     m_incSvc -> release ();
00407     m_incSvc = 0;
00408   }
00409   if ( 0 != m_algMgr  ) { m_algMgr   -> release() ; m_algMgr  = 0 ; }
00410   if ( 0 != m_dataSvc ) { m_dataSvc  -> release() ; m_dataSvc = 0 ; }
00411   if ( 0 != m_log     ) { delete m_log ; m_log = 0 ; }
00412   //
00413   StatusCode sc = Service::reinitialize();
00414   if ( sc.isFailure() )  { return sc; }
00415   //
00416   sc = setup() ;
00417   if ( sc.isFailure() )  { return sc; }
00418   //
00419   if ( m_dump ) { dump ( MSG::INFO ) ; }
00420   else if ( MSG::DEBUG >= outputLevel() ) { dump ( MSG::DEBUG  ) ; }
00421   //
00422   return StatusCode::SUCCESS ;
00423 }

StatusCode DataOnDemandSvc::setup ( ) [protected]

Setup routine (called by (re-) initialize.

Definition at line 427 of file DataOnDemandSvc.cpp.

00428 {
00429   m_algMgr = 0;
00430   StatusCode sc =
00431     serviceLocator()->queryInterface(IAlgManager::interfaceID(), pp_cast<void>(&m_algMgr));
00432   if ( sc.isFailure () )
00433   {
00434     stream()
00435       << MSG::ERROR
00436       << "Failed to retrieve the IAlgManager interface." << endmsg;
00437     return sc;
00438   }
00439   sc = service("IncidentSvc", m_incSvc, true);
00440   if ( sc.isFailure () )
00441   {
00442     stream()
00443       << MSG::ERROR << "Failed to retrieve Incident service." << endmsg;
00444     return sc;
00445   }
00446   m_incSvc->addListener(this, m_trapType);
00447   sc = service(m_dataSvcName, m_dataSvc, true);
00448   if ( sc.isFailure () )
00449   {
00450     stream()
00451       << MSG::ERROR
00452       << "Failed to retrieve the data provider interface of "
00453       << m_dataSvcName << endmsg;
00454     return sc;
00455   }
00456   return update() ;
00457 }

StatusCode DataOnDemandSvc::setupAlgHandlers ( ) [protected]

Initialize leaf handlers.

Definition at line 503 of file DataOnDemandSvc.cpp.

00504 {
00505   Setup::const_iterator j;
00506   std::string typ, tag;
00507
00508   for(j=m_algMapping.begin(); j != m_algMapping.end(); ++j)
00509   {
00510     Tokenizer tok(true);
00511     tok.analyse(*j, " ", "", "", "=", "'", "'");
00512     for(Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); i++ )   {
00513       const std::string& t = (*i).tag();
00514       const std::string& v = (*i).value();
00515       switch( ::toupper(t[0]) )    {
00516       case 'D':
00517         tag = v;
00518         break;
00519       case 'T':
00520         typ = v;
00521         break;
00522       }
00523     }
00524     Gaudi::Utils::TypeNameString item(typ);
00525     if ( m_algMap  .end () != m_algMap  .find ( tag ) ||
00526          m_nodeMap .end () != m_nodeMap .find ( tag ) )
00527     {
00528       stream()
00529         << MSG::WARNING
00530         << "The obsolete property 'Algorithms' redefines the action for '"
00531         + tag + "' to be '" +item.type() +"/"+item.name()+"'"
00532         << endmsg ;
00533     }
00534     m_algMap[tag] = item.type() + "/" + item.name() ;
00535   }
00536   m_updateRequired = true ;
00537   return StatusCode::SUCCESS;
00538 }

StatusCode DataOnDemandSvc::setupNodeHandlers ( ) [protected]

Initialize node handlers.

Definition at line 461 of file DataOnDemandSvc.cpp.

00462 {
00463   Setup::const_iterator j;
00464   std::string nam, typ, tag;
00465   StatusCode sc = StatusCode::SUCCESS;
00466   // Setup for node leafs, where simply a constructor is called...
00467   for ( j=m_nodeMapping.begin(); j != m_nodeMapping.end(); ++j)
00468   {
00469     Tokenizer tok(true);
00470     tok.analyse(*j, " ", "", "", "=", "'", "'");
00471     for ( Tokenizer::Items::iterator i = tok.items().begin();
00472           i != tok.items().end(); i++ )   {
00473       const std::string& t = (*i).tag();
00474       const std::string& v = (*i).value();
00475       switch( ::toupper(t[0]) )    {
00476       case 'D':
00477         tag = v;
00478         break;
00479       case 'T':
00480         nam = v;
00481         break;
00482       }
00483     }
00484     if ( m_algMap  .end () != m_algMap  .find ( tag ) ||
00485          m_nodeMap .end () != m_nodeMap .find ( tag ) )
00486     {
00487       stream()
00488         << MSG::WARNING
00489         << "The obsolete property 'Nodes' redefines the action for '"
00490         + tag + "' to be '" +nam+"'"
00491         << endmsg ;
00492     }
00493     m_nodeMap[tag] = nam ;
00494   }
00495   //
00496   m_updateRequired = true ;
00497   //
00498   return sc;
00499 }

MsgStream& DataOnDemandSvc::stream ( ) const [inline, protected]

get the message stream

Definition at line 236 of file DataOnDemandSvc.h.

00237   {
00238     if ( 0 == m_log ) { m_log = new MsgStream( msgSvc() , name() ) ; }
00239     return *m_log;
00240   }

StatusCode DataOnDemandSvc::update ( ) [protected]

update the handlers

convert obsolete "Nodes" into new "NodeMap"

convert obsolete "Algorithms" into new "AlgMap"

add the default prefix

get all directories

setup algorithms

setup nodes

Definition at line 245 of file DataOnDemandSvc.cpp.

00246 {
00247   if ( !m_updateRequired ) { return StatusCode::SUCCESS  ; }
00248
00250   StatusCode sc = setupNodeHandlers() ; // convert "Nodes"      new "NodeMap"
00251   if ( sc.isFailure() )
00252   {
00253     stream() << MSG::ERROR << "Failed to setup old \"Nodes\""      << endmsg ;
00254     return sc ;
00255   }
00257   sc = setupAlgHandlers()   ; // convert "Algorithms" into "AlgMap"
00258   if ( sc.isFailure() )
00259   {
00260     stream() << MSG::ERROR << "Failed to setup old \"Algorithms\"" << endmsg ;
00261     return sc ;
00262   }
00264   add_prefix ( m_algMap  , m_prefix ) ;
00266   add_prefix ( m_nodeMap , m_prefix ) ;
00268   typedef std::set<std::string> Set ;
00269   Set dirs ;
00270   if ( m_partialPath ){ get_dirs ( m_algMap  , dirs ) ; }
00271   if ( m_partialPath ){ get_dirs ( m_nodeMap , dirs ) ; }
00272   //
00273   Set::iterator _e = dirs.find("/Event") ;
00274   if ( dirs.end() != _e ) { dirs.erase( _e ) ; }
00275   // add all directories as nodes
00276   for ( Set::const_iterator dir = dirs.begin() ; dirs.end() != dir ; ++dir )
00277   {
00278     if ( m_algMap  .end () != m_algMap  .find ( *dir ) ) { continue ; }
00279     if ( m_nodeMap .end () != m_nodeMap .find ( *dir ) ) { continue ; }
00280     m_nodeMap [*dir] = "DataObject" ;
00281   }
00282   //
00283   m_algs  .clear  () ;
00284   m_nodes .clear  () ;
00285   //
00287   for ( Map::const_iterator ialg = m_algMap.begin() ;
00288         m_algMap.end() != ialg ; ++ialg )
00289   {
00290     Gaudi::Utils::TypeNameString alg ( ialg->second ) ;
00291     Leaf leaf ( alg.type() , alg.name() ) ;
00292     if  ( m_init )
00293     {
00294       sc = configureHandler(leaf);
00295       if (sc.isFailure()) {
00296         if (m_allowInitFailure) {
00297           // re-store the content of the leaf object to try again to initialize
00298           // the algorithm later (on demand)
00299           leaf = Leaf(alg.type(), alg.name());
00300         }
00301         else
00302           return sc;
00303       }
00304     }
00305     m_algs[ialg->first] =  leaf ;
00306   }
00308   for ( Map::const_iterator inode = m_nodeMap.begin() ;
00309         m_nodeMap.end() != inode ; ++inode )
00310   {
00311     ClassH cl = ROOT::Reflex::Type::ByName( inode->second ) ;
00312     if ( !cl )
00313     {
00314       stream() << MSG::WARNING
00315                << "Failed to access dictionary class for "
00316                << inode->first << " of type:" << inode->second << endmsg;
00317     }
00318     m_nodes[inode->first] = Node ( cl , false , inode->second ) ;
00319   }
00321   m_updateRequired = false ;
00322   //
00323   return StatusCode::SUCCESS ;
00324 }

void DataOnDemandSvc::update_1 ( Property & p )

Definition at line 122 of file DataOnDemandSvc.cpp.

00123 {
00124   stream() << MSG::VERBOSE << " I am update handler for property " << p << endmsg ;
00125   // force update
00126   m_updateRequired = true ;
00127 }

void DataOnDemandSvc::update_2 ( Property & p )

Definition at line 143 of file DataOnDemandSvc.cpp.

00144 {
00145   stream() << MSG::WARNING
00146            << "The property 'Algorithms' is obsolete, switch to map-like 'AlgMap'  "
00147            << " = { 'data' : 'algorithm' } "
00148            << endmsg ;
00149   // force update
00150   m_updateRequired = true ;
00151 }

void DataOnDemandSvc::update_3 ( Property & p )

Definition at line 131 of file DataOnDemandSvc.cpp.

00132 {
00133   stream() << MSG::WARNING
00134            << "The property 'Nodes'      is obsolete, switch to map-like 'NodeMap' "
00135            << " = { 'data' : 'type'      } "
00136            << endmsg ;
00137   // force update
00138   m_updateRequired = true ;
00139 }

void DataOnDemandSvc::update_dump ( Property & )

update handler for 'Dump' property

Definition at line 155 of file DataOnDemandSvc.cpp.

00156 {
00157   // no action if not yet initialized
00158   if ( FSMState() < Gaudi::StateMachine::INITIALIZED ) { return ; }
00159   // dump the configuration:
00160   if ( m_dump ) { dump ( MSG::ALWAYS ) ; }
00161 }

Member Data Documentation

Map DataOnDemandSvc::m_algMap [private]

the major configuration property { 'data' : 'algorithm' }

Definition at line 279 of file DataOnDemandSvc.h.

Setup DataOnDemandSvc::m_algMapping [private]

Mapping to algorithms.

Definition at line 269 of file DataOnDemandSvc.h.

IAlgManager* DataOnDemandSvc::m_algMgr [private]

Algorithm manager.

Definition at line 252 of file DataOnDemandSvc.h.

AlgMap DataOnDemandSvc::m_algs [private]

Map of algorithms to handle incidents.

Definition at line 273 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_allowInitFailure [private]

flag to allow DataOnDemand initialization to succeed even if the (pre)initialization of the algorithms fails (m_init).

Definition at line 267 of file DataOnDemandSvc.h.

IDataProviderSvc* DataOnDemandSvc::m_dataSvc [private]

Data provider reference.

Definition at line 254 of file DataOnDemandSvc.h.

std::string DataOnDemandSvc::m_dataSvcName [private]

Data service name.

Definition at line 258 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_dump [private]

flag to force the printout

Definition at line 262 of file DataOnDemandSvc.h.

IIncidentSvc* DataOnDemandSvc::m_incSvc [private]

Incident service.

Definition at line 250 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_init [private]

flag to warm up the configuration

Definition at line 264 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_locked_algs [private]

Definition at line 295 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_locked_all [private]

Definition at line 296 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_locked_nodes [private]

Definition at line 294 of file DataOnDemandSvc.h.

MsgStream* DataOnDemandSvc::m_log [mutable, private]

Definition at line 284 of file DataOnDemandSvc.h.

Map DataOnDemandSvc::m_nodeMap [private]

the major configuration property { 'data' : 'type' }

Definition at line 281 of file DataOnDemandSvc.h.

Setup DataOnDemandSvc::m_nodeMapping [private]

Mapping to nodes.

Definition at line 271 of file DataOnDemandSvc.h.

NodeMap DataOnDemandSvc::m_nodes [private]

Map of "empty" objects to be placed as intermediate nodes.

Definition at line 275 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_partialPath [private]

Flag to allow for the creation of partial leaves.

Definition at line 260 of file DataOnDemandSvc.h.

std::string DataOnDemandSvc::m_prefix [private]

Definition at line 283 of file DataOnDemandSvc.h.

ulonglong DataOnDemandSvc::m_stat [private]

Definition at line 289 of file DataOnDemandSvc.h.

ulonglong DataOnDemandSvc::m_statAlg [private]

Definition at line 287 of file DataOnDemandSvc.h.

ulonglong DataOnDemandSvc::m_statNode [private]

Definition at line 288 of file DataOnDemandSvc.h.

ChronoEntity DataOnDemandSvc::m_timer_algs [private]

Definition at line 292 of file DataOnDemandSvc.h.

ChronoEntity DataOnDemandSvc::m_timer_all [private]

Definition at line 293 of file DataOnDemandSvc.h.

ChronoEntity DataOnDemandSvc::m_timer_nodes [private]

Definition at line 291 of file DataOnDemandSvc.h.

ChronoEntity DataOnDemandSvc::m_total [private]

Definition at line 286 of file DataOnDemandSvc.h.

std::string DataOnDemandSvc::m_trapType [private]

Trap name.

Definition at line 256 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_updateRequired [private]

Definition at line 282 of file DataOnDemandSvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r0/GaudiSvc/src/IncidentSvc/DataOnDemandSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r0/GaudiSvc/src/IncidentSvc/DataOnDemandSvc.cpp

Gaudi Framework, version v22r0

DataOnDemandSvc Class Reference

Classes

Public Types

Public Member Functions

Protected Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
