#include <components/TupleTool.h>

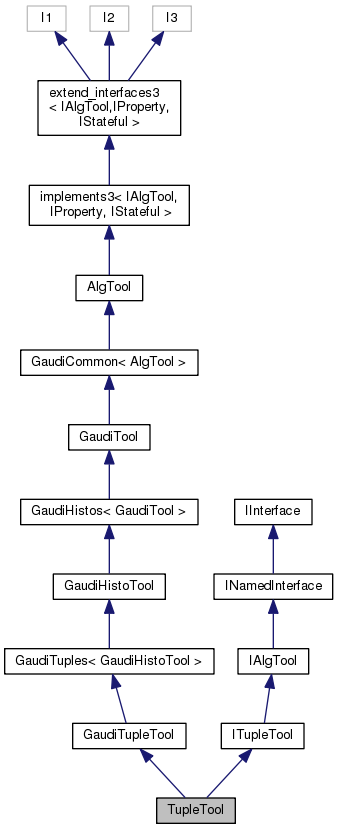

Inheritance diagram for TupleTool:

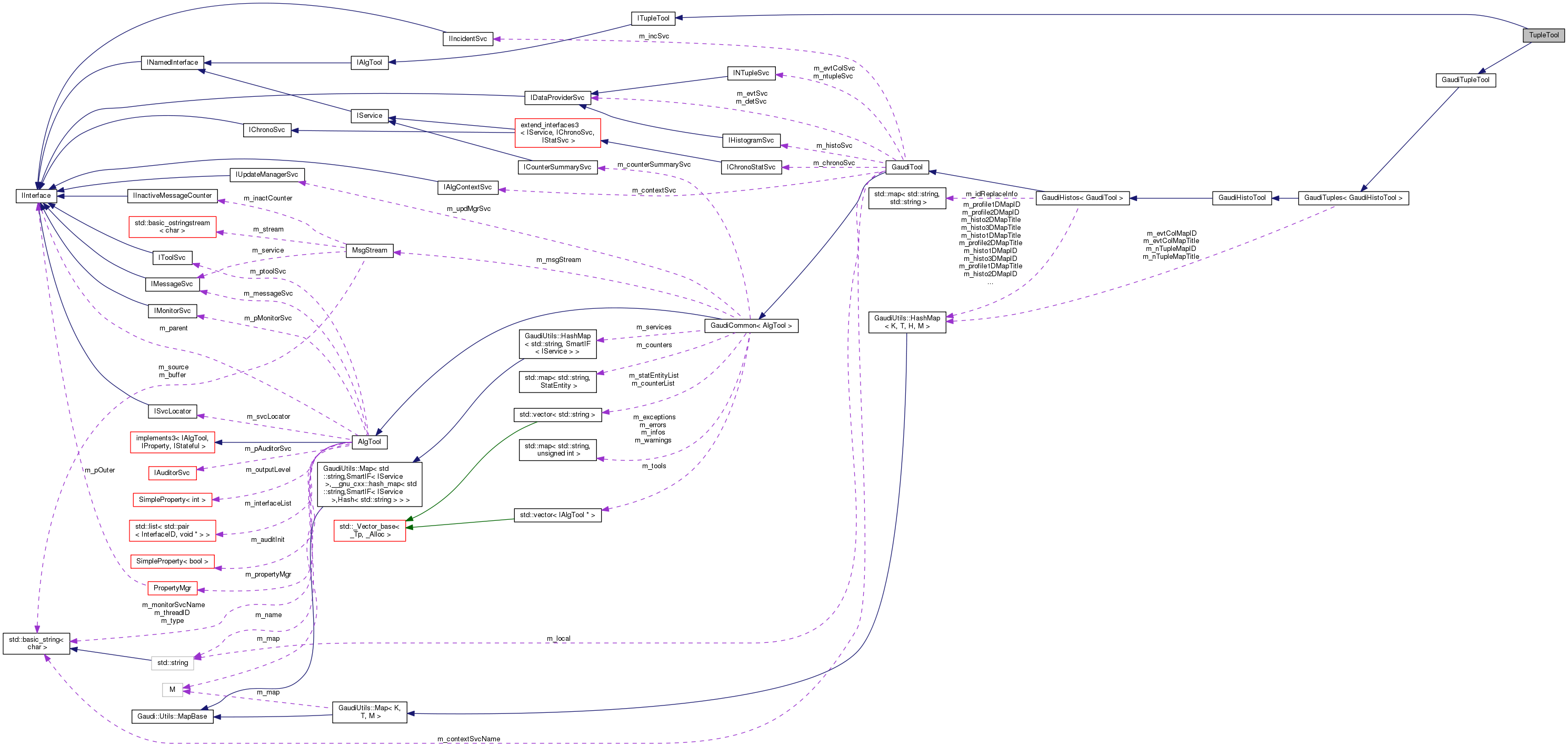

Collaboration diagram for TupleTool:

Public Types
typedef Tuples::Tuple	Tuple

typedef GaudiAlg::TupleID	TupleID

Public Types inherited from ITupleTool
typedef Tuples::TupleID	TupleID

typedef Tuples::Tuple	Tuple

Public Member Functions
	TupleTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.

virtual	~TupleTool ()
	destructor: virtual and protected

virtual Tuple	nTuple (const std::string &title, const CLID &clid=CLID_ColumnWiseTuple) const
	get N-tuple object ( book on-demand ) with unique identidier

virtual Tuple	nTuple (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_ColumnWiseTuple) const

virtual Tuple	evtCol (const std::string &title, const CLID &clid=CLID_RowWiseTuple) const

virtual Tuple	evtCol (const TupleID &ID, const std::string &title="", const CLID &clid=CLID_RowWiseTuple) const

Public Member Functions inherited from ITupleTool
	DeclareInterfaceID (ITupleTool, 2, 0)
	InterfaceID.

Public Member Functions inherited from IAlgTool
	DeclareInterfaceID (IAlgTool, 3, 0)
	InterfaceID.

virtual	~IAlgTool ()
	Virtual destructor.

virtual const std::string &	type () const =0
	The type of an AlgTool, meaning the concrete AlgTool class.

virtual const IInterface *	parent () const =0
	The parent of the concrete AlgTool.

virtual StatusCode	configure ()=0
	Configuration (from OFFLINE to CONFIGURED).

virtual StatusCode	initialize ()=0
	Initialization (from CONFIGURED to INITIALIZED).

virtual StatusCode	start ()=0
	Start (from INITIALIZED to RUNNING).

virtual StatusCode	stop ()=0
	Stop (from RUNNING to INITIALIZED).

virtual StatusCode	finalize ()=0
	Finalize (from INITIALIZED to CONFIGURED).

virtual StatusCode	terminate ()=0
	Initialization (from CONFIGURED to OFFLINE).

virtual StatusCode	reinitialize ()=0
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

virtual StatusCode	restart ()=0
	Initialization (from RUNNING to RUNNING, via INITIALIZED).

virtual Gaudi::StateMachine::State	FSMState () const =0
	Get the current state.

virtual StatusCode	sysInitialize ()=0
	Initialization of the Tool.

virtual StatusCode	sysStart ()=0
	Initialization of the Tool.

virtual StatusCode	sysStop ()=0
	Initialization of the Tool.

virtual StatusCode	sysFinalize ()=0
	Finalization of the Tool.

virtual StatusCode	sysReinitialize ()=0
	Initialization of the Tool.

virtual StatusCode	sysRestart ()=0
	Initialization of the Tool.

virtual unsigned long	refCount () const =0
	Current number of reference counts.

Public Member Functions inherited from INamedInterface
	DeclareInterfaceID (INamedInterface, 1, 0)
	InterfaceID.

virtual const std::string &	name () const =0
	Retrieve the name of the instance.

virtual	~INamedInterface ()
	Virtual destructor (always needed for abstract classes).

Public Member Functions inherited from IInterface
virtual void *	i_cast (const InterfaceID &) const =0
	main cast function

virtual std::vector< std::string >	getInterfaceNames () const =0
	Returns a vector of strings containing the names of all the implemented interfaces.

virtual unsigned long	addRef ()=0
	Increment the reference count of Interface instance.

virtual unsigned long	release ()=0
	Release Interface instance.

virtual StatusCode	queryInterface (const InterfaceID &ti, void **pp)=0
	Set the void** to the pointer to the requested interface of the instance.

virtual	~IInterface ()
	Virtual destructor.

Private Member Functions
	TupleTool ()

	TupleTool (const TupleTool &)

TupleTool &	operator= (const TupleTool &)

Additional Inherited Members
Static Public Member Functions inherited from GaudiTool
static bool	enableSummary (bool)
	enable/disable summary

static bool	summaryEnabled ()
	is summary enabled?

Static Public Member Functions inherited from IInterface
static const InterfaceID &	interfaceID ()
	Return an instance of InterfaceID identifying the interface.

Protected Types inherited from GaudiCommon< AlgTool >
typedef std::map< std::string, StatEntity >	Statistics
	the actual type of general counters

typedef std::map< std::string, unsigned int >	Counter
	the actual type error/warning counter

typedef std::vector< IAlgTool * >	AlgTools
	storage for active tools

typedef GaudiUtils::HashMap < std::string, SmartIF < IService > >	Services
	storage for active services

Protected Member Functions inherited from GaudiTupleTool
	GaudiTupleTool (const std::string &type, const std::string &name, const IInterface *parent)
	standard constructor

virtual	~GaudiTupleTool ()
	destructor

virtual StatusCode	initialize ()
	standard initialization method

virtual StatusCode	finalize ()
	standard finalization method

Protected Member Functions inherited from ITupleTool
virtual	~ITupleTool ()
	Destructor.

Protected Attributes inherited from GaudiCommon< AlgTool >
ICounterSummarySvc *	m_counterSummarySvc
	a pointer to the CounterSummarySvc

std::vector< std::string >	m_counterList
	list of counters to declare. Set by property CounterList. This can be a regular expression.

std::vector< std::string >	m_statEntityList

Static Protected Attributes inherited from GaudiCommon< AlgTool >
static const bool	IgnoreRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.

static const bool	UseRootInTES
	Simple definition to be used with the new useRootInTES argument get<TYPE> and put methods.

Detailed Description

Author: Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru

Date: 2004-06-28

Definition at line 20 of file TupleTool.h.

Member Typedef Documentation

typedef Tuples::Tuple TupleTool::Tuple

Definition at line 24 of file TupleTool.h.

typedef GaudiAlg::TupleID TupleTool::TupleID

Definition at line 25 of file TupleTool.h.

Constructor & Destructor Documentation

TupleTool::TupleTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

See Also: GaudiTupleTool; GaudiHistoTool; GaudiTool; AlgTool

Parameters

type	tool type (?)
name	tool name
parent	pointer to parent component

Definition at line 37 of file TupleTool.cpp.

  : GaudiTupleTool ( type, name , parent )
{
  declareInterface<ITupleTool>(this);
}

TupleTool::~TupleTool ( )

virtual

destructor: virtual and protected

Definition at line 49 of file TupleTool.cpp.

{}

TupleTool::TupleTool ( )

private

TupleTool::TupleTool ( const TupleTool & )

private

Member Function Documentation

virtual Tuple TupleTool::evtCol	(	const std::string &	title,
		const CLID &	clid = `CLID_RowWiseTuple`
	)		const

inlinevirtual

Implements ITupleTool.

Definition at line 77 of file TupleTool.h.

{ return GaudiTupleTool::evtCol ( title , clid ) ; }

virtual Tuple TupleTool::evtCol	(	const TupleID &	ID,
		const std::string &	title = `""`,
		const CLID &	clid = `CLID_RowWiseTuple`
	)		const

inlinevirtual

Implements ITupleTool.

Definition at line 82 of file TupleTool.h.

{ return GaudiTupleTool::evtCol ( ID , title , clid ) ; }

virtual Tuple TupleTool::nTuple	(	const std::string &	title,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)		const

inlinevirtual

get N-tuple object ( book on-demand ) with unique identidier

ITupleTool* tool = .. ;
Tuple tuple = tool-> nTuple( 'My tuple' ) ;
tuple->column( "A" , sin(0.1) );
tuple->column( "B" , cos(0.1) );
tuple->column( "C" , tan(0.1) );
tuple->write()

NTuple will be booked with automatically assigned numerical ID

Parameters

title	unique title for ntuple
clid	class identifier

Returns: ntuple object

Implements ITupleTool.

Definition at line 65 of file TupleTool.h.

{ return GaudiTupleTool::nTuple ( title , clid ) ; }

virtual Tuple TupleTool::nTuple	(	const TupleID &	ID,
		const std::string &	title = `""`,
		const CLID &	clid = `CLID_ColumnWiseTuple`
	)		const

inlinevirtual

Implements ITupleTool.

Definition at line 71 of file TupleTool.h.

{ return GaudiTupleTool::nTuple ( ID , title , clid ) ; }

TupleTool& TupleTool::operator= ( const TupleTool & )

private

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiAlg/src/components/TupleTool.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v24r2/GaudiAlg/src/components/TupleTool.cpp

Gaudi Framework, version v24r2
