RootHistCnv::RHistogramCnv< T, S, Q > Class Template Reference

Generic converter to save/read AIDA_ROOT histograms using ROOT. More...

#include <RHistogramCnv.h>

Inheritance diagram for RootHistCnv::RHistogramCnv< T, S, Q >:

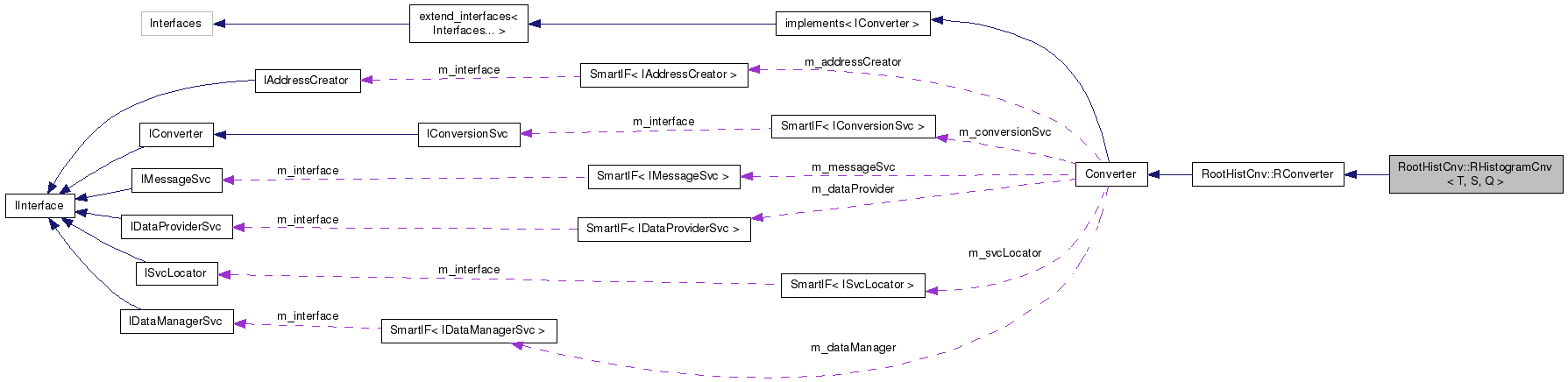

Collaboration diagram for RootHistCnv::RHistogramCnv< T, S, Q >:

Classes
struct	TTH

Public Member Functions
StatusCode	createObj (IOpaqueAddress *pAddr, DataObject *&refpObj) override
	Create the transient representation of an object. More...
StatusCode	updateObj (IOpaqueAddress *, DataObject *) override
	Update the transient object from the other representation. More...
TObject *	createPersistent (DataObject *pObj) override
	Create the persistent representation of the histogram object. More...
	RHistogramCnv (ISvcLocator *svc)
	Standard constructor. More...
	~RHistogramCnv () override=default
Public Member Functions inherited from RootHistCnv::RConverter
StatusCode	createRep (DataObject *pObj, IOpaqueAddress *&refpAddr) override
	Convert the transient object to the requested representation. More...
long	repSvcType () const override
StatusCode	error (const std::string &msg)
StatusCode	regTFile (const std::string, const TFile *)
StatusCode	findTFile (const std::string, TFile *&)
std::string	diskDirectory (const std::string &loc)
std::string	directory (const std::string &loc)
void	setDirectory (const std::string &loc)
void	setDiskDirectory (const std::string &loc)
StatusCode	createDirectory (const std::string &loc)
StatusCode	createDiskDirectory (const std::string &loc)
std::string	getDirectory ()
std::string	convertId (const std::string &) const
Public Member Functions inherited from Converter
StatusCode	initialize () override
	Initialize the converter. More...
StatusCode	finalize () override
	Initialize the converter. More...
StatusCode	setDataProvider (IDataProviderSvc *svc) override
	Set Data provider service. More...
SmartIF< IDataProviderSvc > &	dataProvider () const override
	Get Data provider service. More...
StatusCode	setConversionSvc (IConversionSvc *svc) override
	Set conversion service the converter is connected to. More...
SmartIF< IConversionSvc > &	conversionSvc () const override
	Get conversion service the converter is connected to. More...
StatusCode	setAddressCreator (IAddressCreator *creator) override
	Set address creator facility. More...
SmartIF< IAddressCreator > &	addressCreator () const override
	Retrieve address creator facility. More...
const CLID &	objType () const override
	Retrieve the class type of objects the converter produces. More...
virtual long	i_repSvcType () const
	Retrieve the class type of the data store the converter uses. More...
StatusCode	createObj (IOpaqueAddress *pAddress, DataObject *&refpObject) override
	Create the transient representation of an object. More...
StatusCode	fillObjRefs (IOpaqueAddress *pAddress, DataObject *pObject) override
	Resolve the references of the created transient object. More...
StatusCode	updateObj (IOpaqueAddress *pAddress, DataObject *refpObject) override
	Update the transient object from the other representation. More...
StatusCode	updateObjRefs (IOpaqueAddress *pAddress, DataObject *pObject) override
	Update the references of an updated transient object. More...
StatusCode	createRep (DataObject *pObject, IOpaqueAddress *&refpAddress) override
	Convert the transient object to the requested representation. More...
StatusCode	fillRepRefs (IOpaqueAddress *pAddress, DataObject *pObject) override
	Resolve the references of the converted object. More...
StatusCode	updateRep (IOpaqueAddress *pAddress, DataObject *pObject) override
	Update the converted representation of a transient object. More...
StatusCode	updateRepRefs (IOpaqueAddress *pAddress, DataObject *pObject) override
	Update the references of an already converted object. More...
	Converter (long storage_type, const CLID &class_type, ISvcLocator *svc=0)
	Standard Constructor. More...
template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=false) const
	Access a service by name, creating it if it doesn't already exist. More...
template<class T >
StatusCode	service (const std::string &type, const std::string &name, T *&psvc) const
	Access a service by name, type creating it if it doesn't already exist. More...
SmartIF< IService >	service (const std::string &name, const bool createIf=true) const
	Return a pointer to the service identified by name (or "type/name") More...
Public Member Functions inherited from implements< IConverter >
void *	i_cast (const InterfaceID &tid) const override
	Implementation of IInterface::i_cast. More...
StatusCode	queryInterface (const InterfaceID &ti, void **pp) override
	Implementation of IInterface::queryInterface. More...
std::vector< std::string >	getInterfaceNames () const override
	Implementation of IInterface::getInterfaceNames. More...
	implements ()=default
	Default constructor. More...
	implements (const implements &)
	Copy constructor (zero the reference count) More...
implements &	operator= (const implements &)
	Assignment operator (do not touch the reference count). More...
	~implements () override=default
	Virtual destructor. More...
unsigned long	addRef () override
	Reference Interface instance. More...
unsigned long	release () override
	Release Interface instance. More...
unsigned long	refCount () const override
	Current reference count. More...
Public Member Functions inherited from extend_interfaces< Interfaces... >
	~extend_interfaces () override=default
	Virtual destructor. More...

Static Public Member Functions
static const CLID &	classID ()
	Inquire class type. More...
Static Public Member Functions inherited from RootHistCnv::RConverter
static long	storageType ()
	Inquire storage type. More...

Additional Inherited Members
Public Types inherited from Converter
typedef Gaudi::PluginService::Factory< IConverter *, ISvcLocator * >	Factory
Public Types inherited from implements< IConverter >
using	base_class = implements< Interfaces... >
	Typedef to this class. More...
using	extend_interfaces_base = extend_interfaces< Interfaces... >
	Typedef to the base of this class. More...
using	iids = typename extend_interfaces_base::ext_iids
Public Types inherited from extend_interfaces< Interfaces... >
using	ext_iids = typename Gaudi::interface_list_cat< typename Interfaces::ext_iids... >::type
	take union of the ext_iids of all Interfaces... More...
Protected Member Functions inherited from RootHistCnv::RConverter
	RConverter (const CLID &clid, ISvcLocator *svc)
	Standard constructor. More...
	~RConverter () override=default
	Standard destructor. More...
virtual StatusCode	readObject (IOpaqueAddress *pAddr, DataObject *&refpObj)
	Create the transient representation of an object. More...
StatusCode	createAddress (DataObject *pObject, TDirectory *pDir, TObject *pTObject, IOpaqueAddress *&refpAddr)
	Create address of the transient object according to the requested representation. More...
StatusCode	createAddress (const std::string &rzdir, const CLID &clid, long id, TObject *pTobj, IOpaqueAddress *&refpAddress)
StatusCode	createAddress (const std::string &rzdir, const CLID &clid, const std::string &title, TObject *pTobj, IOpaqueAddress *&refpAddress)
TDirectory *	changeDirectory (DataObject *pObject)
	Switch to object directory (=Parent directory) More...
Protected Member Functions inherited from Converter
	~Converter () override=default
	Standard Destructor. More...
SmartIF< ISvcLocator > &	serviceLocator () const
	Retrieve pointer to service locator. More...
SmartIF< IMessageSvc > &	msgSvc () const
	Retrieve pointer to message service. More...
SmartIF< IDataManagerSvc > &	dataManager () const
	Get Data Manager service. More...
Protected Attributes inherited from implements< IConverter >
std::atomic_ulong	m_refCount
	Reference counter. More...

Detailed Description

template<typename T, typename S, typename Q>
class RootHistCnv::RHistogramCnv< T, S, Q >

Generic converter to save/read AIDA_ROOT histograms using ROOT.

This converter shortcuts the AIDA binding and takes advantage of the underlying implementation of transient histograms using ROOT.

Note: THxY::Copy cannot be used - only THxY::Add !

Author

Markus Frank

Definition at line 32 of file RHistogramCnv.h.

Constructor & Destructor Documentation

template<typename T , typename S , typename Q >

RootHistCnv::RHistogramCnv< T, S, Q >::RHistogramCnv ( ISvcLocator *  svc )

inline

Standard constructor.

Definition at line 93 of file RHistogramCnv.h.

: RConverter( classID(), svc ) {}

template<typename T , typename S , typename Q >

RootHistCnv::RHistogramCnv< T, S, Q >::~RHistogramCnv ( )

overridedefault

Member Function Documentation

const CLID & RootHistCnv::RootHistCnvH3DCnv::classID ( )

static

Inquire class type.

Definition at line 9 of file RHistogramCnv.cpp.

  {
    return CLID_ProfileH;
  }

template<typename T , typename S , typename Q >

StatusCode RootHistCnv::RHistogramCnv< T, S, Q >::createObj ( IOpaqueAddress *  pAddr, DataObject *&  refpObj  )

inlineoverride

Create the transient representation of an object.

Definition at line 41 of file RHistogramCnv.h.

    {
      refpObj           = DataObjFactory::create( objType() );
      RootObjAddress* r = dynamic_cast<RootObjAddress*>( pAddr );
      Q* h              = dynamic_cast<Q*>( refpObj );
      if ( r && h ) {
        // Need to flip representation .... clumsy for the time being, because
        // THXY constructor has no "generic" copy constructor
        std::unique_ptr<T> p( new T() );
        S* s = dynamic_cast<S*>( r->tObj() );
        if ( s && p.get() ) {
          TTH<S>* casted = (TTH<S>*)s;
          TArray* a      = dynamic_cast<TArray*>( s );
          casted->CopyH( *p );
          if ( 0 != a ) {
            p->Set( a->GetSize() );
            p->Reset();
            p->Add( s );
            h->adoptRepresentation( p.release() );
            return StatusCode::SUCCESS;
          }
        }
      }
      return error( "Cannot create histogram - invalid address." );
    }

template<typename T , typename S , typename Q >

TObject* RootHistCnv::RHistogramCnv< T, S, Q >::createPersistent ( DataObject *  pObj )

inlineoverridevirtual

Create the persistent representation of the histogram object.

Reimplemented from RootHistCnv::RConverter.

Definition at line 69 of file RHistogramCnv.h.

    {
      Q* h = dynamic_cast<Q*>( pObj );
      if ( 0 != h ) {
        T* r = dynamic_cast<T*>( h->representation() );
        if ( r ) {
          T* c      = new T();
          TArray* a = dynamic_cast<TArray*>( r );
          ( (TTH<S>*)r )->CopyH( *c );
          if ( 0 != a ) {
            c->Set( a->GetSize() );
            c->Reset();
            c->Add( r );
            c->SetName( pObj->registry()->name().c_str() + 1 );
            return c;
          }
        }
      }
      error( "Histogram object is invalid!" );
      return 0;
    }

template<typename T , typename S , typename Q >

StatusCode RootHistCnv::RHistogramCnv< T, S, Q >::updateObj ( IOpaqueAddress *  , DataObject *    )

inlineoverride

Update the transient object from the other representation.

Definition at line 67 of file RHistogramCnv.h.

{ return StatusCode::SUCCESS; }

---

The documentation for this class was generated from the following files:

• RootHistCnv/src/RHistogramCnv.h
• RootHistCnv/src/RHistogramCnv.cpp
